CVT POSITION

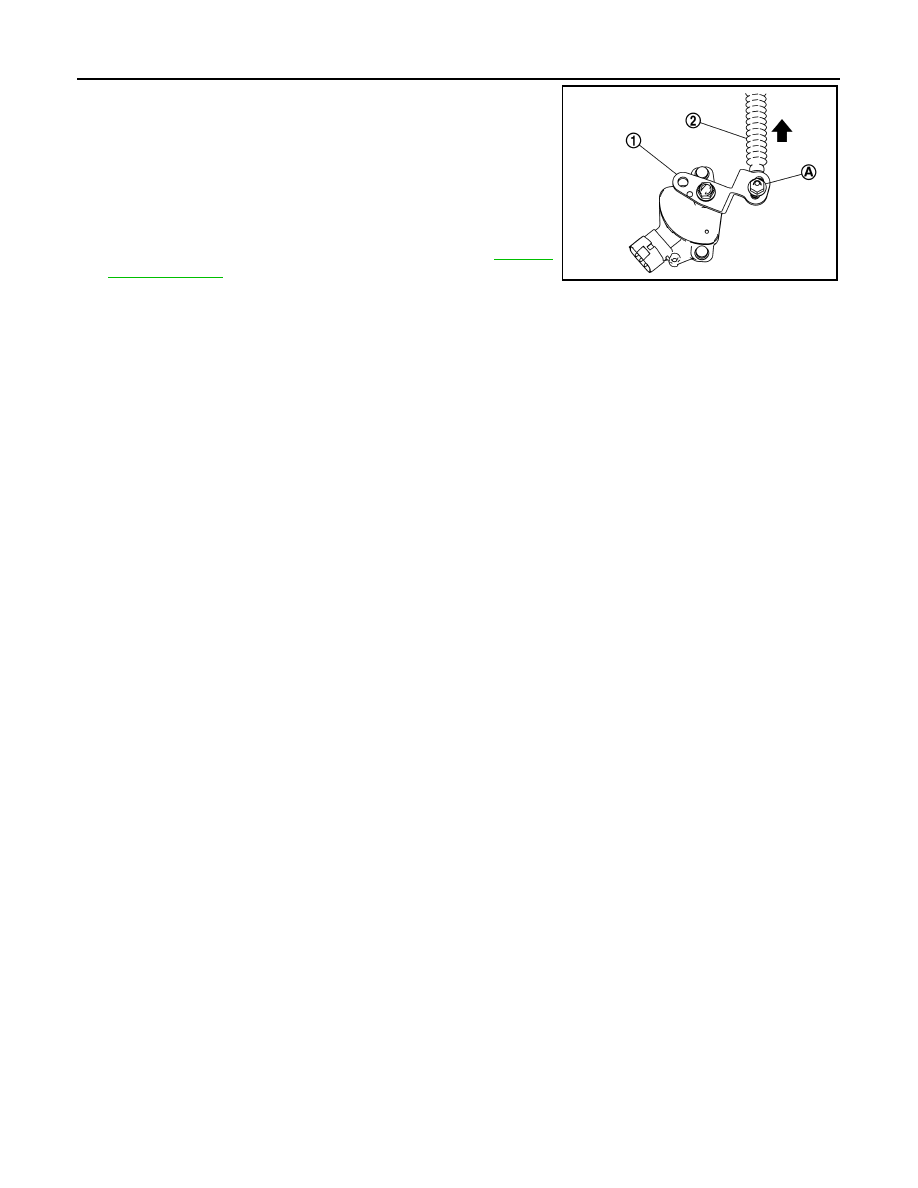

2. Loosen nut (A) and set manual lever (1) to the “P” position.

CAUTION:

Do not apply force to the manual lever.

3. Hold the control cable (2) and push it to direction of the arrow

with a specified force.

4. Temporarily tighten the nut with the control cable loose.
5. Tighten the nut to the specified torque. Refer to

TM-197,

"Exploded View"

.

CAUTION:

Hold the manual lever securely in the "P" position when tightening control cable nut.

Specified force

: 9.8 N (1.0 kg, 2.2 lb)

JSDIA4171ZZ

HOW TO ERASE PERMANENT DTC

TM-93

< BASIC INSPECTION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

HOW TO ERASE PERMANENT DTC

Description

INFOID:0000000011279306

Permanent DTC can be erased by driving each driving pattern.

ECM recognizes each driving pattern; it transmits signals to each control module when the driving is complete.

Each control module erases permanent DTC based on those signals. For details, refer to

EC-154, "Descrip-

tion"

.

TM-94

< DTC/CIRCUIT DIAGNOSIS >

[CVT: RE0F10D]

U0073 COMMUNICATION BUS A OFF

DTC/CIRCUIT DIAGNOSIS

U0073 COMMUNICATION BUS A OFF

DTC Description

INFOID:0000000011279307

DTC DETECTION LOGIC

POSSIBLE CAUSE

Harness or connector (CAN communication line is error)

FAIL-SAFE

• Selector shock is large

• Start  is  slow

• Acceleration is slow

• Lock-up is not performed

DTC CONFIRMATION PROCEDURE

1.

PREPARATION BEFORE WORK

If another “DTC CONFIRMATION PROCEDURE” occurs just before, turn ignition switch OFF and wait for at

least 10 seconds, then perform the next test.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1. Start the engine and wait for at least 5 seconds.

2. Check the DTC.
Is “U0073” detected?

YES

>> Go to

TM-94, "Diagnosis Procedure"

.

NO-1 >> To check malfunction symptom before repair: Refer to

GI-44, "Intermittent Incident"

.

NO-2 >> Confirmation after repair: INSPECTION END

Diagnosis Procedure

INFOID:0000000011279308

For the diagnosis procedure, refer to

LAN-17, "Trouble Diagnosis Flow Chart"

.

DTC

CONSULT screen terms

(Trouble diagnosis content)

DTC detection condition

U0073

COMM BUS A OFF
(Control Module Communication Bus A Off)

TCM communication blockage lasts for 2 seconds or more when turning
ON the ignition switch. (Communication not established.)

U0100 LOST COMMUNICATION (ECM A)

TM-95

< DTC/CIRCUIT DIAGNOSIS >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

U0100 LOST COMMUNICATION (ECM A)

DTC Description

INFOID:0000000011279309

DTC DETECTION LOGIC

POSSIBLE CAUSE

• ECM

• Harness or connector (CAN communication line is open or shorted)

FAIL-SAFE

• Selector shock is large

• Start  is  slow

• Acceleration is slow

• Lock-up is not performed

DTC CONFIRMATION PROCEDURE

1.

PREPARATION BEFORE WORK

If another “DTC CONFIRMATION PROCEDURE” occurs just before, turn ignition switch OFF and wait for at

least 10 seconds, then perform the next test.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1. Start the engine and wait for at least 5 seconds.

2. Check the DTC.
Is “U0100” detected?

YES

>> Go to

TM-95, "Diagnosis Procedure"

.

NO-1 >> To check malfunction symptom before repair: Refer to

GI-44, "Intermittent Incident"

.

NO-2 >> Confirmation after repair: INSPECTION END

Diagnosis Procedure

INFOID:0000000011279310

For the diagnosis procedure, refer to

LAN-17, "Trouble Diagnosis Flow Chart"

.

DTC

CONSULT screen terms

(Trouble diagnosis content)

DTC detection condition

U0100

LOST COMM (ECM A)
(Lost Communication With ECM/PCM A)

When the ignition switch is ON, TCM is unable to receive the CAN
communications signal from ECM continuously for 2 seconds or more.
