TM-76

< WIRING DIAGRAM >

[CVT: RE0F10D]

CVT SHIFT LOCK SYSTEM

AADIA0648GB

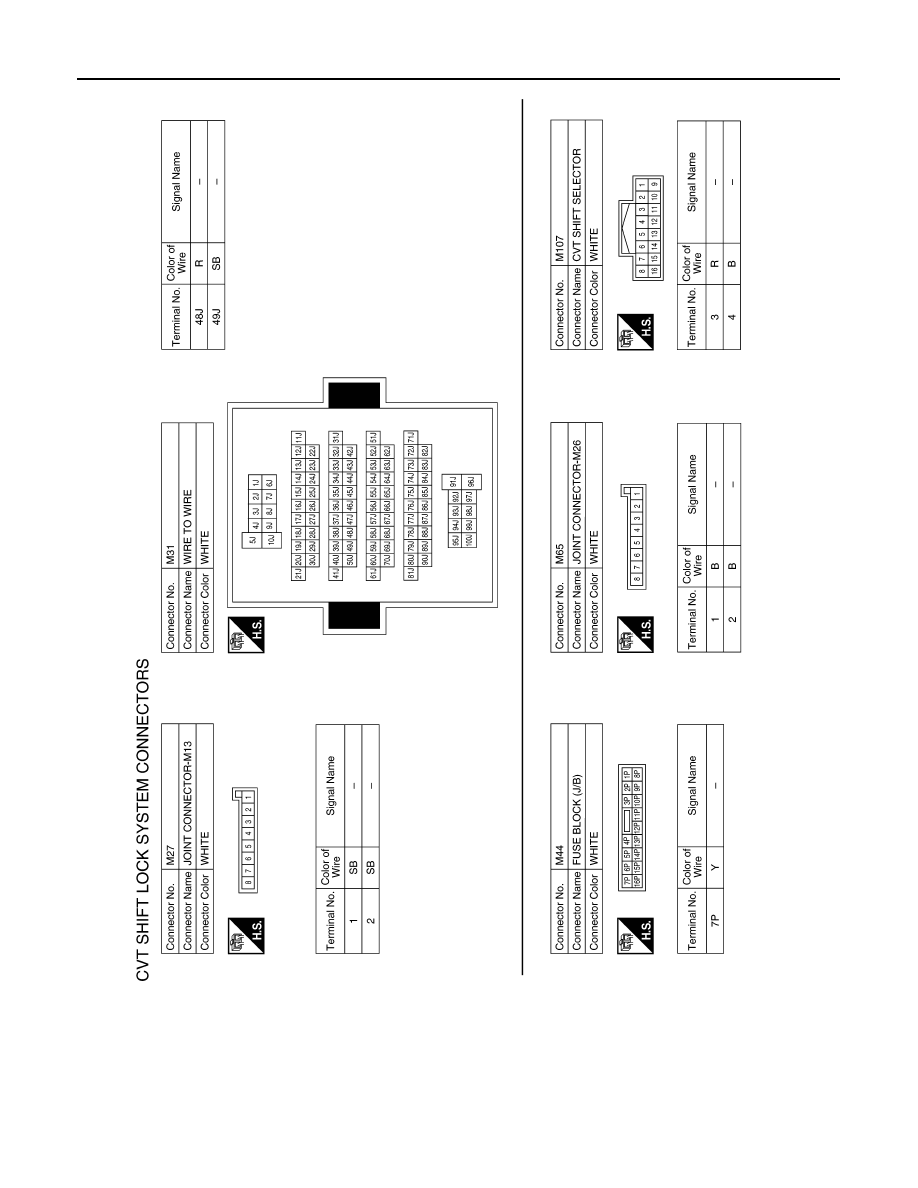

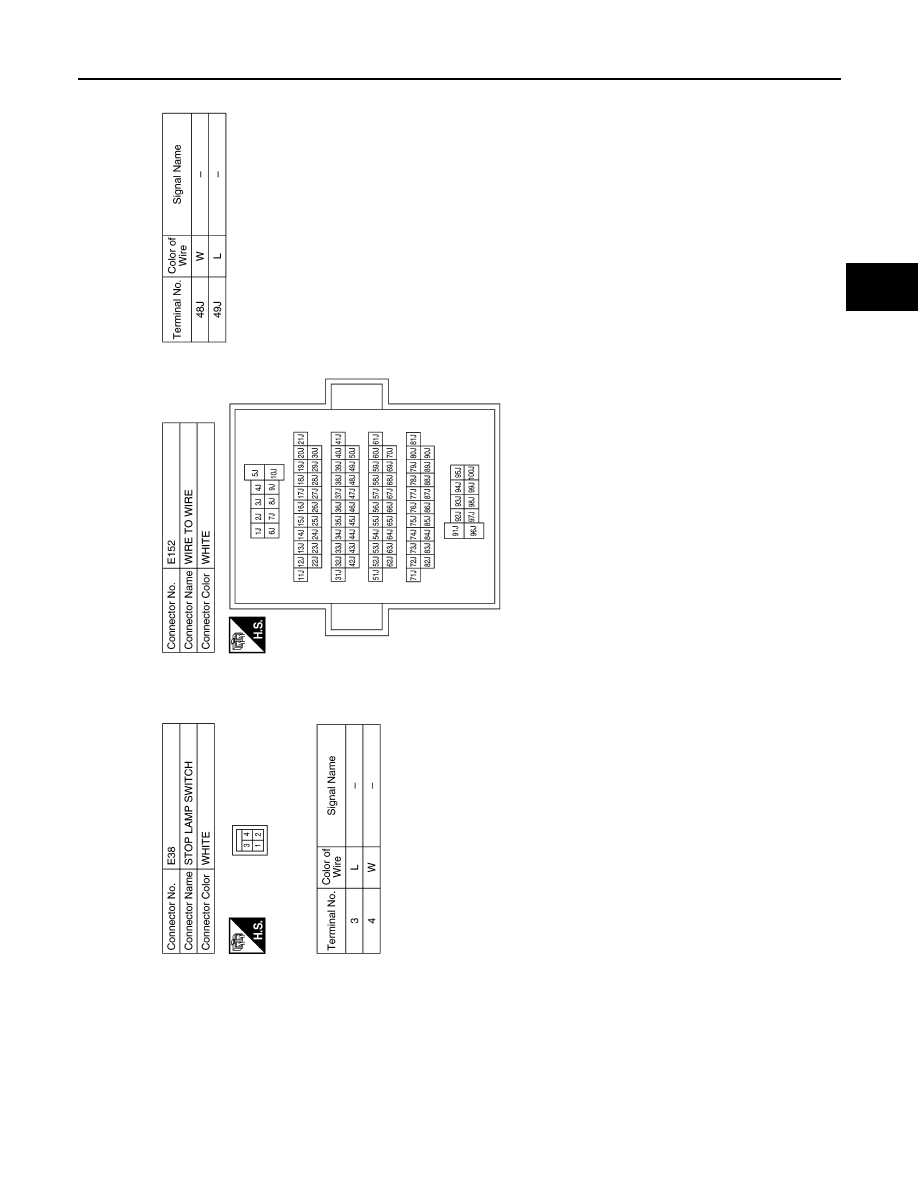

CVT SHIFT LOCK SYSTEM

TM-77

< WIRING DIAGRAM >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

AADIA0649GB

TM-78

< BASIC INSPECTION >

[CVT: RE0F10D]

DIAGNOSIS AND REPAIR WORK FLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000011279294

NOTE:

“DTC” includes DTC at the 1st trip.

1.

OBTAIN INFORMATION ABOUT SYMPTOM

Refer to

TM-79, "Diagnostic Work Sheet"

 and interview the customer to obtain the malfunction information

(conditions and environment when the malfunction occurred) as much as possible when the customer brings

in the vehicle.

>> GO TO 2.

2.

CHECK DTC

1. Before checking the malfunction, check whether any DTC exists.

2. If DTC exists, perform the following operations.

-

Records the DTCs. (Print out using CONSULT and affix to the Work Order Sheet.)

-

Erase DTCs.

-

Check the relation between the cause found by DTC and the malfunction information from customer.

TM-

185, "Symptom Table"

 can be used effectively.

3. Check the relevant information including STI, etc.
Do malfunction information and DTC exists?

Malfunction information and DTC exists.>>GO TO 3.

Malfunction information exists but no DTC.>>GO TO 4.

No malfunction information, but DTC exists.>>GO TO 5.

3.

REPRODUCE MALFUCTION SYSTEM

Check the malfunction described by the customer on the vehicle.

Check if the behavior is fail safe or normal operation. Refer to

TM-58, "Fail-safe"

.

Interview sheet can be used effectively when reproduce malfunction conditions. Refer to

TM-79, "Diagnostic

Work Sheet"

.

Verify the relationship between the symptom and the conditions in which the malfunction described by the cus-

tomer occurs.

>> GO TO 5.

4.

REPRODUCE MALFUNCTION SYMPTOM

Check the malfunction described by the customer on the vehicle.

Check if the behavior is fail safe or normal operation. Refer to

TM-58, "Fail-safe"

.

Interview sheet can be used effectively when reproduce malfunction conditions. Refer to

TM-79, "Diagnostic

Work Sheet"

.

Verify the relationship between the symptom and the conditions in which the malfunction described by the cus-

tomer occurs.

>> GO TO 6.

5.

PERFORM “DTC CONFIRMATION PROCEDURE”

Perform “DTC CONFIRMATION PROCEDURE” of the appropriate DTC to check if DTC is detected again.

Refer to

TM-62, "DTC Inspection Priority Chart"

 when multiple DTCs are detected, and then determine the

order for performing the diagnosis.
Is any DTC detected?

YES

>> GO TO 7.

NO

>> Follow

GI-44, "Intermittent Incident"

 to check.

6.

IDENTIFY MALFUNCTIONING SYSTEM WITH “DIAGNOSIS CHART BY SYMPTOM”

DIAGNOSIS AND REPAIR WORK FLOW

TM-79

< BASIC INSPECTION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Use

TM-185, "Symptom Table"

 from the symptom inspection result in step 4. Then identify where to start per-

forming the diagnosis based on possible causes and symptoms.

>> GO TO 8.

7.

REPAIR OR REPLACE THE MALFUNCTIONING PARTS

Repair or replace the detected malfunctioning parts.

Reconnect parts or connector after repairing or replacing, and then erase DTC if necessary.

>> GO TO 8.

8.

FINAL CHECK

Perform “DTC CONFIRMATION PROCEDURE” again to make sure that the repair is correctly performed.

Check that malfunctions are not reproduced when obtaining the malfunction information from the customer,

referring to the symptom inspection result in step 3 or 4.
Is DTC or malfunction symptom reproduced?

YES-1 (DTC is reproduced.)>>GO TO 5.

YES-2 (Malfunction is reproduced.)>>GO TO 6.

NO

>> Before delivering the vehicle to the customer, make sure that DTC is erased.

Diagnostic Work Sheet

INFOID:0000000011279295

DESCRIPTION

There are many operating conditions that may cause a malfunction

of the transmission parts. By understanding those conditions prop-

erly, a quick and exact diagnosis can be achieved.

In general, perception of a problem varies depending on individuals.

Ask the customer about his/her concerns carefully. It is important to

understand the phenomenon or status. To systemize all the informa-

tion for the diagnosis, prepare the question sheet referring to the

question points.

In some cases, multiple conditions that appear simultaneously may

cause a DTC to be detected.

Worksheet Sample

SEF907L

Question sheet

Customer's
name

MR/MS

Registration
number

Initial year
registration

Year

Month

day

Vehicle type

Chassis No.

Storage date

Year

Month

day

Engine

Mileage

km/mile

Symptom

†

 Vehicle does not start. († R position  † D position  † L position)

†

 Upshifting does not occur.

†

 Downshifting does not occur.

†

 Lock-up malfunction

†

 Shift point is too high.

†

 Shift point is too low.

†

 Shift shock († N

⇒D † Lock-up  † R, D, and L)

†

 Slip († N

⇒D † Lock-up  † R, D, and L)

†

Noise

†

 Vibration

When selector lever position is shifted, shift pattern does not change.

†

 Other

 (

First occurrence

†

 Recently (as from month

 of year

)

Frequency of occurrence

†

 Always

†

 Under certain conditions

†

 Sometimes (

 time(s)/day)
