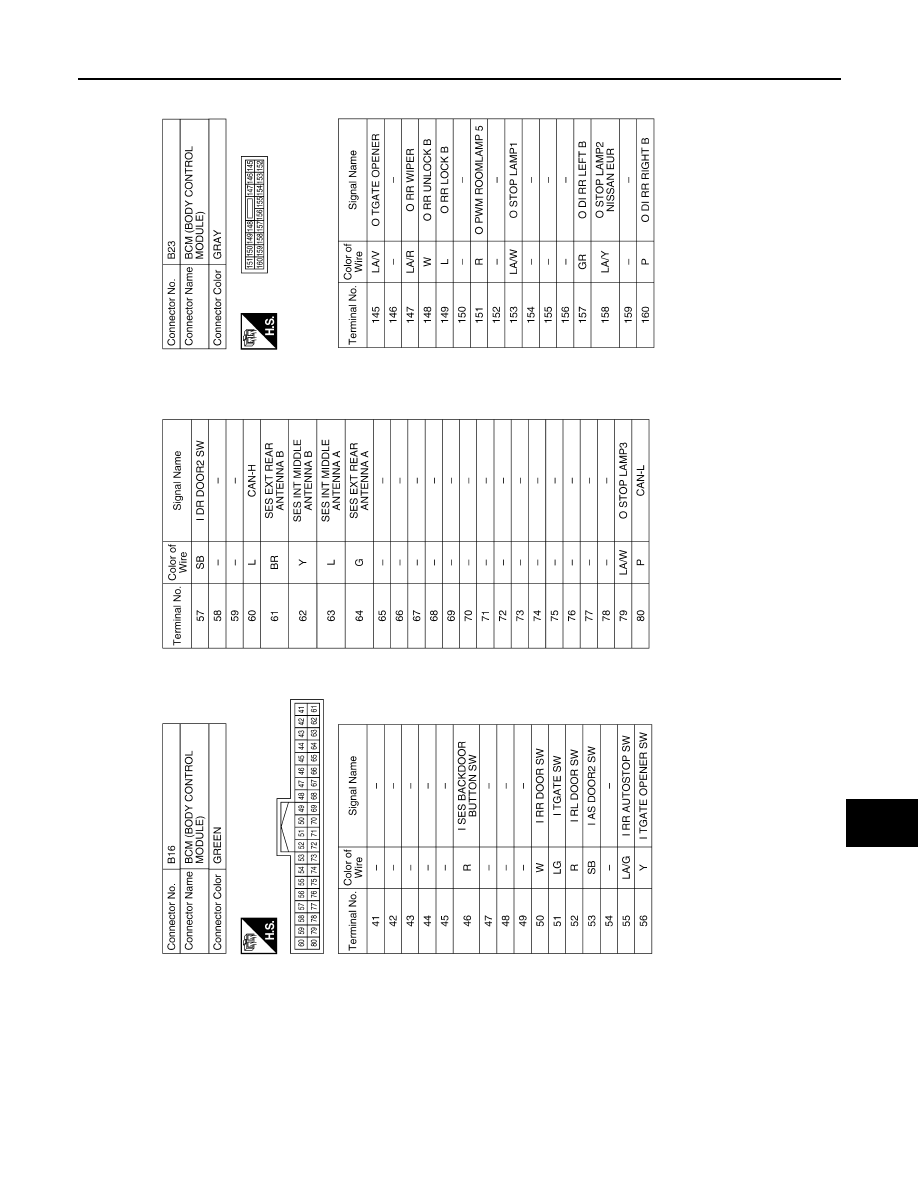

BCS-58

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

BCM

AAMIA2833GB

BCS

BCM

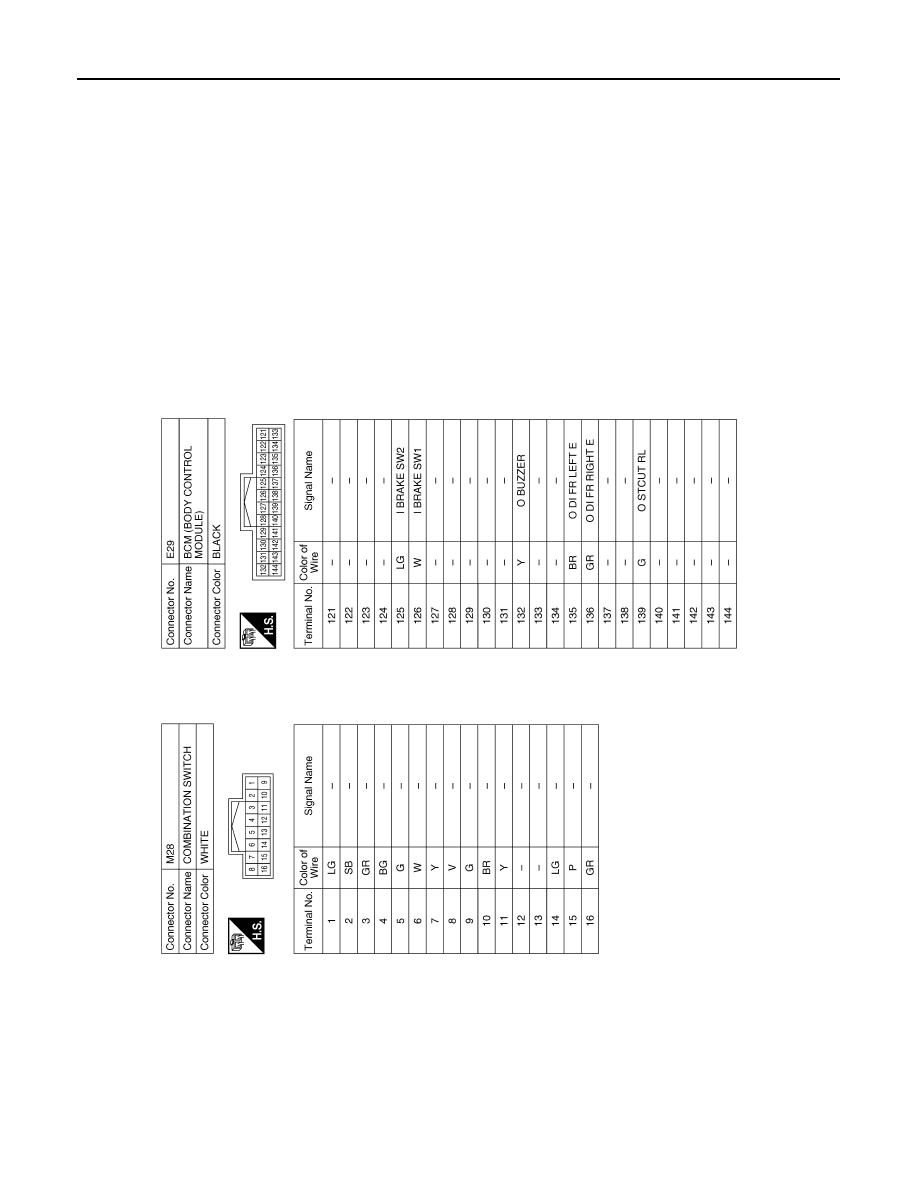

BCS-59

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

AAMIA2136GB

BCS-60

< BASIC INSPECTION >

[WITH INTELLIGENT KEY SYSTEM]

INSPECTION AND ADJUSTMENT

BASIC INSPECTION

INSPECTION AND ADJUSTMENT

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (BCM)
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (BCM) : Description

INFOID:0000000011280207

BEFORE REPLACEMENT

When replacing BCM, save or print current vehicle specification with CONSULT configuration before replace-

ment.

NOTE:

If “Before Replace ECU” cannot be used, use the “After Replace ECU” or “Manual Configuration” after replac-

ing BCM.

AFTER REPLACEMENT

CAUTION:

• When replacing BCM, you must perform “After Replace ECU” with CONSULT.

- Complete the procedure of “After Replace ECU” in order.

- If you set incorrect “After Replace ECU”, incidents might occur.

- Configuration is different for each vehicle model. Confirm configuration of each vehicle model.

• When replacing BCM, perform the system initialization (NATS).

• When replacing BCM, perform “Configuration” of CAN gateway.

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (BCM) : Work Proce-
dure

INFOID:0000000011280208

1.

SAVING VEHICLE SPECIFICATION (BCM)

CONSULT

Enter “Re/Programming, Configuration” and perform “Before Replace ECU” to save or print current vehicle

specification.

NOTE:

If “Before Replace ECU” cannot be used, use the “After Replace ECU” or “Manual Configuration” after replac-

ing BCM.

>> GO TO 2.

2.

SAVING VEHICLE SPECIFICATION (CAN GATEWAY)

CONSULT

Perform “READ CONFIGURATION” to save or print current vehicle specification. Refer to

LAN-75, "CONSULT

Function"

.

NOTE:

If “READ CONFIGURATION” cannot be used, use the “WRITE CONFIGURATION - Manual selection” after

replacing BCM.

>> GO TO 3.

3.

REPLACE BCM

Replace BCM. Refer to

BCS-75, "Removal and Installation"

.

>> GO TO 4.

4.

WRITING VEHICLE SPECIFICATION (BCM)

CONSULT

1. Enter “Re/Programming, Configuration”.

2. If “Before Replace ECU” operation was performed, automatically an “Operation Log Selection” screen will

be displayed. Select the applicable file from the “Saved Data List” and press “Confirm” to write vehicle

specification. Refer to

BCS-61, "CONFIGURATION (BCM) : Work Procedure"

.

BCS

INSPECTION AND ADJUSTMENT

BCS-61

< BASIC INSPECTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

3. If “Before Replace ECU” operation was not performed, select “After Replace ECU” or “Manual Configura-

tion” to write vehicle specification. Refer to

BCS-61, "CONFIGURATION (BCM) : Work Procedure"

.

>> GO TO 5.

5.

INITIALIZE BCM (NATS)

Perform BCM initialization. (NATS)

>> GO TO 6.

6.

INITIALIZE TPMS

Perform TPMS initialization. Refer to

WT-29, "Work Procedure"

.

>> GO TO 7.

7.

WRITING VEHICLE SPECIFICATION (CAN GATEWAY FUNCTION)

CONSULT

Perform “WRITE CONFIGURATION – Config file” or “WRITE CONFIGURATION – Manual selection” to write

vehicle specification. Refer to

LAN-77, "Work Procedure"

.

>> GO TO 8.

8.

REGISTER INTELLIGENT KEYS

For initialization and registration of Intelligent Keys, refer to CONSULT Immobilizer mode and follow the on-

screen instructions.

>> Work End.

CONFIGURATION (BCM)
CONFIGURATION (BCM) : Description

INFOID:0000000011280209

Vehicle specification needs to be written with CONSULT because it is not written after replacing BCM.

Configuration has three functions as follows:

CAUTION:

• When replacing BCM, you must perform “Select Saved Data List” or "After Replace ECU" with CON-

SULT.

• Complete the procedure of “Select Saved Data List” or "After Replace ECU" in order.

• If you set incorrect “Select Saved Data List” or "After Replace ECU", incidents might occur.

• Configuration is different for each vehicle model. Confirm configuration of each vehicle model.

• Never perform “Select Saved Data List” or "After Replace ECU" except for new BCM.

CONFIGURATION (BCM) : Work Procedure

INFOID:0000000011280210

1.

WRITING MODE SELECTION

CONSULT

Select “Reprogramming, Configuration” of BCM.

When writing saved data>>GO TO 2.

When writing manually>>GO TO 3.

Function

Description

"Before Replace ECU"

• Reads the vehicle configuration of current BCM.
• Saves the read vehicle configuration.

"After Replace ECU"

Writes the vehicle configuration with manual selection.

"Select Saved Data List"

Writes the vehicle configuration with saved data.
