B2198 NATS ANTENNA AMP.

DTC Logic

INFOID:0000000011278588

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1. Make the conditions that BCM enters in the low power consumption mode (BCM sleep condition).

Refer to

BCS-84, "POWER CONSUMPTION CONTROL SYSTEM : System Description"

.

2. Turn ignition switch ON.

3. Check DTC in “Self Diagnostic Result” of “BCM” using CONSULT.
Is DTC detected?

YES

>> Go to

SEC-175, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000011278589

Regarding Wiring Diagram information, refer to

SEC-133, "Wiring Diagram"

.

1.

CHECK FUSE

1. Turn power switch OFF.

2. Check that the following fuse in fuse block (J/B) is not blown.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace the blown fuse after repairing the affected circuit.

2.

CHECK NATS ANTENNA AMP. POWER SUPPLY

1. Disconnect NATS antenna amp. connector.

2. Check voltage between NATS antenna amp. harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 3.

3.

CHECK NATS ANTENNA AMP. POWER SUPPLY CIRCUIT

1. Disconnect fuse block (J/B) connector.

2. Check continuity between fuse block (J/B) harness connector and NATS antenna amp. connector.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

B2198

NATS ANTENNA AMP

Inactive communication between NATS
antenna amp. and BCM is detected when
BCM enters in the low power consumption
mode. (BCM sleep condition)

• Harness or connectors

(NATS antenna amp. circuit is open or
shorted.)

• NATS antenna amp.
• BCM

Signal name

Fuse No.

Battery power supply

9 (5 A)

(+)

(–)

Voltage (V)

(Approx.)

NATS antenna amp.

Connector

Terminal

M4

3

Ground

Battery voltage

2015 Rogue NAM

SEC-176

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

B2198 NATS ANTENNA AMP.

Is the inspection result normal?

YES

>> Replace fuse block (J/B).

NO

>> Repair or replace harness.

4.

CHECK NATS ANTENNA AMP. GROUND CIRCUIT

Check continuity between NATS antenna amp. harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace harness.

5.

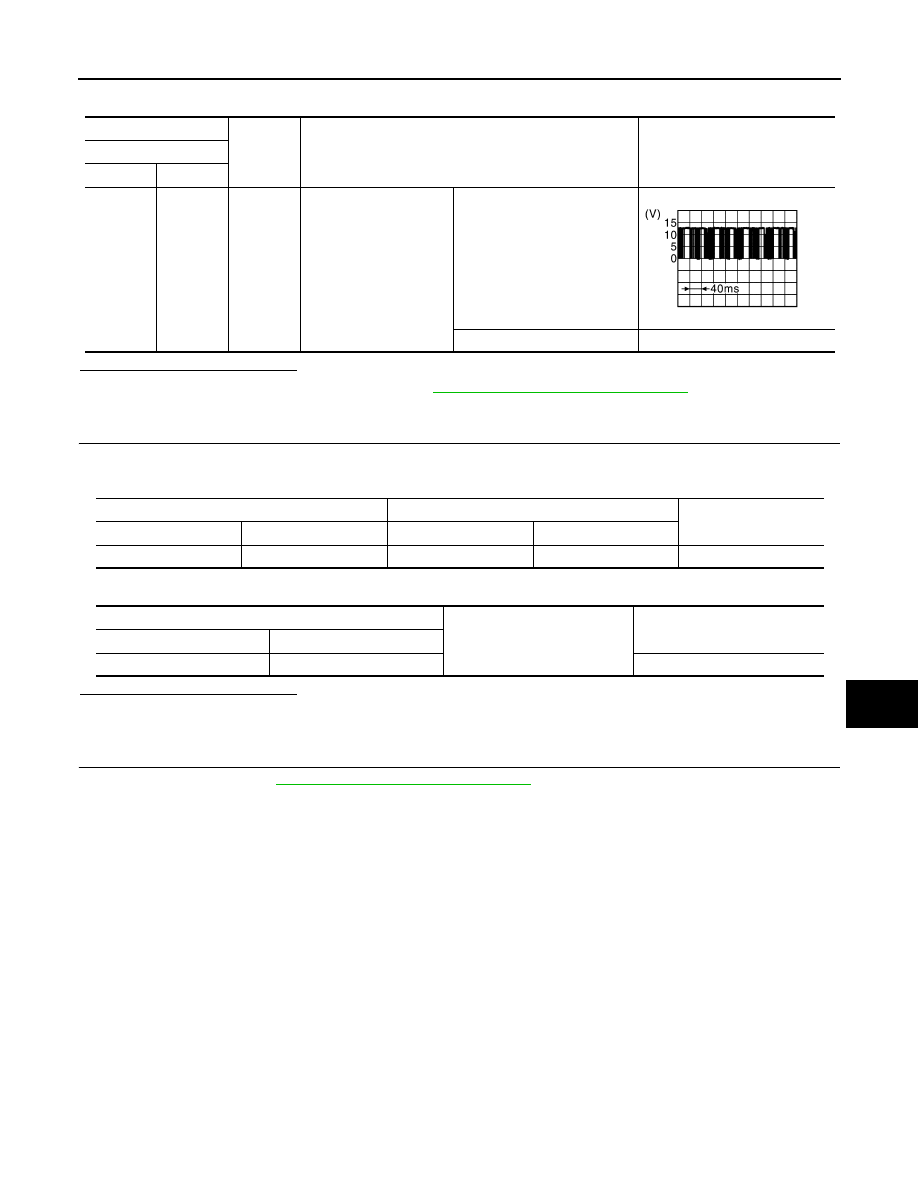

CHECK NATS ANTENNA AMP. COMMUNICATION SIGNAL 1

Check voltage signal between NATS antenna amp. harness connector and ground using an oscilloscope.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> GO TO 6.

6.

CHECK NATS ANTENNA AMP. OUTPUT SIGNAL CIRCUIT 1

1. Disconnect BCM connector.

2. Check continuity between NATS antenna amp. harness connector and BCM connector.

3. Check continuity between NATS antenna amp. harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Repair or replace harness.

7.

CHECK NATS ANTENNA AMP. COMMUNICATION SIGNAL 2

Fuse block (J/B)

NATS antenna amp.

Continuity

Connector

Terminal

Connector

Terminal

M44

12 R

M4

3

Yes

NATS antenna amp.

Ground

Continuity

Connector

Terminal

M4

2

Yes

(+)

(–)

Condition

Voltage (V)

(Approx.)

NATS antenna amp.

Connector

Terminal

M4

1

Ground

Key: Key battery is re-
moved

Brake pedal: Depressed
NOTE:
Waveform varies each time
when brake pedal is depressed.

Brake pedal: Not depressed

Battery voltage

JMKIA6232JP

NATS antenna amp.

BCM

Continuity

Connector

Terminal

Connector

Terminal

M4

1

M19

109

Yes

NATS antenna amp.

Ground

Continuity

Connector

Terminal

M4

1

No

2015 Rogue NAM

B2198 NATS ANTENNA AMP.

SEC-177

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

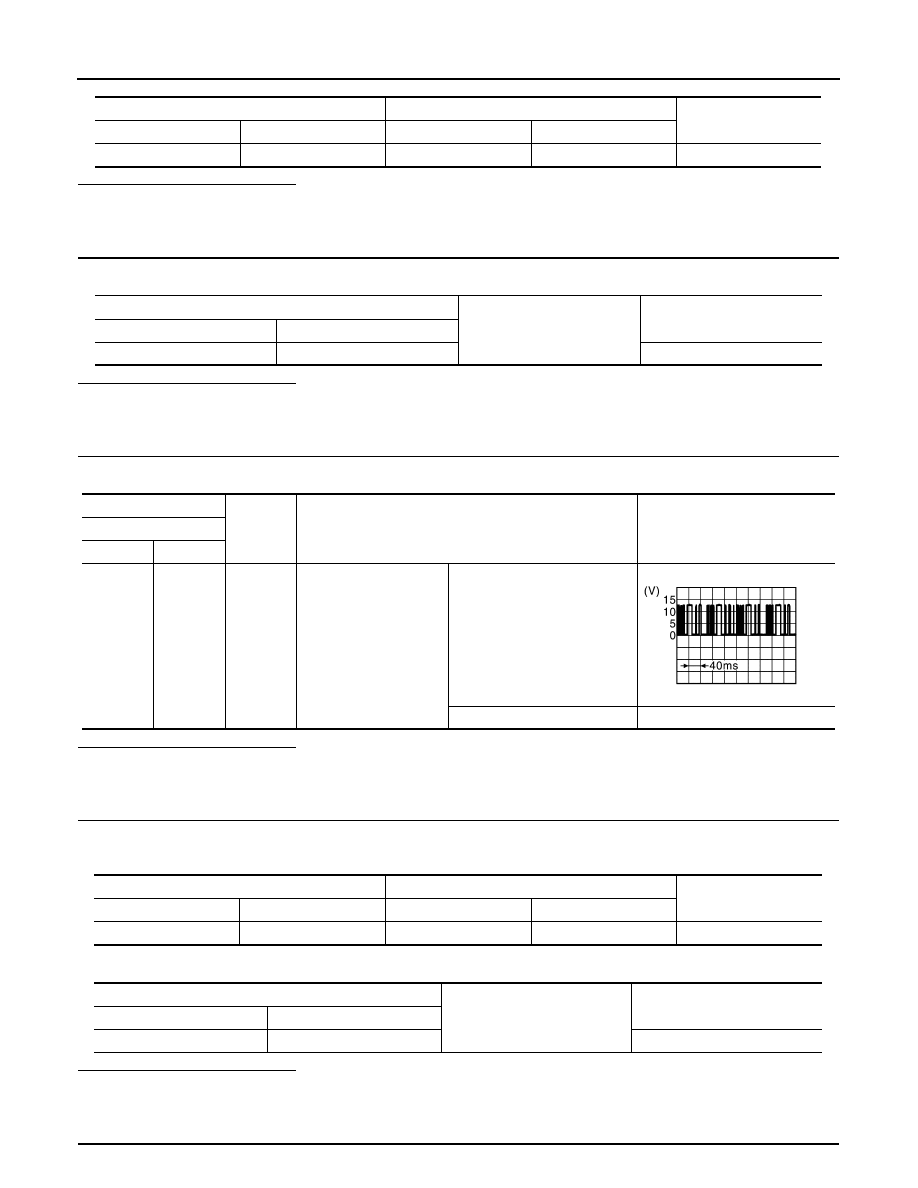

Check voltage signal between NATS antenna amp. harness connector and ground using an oscilloscope.

Is the inspection result normal?

YES

>> Replace NATS antenna amp. Refer to

SEC-195, "Removal and Installation"

.

NO

>> GO TO 8.

8.

CHECK NATS ANTENNA AMP. OUTPUT SIGNAL CIRCUIT 2

1. Disconnect BCM connector.

2. Check continuity between NATS antenna amp. harness connector and BCM connector.

3. Check continuity between NATS antenna amp. harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Repair or replace harness.

9.

REPLACE BCM

1. Replace BCM. Refer to

BCS-135, "Removal and Installation"

.

2. Perform initialization of BCM and registration of all keys using CONSULT.

>> Inspection End

(+)

(–)

Condition

Voltage (V)

(Approx.)

NATS antenna amp.

Connector

Terminal

M4

4

Ground

Key: Key battery is re-
moved

Brake pedal: Depressed
NOTE:
Waveform varies each time
when brake pedal is de-
pressed.

Brake pedal: Not depressed

Battery voltage

JMKIA6233JP

NATS antenna amp.

BCM

Continuity

Connector

Terminal

Connector

Terminal

M4

4

M19

113

Yes

NATS antenna amp.

Ground

Continuity

Connector

Terminal

M4

4

No

2015 Rogue NAM

SEC-178

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT INTELLIGENT KEY SYSTEM]

B2608 STARTER RELAY

B2608 STARTER RELAY

DTC Logic

INFOID:0000000011278590

DTC DETECTION LOGIC

NOTE:

• If DTC B2608 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to

BCS-64, "DTC Logic"

.

• If DTC B2608 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to

BCS-65, "DTC Logic"

.

• If DTC B2608 is displayed with other DTC (BCM), first perform the trouble diagnosis for other DTC detected.

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

1. Press push-button ignition switch under the following conditions to start engine:

-

Selector lever: In the P position

-

Brake pedal: Depressed

2. Wait 1 second after engine started.

3. Check DTC in “Self Diagnostic Result” of “BCM” using CONSULT.
Is DTC detected?

YES

>> Go to

SEC-178, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000011278591

1.

CHECK DTC OF IPDM E/R

Select “Self Diagnostic Result” of “IPDM E/R” using CONSULT.
Is DTC detected?

YES

>> Perform the trouble diagnosis related to the detected DTC. Refer to

PCS-22, "DTC Index"

.

NO

>> GO TO 2.

2.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace BCM. Refer to

BCS-75, "Removal and Installation"

.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

B2608

STARTER RELAY

BCM outputs starter relay OFF signal but
BCM receives starter relay ON signal from
IPDM E/R (CAN).

• Harness or connectors

(The CAN communication line is open or
shorted.)

• Harness or connectors

(Starter relay circuit is open or shorted.)

• IPDM  E/R
• Starter relay
