Nissan Rogue. Manual - part 1089

NVIS

SEC-135

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

AAKWA0990GB

2015 Rogue NAM

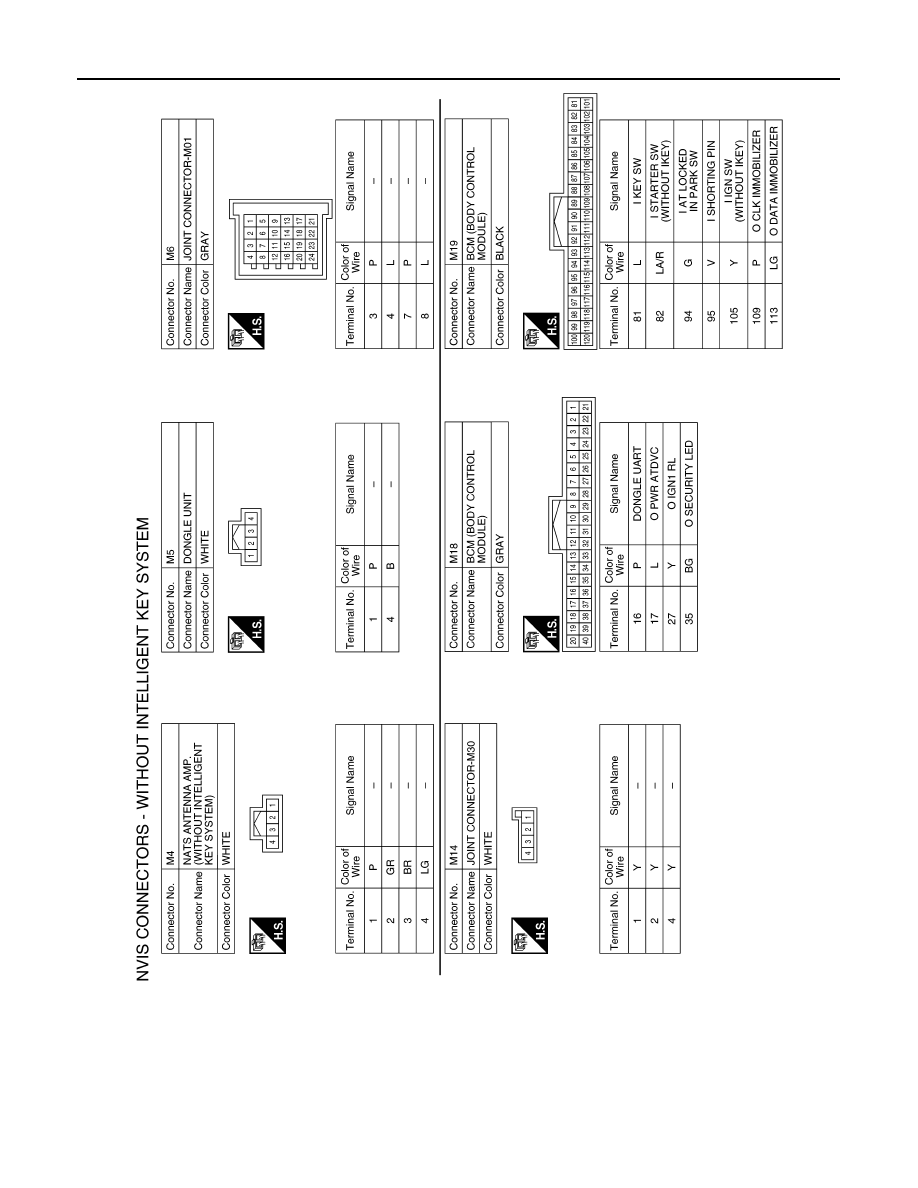

SEC-136

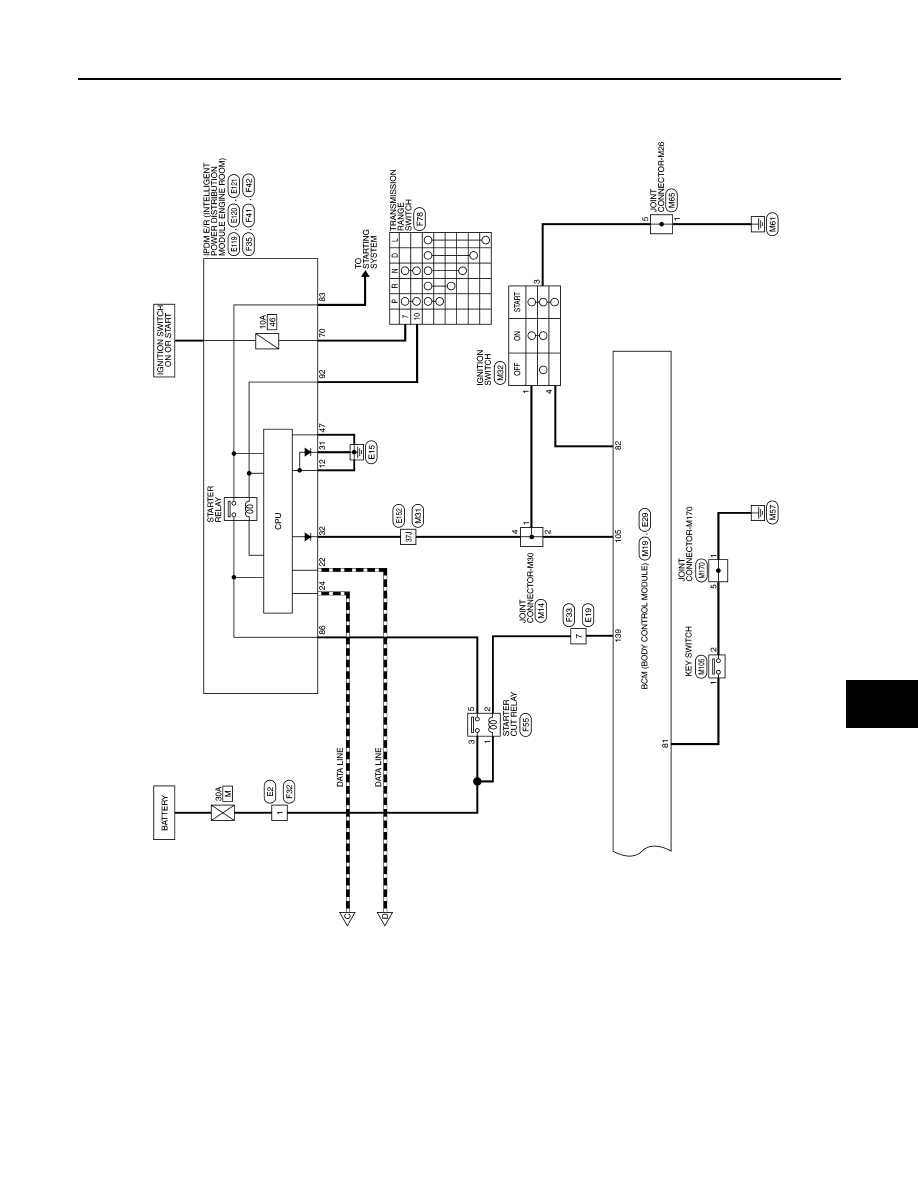

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

NVIS

AAKIA2341GB

2015 Rogue NAM

NVIS

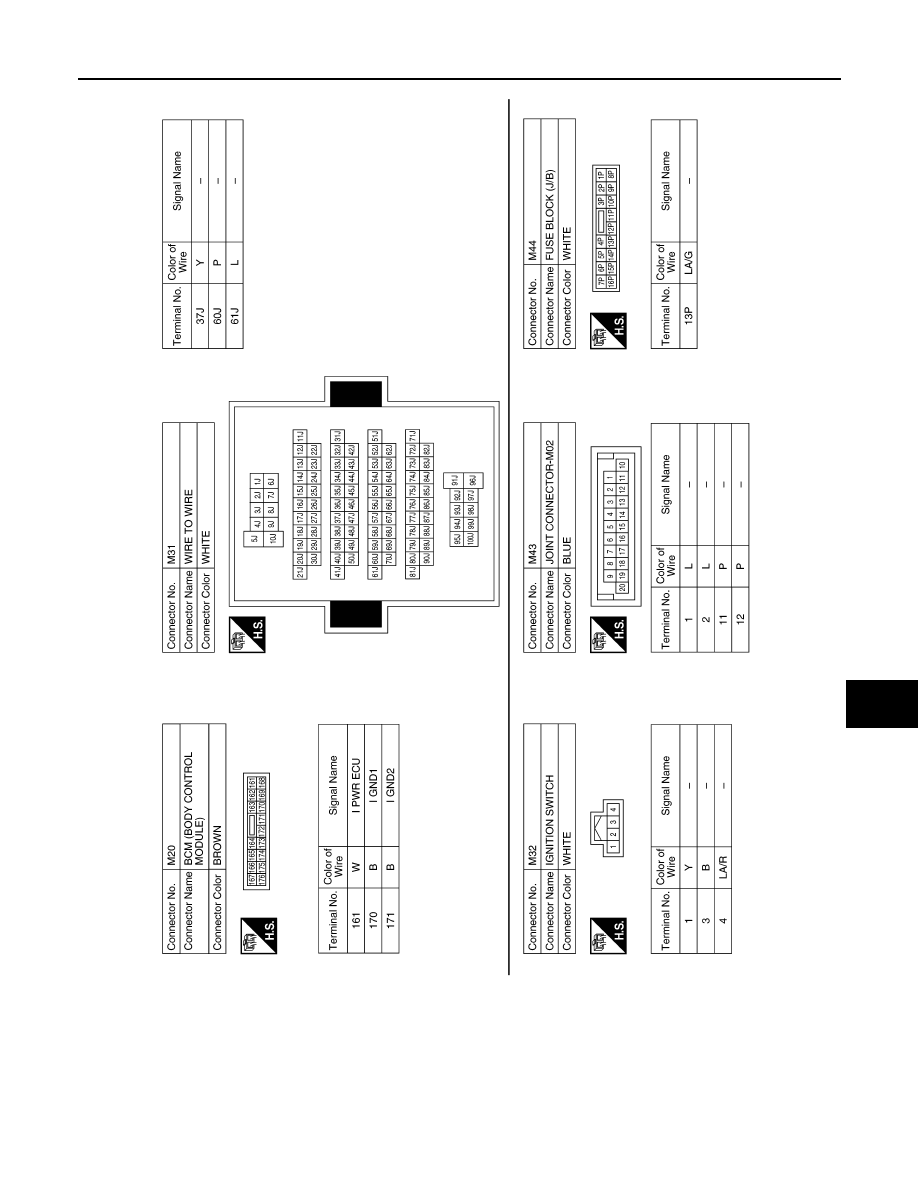

SEC-137

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

AAKIA2342GB

2015 Rogue NAM

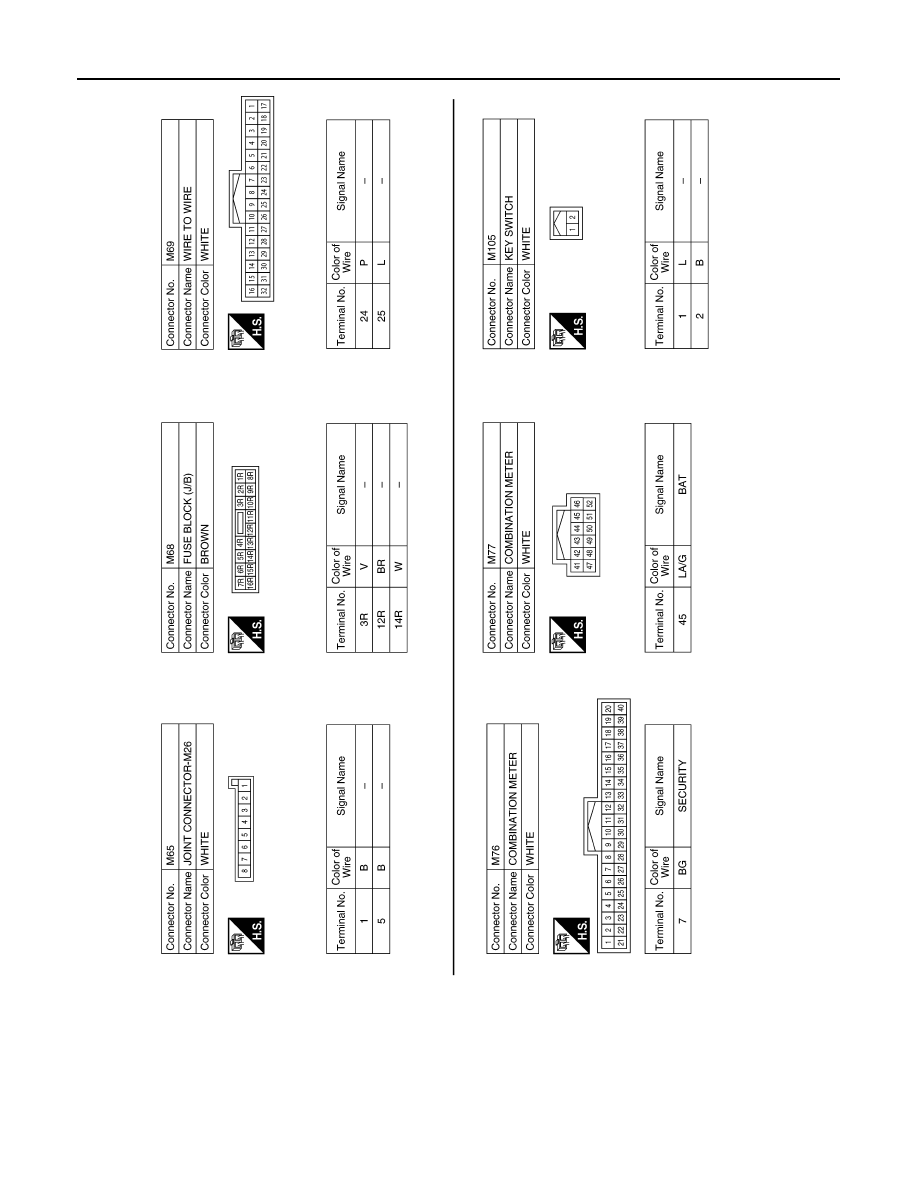

SEC-138

< WIRING DIAGRAM >

[WITHOUT INTELLIGENT KEY SYSTEM]

NVIS

AAKIA2343GB

2015 Rogue NAM
