THIRD ROW SEAT

THIRD ROW SEAT

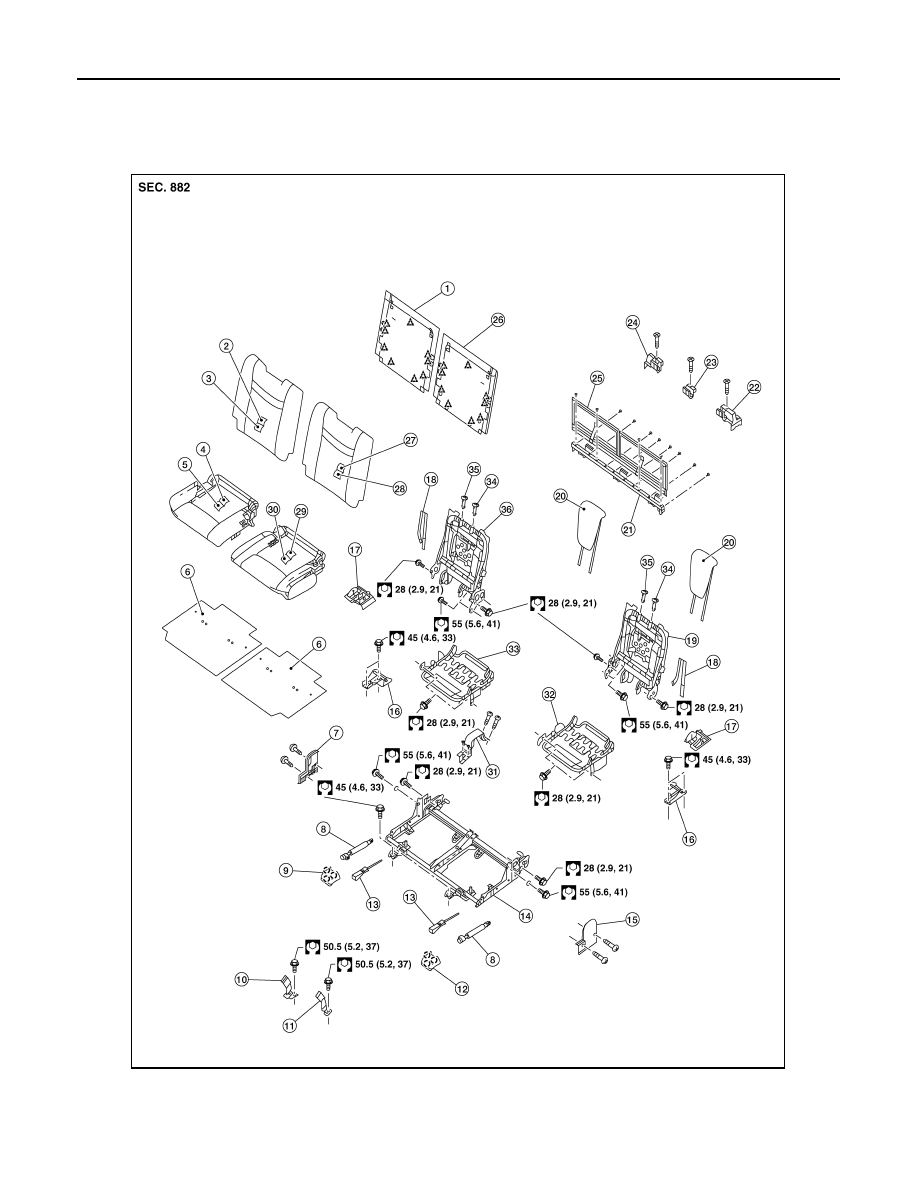

Exploded View

INFOID:0000000011280478

1.

Seatback board (RH)

2.

Seatback trim (RH)

3.

Seatback pad (RH)

4.

Seat cushion trim (RH)

5.

Seat cushion pad (RH)

6.

Seat cushion silencer (LH/RH)

7.

Seat hinge finisher (RH)

8.

Gas stay

9.

Bolt cover (RH)

AWJIA1319ZZ

THIRD ROW SEAT

SE-83

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

Seatback

INFOID:0000000011280479

DISASSEMBLY

NOTE:

LH shown : RH similar
1. Remove third row seat. Refer to

SE-43, "Removal and Installation"

.

2. Remove headrest.

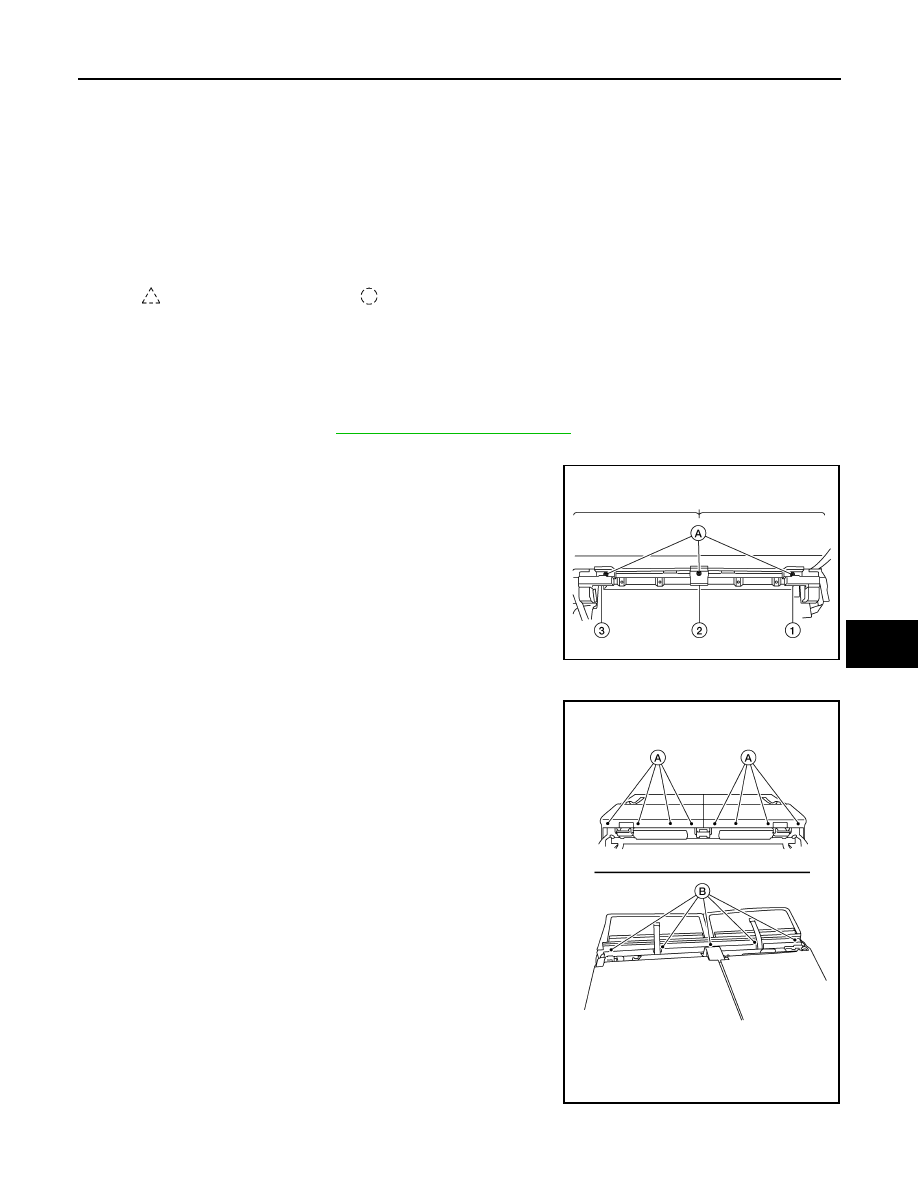

3. Remove screws (A) and third row seat cross member finishers

(1, 2, 3).

4. Release seatback pull strap stop using a suitable tool.
5. Release third row luggage board outer clips (A) and inner clips

(B) using a suitable tool.

10. Seat belt buckle (RH)

11. Seat belt buckle (LH)

12. Bolt cover (LH)

13. Stopper pin

14. Seat frame support

15. Seat hinge finisher (LH)

16. Seat striker (LH/RH)

17. Seat striker finisher (LH/RH)

18. Seatback pull strap (LH/RH)

19. Seatback frame (LH)

20. Headrest (LH/RH)

21. Third row seat cross member

22. Third row seat cross member fin-

isher (LH)

23. Third row seat cross member

finisher (center)

24. Third row seat cross member fin-

isher (RH)

25. Third row luggage floor

26. Seatback board (LH)

27. Seatback trim (LH)

28. Seatback pad (LH)

29. Seat cushion trim (LH)

30. Seat cushion pad (LH)

31. Seat frame finisher (center)

32. Seat cushion frame (LH)

33. Seat cushion frame (RH))

34. Headrest holder (locked)

35. Headrest holder (free)

36. Seatback frame (RH)

Clip

Pawl

ALJIA1427ZZ

ALJIA1429ZZ

SE-84

< UNIT DISASSEMBLY AND ASSEMBLY >

THIRD ROW SEAT

6. Release third row luggage board retainer strap clips (A) (LH/RH)

using a suitable tool and remove third row luggage board.

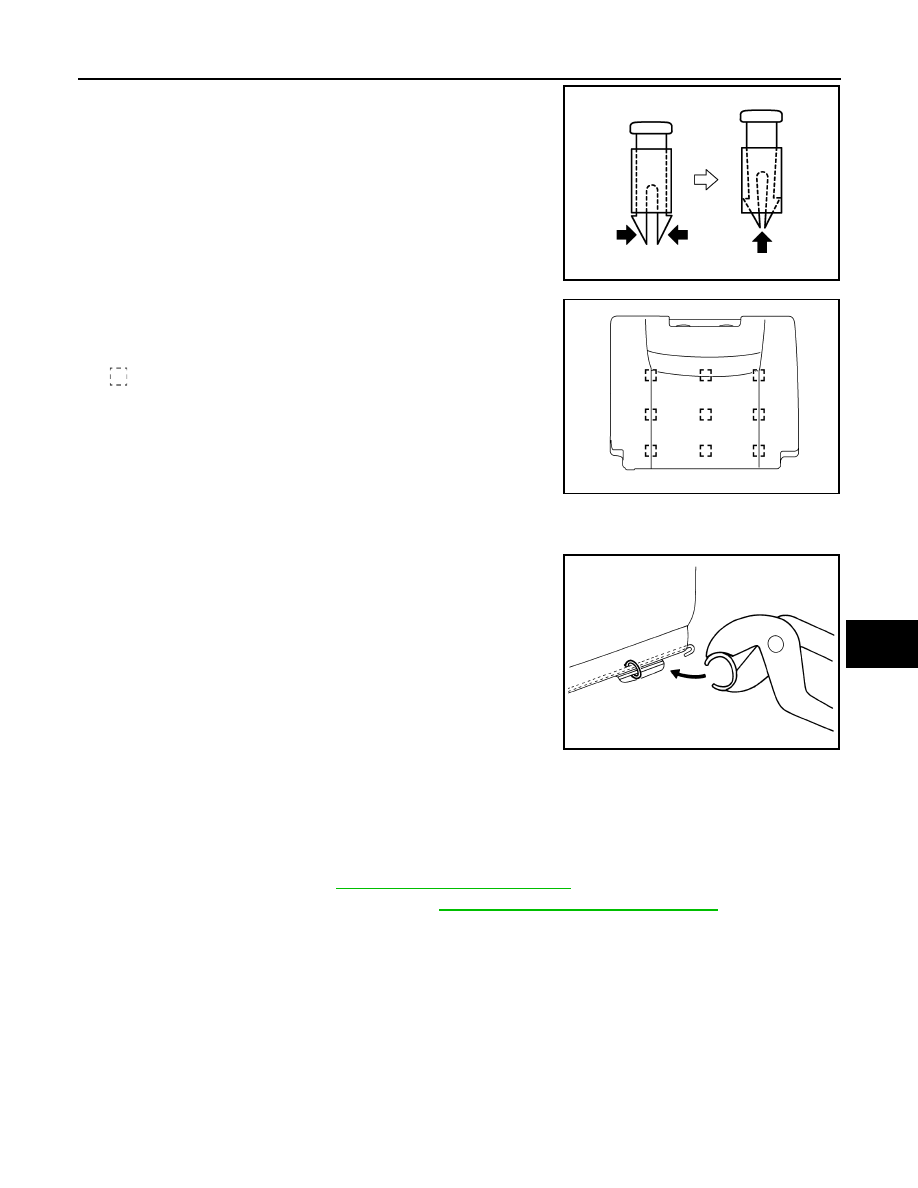

7. Release clips using a suitable tool then gently pull seatback

board (1) forward and out and remove as shown (

).

CAUTION:

After removing the seatback board, check the orientation of

clips. Improper installation of clips could result in damage

to the seatback board.

: Clip

8. Reinstall clips in proper locations on the seatback board.

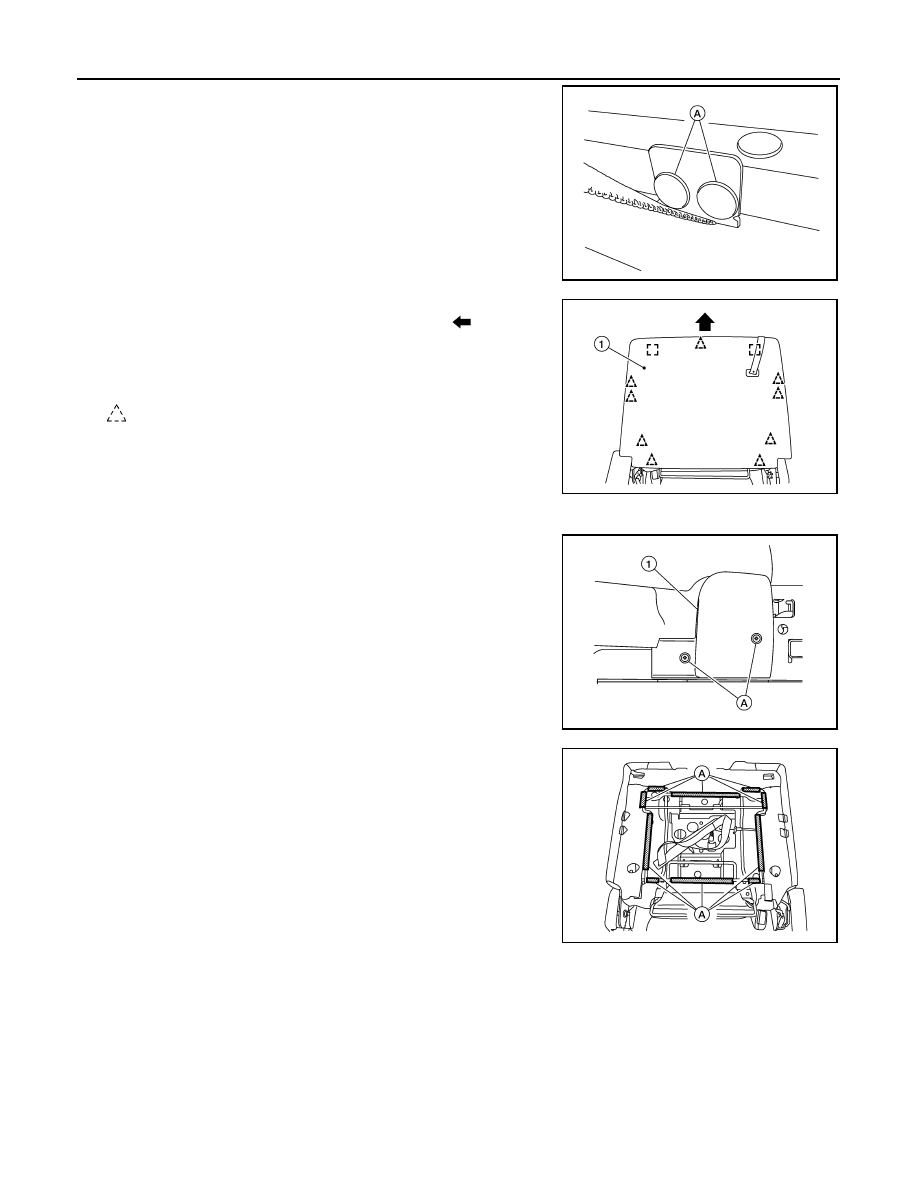

9. Remove screws (A) and remove seat hinge finisher (1).

10. Release J-hooks from seat frame and remove seatback trim and

seatback pad as an assembly.

ALJIA1430ZZ

ALJIA1431ZZ

ALJIA1433ZZ

ALJIA1435ZZ

THIRD ROW SEAT

SE-85

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

11. Reach up behind the seatback pad, release the headrest holder

locks as shown and remove the headrest holders.

CAUTION:

Before removing/installing headrest holder, check its orien-

tation (front/rear and right/left).

12. Release hook and loop finisher and remove hog rings, then sep-

arate seatback trim from seatback pad.

NOTE:

Remove all pieces of hog rings and discard them.

: Hog ring

ASSEMBLY

Assembly is in the reverse order of disassembly.

• Install new hog rings on the seatback trim in original positions.

• Use only one hog ring in each designated location.

• Make sure hog rings are correctly fastened around both the seat-

back trim and seatback pad wires.

• Use NISSAN standard hog rings and tools to assemble.

• Make sure hook fastener is pressed into place after seatback trim

is assembled.

• Smooth out all wrinkles during assembly.

Seat Cushion

INFOID:0000000011280480

DISASSEMBLY

NOTE:

LH shown, RH similar.
1. Remove third row seat. Refer to

SE-43, "Removal and Installation"

.

2. Remove third row seat cross member. Refer to

SE-44, "Third Row Seat Cross Member"

.

PIIB4084J

ALJIA1434ZZ

PIIB3356J
