Nissan Rogue. Manual - part 1052

SE-74

< UNIT DISASSEMBLY AND ASSEMBLY >

SECOND ROW SEAT

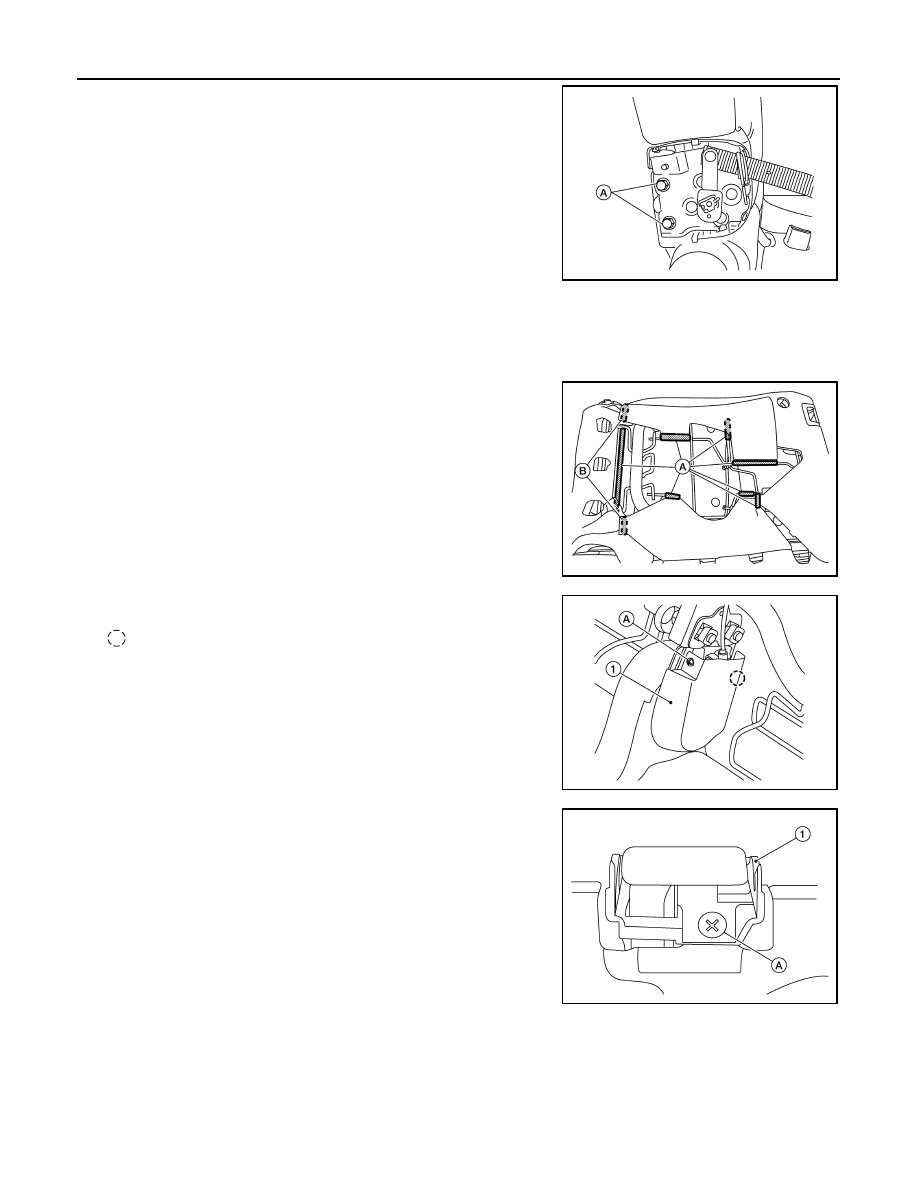

4. Remove bolts (A) and armrest.

5. Release pawls and remove recline handle finisher.
6. Release pawls and remove seatbelt retractor outer finisher.
7. Remove seat belt retractor (center) bottom anchor bolt then route seat belt retractor (center) through sec-

ond row seat cushion and seatback.

8. Release J-hooks (A) then release fastener (B) and remove seat-

back pad and seatback trim.

9. Remove screw (A), then using a suitable tool release pawl and

remove the armrest inner finisher (1).

: Pawl

10. Remove screw (A), then remove recline device (1) from seat-

back frame.

ALJIA1412ZZ

ALJIA1448ZZ

ALJIA1462ZZ

ALJIA1463ZZ

SECOND ROW SEAT

SE-75

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

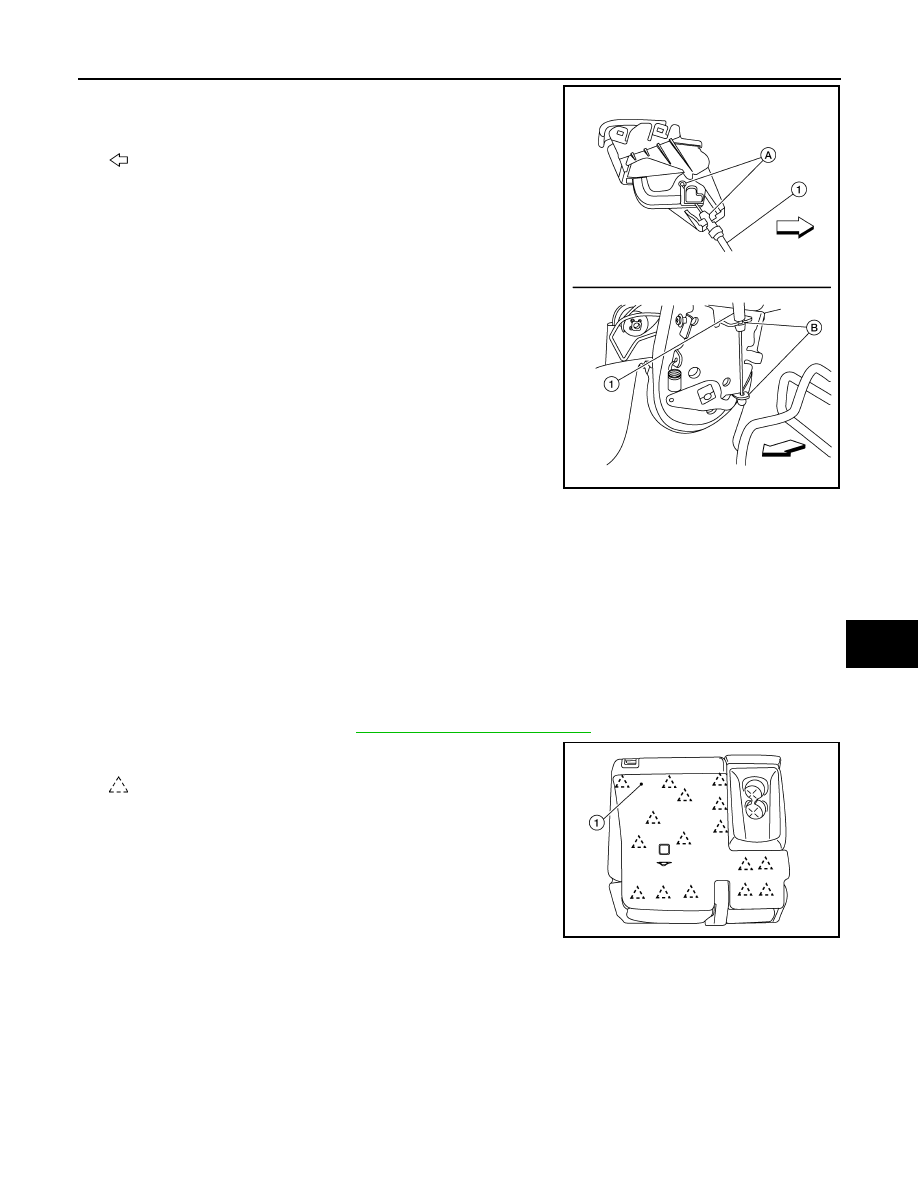

11. Release EZ entry cable (1) from recline device (A) and seatback

frame (B), then remove the EZ entry cable.

CAUTION:

Note the cable routing for correct installation.

: Front

ASSEMBLY

Assembly is in reverse order of disassembly.

CAUTION:

Make sure to route cables correctly for proper function.

LH SEAT : Seat Slide Release Cable

INFOID:0000000011280475

DISASSEMBLY

NOTE:

LH seat shown, RH seat similar.
1. Remove second row seat. Refer to

SE-39, "Removal and Installation"

.

2. Using a suitable tool release clips and remove seatback board

(1).

: Clip

ALJIA1464ZZ

ALJIA1413ZZ

SE-76

< UNIT DISASSEMBLY AND ASSEMBLY >

SECOND ROW SEAT

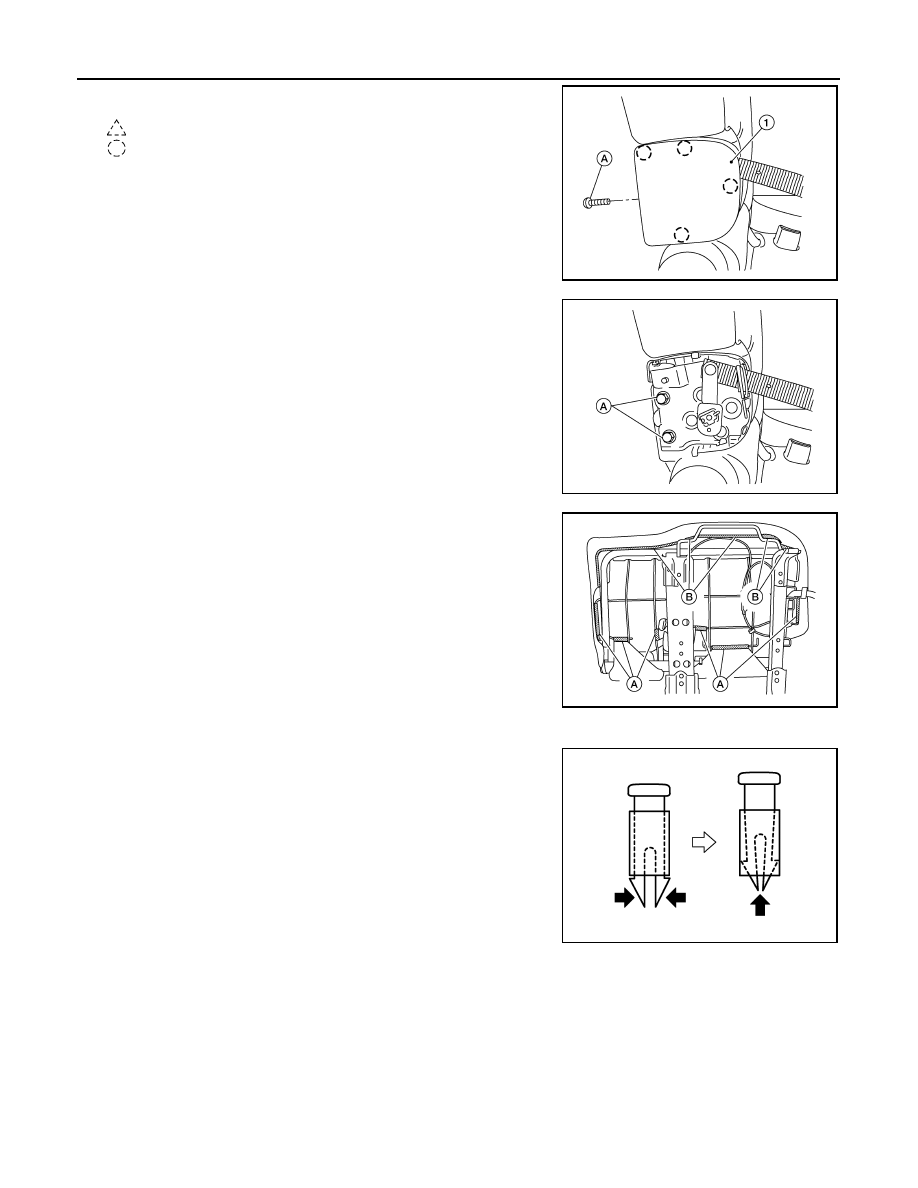

3. Remove screw (A), then using a suitable tool release clips and

pawls and remove armrest finisher (1).

: Clip
: Pawl

4. Remove bolts (A) and armrest.

5. Release J-Hooks (A) and fasteners (B), then route seatbelt

buckles through seat cushion and remove seat cushion pad and

seat cushion trim.

6. Press headrest holder lock button, then lift headrest up and remove.
7. Reach up behind the seatback pad, release the headrest holder

locks as shown and remove the headrest holders.

CAUTION:

Before removing/installing headrest holder, check its orien-

tation (front/rear and right/left).

8. Release pawls and remove recline handle finisher.
9. Release pawls and remove seatbelt retractor outer finisher.

ALJIA1411ZZ

ALJIA1412ZZ

ALJIA1452ZZ

PIIB4084J

SECOND ROW SEAT

SE-77

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

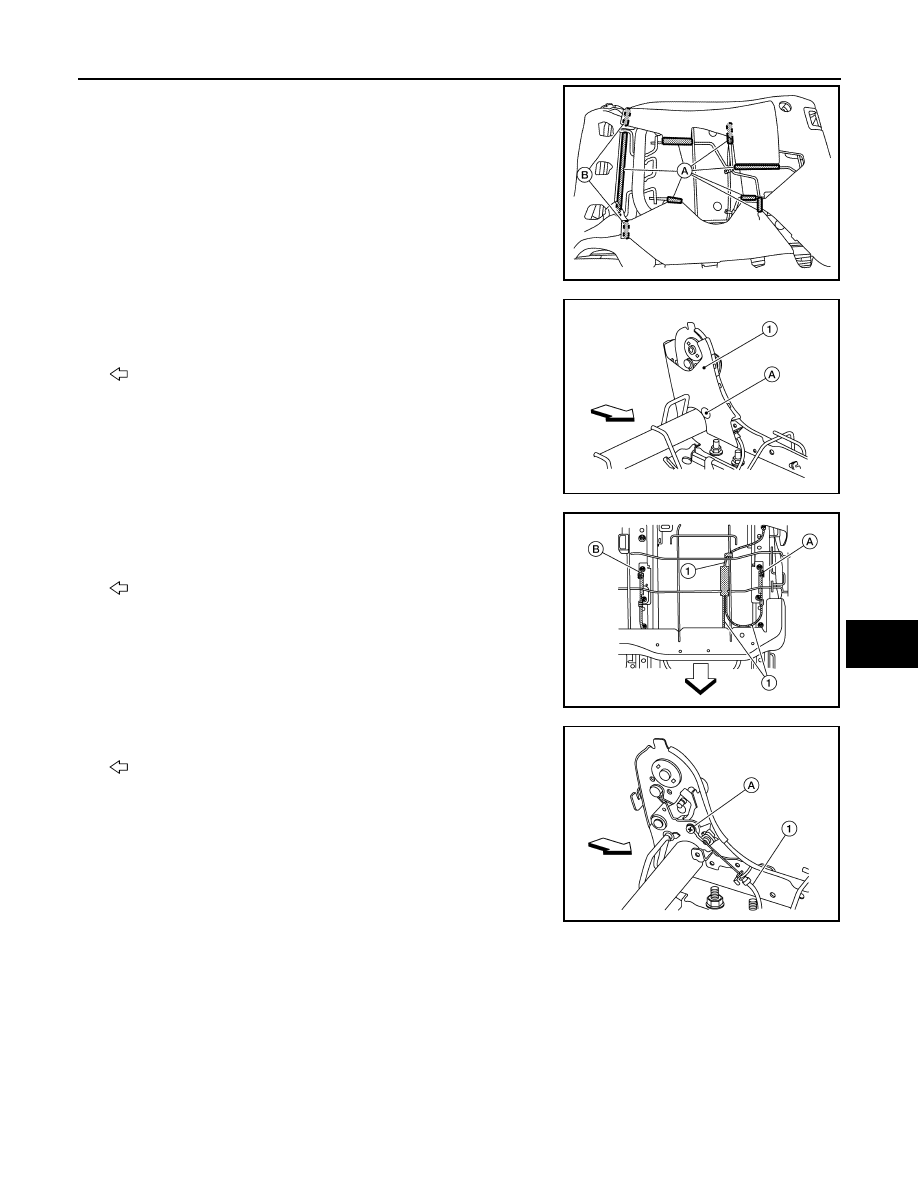

10. Release J-hooks (A) then release fastener (B) and remove seat-

back pad and seatback trim.

11. Using a suitable tool release clip (A) and remove the seat cush-

ion inner finisher LH (1).

NOTE:

Seatback frame removed for clarity.

: Front

12. Release seat slide release cable (1) ends from both LH side (A)

and RH side (B) of seat frame.

CAUTION:

Note the cable routing for correct installation.

: Front

13. Remove screw (A) and unclip seat cushion slide cable (1) from

seat cushion frame.

: Front

14. Unclip seat slide release cable clips from seat cushion frame and remove.

ASSEMBLY

Assembly is in reverse order of disassembly.

CAUTION:

Make sure to route cables correctly for proper function.

RH SEAT
RH SEAT : Seatback

INFOID:0000000011280476

DISASSEMBLY

ALJIA1448ZZ

ALJIA1459ZZ

ALJIA1460ZZ

ALJIA1461ZZ
