Nissan Rogue. Manual - part 1033

SB-18

< REMOVAL AND INSTALLATION >

THIRD ROW SEAT BELT

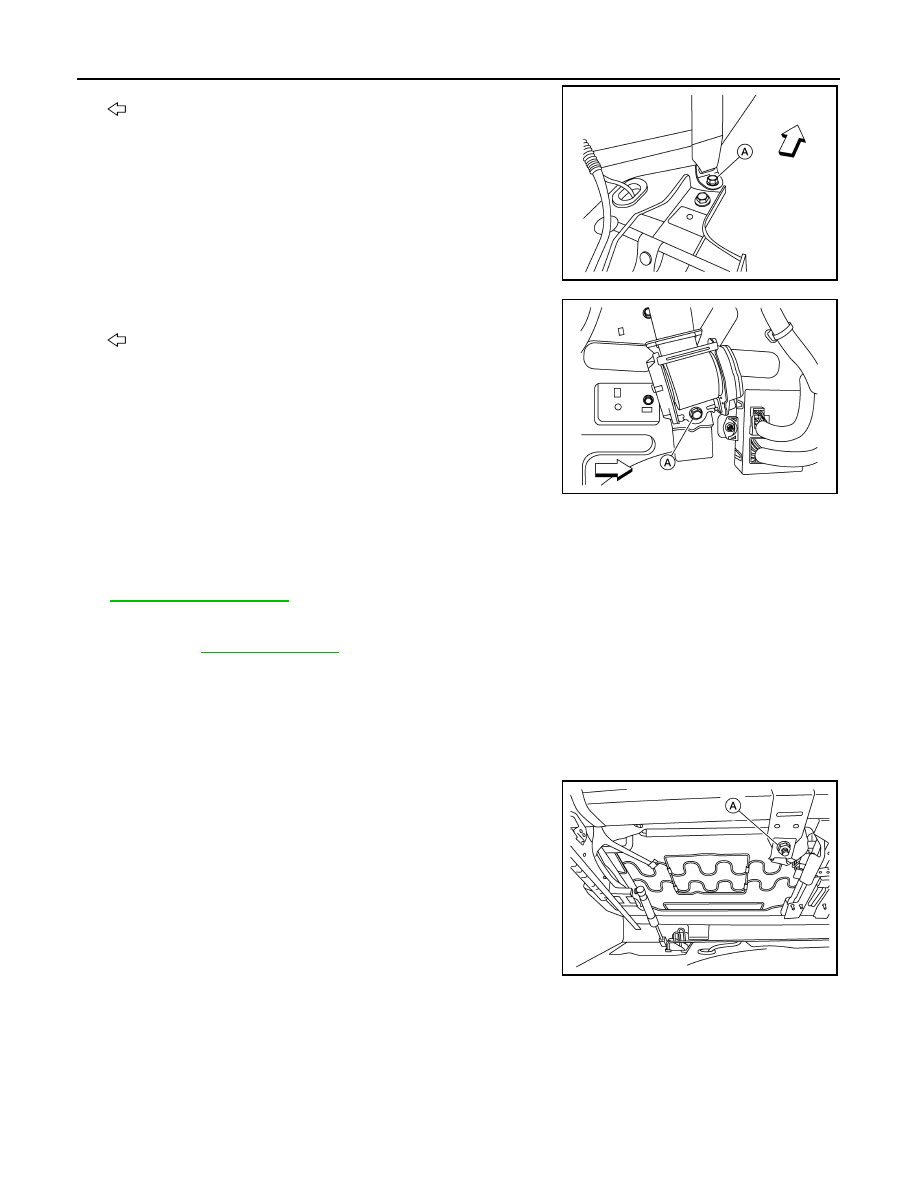

3. Remove lower anchor bolt (A).

: Front

4. Remove seat belt retractor bolt (A) and remove the seat belt

retractor (1).

: Front

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Tighten the D-ring anchor bolt, seat belt retractor bolt, and lower anchor bolt to specification. Refer

to

SB-17, "Exploded View"

.

• Make sure the D-ring anchor operates freely.

• Always perform an inspection after repair to make sure the system is functioning within specifica-

tions. Refer to

SB-5, "Inspection"

.

SEAT BELT BUCKLE
SEAT BELT BUCKLE : Removal and Installation

INFOID:0000000011279690

REMOVAL

1. Pull third row seat striker release straps and raise third row seat.
2. Remove seat belt buckle anchor nut (A) (LH), then route seat

belt buckle through seat cushion and trim and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALHIA0379ZZ

ALHIA0380ZZ

ALHIA0375ZZ

LATCH (LOWER ANCHORS AND TETHER FOR CHILDREN) SYSTEM

SB-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

LATCH (LOWER ANCHORS AND TETHER FOR CHILDREN) SYSTEM

Removal and Installation

INFOID:0000000011279691

The LATCH (Lower Anchors and Tether for CHildren) system is not serviceable.

SB-20

< REMOVAL AND INSTALLATION >

TOP TETHER STRAP CHILD RESTRAINT

TOP TETHER STRAP CHILD RESTRAINT

Removal and Installation

INFOID:0000000011279692

The Top Tether Strap Child Restraint system is not serviceable.
