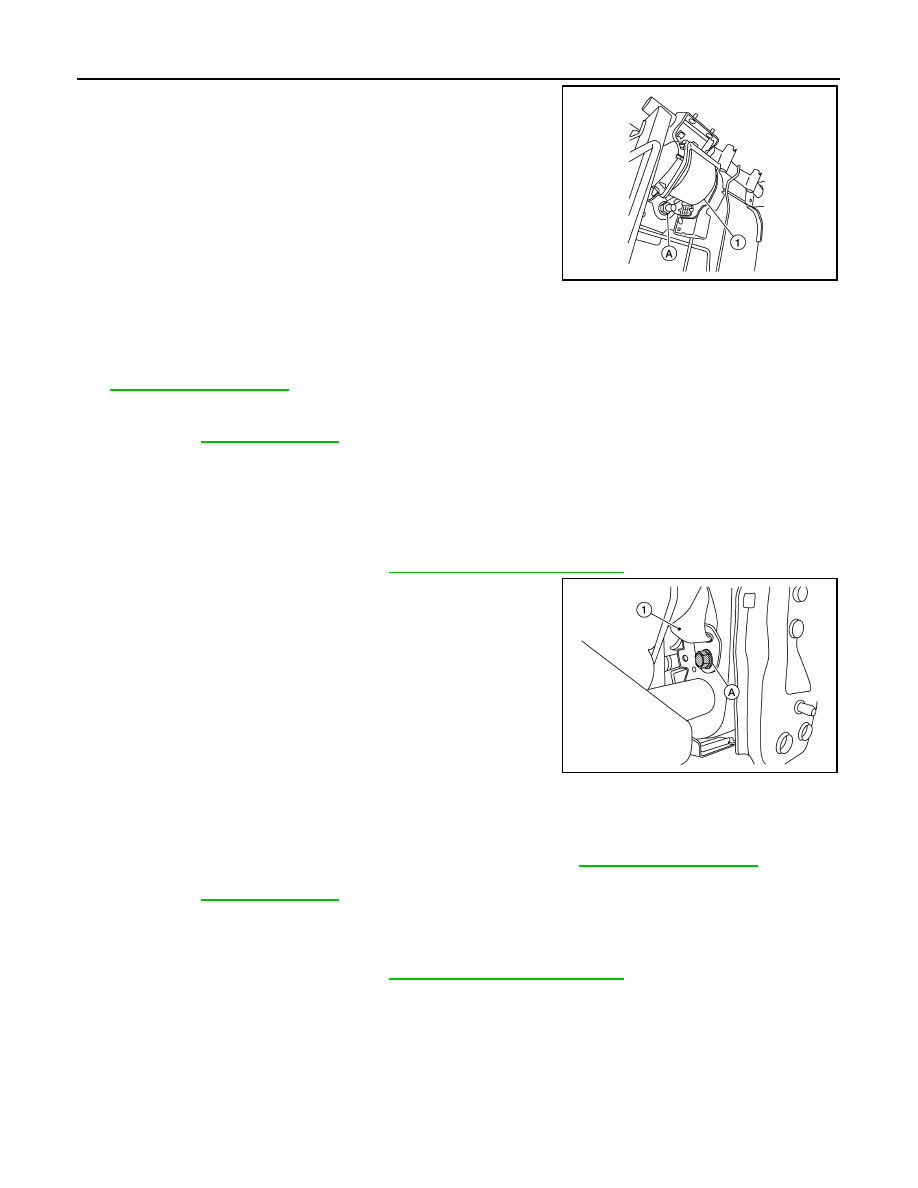

SB-14

< REMOVAL AND INSTALLATION >

SECOND ROW SEAT BELT

3. Remove seat belt retractor nut (A) and remove seat belt retactor

(1) from rear seatback frame (LH).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Tighten the D-ring anchor bolt, seat belt retractor bolt, and lower anchor bolt to specification. Refer

to

SB-12, "Exploded View"

.

• Make sure the D-ring anchor operates freely.

• Always perform an inspection after repair to make sure the system is functioning within specifica-

tions. Refer to

SB-5, "Inspection"

.

SEAT BELT BUCKLE
SEAT BELT BUCKLE : Removal and Installation

INFOID:0000000011279687

SEAT BELT BUCKLE - (LH)

Removal

1. Remove second row seat (LH). Refer to

SE-39, "Removal and Installation"

.

2. Remove seat belt buckle (LH) anchor bolt (A), then route seat

belt buckle (LH) (1) through seat cushion opening and remove.

Installation

Installation is in the reverse order of removal.

CAUTION:

• Tighten the seat belt buckle anchor bolt to specification. Refer to

SB-12, "Exploded View"

.

• Always perform an inspection after repair to make sure the system is functioning within specifica-

tions. Refer to

SB-5, "Inspection"

.

SEAT BELT BUCKLE - (CENTER)

Removal

1. Remove second row seat (LH). Refer to

SE-39, "Removal and Installation"

.

ALHIA0376ZZ

ALHIA0378ZZ

SECOND ROW SEAT BELT

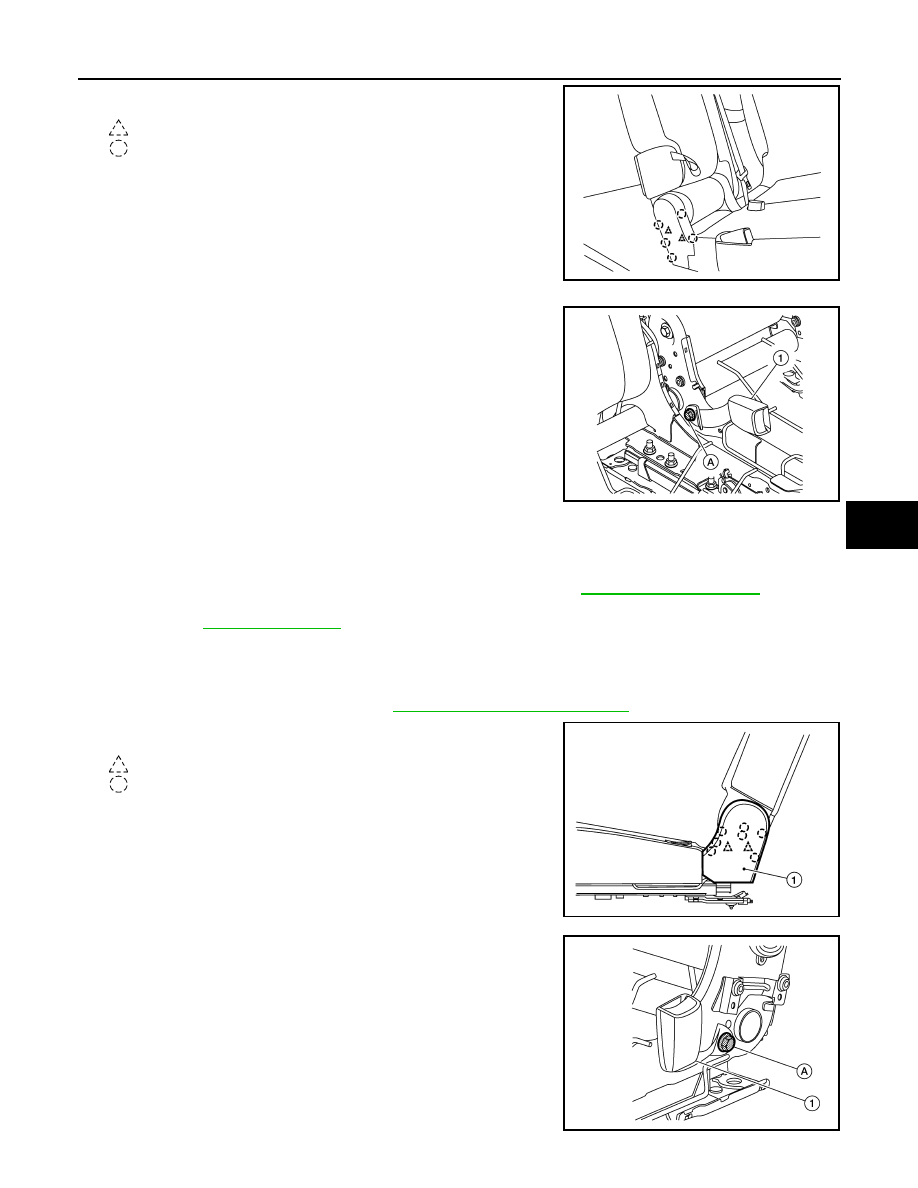

SB-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

2. Using a suitable tool, release clips and pawls, then remove seat

cushion outer finisher (RH).

: Clip
: Pawl

3. Remove second row seat (LH) (center) seat belt buckle anchor

bolt (A), then route seat belt buckle (center) (1) through seat

cushion opening and remove.

Installation

Installation is in the reverse order of removal.

CAUTION:

• Tighten the seat belt buckle anchor bolt to specification. Refer to

SB-12, "Exploded View"

.

• Always perform an inspection after repair to make sure the system is functioning within specifica-

tions. Refer to

SB-5, "Inspection"

.

SEAT BELT BUCKLE - (RH)

Removal
1. Remove second row seat (RH). Refer to

SE-39, "Removal and Installation"

.

2. Using a suitable tool release clips and pawls and remove seat

cushion outer finisher (LH) (1).

: Clip
: Pawl

3. Remove seat belt buckle anchor bolt (A), then route seat belt

buckle (RH) (1) through seat cushion and remove.

ALHIA0381ZZ

ALHIA0382ZZ

ALJIA1458ZZ

ALHIA0383ZZ

SB-16

< REMOVAL AND INSTALLATION >

SECOND ROW SEAT BELT

Installation

Installation is in the reverse order of removal.

CAUTION:

• Tighten the seat belt buckle anchor bolt to specification. Refer to

SB-12, "Exploded View"

.

• Always perform an inspection after repair to make sure the system is functioning within specifica-

tions. Refer to

SB-5, "Inspection"

.

THIRD ROW SEAT BELT

SB-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SB

N

O

P

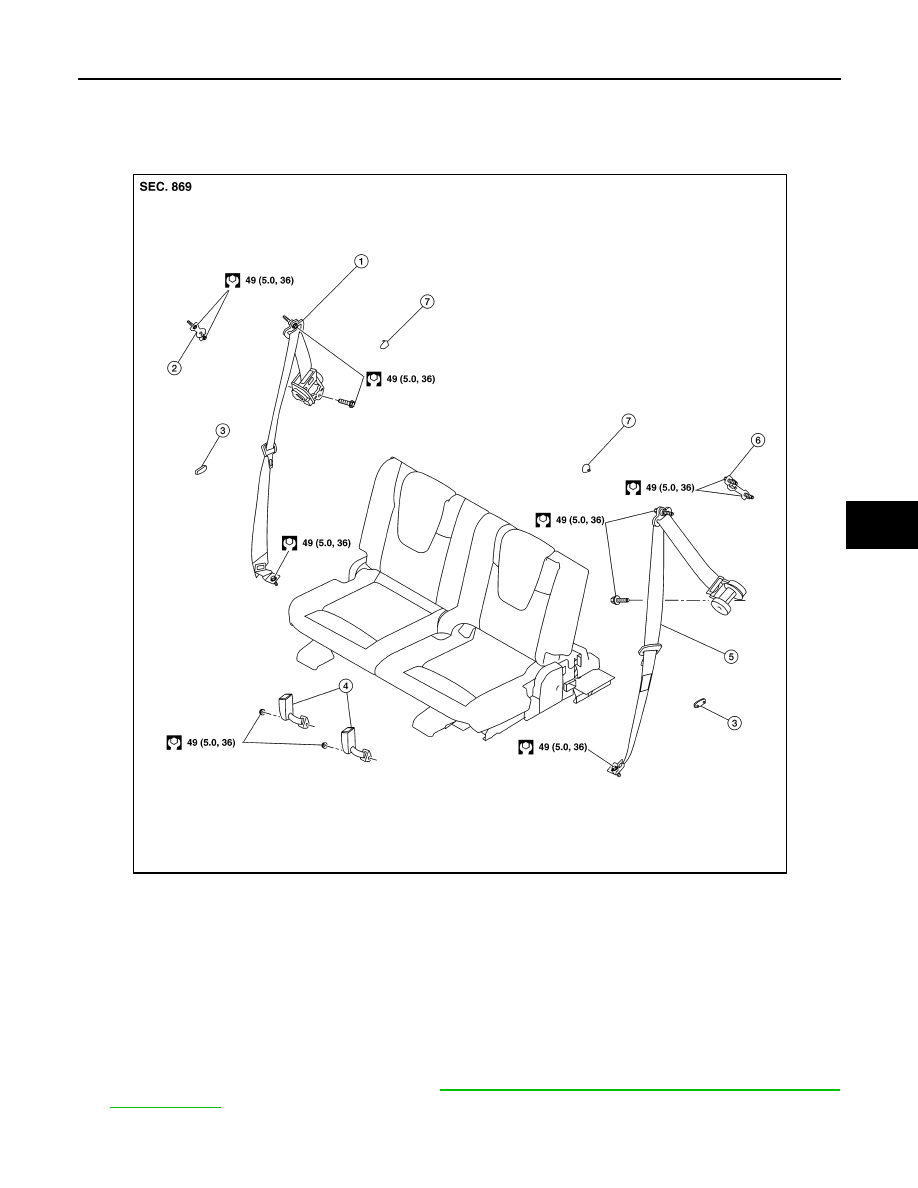

THIRD ROW SEAT BELT

Exploded View

INFOID:0000000011279688

SEAT BELT RETRACTOR
SEAT BELT RETRACTOR : Removal and Installation

INFOID:0000000011279689

REMOVAL

1. Remove luggage side upper finisher. Refer to

INT-36, "LUGGAGE SIDE UPPER FINISHER : Removal

and Installation"

.

2. Pull third row seat striker release straps and raise third row seat.

1.

Seat belt retractor (RH)

2.

Seat belt D-ring bracket (RH)

3.

Seat belt hook (LH/RH)

4.

Seat belt buckle (LH/RH)

5.

Seat belt retractor (LH)

6.

Seat belt D-ring bracket (LH)

7.

Seat belt D-ring bolt cover (LH/
RH)

AWHIA0730ZZ
