Nissan Rogue. Manual - part 102





BCS-14

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

SYSTEM

• BCM is in the low power consumption mode and performs the low power consumption control when all of the

BCM sleep conditions are fulfilled with CAN sleep condition.

Sleep condition

WAKE-UP OPERATION

• BCM changes from the low power consumption mode to the CAN communication sleep mode when the any

of the BCM wake-up conditions are fulfilled. Only the control with BCM is activated.

• BCM transmits the sleep wake-up signal (wake up) to each unit when any of the CAN wake-up conditions

are fulfilled. It changes from the low power consumption mode or the CAN communication sleep mode to the

normal mode.

• Each unit starts the transmission of CAN communication with the sleep wake-up signal. In addition, the com-

bination meter transmits the wake-up signal to BCM via CAN communication to report the CAN communica-

tion start.

SHIPPING MODE CONTROL SYSTEM

CAN sleep condition

BCM sleep condition

• Receiving the sleep-ready signal (ready) from all units
• Ignition switch: OFF
• Vehicle security system alarm and panic alarm: No operation
• Warning lamp: No operation
• Intelligent Key system buzzer: No operation
• Brake switch: OFF
• Turn signal indicator lamp: No operation
• Exterior lamp: OFF
• Door lock status: No change
• CONSULT communication status: No communication
• Meter display signal: Non-transmission
• Door switch status: No change
• Rear window defogger: OFF

• Interior room lamp battery saver: Time out
• RAP system: OFF
• Push-button ignition switch (push switch) illumination: OFF
• NATS: No operation
• Tire pressure monitoring system: Stop

BCM wake-up condition

CAN wake-up condition

• Front door lock assembly LH (key cylinder switch): Lock or unlock
• Door lock switch: OFF

→ON

• Door unlock switch: OFF

→ON

• Back door opener switch: OFF

→ON

• Receiving the sleep-ready signal (Not-ready) from any units
• Push-button ignition switch (push switch): OFF

→ON

• Hazard switch: OFF

→ON

• PASSING switch: OFF

→ON, ON→OFF

• TAIL LAMP switch: OFF

→ON

• Front door switch LH: OFF

→ON, ON→OFF

• Front door switch RH: OFF

→ ON, ON → OFF

• Back door switch: OFF

→ON, ON→OFF

• Front outside handle LH request switch: OFF

→ON

• Front outside handle RH request switch: OFF

→ON

• Back door request switch: OFF

→ON

• Stop lamp switch signal: ON

BCS

SYSTEM

BCS-15

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

SHIPPING MODE CONTROL SYSTEM : System Description

INFOID:0000000011280183

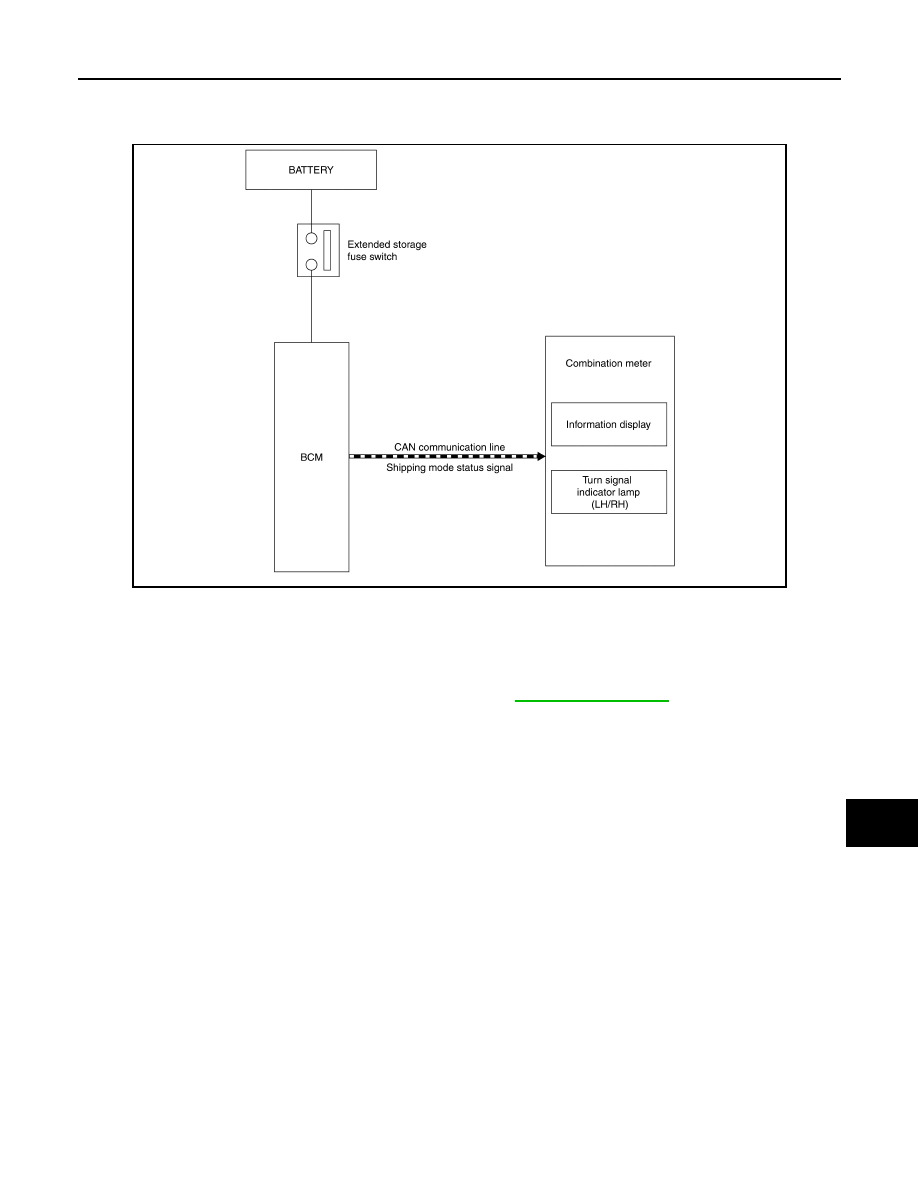

SYSTEM DIAGRAM

DESCRIPTION

• BCM switches the status (shipping mode or normal mode) by itself according to the extended storage fuse

switch condition, and transmits shipping mode status signal to combination meter and each unit via CAN

communication.

• When shipping mode function operates, each control unit does not detect DTCs.

• BCM control functions are limited in shipping mode. Refer to

BCS-74, "Description"

.

• The combination meter displays extended storage fuse warning message* on the information display, and

turns the turn signal indicator lamp (LH/RH) ON, when BCM is in shipping mode.

*: When shipping mode function operates, “SHIPPING MODE ON PUSH STORAGE FUSE” is displayed.

JMMIA1403GB

BCS-16

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000011280184

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions.

DOOR LOCK

Direct Diagnostic Mode

Description

Ecu Identification

The BCM part number is displayed.

Self Diagnostic Result

The BCM self diagnostic results are displayed.

Data Monitor

The BCM input/output data is displayed in real time.

Active Test

The BCM activates outputs to test components.

Work support

The settings for BCM functions can be changed.

Configuration

• The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing BCM.

CAN Diag Support Mntr

The result of transmit/receive diagnosis of CAN communication is displayed.

System

Sub System

Direct Diagnostic Mode

E

cu

 Id

en

tifi

ca

tio

n

Se

lf Di

ag

no

st

ic Re

su

lt

Da

ta

 Mo

ni

tor

A

cti

ve

 T

est

W

o

rk support

Co

nf

igu

rat

ion

CA

N Diag

 Su

pp

ort Mn

tr

Door lock

DOOR LOCK

×

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Exterior lamp

HEADLAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps FLASHER

×

×

Intelligent Key system

INTELLIGENT KEY

×

×

×

×

Combination switch

COMB SW

×

BCM

BCM

×

×

×

×

×

Immobilizer

IMMU

×

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

Back door open

TRUNK

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

Signal buffer system

SIGNAL BUFFER

×

Air conditioner

AIR CONDITIONER

×

BCS

DIAGNOSIS SYSTEM (BCM)

BCS-17

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

DOOR LOCK : CONSULT Function (BCM - DOOR LOCK)

INFOID:0000000011280185

SELF DIAGNOSTIC RESULT

Refer to

BCS-47, "DTC Index"

.

DATA MONITOR

ACTIVE TEST

WORK SUPPORT

* : Initial setting

REAR DEFOGGER
REAR DEFOGGER : CONSULT Function (BCM - REAR DEFOGGER)

INFOID:0000000011280186

DATA MONITOR

Monitor Item [Unit]

Description

REQ SW-DR [On/Off]

Indicates condition of door request switch LH.

REQ SW-AS [On/Off]

Indicates condition of door request switch RH.

REQ SW-BD/TR [On/Off]

Indicates condition of back door request switch.

DOOR SW-DR [On/Off]

Indicates condition of front door switch LH.

DOOR SW-AS [On/Off]

Indicates condition of front door switch RH.

DOOR SW-RR [On/Off]

Indicates condition of rear door switch RH.

DOOR SW-RL [On/Off]

Indicates condition of rear door switch LH.

DOOR SW-BK [On/Off]

Indicates condition of back door switch.

CDL LOCK SW [On/Off]

Indicates condition of lock signal from door lock and unlock switch.

CDL UNLOCK SW [On/Off]

Indicates condition of unlock signal from door lock and unlock switch.

KEY CYL LK-SW [On/Off]

Indicates condition of lock signal from door key cylinder switch.

KEY CYL UN-SW [On/Off]

Indicates condition of unlock signal from door key cylinder switch.

Test Item

Description

DOOR LOCK

This test is able to check door lock operation [ALL LOCK/ALL UNLK].

DOOR LOCK INDICATOR

This test is able to check door lock indication [On/Off].

Support Item

Setting

Description

DOOR LOCK-UNLOCK SET

On*

Automatic door locks function ON.

Off

Automatic door locks function OFF.

AUTO UNLOCK TYPE

MODE2

Driver door only unlocks automatically.

MODE1*

All doors unlock automatically.

AUTO LOCK FUNCTION

MODE3

This mode is not used.

MODE2

Doors lock automatically when shifted out of P (park).

MODE1*

Doors lock automatically when vehicle speed reaches 24 km/h (15 mph).

Off

AUTO UNLOCK FUNCTION

MODE3

This mode is not used.

MODE2

Doors unlock automatically when shifted into P (park).

MODE1*

Doors unlock automatically when ignition is switched from ON to OFF.

Off

SIGNATURE LIGHT SETTING

On*

Signature light mode function is ON.

Off

Signature light mode function if OFF.
