RF-32

< DTC/CIRCUIT DIAGNOSIS >

MOONROOF SWITCH

MOONROOF SWITCH

Description

INFOID:0000000011280142

Transmits switch operation signal to moonroof motor and sunshade motor assembly.

Diagnosis Procedure

INFOID:0000000011280143

Regarding Wiring Diagram information, refer to

RF-17, "Wiring Diagram"

.

1.

CHECK MOONROOF SWITCH INPUT SIGNAL

1. Turn ignition switch ON.

2. Check voltage between moonroof motor assembly harness connector and ground.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> GO TO 2.

2.

CHECK MOONROOF SWITCH CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect moonroof motor assembly connector and moonroof switch connector.

3. Check continuity between moonroof motor assembly harness connector and moonroof switch harness

connector.

4. Check continuity between moonroof motor assembly harness connector and ground.

(+)

(–)

Condition

Voltage

(Approx.)

Moonroof motor assembly

Connector

Terminals

R4

5

Ground

Moonroof switch is operated
OPEN (1st)

0

Other than above

Battery voltage

10

Moonroof switch is operated
CLOSE (2nd)

0

Other than above

Battery voltage

2

Moonroof switch is operated
OPEN   (2nd click to open
sunshade)

0

Other than above

Battery voltage

4

Moonroof switch is operated
CLOSE (2nd click to close
sunshade)

0

Other than above

Battery voltage

Moonroof motor assembly

Moonroof switch

Continuity

Connector

Terminal

 Connector

Terminal

R4

2

R3

6

Yes

4

11

5

4

10

9

MOONROOF SWITCH

RF-33

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace the harness.

3.

CHECK MOONROOF SWITCH GROUND CIRCUIT

Check continuity between moonroof switch harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace the harness.

4.

CHECK MOONROOF SWITCH

Check moonroof switch.

Refer to

RF-33, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace moonroof switch. Refer to

RF-62, "Removal and Installation"

.

5.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> Inspection End.

Component Inspection

INFOID:0000000011280144

MOONROOF SWITCH

1.

 CHECK MOONROOF SWITCH

1. Turn ignition switch OFF.

2. Disconnect moonroof switch.

3. Check continuity between moonroof switch terminals.

Is the inspection result normal?

YES

>> Moonroof switch is OK.

Moonroof motor assembly

Ground

Continuity

 Connector

Terminal

R4

2

No

4

5

10

Moonroof switch

Ground

Continuity

 Connector

Terminal

R3

1

Yes

Terminals

Condition

Continuity

4

1

Moonroof switch is operated - OPEN

Yes

Other than above

No

9

Moonroof switch is operated - CLOSE

Yes

Other than above

No

6

Moonroof switch is operated - HOLD OPEN or HOLD CLOSE

Yes

Other than above

No

11

Moonroof switch is operated - HOLD OPEN or HOLD CLOSE

Yes

Other than above

No

RF-34

< DTC/CIRCUIT DIAGNOSIS >

MOONROOF SWITCH

NO

>> Replace moonroof switch. Refer to

RF-62, "Removal and Installation"

.

DOOR SWITCH

RF-35

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

DOOR SWITCH

WITH INTELLIGENT KEY
Component Function Check

INFOID:0000000011382843

1.

CHECK FUNCTION

1. Select “DOOR LOCK” of “BCM” using CONSULT.

2. Select “DOOR SW-DR”, “DOOR SW-AS”, “DOOR SW-RL”, “DOOR SW-RR”, in “Data Monitor”.

3. Check that the function operates normally according to the following conditions:

Is the inspection result normal?

YES

>> Door switch is OK.

NO

>> Refer to

RF-35, "Diagnosis Procedure"

.

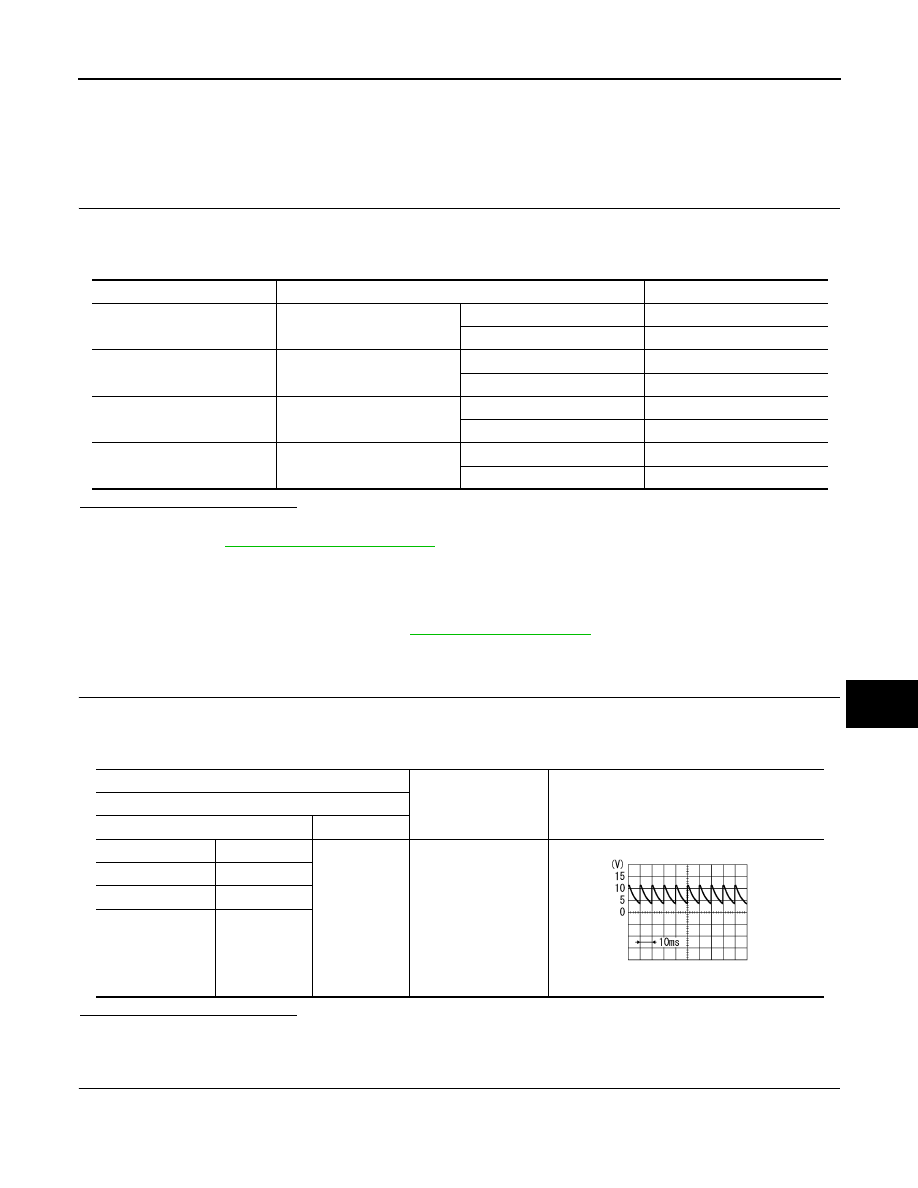

Diagnosis Procedure

INFOID:0000000011382844

Regarding Wiring Diagram information, refer to

DLK-73, "Wiring Diagram"

.

1.

CHECK DOOR SWITCH INPUT SIGNAL

1. Turn ignition switch OFF.

2. Disconnect malfunctioning door switch connector.

3. Check signal between malfunctioning door switch harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK DOOR SWITCH CIRCUIT

1. Disconnect BCM connector.

2. Check continuity between door switch harness connector and BCM harness connector.

Monitor item

Condition

Status

DOOR SW-DR

Front door LH

Open

On

Closed

Off

DOOR SW-AS

Front door RH

Open

On

Closed

Off

DOOR SW-RL

Rear door LH

Open

On

Closed

Off

DOOR SW-RR

Rear door RH

Open

On

Closed

Off

(+)

(–)

Signal

(Reference value)

Door switch

Connector

Terminal

Front LH

B71

3

Ground

7.0 - 8.0 V

Front RH

B141

Rear LH

B70

Rear RH

B142
