Nissan Rogue. Manual - part 75





AV-292

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION WITH BOSE]

U1010 CONTROL UNIT (CAN)

U1010 CONTROL UNIT (CAN)

AV CONTROL UNIT
AV CONTROL UNIT : DTC Logic

INFOID:0000000011276961

DTC DETECTION LOGIC

AROUND VIEW MONITOR CONTROL UNIT
AROUND VIEW MONITOR CONTROL UNIT : DTC Logic

INFOID:0000000011276962

DTC DETECTION LOGIC

CONSULT Display

DTC Detection Condition

Possible Cause

CONTROL UNIT (CAN)
[U1010]

Error during CAN controller hardware initializa-
tion (VCAN).

Replace the AV control unit if the malfunction oc-
curs constantly.
Refer to

AV-369, "Removal and Installation"

.

CONSULT Display

DTC Detection Condition

Possible Cause

CONTROL UNIT (CAN)
[U1010]

Error during CAN controller hardware initializa-
tion (VCAN).

Replace the Around view monitor control unit if
the malfunction occurs constantly.
Refer to

AV-380, "Removal and Installation"

.

AV

U111A REAR CAMERA IMAGE SIGNAL CIRCUIT

AV-293

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

U111A REAR CAMERA IMAGE SIGNAL CIRCUIT

DTC Logic

INFOID:0000000011276963

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000011276964

Regarding Wiring Diagram information, refer to

AV-253, "Wiring Diagram"

.

WITHOUT DRIVER ASSISTANCE SYSTEM

1.

CHECK REAR VIEW CAMERA POWER SUPPLY AND GROUND CIRCUIT CONTINUITY

1. Turn ignition switch OFF.

2. Disconnect around view monitor control unit and rear view camera connectors.

3. Check continuity between around view monitor control unit connector M103 and rear view camera con-

nector D504.

4. Check continuity between around view monitor control unit connector M103 and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace harness or connectors.

2.

CHECK REAR VIEW CAMERA POWER SUPPLY VOLTAGE

1. Connect around view monitor control unit and rear view camera connectors.

2. Turn ignition switch ON.

3. Check voltage between around view monitor control unit connector M103 and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace around view monitor control unit. Refer to

AV-380, "Removal and Installation"

.

3.

CHECK REAR VIEW CAMERA IMAGE SIGNAL AND IMAGE SIGNAL GROUND CIRCUIT CONTINUITY

1. Turn ignition switch OFF.

2. Disconnect around view monitor control unit and rear view camera connectors.

CONSULT Display

DTC Detection Condition

Possible Cause

Rear display output signal diag-
nosis (Harness disconnection)
[U111A]

Rear view camera image signal circuit open or
short.

Check rear view camera image signal circuit.

Around view monitor control unit

Rear view camera

Continuity

Connector

Terminals

Connector

Terminals

M103

26

D504

2

Yes

25

1

Around view monitor control unit

Ground

Continuity

Connector

Terminal

M103

26

No

Around view monitor control unit

Ground

Condition

Voltage

(Approx.)

Connector

Terminal

M103

26

CAMERA switch is ON or
selector lever in R (re-
verse).

6.0 V

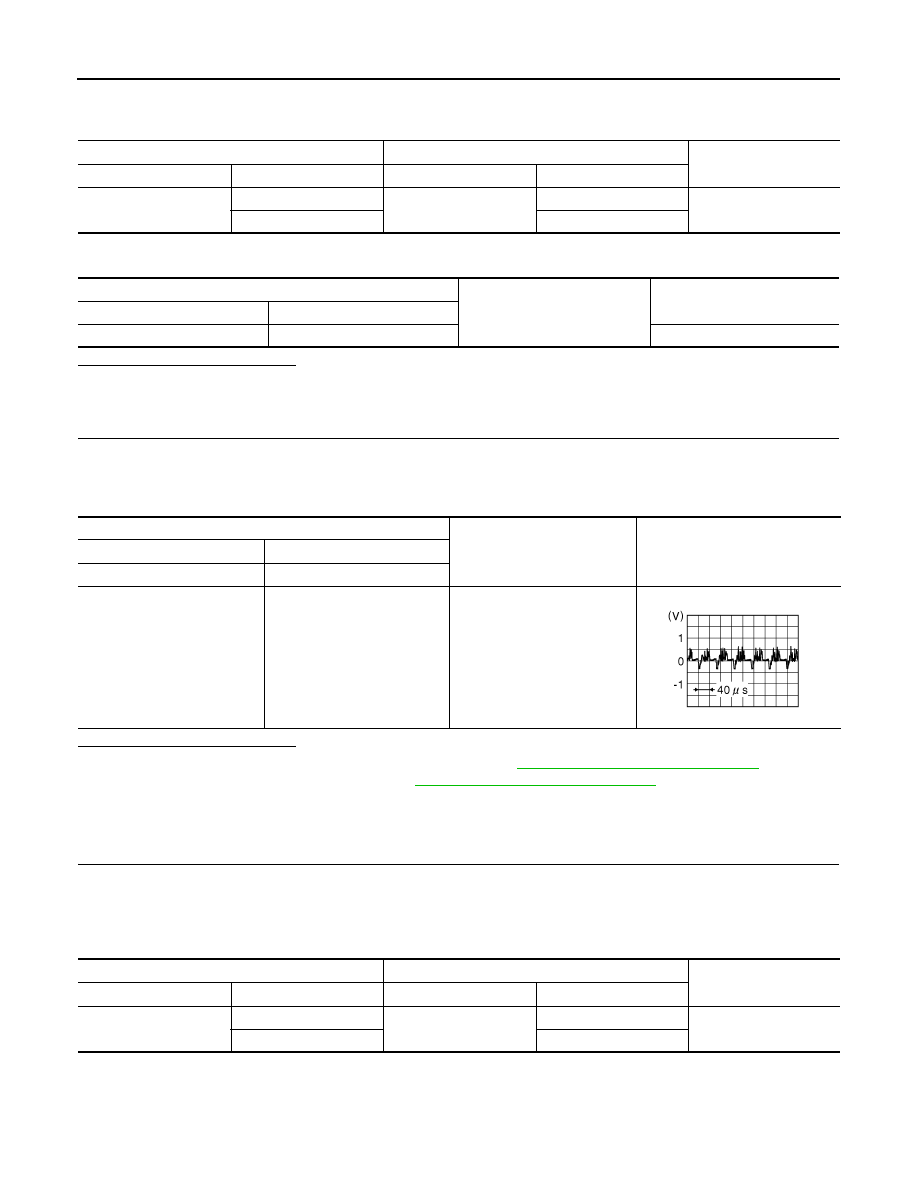

AV-294

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION WITH BOSE]

U111A REAR CAMERA IMAGE SIGNAL CIRCUIT

3. Check continuity between around view monitor control unit connector M103 and rear view camera con-

nector D504.

4. Check continuity between around view monitor control unit connector M103 and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness or connectors.

4.

CHECK REAR VIEW CAMERA IMAGE SIGNAL

1. Connect around view monitor control unit and rear view camera connectors.

2. Turn ignition switch ON.

3. Check signal between the terminals of around view monitor control unit connector M103.

Is the inspection result normal?

YES

>> Replace around view monitor control unit. Refer to

AV-380, "Removal and Installation"

.

NO

>> Replace rear view camera. Refer to

AV-383, "Removal and Installation"

.

WITH DRIVER ASSISTANCE SYSTEM

1.

CHECK REAR VIEW CAMERA POWER SUPPLY AND GROUND CIRCUIT CONTINUITY

1. Turn ignition switch OFF.

2. Disconnect around view monitor control unit and rear view camera connectors.

3. Check continuity between around view monitor control unit connector M114 and rear view camera con-

nector D514.

4. Check continuity between around view monitor control unit connector M114 and ground.

Around view monitor control unit

Rear view camera

Continuity

Connector

Terminals

Connector

Terminals

M103

28

D504

4

Yes

27

5

Around view monitor control unit

Ground

Continuity

Connector

Terminal

M103

28

No

Around view monitor control unit connector M103

Condition

Reference value

(+)

(

−)

Terminal

Terminal

28

27

CAMERA switch is ON or se-
lector lever in R (reverse).

JSNIA0834GB

Around view monitor control unit

Rear view camera

Continuity

Connector

Terminals

Connector

Terminals

M114

50

D514

8

Yes

52

7

AV

U111A REAR CAMERA IMAGE SIGNAL CIRCUIT

AV-295

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace harness or connectors.

2.

CHECK REAR VIEW CAMERA POWER SUPPLY VOLTAGE

1. Connect around view monitor control unit and rear view camera connectors.

2. Turn ignition switch ON.

3. Check voltage between around view monitor control unit connector M114 and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace around view monitor control unit. Refer to

AV-380, "Removal and Installation"

.

3.

CHECK REAR VIEW CAMERA IMAGE SIGNAL AND IMAGE SIGNAL GROUND CIRCUIT CONTINUITY

1. Turn ignition switch OFF.

2. Disconnect around view monitor control unit and rear view camera connectors.

3. Check continuity between around view monitor control unit connector M114 and rear view camera con-

nector D514.

4. Check continuity between around view monitor control unit connector M114 and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness or connectors.

4.

CHECK REAR VIEW CAMERA IMAGE SIGNAL

1. Connect around view monitor control unit and rear view camera connectors.

2. Turn ignition switch ON.

3. Check signal between the terminals of around view monitor control unit connector M114.

Around view monitor control unit

Ground

Continuity

Connector

Terminal

M114

50

No

Around view monitor control unit

Ground

Condition

Voltage

(Approx.)

Connector

Terminal

M114

50

CAMERA switch is ON or
selector lever in R (re-
verse).

6.0 V

Around view monitor control unit

Rear view camera

Continuity

Connector

Terminals

Connector

Terminals

M114

53

D514

5

Yes

54

1

Around view monitor control unit

Ground

Continuity

Connector

Terminal

M114

53

No
