Nissan Rogue. Manual - part 71





AV-276

< BASIC INSPECTION >

[NAVIGATION WITH BOSE]

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000011276938

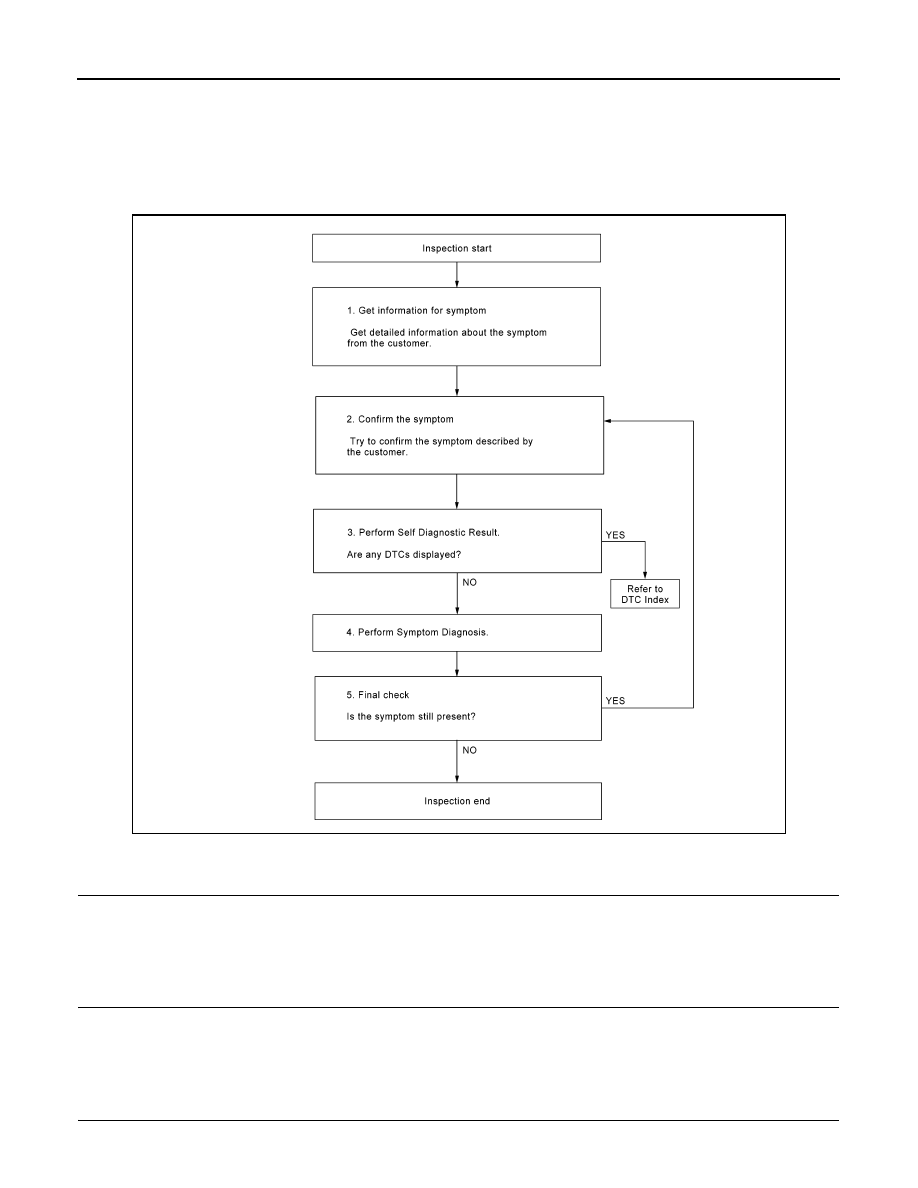

OVERALL SEQUENCE

DETAILED FLOW

1.

GET INFORMATION FOR SYMPTOM

Get detailed information from the customer about the symptom (the condition and the environment when the

incident/malfunction occurred).

>> GO TO 2.

2.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer. Verify relation between the symptom and the condition

when the symptom is detected.

>> GO TO 3.

3.

PERFORM SELF DIAGNOSTIC RESULT

1. Turn ignition switch ON and wait for 2 seconds or more.

AWNIA2982GB

AV

DIAGNOSIS AND REPAIR WORKFLOW

AV-277

< BASIC INSPECTION >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

2. Depending on system being diagnosed, perform Self Diagnostic Result for:

-

MULTI  AV.

-

AVM.

Are any DTCs displayed?

YES

>> Refer to

AV-242, "DTC Index"

 (MULTI AV) or

AV-248, "WITHOUT DRIVER ASSISTANCE SYS-

TEM : DTC Index"

 (AVM).

NO

>> GO TO 4.

4.

PERFORM SYMPTOM DIAGNOSIS

Refer to

AV-354, "Symptom Table"

.

>> GO TO 5.

5.

FINAL CHECK

Refer to symptom described by the customer in step 1.
Is the symptom still present?

YES

>> GO TO 2.

NO

>> Inspection End.

AV-278

< BASIC INSPECTION >

[NAVIGATION WITH BOSE]

INSPECTION AND ADJUSTMENT

INSPECTION AND ADJUSTMENT

ADDITIONAL SERVICE WHEN REPLACING AV CONTROL UNIT
ADDITIONAL SERVICE WHEN REPLACING AV CONTROL UNIT : Description

INFOID:0000000011276939

BEFORE REPLACEMENT

When replacing AV control unit, save or print current vehicle specification with CONSULT configuration before

replacement.

NOTE:

If “Before Replace ECU” cannot be used, use the “After Replace ECU” or “Manual Configuration” after replac-

ing AV control unit.

AFTER REPLACEMENT

CAUTION:

When replacing AV control unit, you must perform “After Replace ECU” with CONSULT.

• Complete the procedure of “After Replace ECU” in order.

• If you set incorrect “After Replace ECU”, incidents might occur.

• Configuration is different for each vehicle model. Confirm configuration of each vehicle model.

ADDITIONAL SERVICE WHEN REPLACING AV CONTROL UNIT : Work Procedure

INFOID:0000000011276940

1.

SAVING VEHICLE SPECIFICATION

-CONSULT

Enter “Re/Programming, Configuration” and perform “Before Replace ECU” to save or print current vehicle

specification.

NOTE:

If “Before Replace ECU” cannot be used, use the “After Replace ECU” or “Manual Configuration” after replac-

ing AV control unit.

>> GO TO 2.

2.

REPLACE AV CONTROL UNIT

Replace AV control unit. Refer to

AV-369, "Removal and Installation"

.

>> GO TO 3.

3.

WRITING VEHICLE SPECIFICATION

CONSULT

1. Enter "Re/Programming, Configuration".

2. If “Before Replace ECU” operation was performed, automatically an "Operation Log Selection" screen will

be displayed. Select the applicable file from the "Saved Data List" and press “Confirm” to write vehicle

specification. Refer to

AV-280, "CONFIGURATION (AV CONTROL UNIT) : Work Procedure"

.

3. If “Before Replace ECU” operation was not performed, select "After Replace ECU" or "Manual Configura-

tion" to write vehicle specification. Refer to

AV-280, "CONFIGURATION (AV CONTROL UNIT) : Work Pro-

cedure"

.

>> GO TO 4.

4.

REGISTER AV CONTROL UNIT

Perform AV control unit registration. Refer to

AV-282, "REGISTRATION (AV CONTROL UNIT) : Work Proce-

dure"

.

>> GO TO 5.

5.

OPERATION CHECK

Check that the operation of the AV control unit and camera images (fixed guide lines) are normal.

AV

INSPECTION AND ADJUSTMENT

AV-279

< BASIC INSPECTION >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

>> Work End.

ADDITIONAL SERVICE WHEN REPLACING AROUND VIEW MONITOR CON-
TROL UNIT
ADDITIONAL SERVICE WHEN REPLACING AROUND VIEW MONITOR CONTROL
UNIT : Description

INFOID:0000000011276941

BEFORE REPLACEMENT

When replacing around view monitor control unit, save or print current vehicle specification with CONSULT

configuration before replacement.

NOTE:

If “Before Replace ECU” cannot be used, use the “After Replace ECU” or “Manual Configuration” after replac-

ing around view monitor control unit.

AFTER REPLACEMENT

CAUTION:

When replacing around view monitor control unit, you must perform “After Replace ECU” with CON-

SULT.

• Complete the procedure of “After Replace ECU” in order.

• If you set incorrect “After Replace ECU”, incidents might occur.

• Configuration is different for each vehicle model. Confirm configuration of each vehicle model.

ADDITIONAL SERVICE WHEN REPLACING AROUND VIEW MONITOR CONTROL
UNIT : Work Procedure

INFOID:0000000011276942

1.

SAVING VEHICLE SPECIFICATION

-CONSULT

Enter “Re/Programming, Configuration” and perform “Before Replace ECU” to save or print current vehicle

specification.

NOTE:

If “Before Replace ECU” cannot be used, use the “After Replace ECU” or “Manual Configuration” after replac-

ing around view monitor control unit.

>> GO TO 2.

2.

REPLACE AROUND VIEW MONITOR CONTROL UNIT

Replace around view monitor control unit. Refer to

AV-380, "Removal and Installation"

.

>> GO TO 3.

3.

WRITING VEHICLE SPECIFICATION

CONSULT

1. Enter "Re/Programming, Configuration".

2. If “Before Replace ECU” operation was performed, automatically an "Operation Log Selection" screen will

be displayed. Select the applicable file from the "Saved Data List" and press “Confirm” to write vehicle

specification. Refer to

AV-281, "CONFIGURATION (AROUND VIEW MONITOR CONTROL UNIT) : Work

Procedure"

.

3. If “Before Replace ECU” operation was not performed, select "After Replace ECU" or "Manual Configura-

tion" to write vehicle specification. Refer to

AV-281, "CONFIGURATION (AROUND VIEW MONITOR

CONTROL UNIT) : Work Procedure"

.

>> GO TO 4.

4.

OPERATION CHECK

Check that the operation of the around view monitor control unit and camera images (fixed guide lines and

predictive course lines) are normal.
