AV-268

< WIRING DIAGRAM >

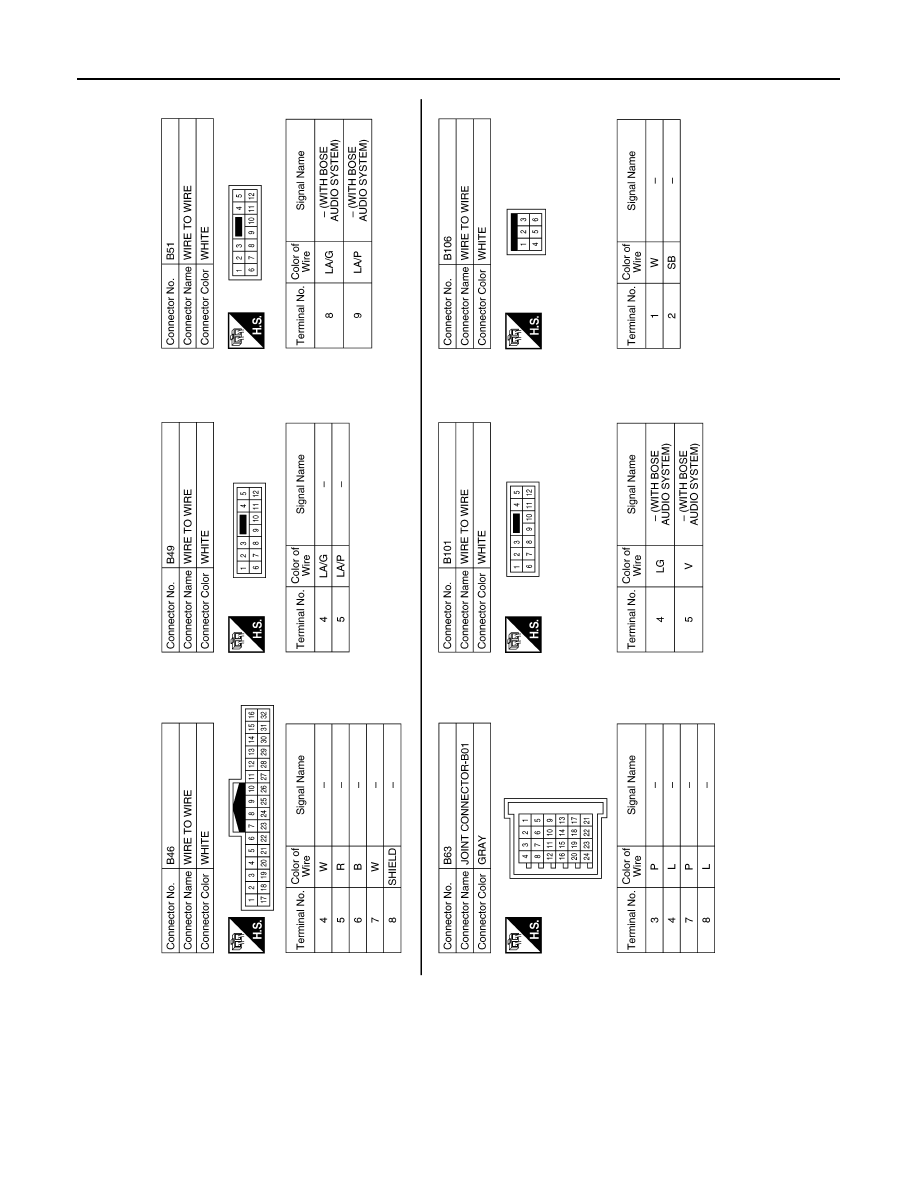

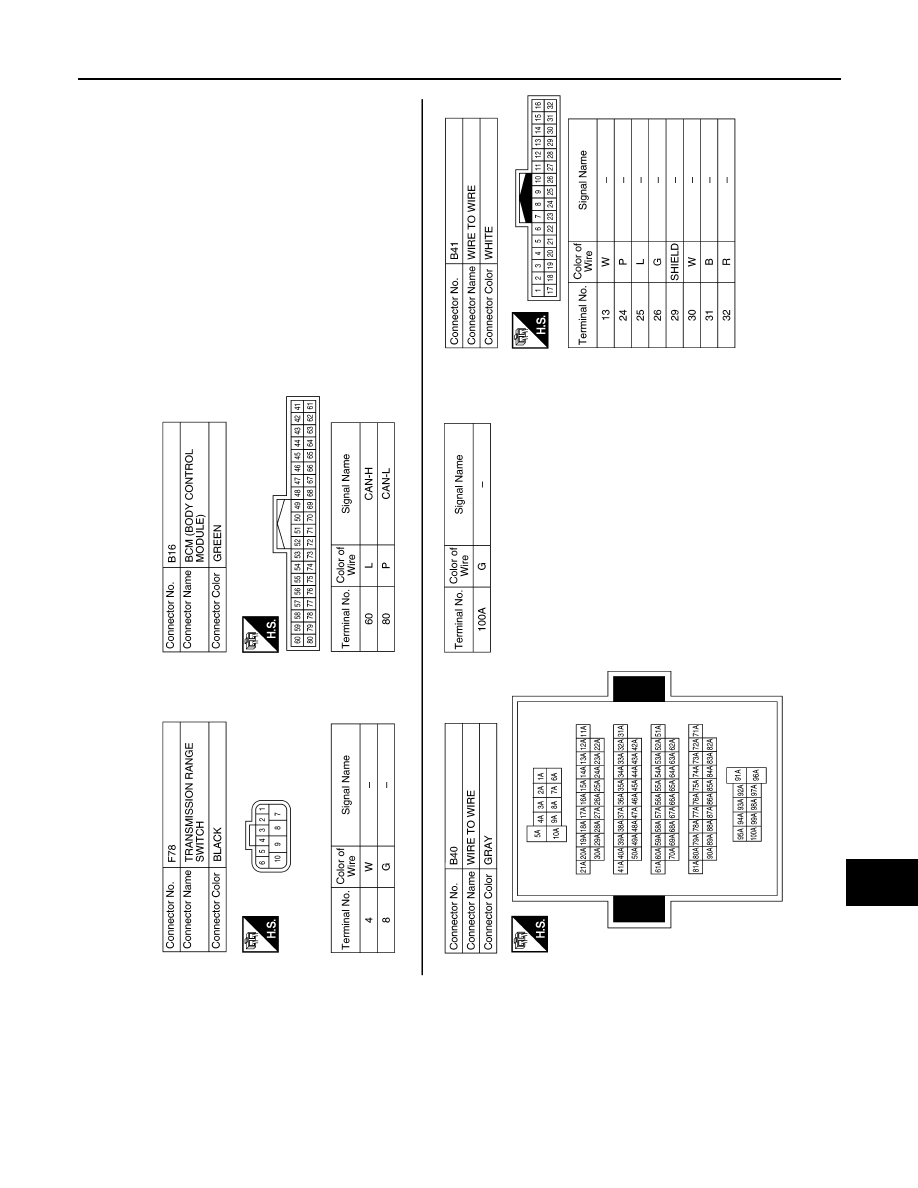

[NAVIGATION WITH BOSE]

NAVIGATION WITH BOSE

AANIA3295GB

AV

NAVIGATION WITH BOSE

AV-269

< WIRING DIAGRAM >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AANIA3296GB

AV-270

< WIRING DIAGRAM >

[NAVIGATION WITH BOSE]

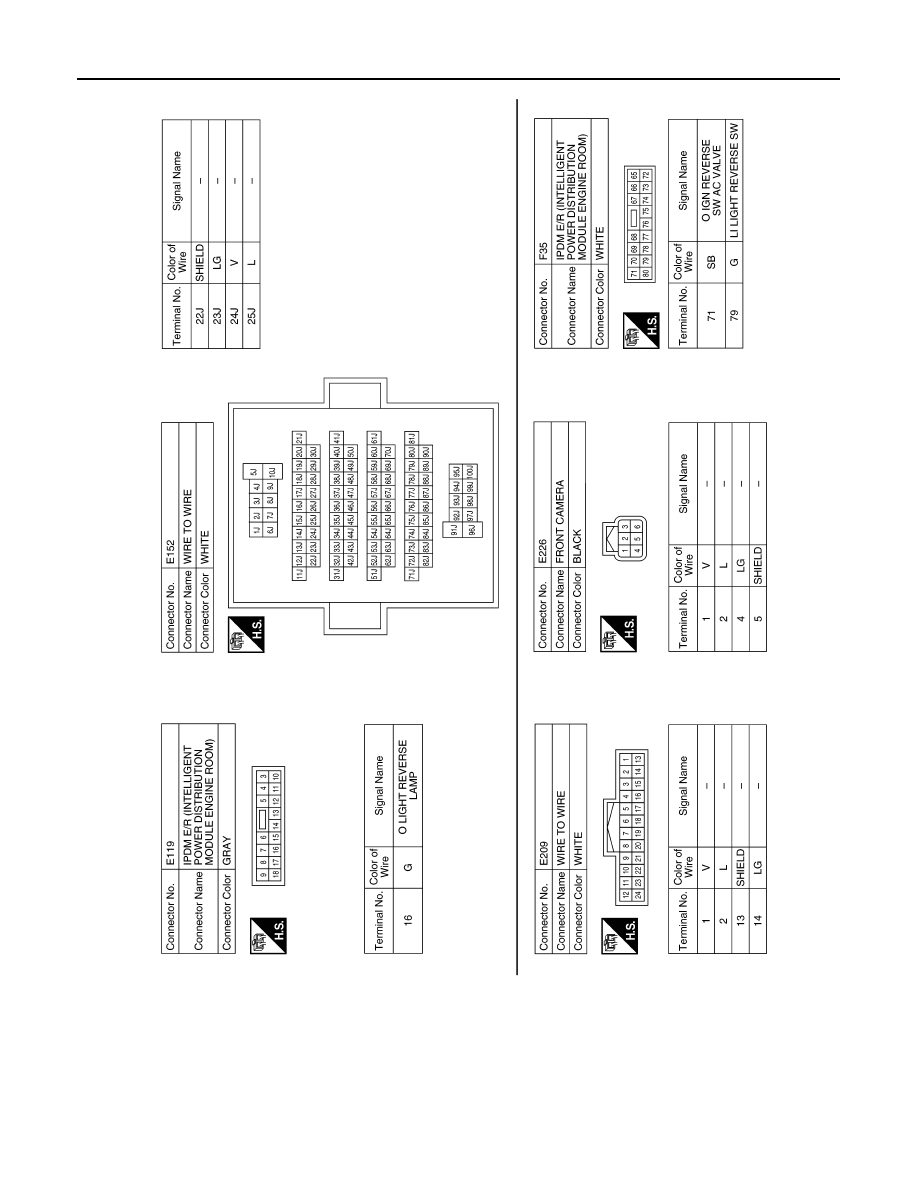

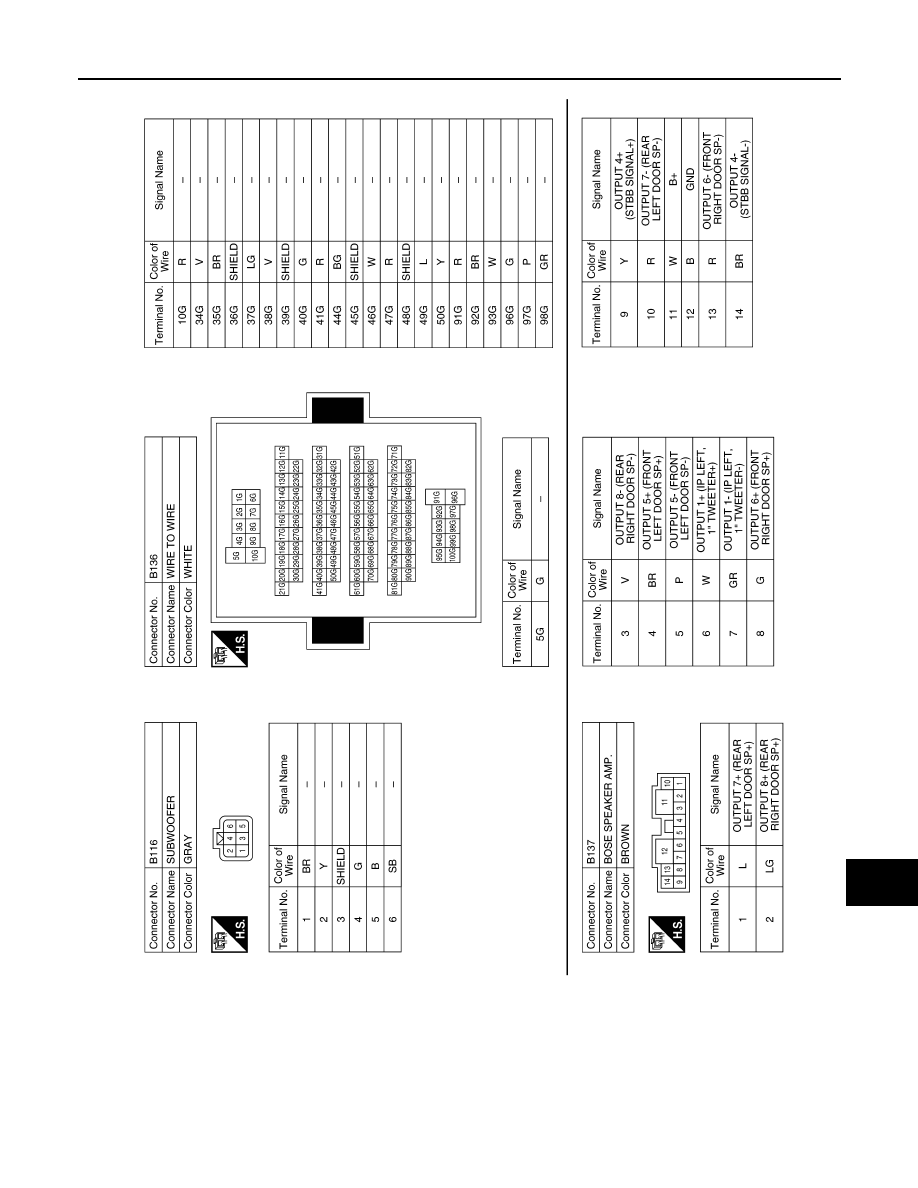

NAVIGATION WITH BOSE

AANIA3297GB

AV

NAVIGATION WITH BOSE

AV-271

< WIRING DIAGRAM >

[NAVIGATION WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AANIA3298GB
