Nissan Rogue. Manual - part 50

AV-192

< SYMPTOM DIAGNOSIS >

[NAVIGATION WITHOUT BOSE]

NORMAL OPERATING CONDITION

RELATED TO NAVIGATION

Basic Operation

Vehicle Mark

The other party’s voice cannot be heard by hands-free phone.

When the radio wave condition is not ideal or ambient sound is too
loud, it may be difficult to hear the other person’s voice during a
call.

Poor sound quality.

Do not place the cellular phone in an area surrounded by metal or
far away from the in-vehicle phone module to prevent tone quality
degradation and wireless connection disruption.

Symptom

Cause and Counter measure

Symptom

Cause

Remedy

No image is shown.

Display brightness adjustment is set fully to DARK
side.

Adjust the display brightness.

No guide sound is heard.
Audio guide volume is too low or
too high.

Volume control is set to OFF, MIN or MAX.

Adjust the audio guide volume.

Audio guidance is not available while the vehicle is
driving on a dark pink route.

System is not malfunctioning.

Screen is too dark.
Motion of the image is too slow.

Temperature inside the vehicle is low.

Wait until the temperature inside the vehicle
reaches the proper temperature.

Small black or bright spots appear
on the screen.

Symptom peculiar to a liquid crystal display (dis-
play unit).

System is not malfunction.

Symptom

Cause

Remedy

Map screen and BIRDVIEW™
Name of the place vary with the
screen.

Some thinning of the character data is done to pre-
vent the display becoming to complex. In some
cases and in some locations, the display contents
may differ.
The same place name, street name, etc. may not
be displayed every time on account of the data
processing.

System is not malfunctioning.

Vehicle mark is not positioned cor-
rectly.

Vehicle is transferred by ferry or by towing after its
ignition switch is turned to OFF.

Drive the vehicle for a while in the GPS sat-
ellite signal receiving condition.

Screen will not switch to nighttime
mode after the lighting switch is
turned ON.

The daytime screen is selected by the “SWITCH
SCREENS” when the last time the screen dim-
ming setting is done.
Switching between daytime/nighttime screen may
be inhibited by the automatic illumination adjust-
ment function.

Perform screen dimming and select the
nighttime screen by “SWITCH SCREENS”.

Map screen will not scroll in accor-
dance with the vehicle travel.

Current location is not displayed.

Press “MAP” button to display the current lo-
cation.

Vehicle mark will not be shown.

Current location is not displayed.

Press “MAP” button to display the current lo-
cation.

Accuracy indicator (GPS satellite
mark) on the map screen stays
gray.

GPS satellite signal is intercepted because the ve-
hicle is in or behind a building.

Move the vehicle out to an open space.

GPS satellite signal cannot be received because
an obstacle is placed on top of the instrument pan-
el.

Do not place anything on top of the meter dis-
play (instrument panel).

GPS satellites are not visible from current location. Wait until GPS satellites are visible by mov-

ing the vehicle.

NORMAL OPERATING CONDITION

AV-193

< SYMPTOM DIAGNOSIS >

[NAVIGATION WITHOUT BOSE]

Destination, Passing Points and Menu Items Cannot be Selected/Set

Voice Guide

Vehicle location accuracy is low.

Accuracy indicator (GPS satellite mark) on the
map screen stays gray.

Current location is not determined.

Vehicle speed setting by the vehicle speed pulse
has been deviated (advanced or retarded) from
the actual vehicle speed because tire chain is fit-
ted or the system has been used on another vehi-
cle.

Drive the vehicle for a while [for approx. 30
minutes at approx. 30 km/h (19 MPH)] and
the deviation will be automatically adjusted. If
advancement or retard still occur, perform
the distance adjustment by CONFIRMA-
TION/ADJUSTMENT mode of diagnosis
function.

Map data has error or omission. (Vehicle mark is
always deviated to the same position.)

As a rule, an updated map DVD–ROM will be
released once a year.

Symptom

Cause

Remedy

Symptom

Cause

Remedy

Destination cannot be set.

Destination to be set is on an expressway.

Set the destination on an ordinary road.

Passing point is not searched
when re-searching the route.

The vehicle has already passed the passing point,
or the system judged so.

To include the passing points that have been
passed into the route again, set the route
again.

Route information will not be dis-
played.

Route searching has not been done.

Set the destination and perform route
searching.

Vehicle mark is not on the recommended route.

Drive on the recommended route.

Route guide is turned OFF.

Turn route guide ON.

Route information is not available on the dark pink
route.

System is not malfunctioning.

After the route searching, no guide
sign will appear as the vehicle
goes near the entrance/exit to the
toll road.

Vehicle mark is not on the recommended route.
(On the display, only guide signs related to the rec-
ommended route will be shown.)

Drive on the recommended route.

Automatic route searching is not
possible.

Vehicle is driving on a highway (gray route), or no
recommended route is available.

Drive on a road to be searched. Or re–search
the route manually. In this case, however, the
whole route will be searched.

Performed automatic detour
search (or detour search). Howev-
er, the result is the same as that of
the previous search.

Performed search with every conditions consid-
ered. However, the result is the same as that of the
previous search.

System is not malfunctioning.

Passing points cannot be set.

More than five passing points were set.

Passing points can be set up to five. To stop
at more than five points, perform sharing in
several steps.

When setting the route, the starting
point cannot be selected.

The current vehicle location is always set as the
starting point of a route.

System is not malfunctioning.

Some menu items cannot be se-
lected.

The vehicle is being driven.

Stop the vehicle at a safe place and then op-
erate the system.

AV-194

< SYMPTOM DIAGNOSIS >

[NAVIGATION WITHOUT BOSE]

NORMAL OPERATING CONDITION

Route Search

NOTE:
Except for the ordinance-designated cities. (Malfunctioning areas may be changed in the updated map disc.)

Examples of Current-Location Mark Displacement

Symptom

Cause

Remedy

Voice guide will not operate.

Note: Voice guide is only available at intersections
that satisfy certain conditions (indicated by z on
the map). Therefore, guidance may not be given
even when the route on the map changes direction.

System is not malfunctioning.

The vehicle is not on the recommended route.

Return to the recommended route or re-
search the route.

Voice guide is turned OFF.

Turn voice guide ON.

Route guide is turned OFF.

Turn route guide ON.

Voice guide does not match the ac-
tual road pattern.

Voice guide may vary with the direction to which
the vehicle is turn and the connection of the road to
other roads.

Drive in conformity to the actual traffic rules.

Symptom

Cause

Remedy

No route is shown.

No road to be searched is found around the des-
tination.

Find wider road (orange road or wider) near-
by and reset the destination and passing
points onto it. Take care of the traveling direc-
tion when there are separate up and down
roads.

Starting point and the destination are too close.

Set the destination at more distant point.

Conditional traffic regulation (day of the week/
time of the day) is set at the area around the cur-
rent location or the destination.

Turn the time-regulating search conditions
OFF. Turn “Avoid regulation time” in the
search conditions OFF.

Indicated route is intermittent.

In some areas, highways (gray routes) are not
used for the search

(Note)

Therefore, the route to

the current location or the passing points may be
intermittent.

System is not malfunctioning.

When the vehicle has passed the
recommended route, it is deleted
from the screen.

A recommended route is controlled by each sec-
tion. When the vehicle has passed the passing
point 1, then the map data from the starting point
up to the passing point 1 will be deleted. (The data
may remain undeleted in some area.)

System is not malfunctioning.

Detouring route is recommended.

In some areas, highways (gray routes) are not
used for the search. (Note). Therefore, detour
route may be recommended.

Set the route closer to the basic route (gray
route).

A detour route may be shown when some traffic
regulation (one-way traffic, etc.) is set at the area
around the starting point or the destination.

Slightly move the starting point or the destina-
tion, or set the passing point on the route of
your choice.

In the area where highways (gray routes) are
used for the search, left turn has priority around
the current location and the destination (passing
points). For this reason, the recommended route
may be detouring.

System is not malfunctioning.

Landmarks on the map do not
match the actual ones.

This can be happen due to omission or error in
the map data.

As a rule, an updated map DVD-ROM will be
released once a year. Wait until the latest
map has become available.

Recommended route is far from
the starting point, passing points,
and destination.

Starting point, passing points, and destination of
the route guide were set far from the desired
points because route searching data around
these area were not stored.

Reset the destination onto the road nearby. If
this road is one of the highways (gray routes),
an ordinary road nearby may be displayed as
the recommended route.

NORMAL OPERATING CONDITION

AV-195

< SYMPTOM DIAGNOSIS >

[NAVIGATION WITHOUT BOSE]

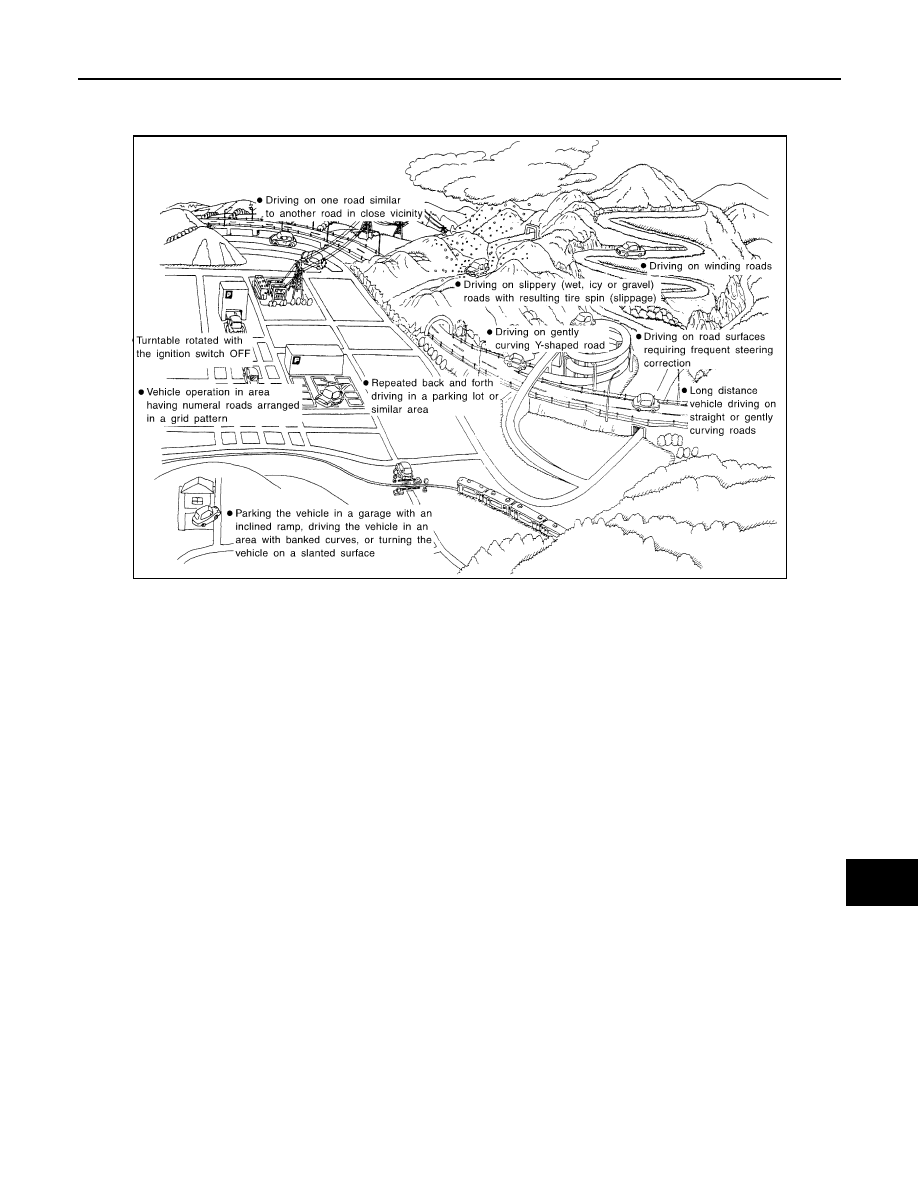

Vehicle's travel amount is calculated by reading its travel distance and turning angle. Therefore, if the vehicle

is driven in the following manner, an error will occur in the vehicle's current location display. If correct location

has not been restored after driving the vehicle for a while, perform location correction.

SEL698V
