DIAGNOSIS SYSTEM (BCM)

RF-81

< SYSTEM DESCRIPTION >

[WITH DUAL PANEL SUNROOF]

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

CONSULT Function (BCM - RETAINED PWR)

INFOID:0000000010064713

DATA MONITOR

Monitor Item [Unit]

Description

DOOR SW-DR [On/Off]

Indicates condition of front door switch LH

DOOR SW-AS [On/Off]

Indicates condition of front door switch RH

RF-82

< DTC/CIRCUIT DIAGNOSIS >

[WITH DUAL PANEL SUNROOF]

POWER SUPPLY AND GROUND CIRCUIT

DTC/CIRCUIT DIAGNOSIS

POWER SUPPLY AND GROUND CIRCUIT

BCM
BCM : Diagnosis Procedure

INFOID:0000000010064716

Regarding Wiring Diagram information, refer to

BCS-67, "Wiring Diagram"

.

1.

 CHECK FUSE AND FUSIBLE LINK

Check if the following BCM fuses or fusible link are blown.

Is the fuse or fusible link blown?

YES

>> Replace the blown fuse or fusible link after repairing the affected circuit.

NO

>> GO TO 2

2.

 CHECK POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect BCM.

3. Check voltage between BCM harness connector and ground.

Is the measurement normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK GROUND CIRCUIT

Check continuity between BCM harness connector and ground.

Does continuity exist?

YES

>> Inspection End.

NO

>> Repair or replace harness.

SUNROOF MOTOR ASSEMBLY
SUNROOF MOTOR ASSEMBLY : Diagnosis Procedure

INFOID:0000000010048984

Terminal No.

Signal name

Fuse and fusible link No.

1

Battery power supply

H

11

10

24

7

Terminals

Voltage

(Approx.)

(+)

(

−)

BCM

Ground

Connector

Terminal

M16

1

Battery voltage

M17

11

M18

24

BCM

Ground

Continuity

Connector

Terminal

M17

13

Yes

POWER SUPPLY AND GROUND CIRCUIT

RF-83

< DTC/CIRCUIT DIAGNOSIS >

[WITH DUAL PANEL SUNROOF]

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

Regarding Wiring Diagram information, refer to

RF-123, "Wiring Diagram"

.

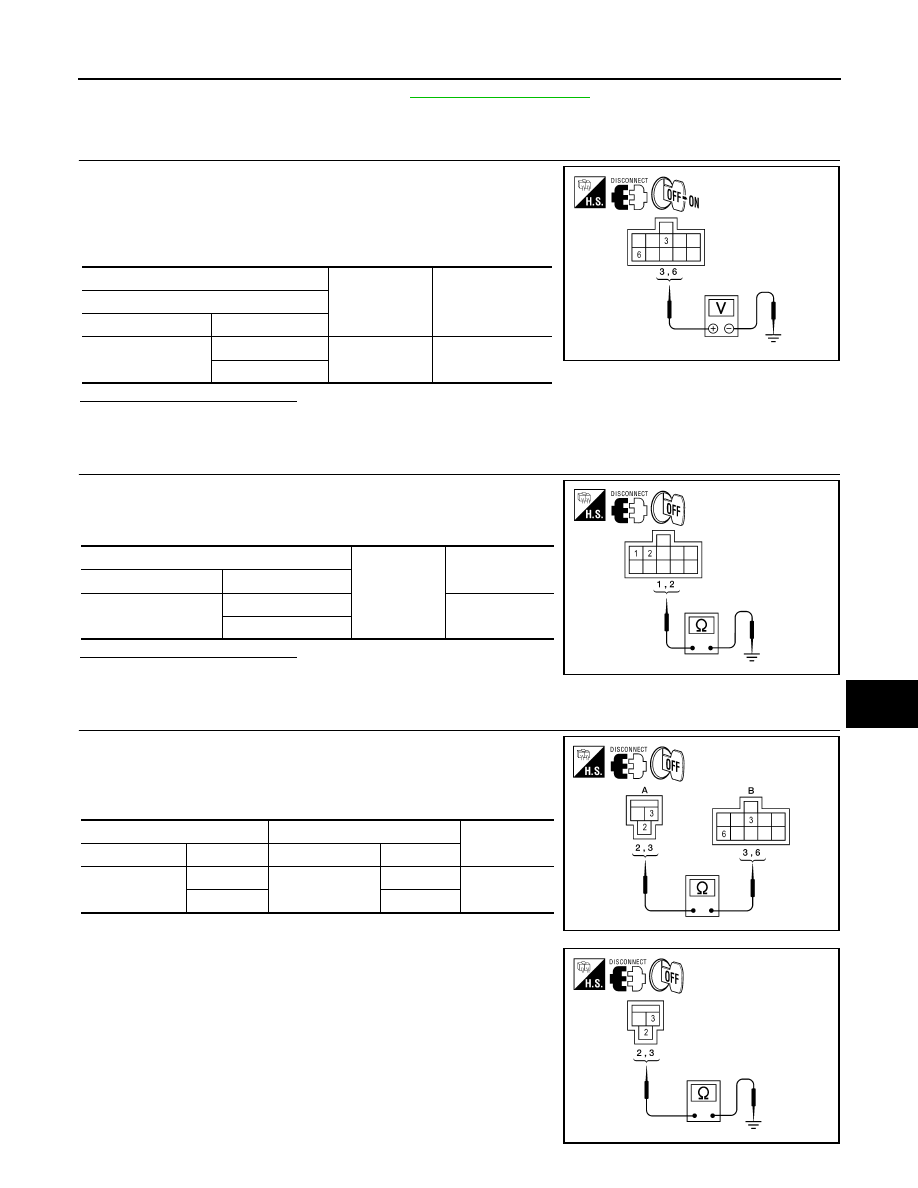

1.

CHECK POWER SUPPLY

1. Turn ignition switch OFF.

2. Disconnect sunroof motor assembly connector.

3. Turn ignition switch ON.

4. Check voltage between sunroof motor assembly harness con-

nector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

CHECK GROUND CIRCUIT

1. Turn ignition switch OFF.

2. Check continuity between sunroof motor assembly harness con-

nector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace the harness.

3.

CHECK SUNROOF MOTOR CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect BCM connector.

3. Check continuity between BCM harness connector (A) and sun-

roof motor assembly harness connector (B).

4. Check continuity between BCM harness connector and ground.

(+)

(–)

Voltage (V)

(Approx.)

Sunroof motor assembly

 Connector

Terminal

R101

3

Ground

Battery voltage

6

AWKIA1421ZZ

Sunroof motor assembly

Ground

Continuity

 Connector

Terminal

R101

1

Yes

2

AWKIA1422ZZ

BCM (A)

Sunroof motor assembly (B)

Continuity

Connector

Terminal

 Connector

Terminal

M16

2

R101

6

Yes

3

3

AWKIA1423ZZ

AWKIA1424ZZ

RF-84

< DTC/CIRCUIT DIAGNOSIS >

[WITH DUAL PANEL SUNROOF]

POWER SUPPLY AND GROUND CIRCUIT

Is the inspection result normal?

YES

>> Replace the BCM.  Refer to

BCS-79, "Removal and Installation"

.

NO

>> Repair or replace the harness.

4.

CHECK INTERMITTENT INCIDENT

Refer to

GI-41, "Intermittent Incident"

.

>> Inspection End.

SUNSHADE MOTOR ASSEMBLY
SUNSHADE MOTOR ASSEMBLY : Diagnosis Procedure

INFOID:0000000010048985

Regarding Wiring Diagram information, refer to

RF-130, "Wiring Diagram"

.

1.

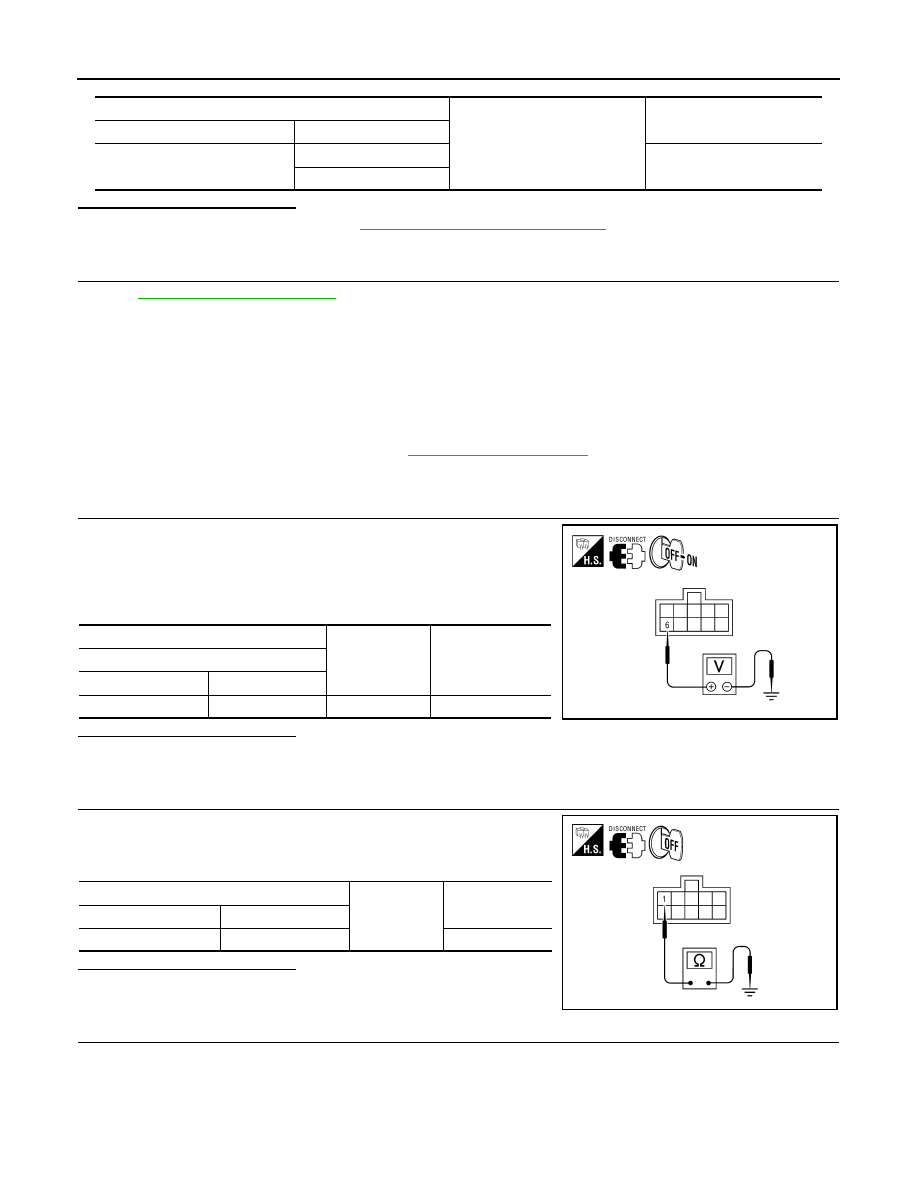

CHECK POWER SUPPLY

1. Turn ignition switch OFF.

2. Disconnect sunshade motor assembly connector.

3. Turn ignition switch ON.

4. Check voltage between sunshade motor assembly harness con-

nector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

CHECK GROUND CIRCUIT

1. Turn ignition switch OFF.

2. Check continuity between sunshade motor assembly harness

connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace the harness.

3.

CHECK SUNSHADE MOTOR CIRCUIT

BCM

Ground

Continuity

 Connector

Terminal

M16

2

No

3

(+)

(–)

Voltage (V)

(Approx.)

Sunshade motor assembly

 Connector

Terminal

R102

6

Ground

Battery voltage

AWKIA1425ZZ

Sunshade motor assembly

Ground

Continuity

 Connector

Terminal

R102

1

Yes

AWKIA1426ZZ
