PERIODIC MAINTENANCE

WHEEL HUB

On-vehicle Service

INFOID:0000000009465133

Check axle and suspension parts for excessive play, wear or damage.

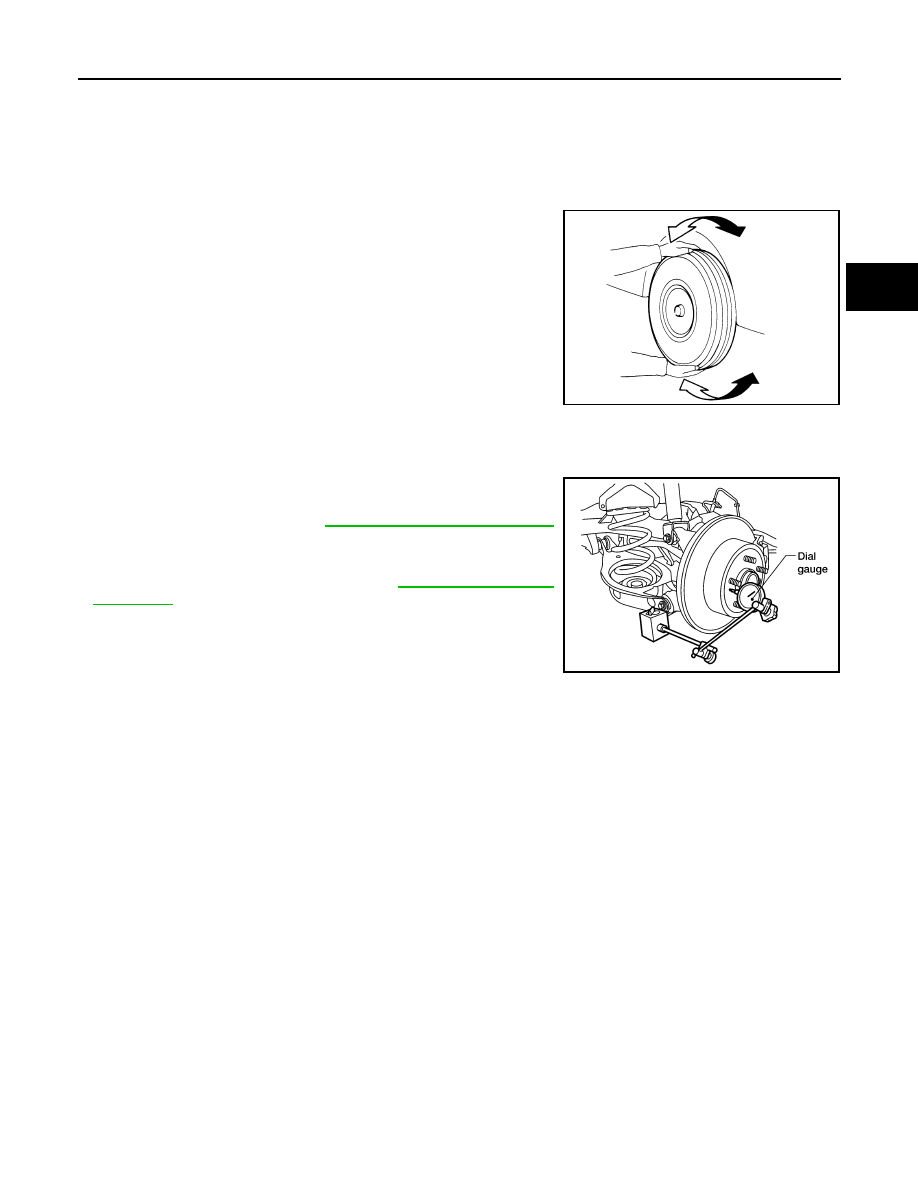

• Shake each rear wheel to check for excessive play.

Inspection

INFOID:0000000009465134

Rear Wheel Bearing

• Check axial end play.

• Check that wheel hub bearings operate smoothly.

• Replace wheel bearing assembly if there is axial end play or wheel

bearing does not turn smoothly. Refer to

FAX-7, "Removal and

Installation"

.

SMA525A

Axial end play : Refer to

RAX-8, "Wheel Bearing (Rear)"

.

LDIA0009E

RAX-6

< REMOVAL AND INSTALLATION >

WHEEL HUB

REMOVAL AND INSTALLATION

WHEEL HUB

Removal and Installation

INFOID:0000000009465135

REMOVAL

CAUTION:

Wheel hub assembly does not require maintenance. If any of the following symptoms are noted,

replace the wheel hub assembly.

• A growling noise is emitted from the wheel hub assembly while driving.

• The wheel hub assembly drags or turns roughly.
1. Remove the rear wheel and tire using power tool. Refer to

WT-60, "Adjustment"

.

2. Remove the brake caliper assembly and brake rotor using power tool. Refer to

BR-36, "Removal and

Installation of Brake Caliper and Rotor"

.

• The brake hose does not need to be disconnected from the brake caliper.

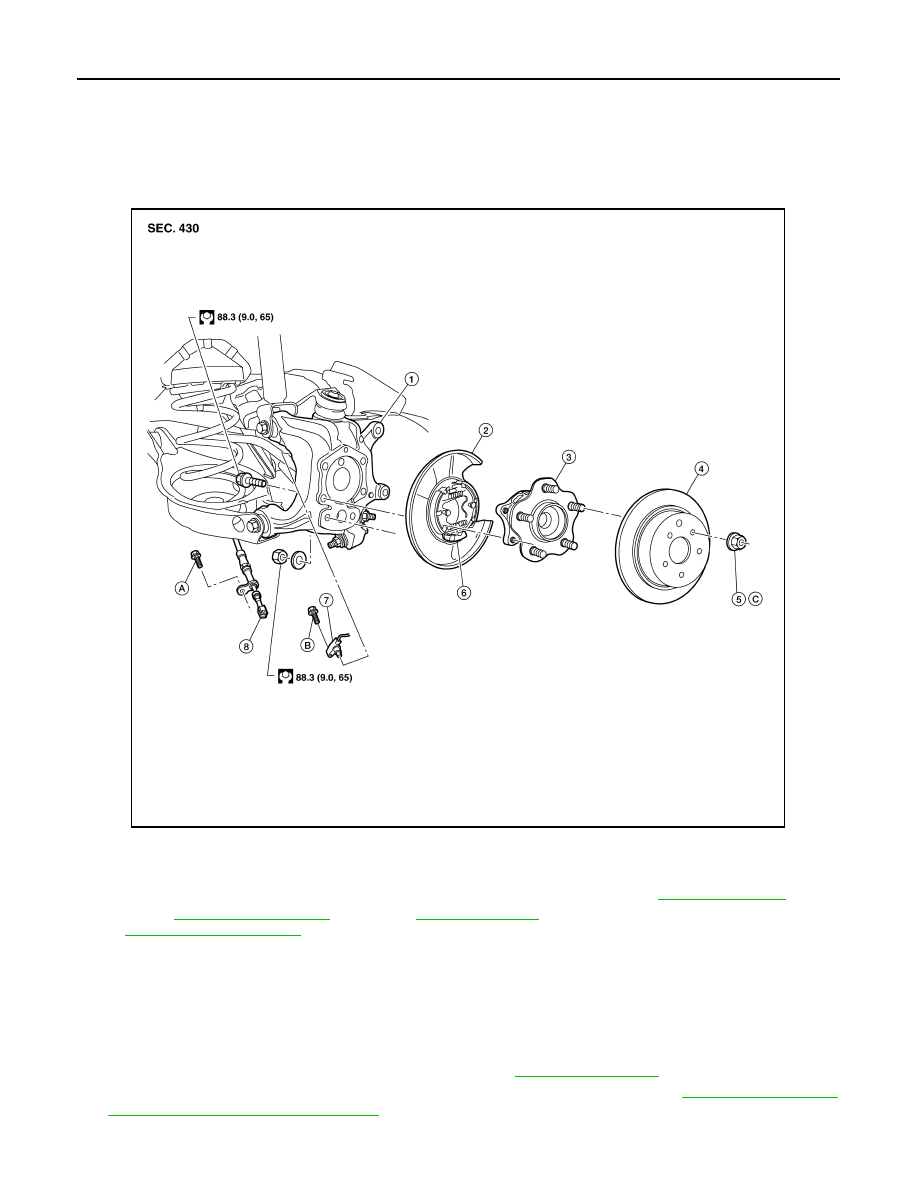

1.

Knuckle

2.

Baffle plate

3.

Wheel hub assembly

4.

Brake rotor

5.

Wheel nut

6.

Anchor block

7.

Wheel sensor

8.

Parking brake cable

A. Refer to

PB-6, "Exploded View"

.

B. Refer to

BRC-103, "Removal and In-

stallation - Rear Wheel Sensor"

.

C. Refer to

WT-65, "Road Wheel"

.

AWDIA0482GB

WHEEL HUB

RAX-7

< REMOVAL AND INSTALLATION >

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

CAUTION:

• Suspend the brake caliper assembly using wire, do not stretch the brake hose.

• Do not depress the brake pedal, or the caliper piston will pop out.

• Do not twist the brake hose.

3. Remove the rear wheel sensor, then move it away from the wheel hub assembly. Refer to

BRC-103,

"Removal and Installation - Rear Wheel Sensor"

.

CAUTION:

Failure to remove the wheel sensor may result in damage to the sensor wires and the sensor

being inoperative.

4. Remove the wheel hub assembly from knuckle.

INSPECTION AFTER REMOVAL

Check for any deformity, cracks, or damage on the wheel hub assembly, replace if necessary.

INSTALLATION

Installation is in the reverse order of removal.

• Check that the wheel bearings operate smoothly.

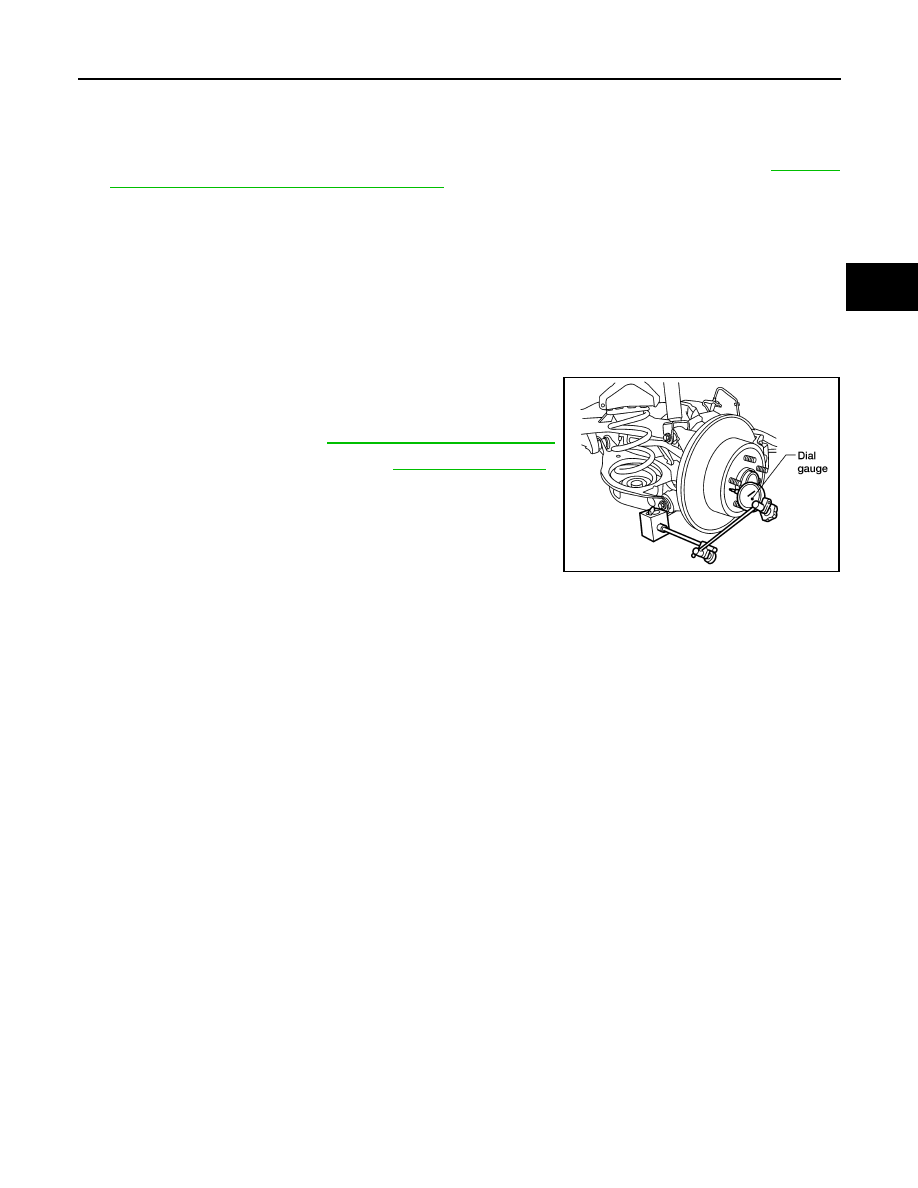

• Check that the wheel hub bearing axial end play is within specifica-

tion.

• Tighten wheel nut to specification. Refer to

WT-65, "Road Wheel"

.

Axial end play : Refer to

RAX-8, "Wheel Bearing (Rear)"

.

LDIA0009E

RAX-8

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Wheel Bearing (Rear)

INFOID:0000000009465136

Wheel bearing axial end play

0.1 mm (0.004 in) or less
