Nissan Maxima. Manual - part 954

PWO-4

< WIRING DIAGRAM >

POWER SOCKET

ABMIA3921GB

PWO

POWER SOCKET

PWO-5

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

AAMIA0950GB

PWO-6

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000009465127

The actual shapes of the tools may differ from those illustrated here.

Tool number
TechMate No.)
Tool name

Description

—

(J-42059)
Power socket removal tool

For removing power sockets

AWMIA1148GB

PWO

POWER SOCKET

PWO-7

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

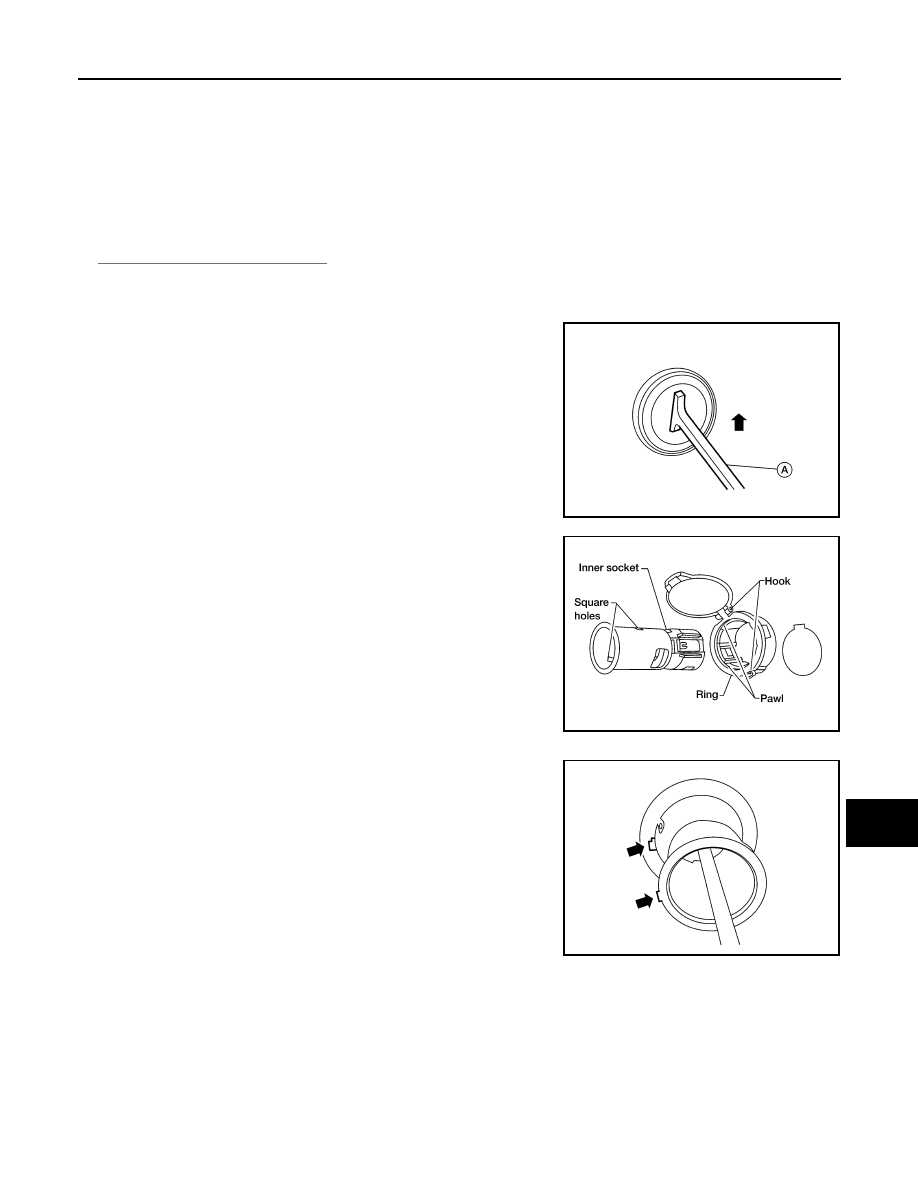

REMOVAL AND INSTALLATION

POWER SOCKET

Removal and Installation

INFOID:0000000009465128

POWER SOCKET

NOTE:

If the tool does not fit because of the location of the power socket, further disassembly may be required. Refer

to

IP-14, "Removal and Installation"

.

Removal

1. Remove the fuse for the power socket.
2. Insert one end of the Tool (A) into one of the square holes inside

the power socket.

3. Lift up the handle of the Tool until the other end of the Tool is

inside the socket and snaps into the other square hole in the

power socket.

4. Pull the power socket straight out with the Tool.

5. Disconnect connector from the power socket.
6. Remove ring from power socket finisher while pressing pawls.

Installation

Installation is in the reverse order of removal.

NOTE:

Make sure to align the tab with the square notched area during

installation.

Tool number:

—   (J-42059)

AWMIA1182GB

WKIA1035E

AWMIA1183GB
