PREPARATION

PWC-105

< PREPARATION >

[LH&RH FRONT WINDOW ANTI-PINCH]

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000009467716

The actual shapes of the tools may differ from those illustrated here.

Tool number
(TechMate No.)
Tool name

Description

—

 (J-46534)
Trim Tool Set

Removing trim components

AWJIA0483ZZ

PWC-106

< PERIODIC MAINTENANCE >

[LH&RH FRONT WINDOW ANTI-PINCH]

PRE-INSPECTION FOR DIAGNOSTIC

PERIODIC MAINTENANCE

PRE-INSPECTION FOR DIAGNOSTIC

Basic Inspection

INFOID:0000000009467717

BASIC INSPECTION

1.

INSPECTION START

1. Check the service history.

2. Check the following parts.

• Fuse/circuit breaker blown.

• Poor connection, open or short circuit of harness connector.

• Battery voltage.
Is the inspection result normal?

YES

>> Inspection End.

NO

>> Repair or replace the malfunctioning parts.

MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

PWC-107

< REMOVAL AND INSTALLATION >

[LH&RH FRONT WINDOW ANTI-PINCH]

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

REMOVAL AND INSTALLATION

MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

Removal and Installation

INFOID:0000000009467718

REMOVAL

1. Remove the front door grip cover. Refer to

DLK-214, "FRONT DOOR : Removal and Installation"

.

2. Remove the clip (A) from the door grip using a suitable tool.

3. Release the metal clip and lift the main power window and door

lock/unlock switch (2) and finisher (1) as an assembly starting

from the rear using a suitable tool, pull upward to remove it from

the front door finisher.

: Metal clip

4. Disconnect the harness connector from the main power window

and door lock/unlock switch.

5. Release the pawls on each side to separate the switch finisher

(1) from the main power window and door lock/unlock switch (2).

: Pawl

CAUTION:

Do not damage the pawl of the switch finisher.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

Whenever the main power window and door lock/unlock switch is disconnected from the harness connector, it

is necessary to perform the Initialization procedure. Refer to

PWC-7, "ADDITIONAL SERVICE WHEN

REMOVING BATTERY NEGATIVE TERMINAL : Special Repair Requirement"

.

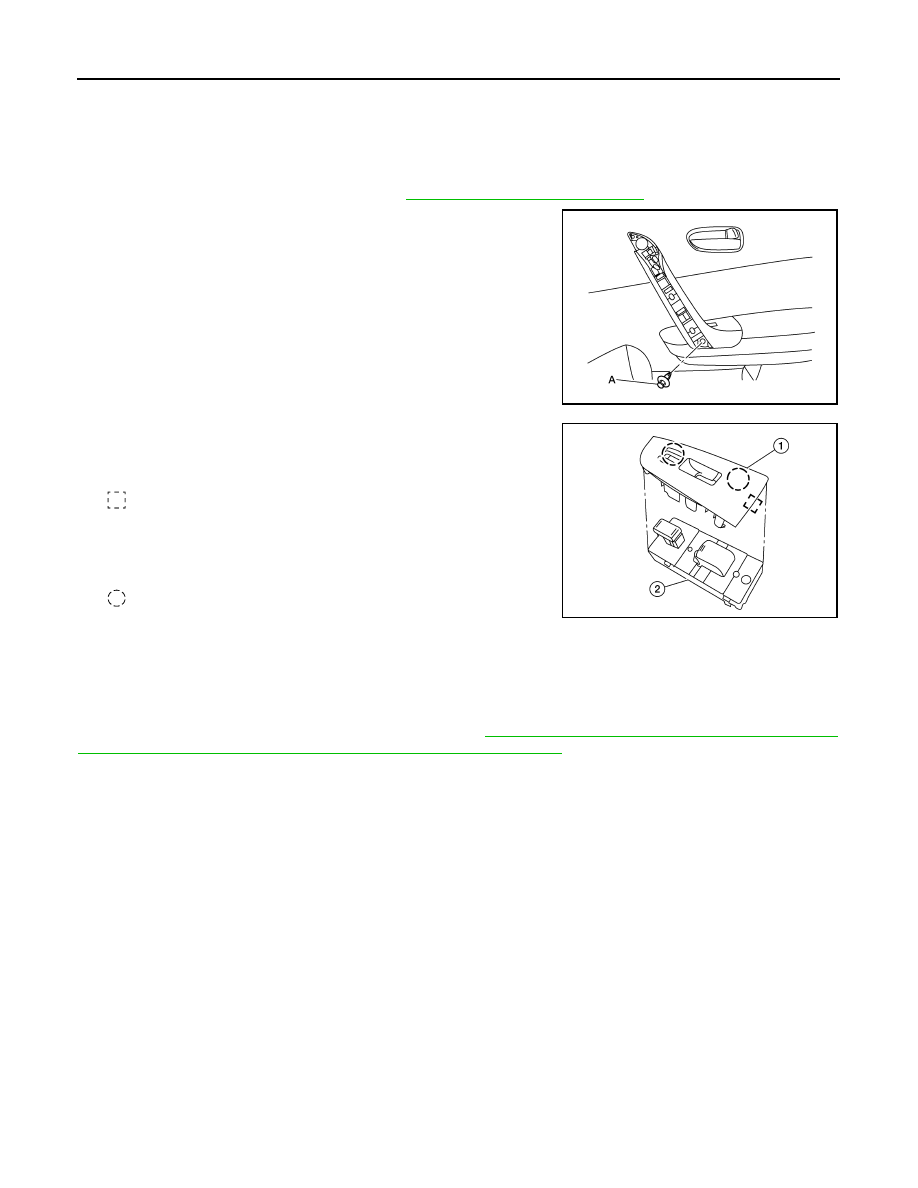

ALKIA1666ZZ

ALKIA1667ZZ

PWC-108

< REMOVAL AND INSTALLATION >

[LH&RH FRONT WINDOW ANTI-PINCH]

POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH

POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH

Removal and Installation

INFOID:0000000009467719

REMOVAL

1. Remove the front door grip cover. Refer to

INT-18, "Removal and Installation"

.

2. Remove the clip (A) from the door grip using suitable tool.

3. Release the metal clip and lift the power window and door lock/

unlock switch (2) and switch finisher (1) as an assembly starting

from the rear using a suitable tool, pull upward to remove it from

the front door finisher.

: Metal clip

4. Disconnect the harness connector from the power window and

door lock/unlock switch.

5. Release the pawls on each side to separate the switch finisher

(1) from the power window and door lock/unlock switch (2).

: Pawl

CAUTION:

Do not damage the pawl of the switch finisher.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

Whenever the power window and door lock/unlock switch is disconnected from the harness connector, it is

necessary to perform the Initialization procedure. Refer to

PWC-7, "ADDITIONAL SERVICE WHEN REMOV-

ING BATTERY NEGATIVE TERMINAL : Special Repair Requirement"

.

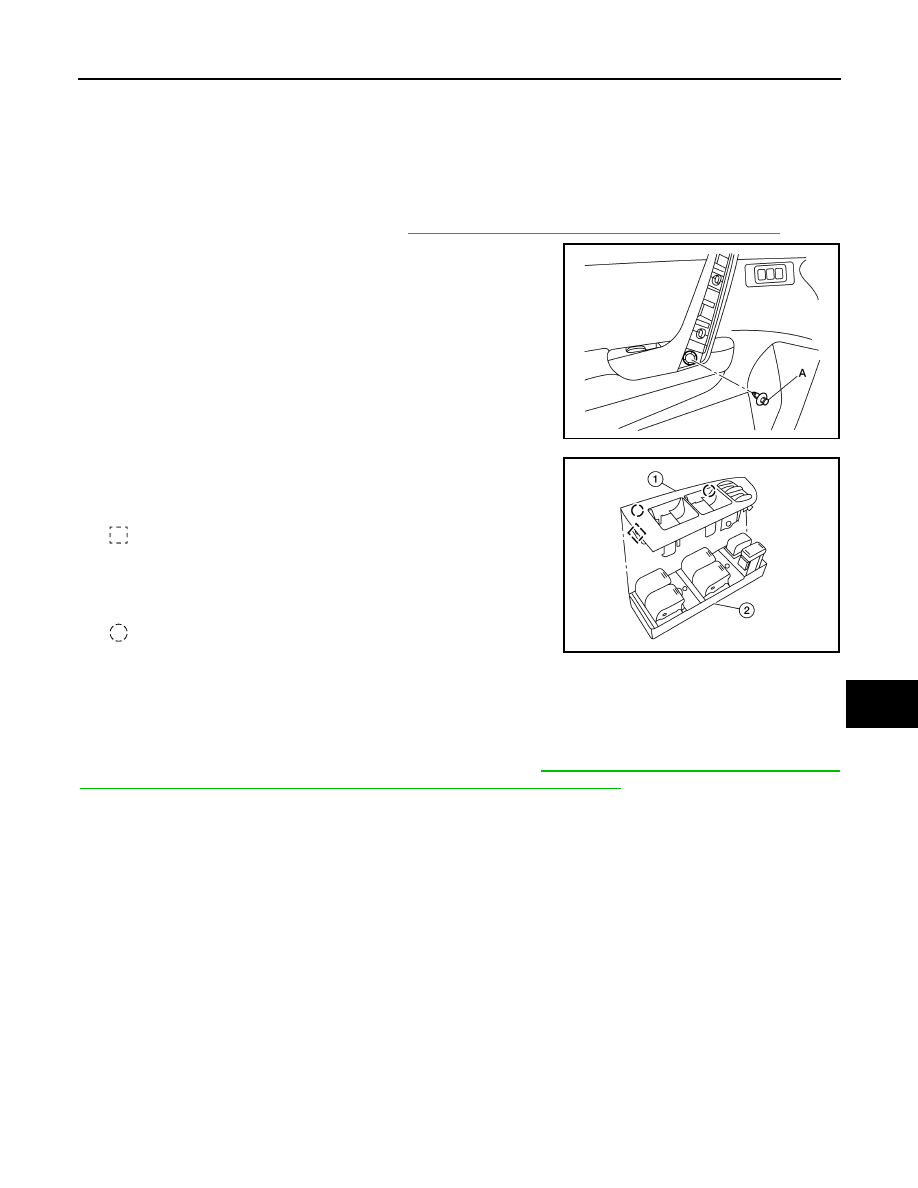

ALKIA1668ZZ

ALKIA1669ZZ
