PG-66

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000009465154

The actual shapes of the tools may differ from those illustrated here.

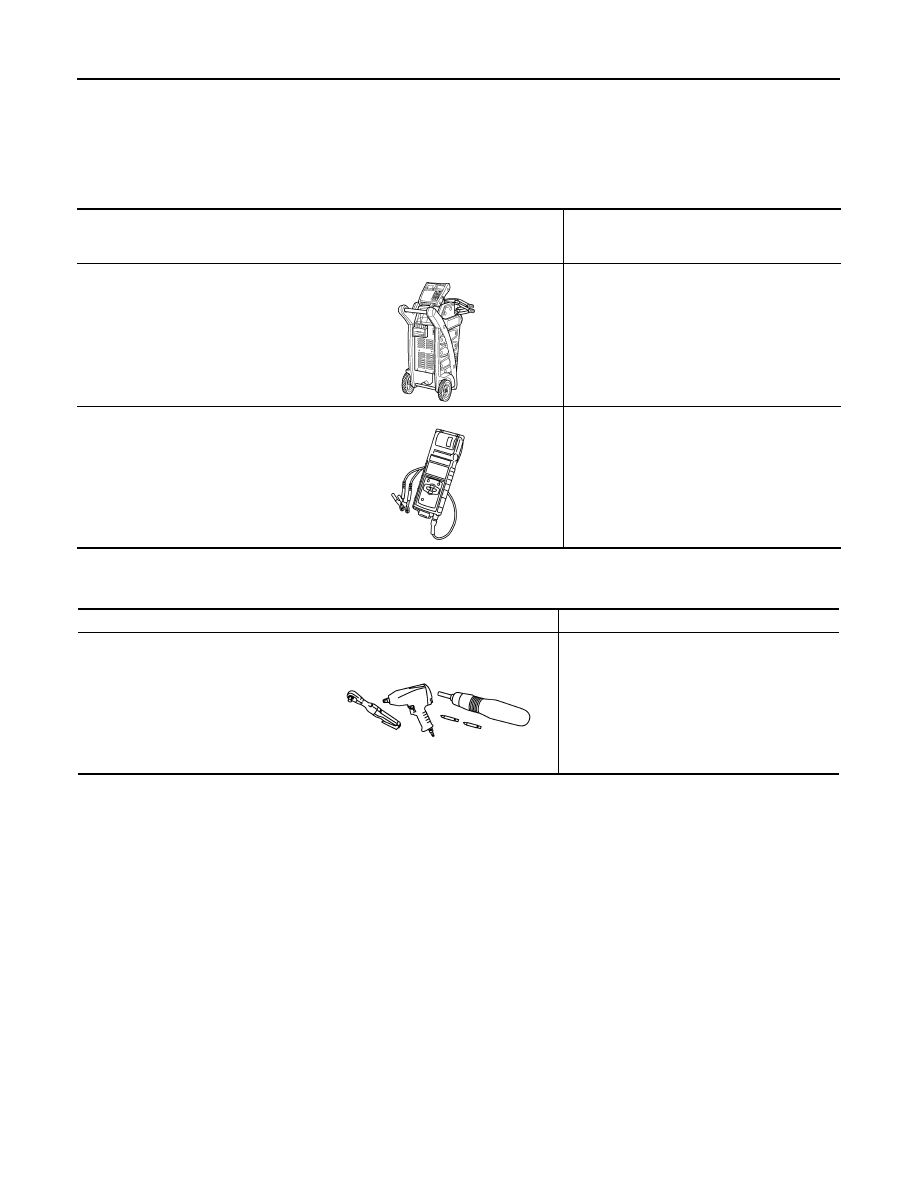

Commercial Service Tool

INFOID:0000000009465155

Tool number
(TechMate No.)
Tool name

Description

—

(—) Model GR8-1200 NI
Multitasking battery and electrical di-
agnostic station

Tests batteries, starting and charging sys-
tems and charges batteries.
For operating instructions, refer to diagnostic
station instruction manual.

—

(—) Model EXP-800 NI
Battery and electrical diagnostic ana-
lyzer

Tests batteries and charging systems.
For operating instructions, refer to diagnostic
analyzer instruction manual.

AWIIA1239ZZ

JSMIA0806ZZ

Tool name

Description

Power tool

Loosening nuts, screws and bolts

PIIB1407E

PG

BATTERY

PG-67

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

REMOVAL AND INSTALLATION

BATTERY

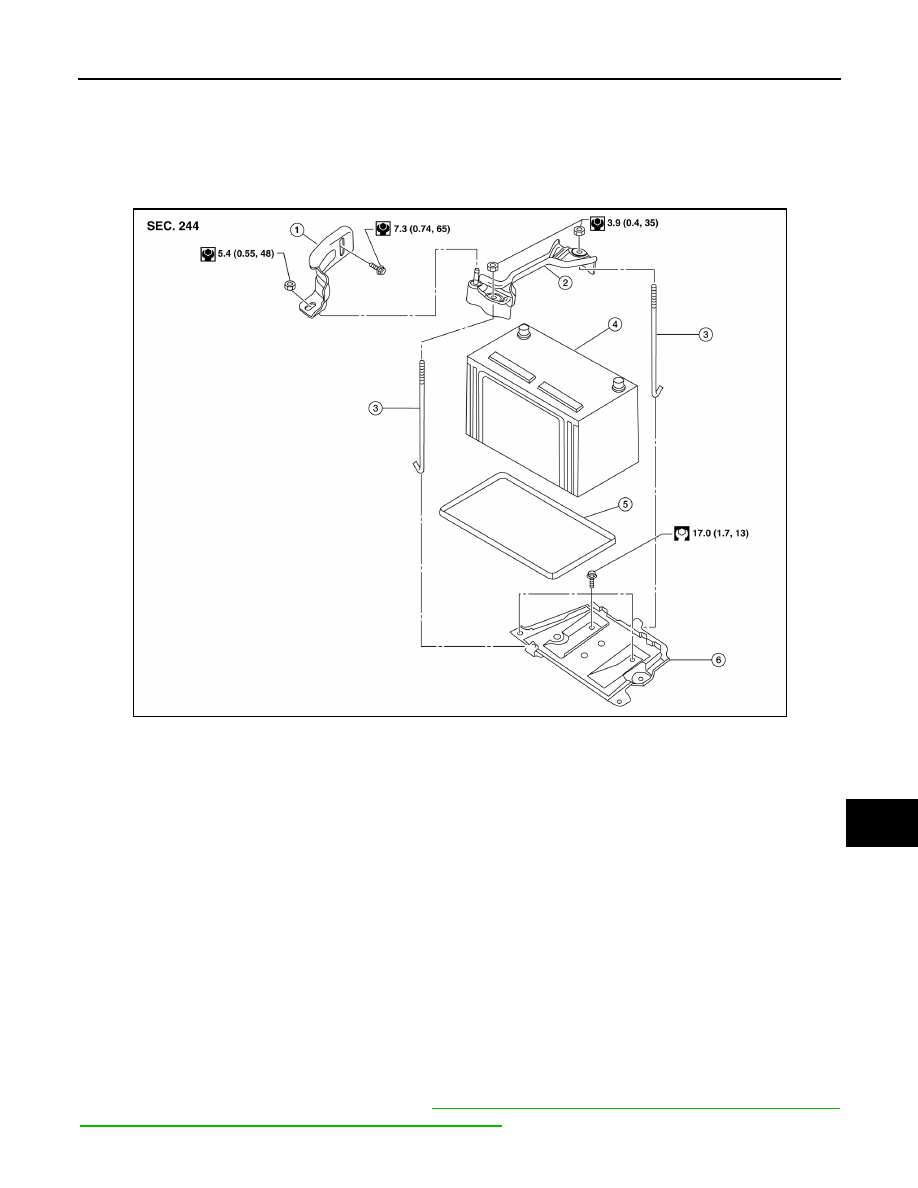

Exploded View

INFOID:0000000009465156

Removal and Installation (Battery)

INFOID:0000000009465157

REMOVAL

1. Loosen battery cable assembly nuts, and disconnect both battery terminals.

CAUTION:

When disconnecting, disconnect the negative terminal first.

2. Remove upper ECM bracket nut and bolt and ECM upper bracket.
3. Remove battery rod nuts and battery frame.
4. Remove battery.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

When connecting, connect the positive terminal first.

Reset electronic systems as necessary. Refer to

PG-5, "ADDITIONAL SERVICE WHEN REMOVING BAT-

TERY NEGATIVE TERMINAL : Special Repair Requirement"

.

1.

Upper ECM bracket

2.

Battery frame

3.

Battery rods

4.

Battery

5.

Battery tray liner

6.

Battery tray

AWMIA1242GB

Battery cable assembly nut

: 5.4 N·m (0.55 kg-m, 48 in-lb)

PG-68

< REMOVAL AND INSTALLATION >

BATTERY

Removal and Installation (Battery Tray)

INFOID:0000000009465158

REMOVAL

1. Remove battery and battery tray liner. Refer to

PG-67, "Removal and Installation (Battery)"

.

2. Remove air cleaner assembly. Refer to

EM-24, "Removal and Installation"

.

3. Remove ECM.
4. Disconnect transmission control module (TCM). Refer to

TM-168, "Removal and Installation"

.

5. Remove the lower ECM bracket.
6. Remove current sensor from battery tray.
7. Remove the battery tray bolts and battery tray.

INSTALLATION

Installation is in the reverse order of removal.

Reset electronic systems as necessary. Refer to

PG-5, "ADDITIONAL SERVICE WHEN REMOVING BAT-

TERY NEGATIVE TERMINAL : Special Repair Requirement"

.

PG-67, "Removal and Installation (Battery)"

PG

BATTERY

PG-69

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

SERVICE DATA AND SPECIFICATIONS (SDS)

BATTERY

Battery

INFOID:0000000009465159

*: Always check with the Parts Department for the latest parts information.

Type*

GR35

Capacity (20HR) minimum V-AH

12-60

Cold cranking current A (For reference value)

550
