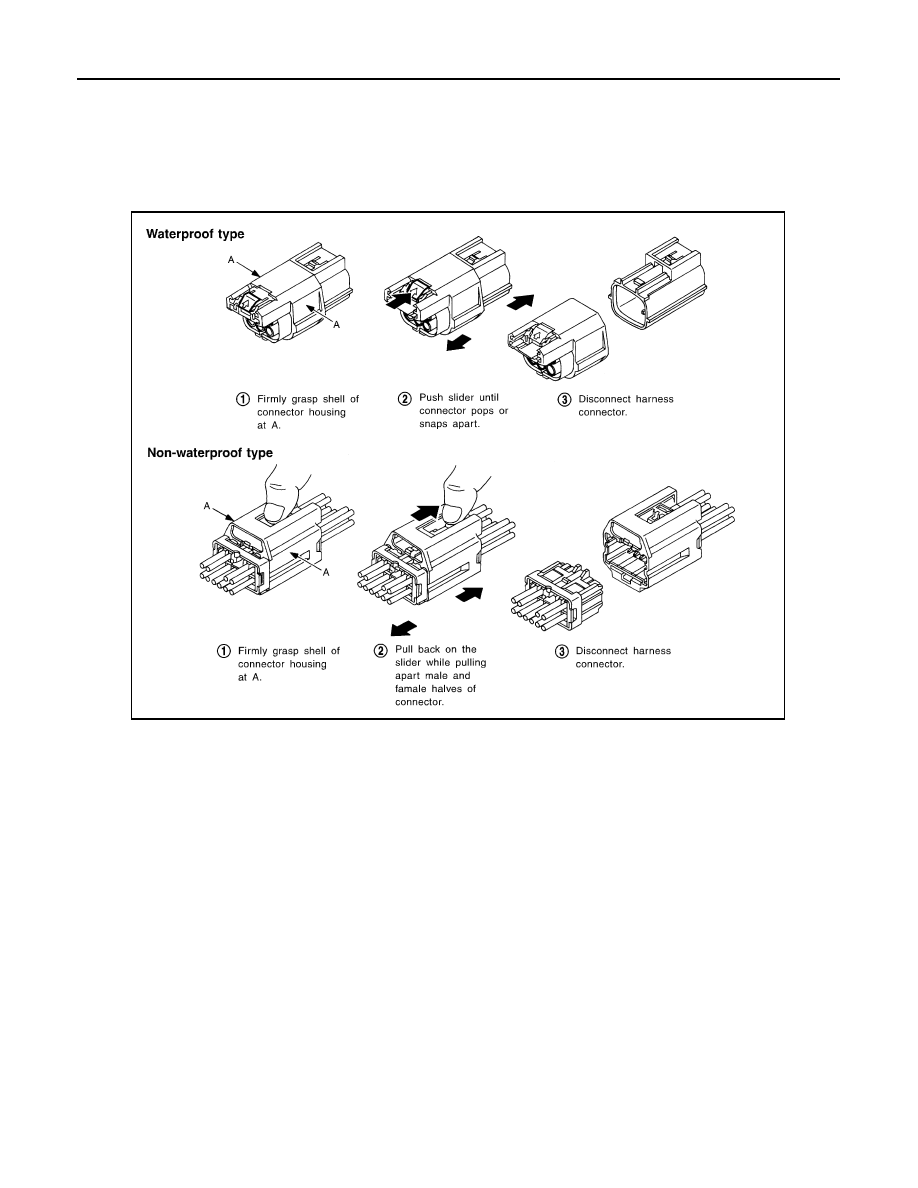

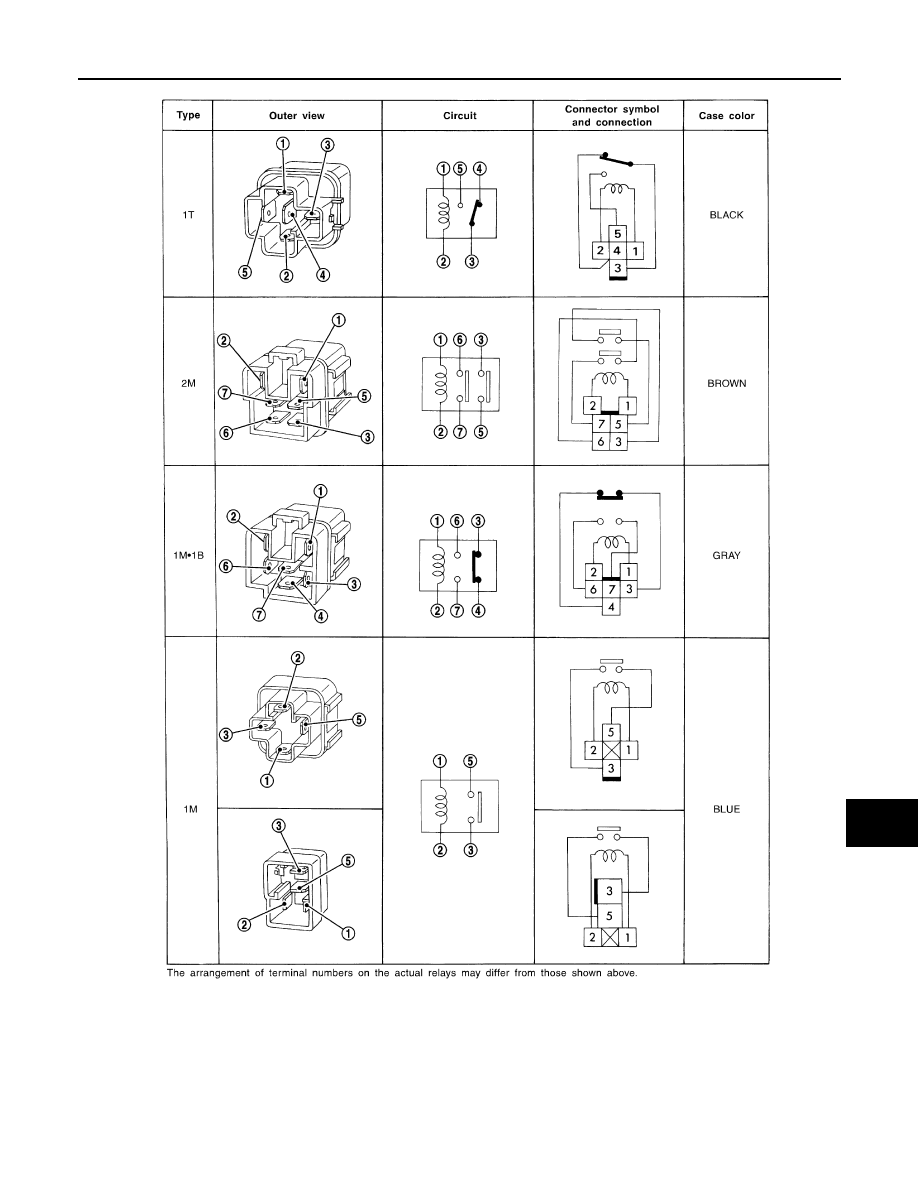

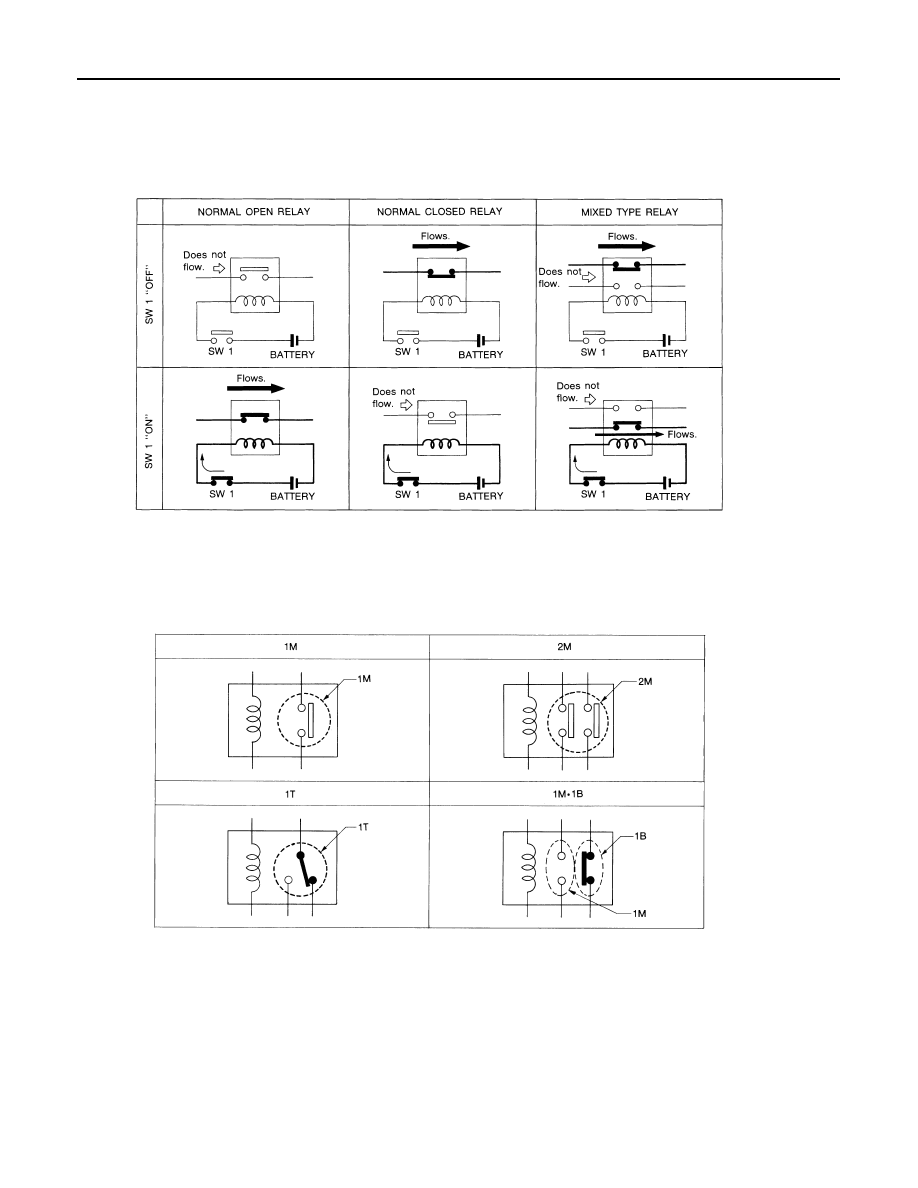

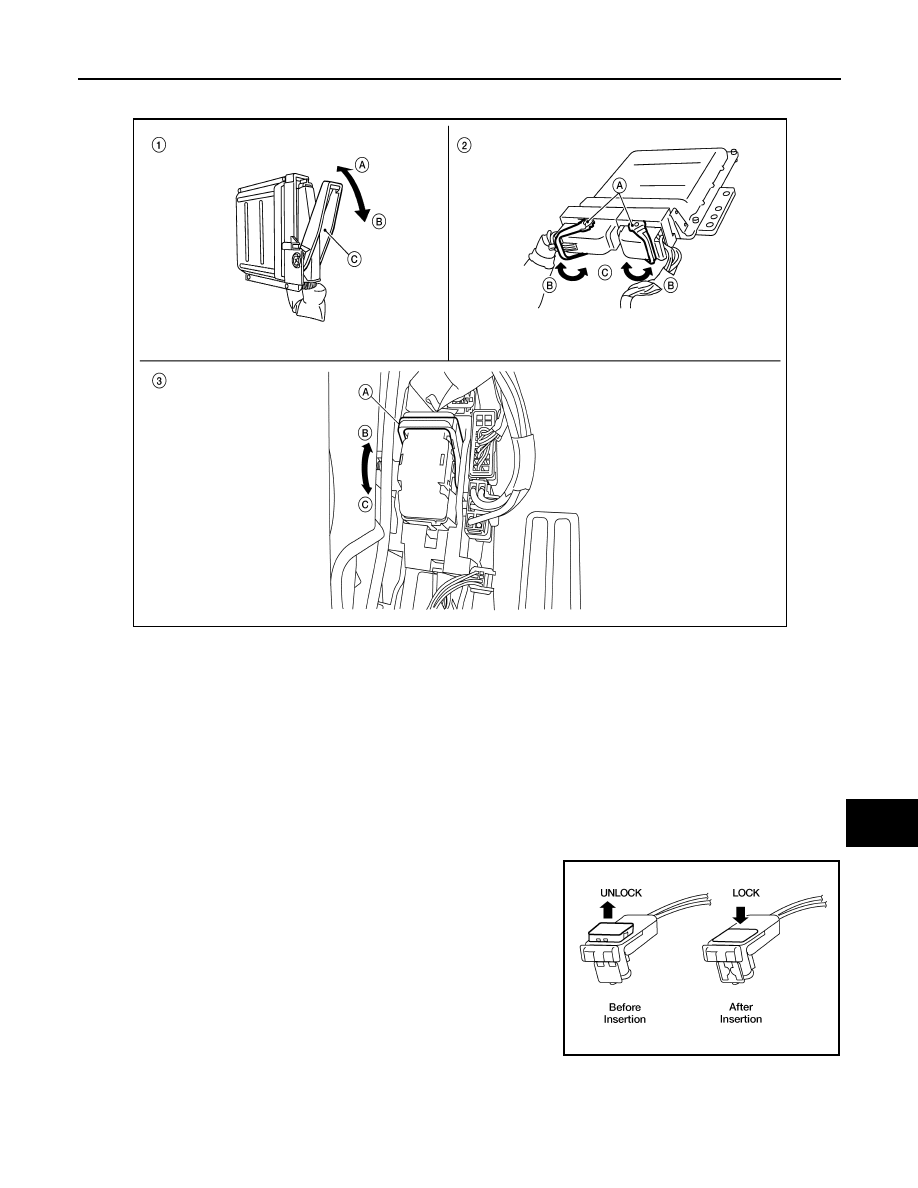

PG-58 < DTC/CIRCUIT DIAGNOSIS > HARNESS CONNECTOR • The slide-locking type connectors are disconnected by pushing or pulling the slider. Refer to the figure below. CAUTION: • Do not pull the harness or wires when disconnecting the connector. • Be careful not to damage the connector support bracket when disconnecting the connector. [Example] HARNESS CONNECTOR (LEVER LOCKING TYPE) • Lever locking type harness connectors are used on certain control units and control modules such as ECM, ABS actuator and electric unit (control unit), etc. • Lever locking type harness connectors are also used on super multiple junction (SMJ) connectors. • Always confirm the lever is fully locked in place by moving the lever as far as it will go to ensure full connec- tion. CAUTION: SEL769V |
