HARNESS

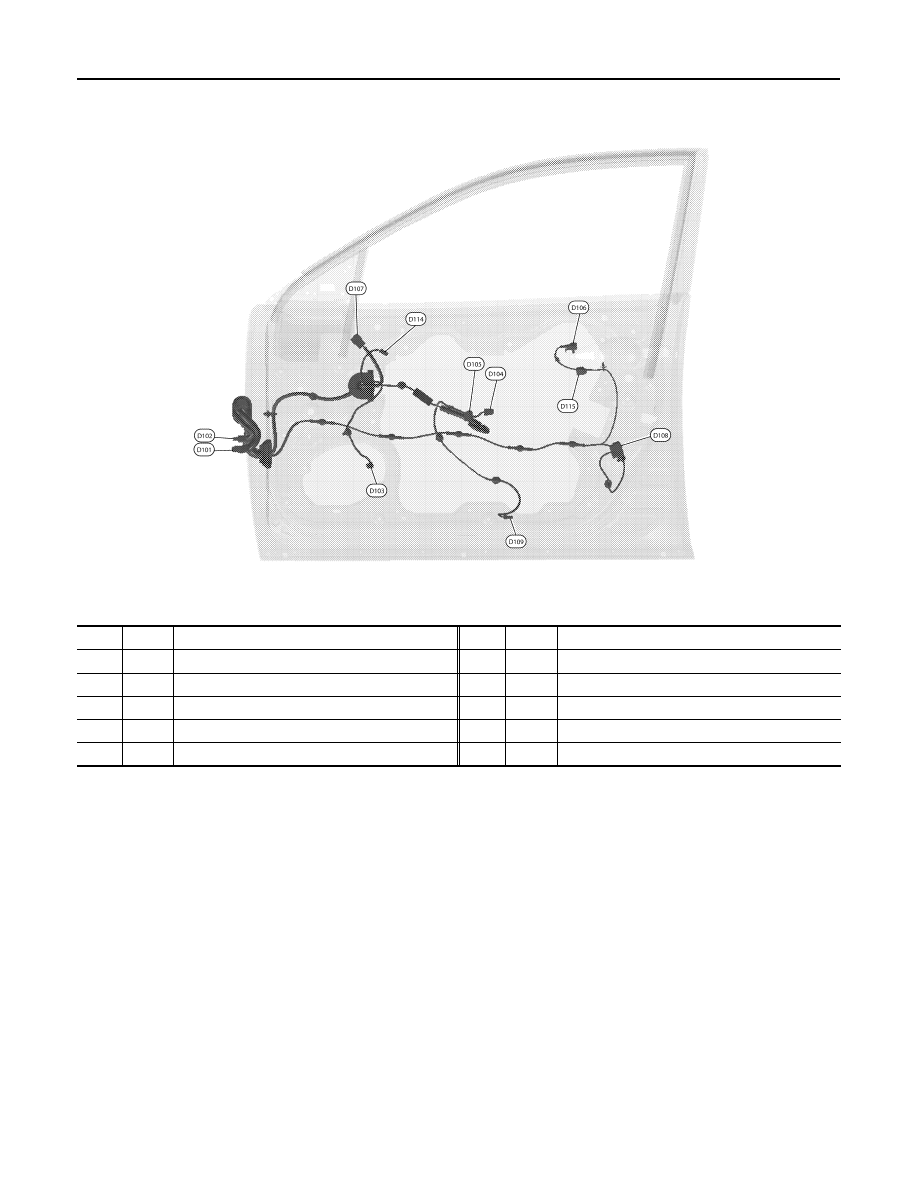

FRONT DOOR RH HARNESS

ABMIA0295GB

D101

W/10

: To M14

D107

W/16

: Door mirror RH

D102

W/16

: To M15

D108

GR/6

: Front door lock actuator RH

D103

W/2

: Front door speaker RH

D109

W/2

: Front step lamp RH

D104

W/6

: Front power window motor RH

D114

GR/2

: Front door inside handle illumination RH

D105

W/16

: Power window and door lock/unlock switch RH

D115

B/2

: Front outside handle RH (request switch)

D106

GR/2

: Front outside handle RH (outside key antenna)

PG

HARNESS

PG-51

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

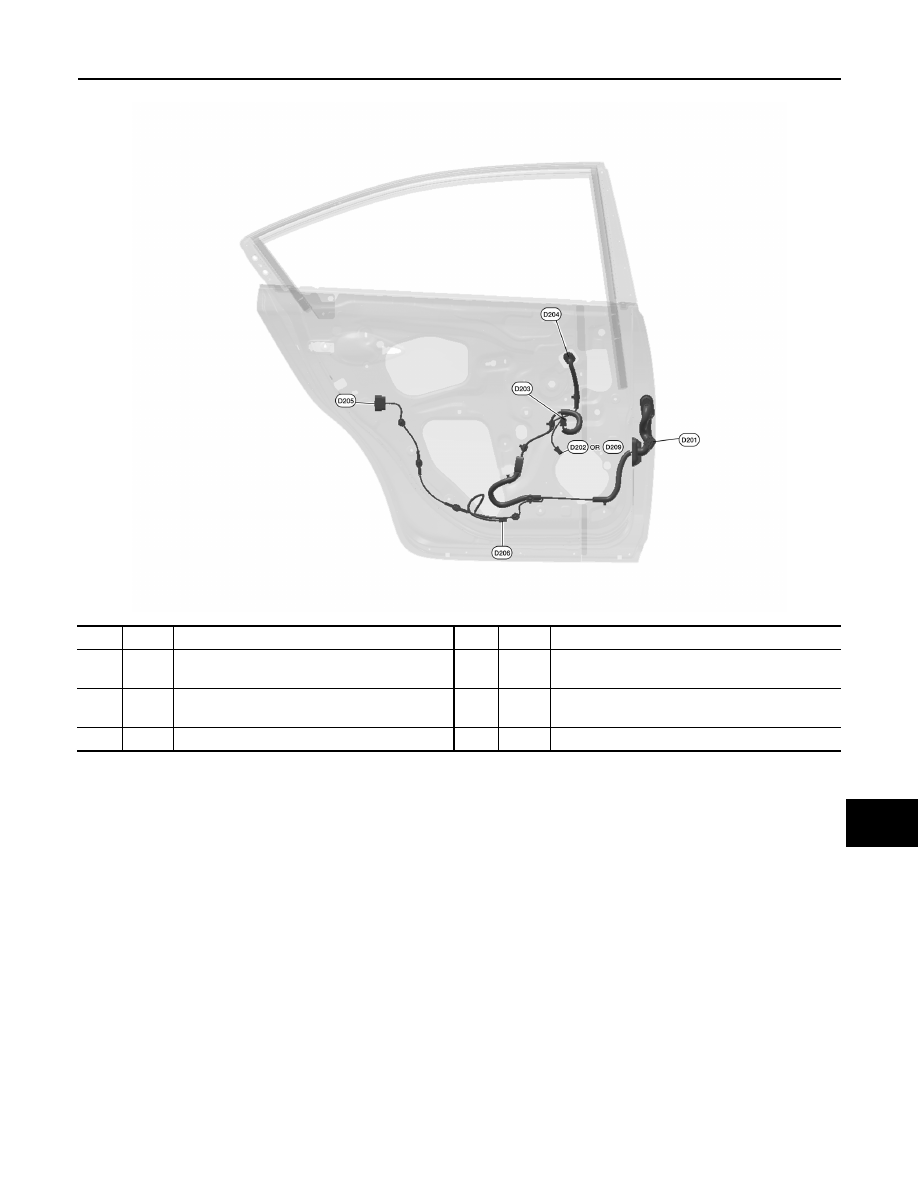

REAR DOOR LH HARNESS

ABMIA3471GB

D201

W/10

: To B6

D205 GR/6

: Rear door lock actuator LH

D202

BR/2

: Rear door speaker LH (except monochrome
  display without BOSE audio system)

D206 W/2

: Rear step lamp LH

D203

W/8

: Rear power window switch LH

D209 W/2

: Rear door speaker RH (with monochrome
  display without BOSE audio system)

D204

G/6

: Rear power window motor LH

PG-52

< DTC/CIRCUIT DIAGNOSIS >

HARNESS

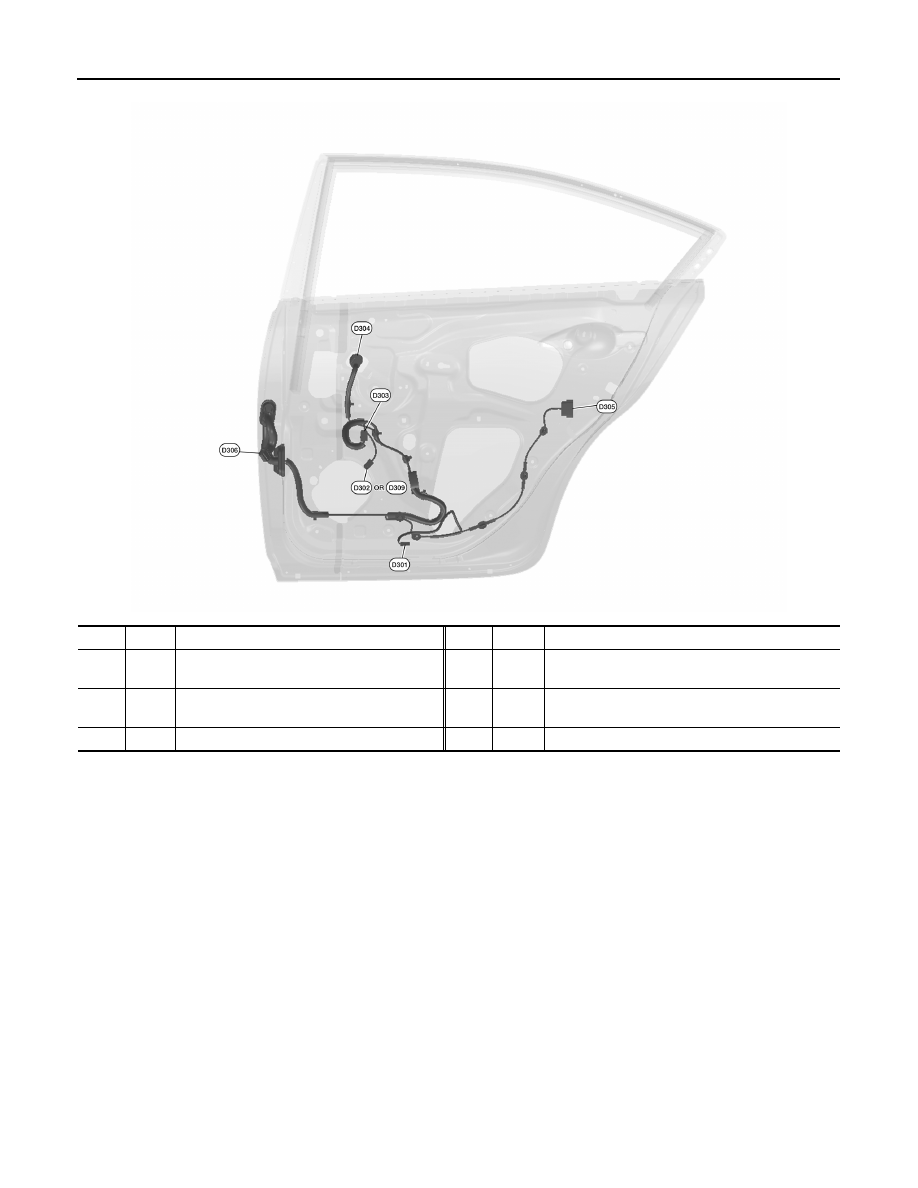

REAR DOOR RH HARNESS

ABMIA3472GB

D301

W/2

: Rear step lamp RH

D305

GR/6

: Rear door lock actuator RH

D302

BR/2

: Rear door speaker RH (except monochrome
  display without BOSE audio system)

D306

W/10

: To B134

D303

W/8

: Rear power window switch RH

D309

W/2

: Rear door speaker RH (with monochrome
  display without BOSE audio system)

D304

G/6

: Rear power window motor RH

PG

ELECTRICAL UNITS LOCATION

PG-53

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ELECTRICAL UNITS LOCATION

Electrical Units Location

INFOID:0000000009465147

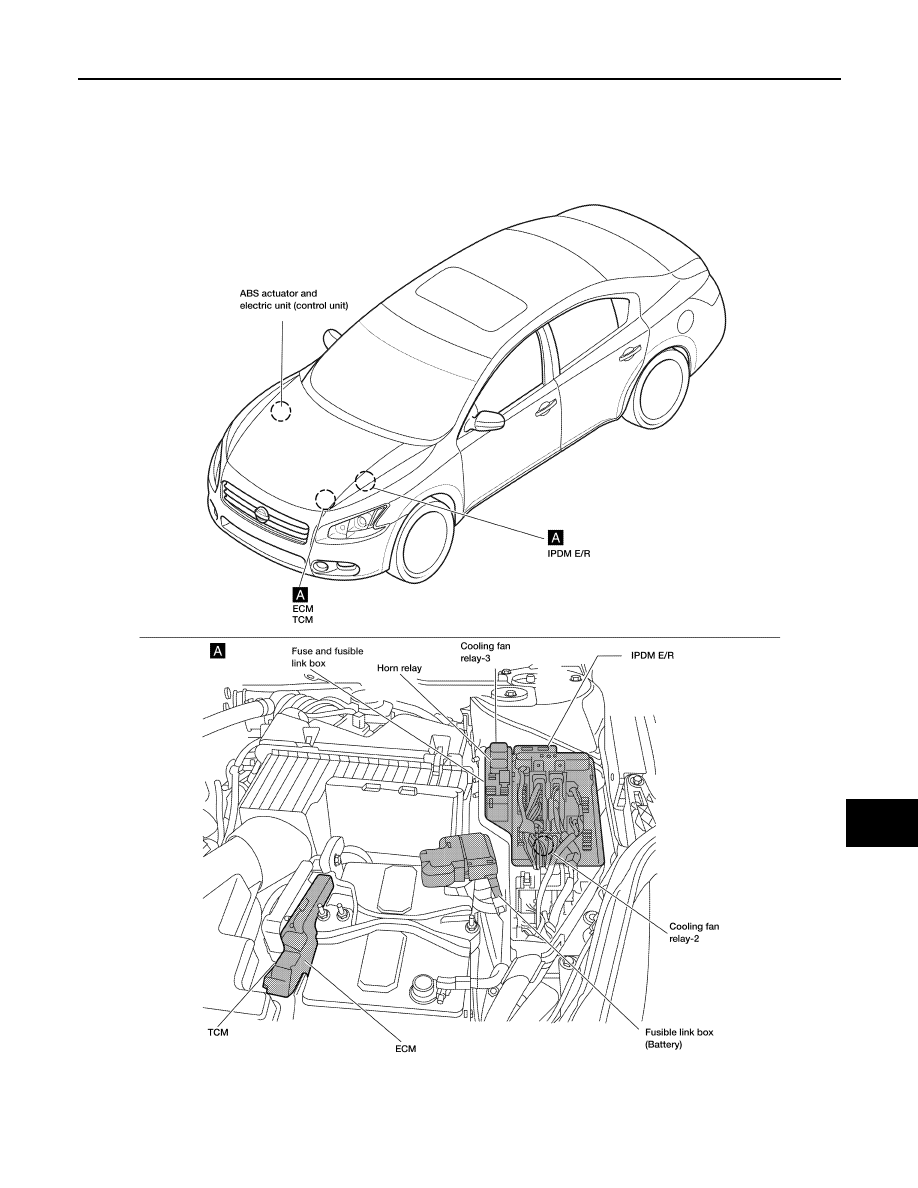

ENGINE COMPARTMENT
