Nissan Maxima. Manual - part 919

PG-42

< DTC/CIRCUIT DIAGNOSIS >

HARNESS

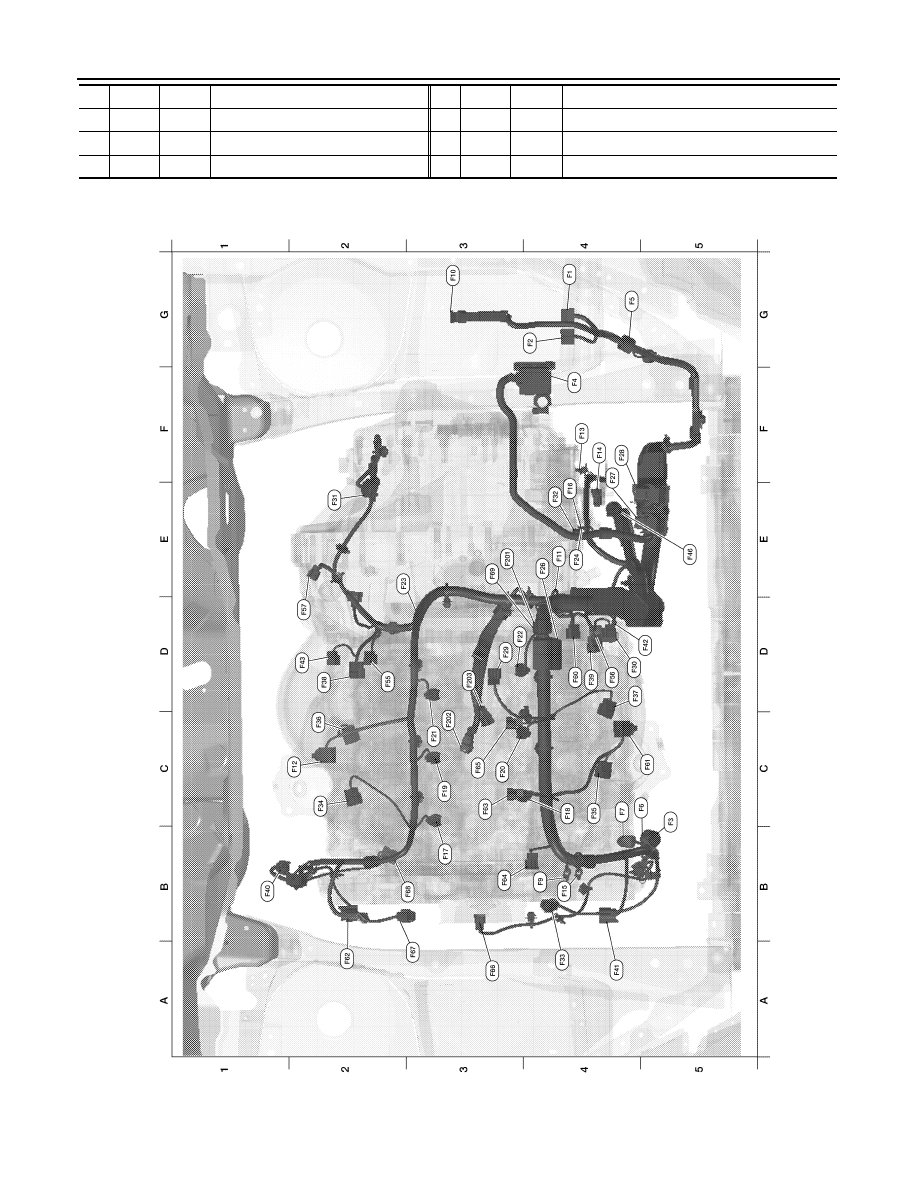

ENGINE CONTROL HARNESS

D3 E30

SMJ

: To M1

C4 E47

W/6

: Junction block

D3 E34

L/4

: Back-up lamp relay

C4 E48

W/4

: Junction block

D3 E35

B/1

: Parking brake switch

C4 E49

BR/4

: Junction block

E37

BR/2

: Brake pedal position switch

D4 E50

W/2

: Junction block

ABMIA5287ZZ

HARNESS

PG-43

< DTC/CIRCUIT DIAGNOSIS >

W/16

: To E3

F33

L/4

: Exhaust valve timing control magnet
retarder (bank 2)

W/10

: To E11

F34

GR/3

: Ignition coil No. 1 (with power transistor)

B/2

: A/C Compressor

F35

GR/3

: Ignition coil No. 2 (with power transistor)

—

: Fusible link box (battery)

F36

GR/3

: Ignition coil No. 3 (with power transistor)

B/3

: Battery current sensor

F37

GR/3

: Ignition coil No. 4 (with power transistor)

—

: Generator

F38

GR/3

: Ignition coil No. 5 (with power transistor)

B/3

: Generator

F39

GR/3

: Ignition coil No. 6 (with power transistor)

—

: Engine ground

F40

B/3

: Power steering pressure sensor

F10

W/36

: IPDM E/R (intelligent power distribution
module engine room)

F41

GR/1

: Oil pressure switch

F11

GR/2

: Engine coolant temperature sensor

F42

B/3

: Exhaust valve timing control position
sensor (bank 2)

F12

GR/4

: Air fuel ratio (A/F) sensor 1 (bank 1)

F43

B/3

: Exhaust valve timing control position
sensor (bank 1)

F13

BR/48

: ECM

F46

B/22

: CVT unit

F14

GR/32 : ECM

F55

B/3

: Camshaft position sensor (PHASE) (bank 1)

F15

B/48

: TCM (transmission control module)

F56

B/4

: Heated oxygen sensor 2 (bank 2)

F16

—

: Engine ground

F57

B/6

: Electric throttle control actuator

F17

GR/2

: Fuel injector No. 1

F60

B/3

: Camshaft position sensor (PHASE) (bank 2)

F18

GR/2

: Fuel injector No. 2

F61

GR/4

: Air fuel ratio (A/F) sensor 1 (bank 2)

F19

GR/2

: Fuel injector No. 3

F62

B/4

: Heated oxygen sensor 2 (bank 1)

F20

GR/2

: Fuel injector No. 4

F63

B/2

: VIAS control solenoid valve 1

F21

GR/2

: Fuel injector No. 5

F64

BR/2

: Electronic controlled engine mount
controlled solenoid valve

F22

GR/2

: Fuel injector No. 6

F65

B/2

: VIAS control solenoid valve 2

F23

B/3

: Secondary speed sensor

F66

G/2

: Intake valve timing control solenoid
valve (bank 2)

F24

—

: Engine ground

F67

G/2

: Intake valve timing control solenoid
valve (bank 1)

F26

W/2

: Condenser-2

F68

GR/2

: Engine oil temperature sensor

F27

—

: Starter motor

F69

L/4

: To F201

F28

GR/1

: Starter motor

Knock sensor sub-harness

F29

L/2

: EVAP canister purge volume control
solenoid valve

F201

L/4

: To F69

F30

B/3

: Crankshaft position sensor (POS)

F202

GR/2

: Knock sensor (bank 1)

F31

B/6

: Mass air flow sensor

F203

GR/2

: Knock sensor (bank 2)

F32

L/4

: Exhaust valve timing control magnet
retarder (bank 1)

PG-44

< DTC/CIRCUIT DIAGNOSIS >

HARNESS

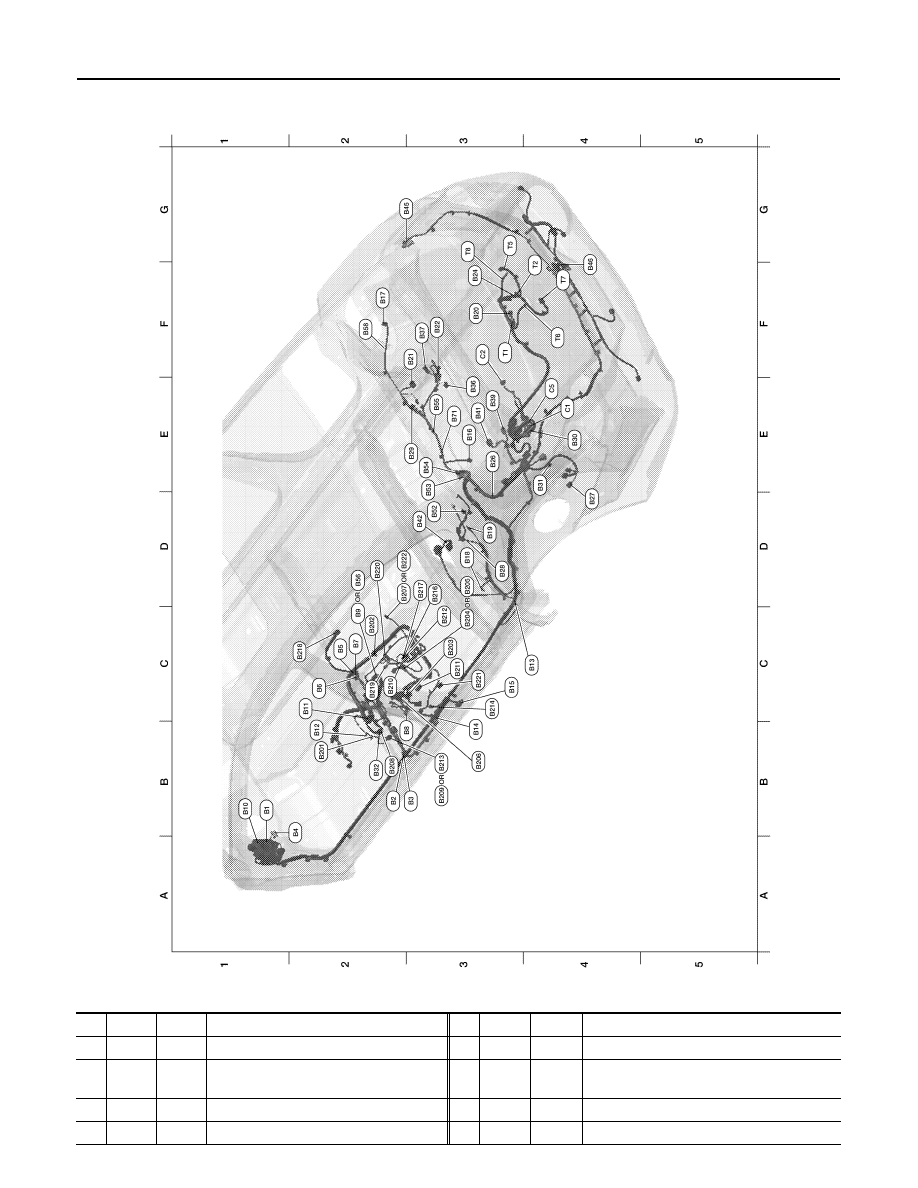

BODY HARNESS

ABMIA4035GB

SMJ

: To M6

B54

B/1

: Rear window defogger

B/6

: Joint connector-B01

B55

—

: Body ground

W/4

: Joint connector-B02

D2 B56

Y/22

: Air bag diagnosis sensor unit (except for
Mexico)

BR/12

: Fuse block (J/B)

B58

—

: Body ground

C2 B5

—

: Body ground

B71

Y/2

: LH side curtain air bag module

HARNESS

PG-45

< DTC/CIRCUIT DIAGNOSIS >

C2 B6

W/10

: To D201

Front seat LH harness

C2 B7

—

: Body ground

B201

W/8

: To B12

W/3

: Front door switch LH

C2 B202

W/3

: Seat belt buckle switch LH

C2 B9

Y/12

: Air bag diagnosis sensor unit (for
Mexico)

C3 B203

W/32

: Driver seat control unit

B10

W/16

: To E29

C3 B204

W/6

: Front power seat LH (without automatic
drive positioner)

C2 B11

Y/2

: Front LH side air bag module

D3 B205

W/6

: Front power seat LH (with automatic drive
positioner)

B12

W/8

: To B201

B206

W/12

: Front power seat LH (with automatic drive
positioner)

C4 B13

W/4

: Joint connector-B03

D2 B207

B/2

: Reclining motor (without automatic drive
positioner)

B14

Y/2

: Front LH seat belt pre-tensioner

B208

W/16

: To B32

C3 B15

Y/2

: LH side air bag (satellite) sensor

B209

W/10

: Power seat switch LH (without automatic
drive positioner)

B16

W/2

: Subwoofer LH

C2 B210

W/3

: Front seat heater LH

B17

W/2

: Subwoofer RH

C3 B211

W/12

: Driver seat control unit

D3 B18

W/3

: Rear door switch LH

C3 B212

B/16

: Climate controlled seat control unit

D3 B19

—

: Body ground

B213

W/10

: Power seat switch LH (with automatic drive
positioner)

B20

L/20

: Joint connector-B05

C3 B214

W/4

: Lumbar support switch

B21

W/10

: Subwoofer amp.

D3 B216

B/8

: Climate controlled seat control unit

B22

W/6

: Rear sunshade unit

D3 B217

B/6

: Climate controlled seat control unit

B24

W/8

: To T2

C2 B218

W/4

: Seat back thermal electric device

B26

W/4

: Joint connector-B04

C2 B219

W/4

: Seat cushion thermal electric device

D4 B27

W/4

: Fuel lid door lock actuator

D2 B220

W/5

: Climate controlled seat blower motor

D3 B28

W/3

: To B500

C3 B221

B/2

: Lumbar support Motor

B29

GR/2

: Rear parcel shelf antenna

D2 B222

B/5

: Reclining motor LH (with automatic drive
positioner)

B30

W/6

: Rear combination lamp LH

Tail harness

B31

GR/4

: To C5

BR/2

: High-mounted stop lamp (with rear spoiler)

B32

W/16

: To B208

W/8

: To B24

B36

W/2

: Trunk room lamp

G3 T5

BR/2

: Trunk opener request switch

B37

W/2

: High-mounted stop lamp (without rear
sunshade)

BR/2

: Licence plate lamp LH

B39

B/2

: EVAP canister vent control valve

W/4

: Trunk lamp switch and trunk release
solenoid

B41

GR/3

: EVAP control system pressure sensor

G3 T8

BR/2

: Licence plate lamp RH

D3 B42

GR/5

: Fuel level sensor unit and fuel pump

Chassis harness

G2 B45

W/6

: Rear combination lamp RH

B/2

: Rear wheel sensor LH

B46

GR/2

: Rear bumper antenna

GR/2

: Rear wheel sensor RH

D3 B52

W/1

: Rear window defogger condenser

GR/4

: To B31

D3 B53

B/1

: Rear window defogger
