PG-34

< DTC/CIRCUIT DIAGNOSIS >

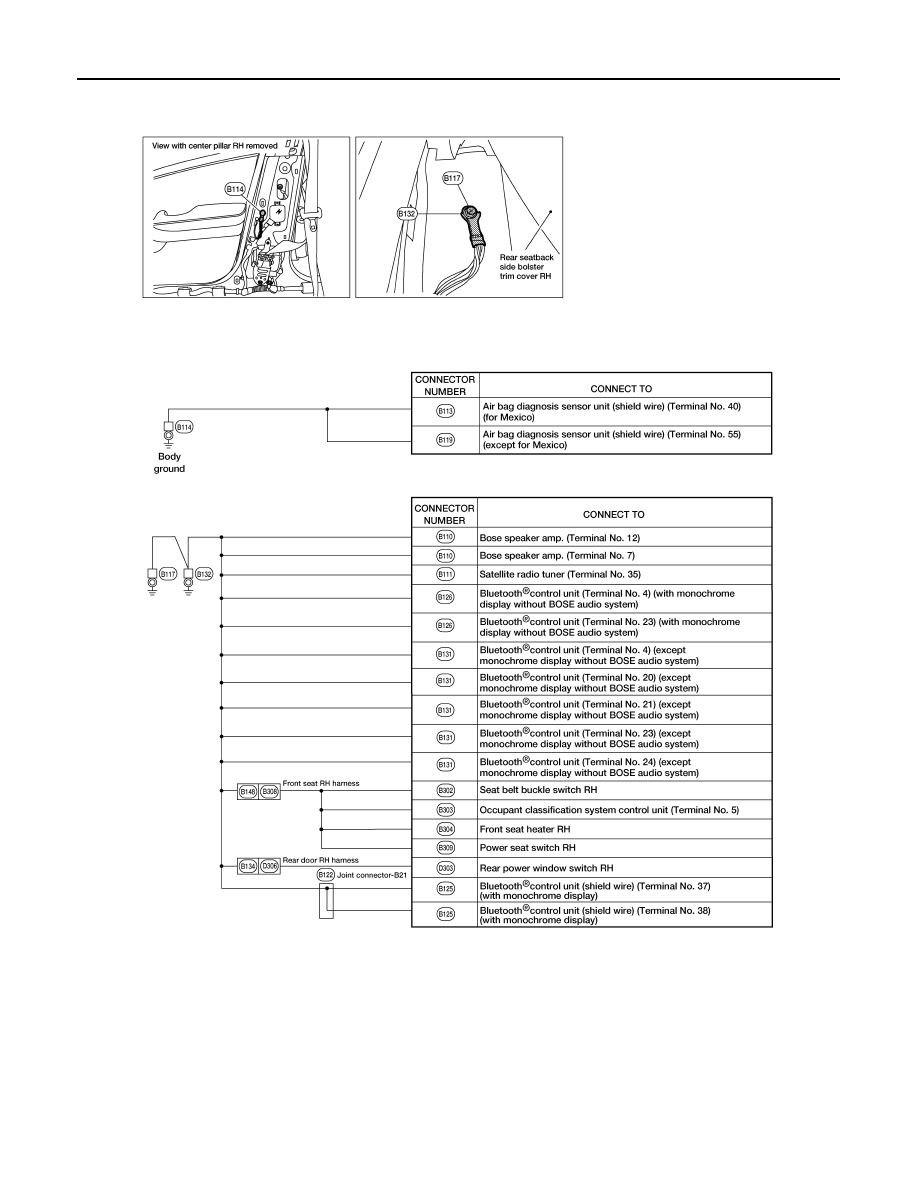

GROUND

BODY NO. 2 HARNESS

ABMIA5302GB

PG

HARNESS

PG-35

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

HARNESS

Harness Layout

INFOID:0000000009465146

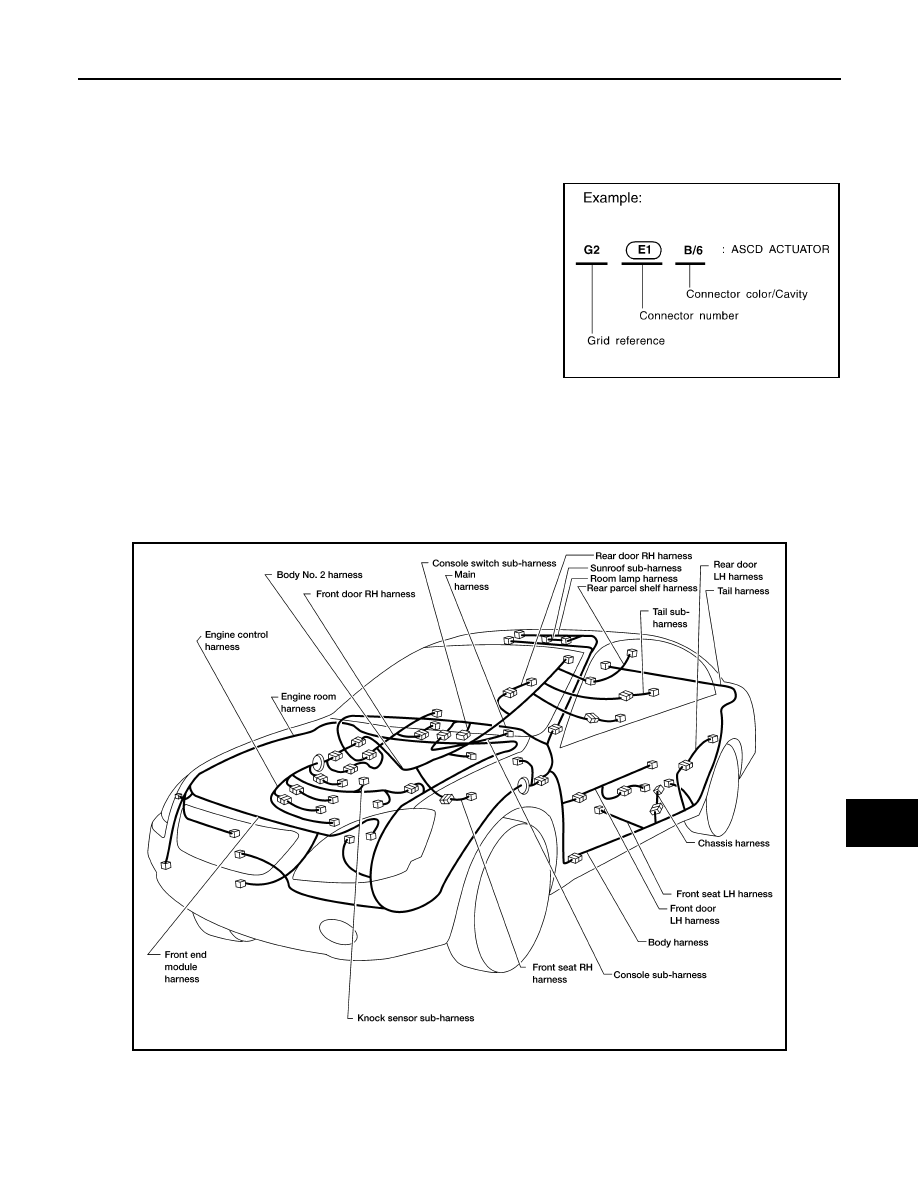

HOW TO READ HARNESS LAYOUT

The following Harness Layouts use a map style grid to help locate

connectors on the drawings:

• Main Harness, Console Sub-harness and Console Switch Sub-

harness

• Engine Room Harness and Front End Module Harness

• Engine Room Harness (Passenger Compartment)

• Engine Control Harness and Knock Sensor Sub-harness

• Body Harness, Front Seat LH Harness, Tail Harness and Chassis

Harness

• Body No. 2 Harness, Front Seat RH Harness, Rear Parcel Shelf

Harness and Tail Sub-harness

• Room Lamp Harness and Sunroof Sub-harness

To use the grid reference
1. Find the desired connector number on the connector list.
2. Find the grid reference.
3. On the drawing, find the crossing of the grid reference letter column and number row.
4. Find the connector number in the crossing zone.
5. Follow the line (if used) to the connector.

OUTLINE

SEL252V

ABMIA2456GB

PG-36

< DTC/CIRCUIT DIAGNOSIS >

HARNESS

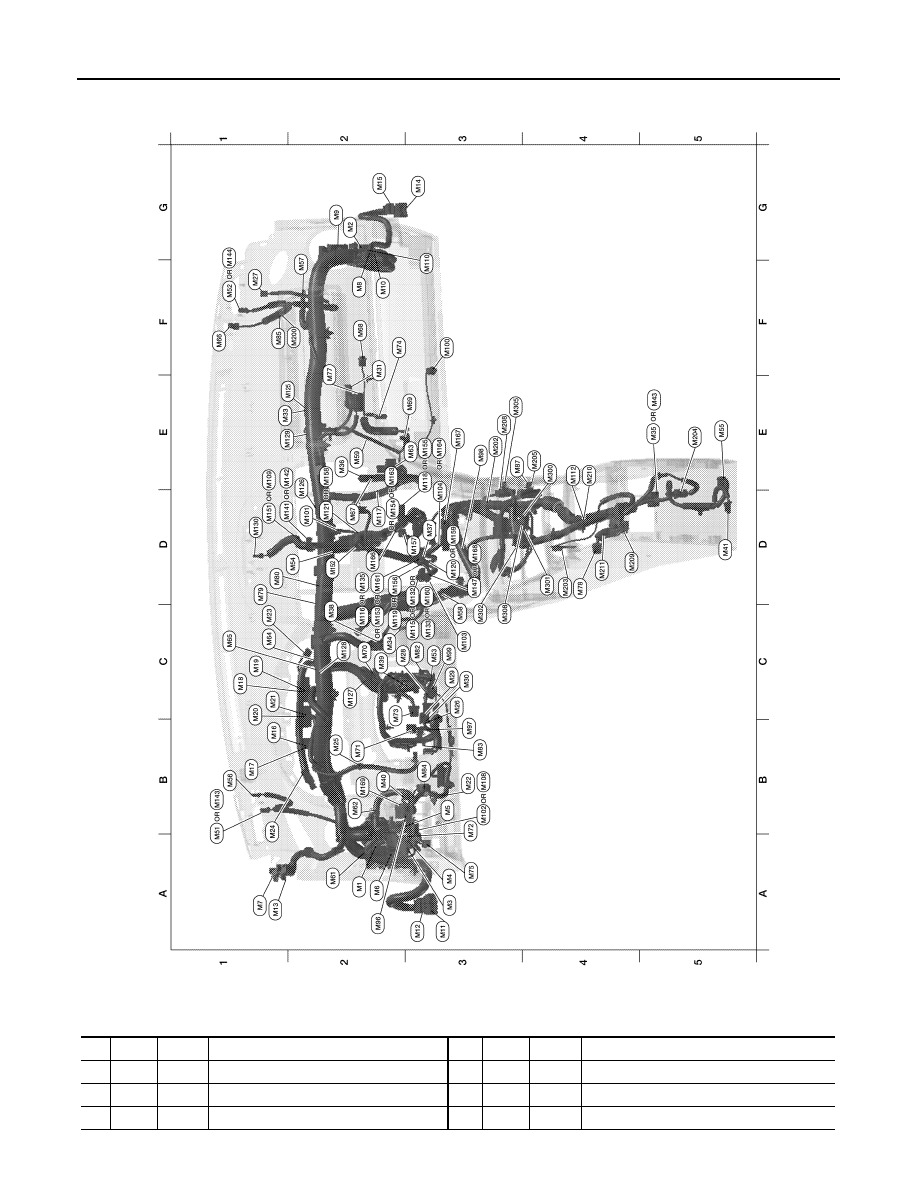

MAIN HARNESS

ABMIA5286GB

A2

M1

SMJ

: To E30

B3

M84

W/2

: Circuit breaker

G2 M2

W/24

: To B101

F1

M85

W/24

: To M200

A3

M3

W/8

: Fuse block (J/B)

E4

M87

BR/16

: To M205

A3

M4

W/10

: Fuse block (J/B)

A2

M96

W/6

: Heated steering wheel switch

PG

HARNESS

PG-37

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

B3

M5

W/12

: Fuse block (J/B)

B3

M97

L/4

: Heated steering relay

A2

M6

SMJ

: To B1

E3

M98

W/16

: A/C and AV switch assembly

A1

M7

W/16

: To R1

C3

M99

BR/2

: Foot lamp LH

F2

M8

W/32

: To B102

F3

M100

BR/2

: Foot lamp RH

G2 M9

BR/16

: To B103

D2

M101

B/10

: A/C display unit

F2

M10

W/16

: To B104

B3

M102

W/16

: Door mirror remote control switch (without
  automatic drive positioner)

A3

M11

W/16

: To D1

C3

M103

GR/3

: To M501

A3

M12

W/24

: To D2

D3

M104

W/12

: A/C switch assembly

A1

M13

W/6

: To R2

B3

M108

BR/16

: Door mirror remote control switch (with
  automatic drive positioner)

G2 M14

W/10

: To D101

E1

M109

W/12

: Display unit (with monochrome display)

G2 M15

W/16

: To D102

F3

M110

W/16

: To B136

B1

M16

B/3

: BCM (body control module)

E4

M112

GR/6

: To M210

B1

M17

W/16

: BCM (body control module)

C3

M115

W/20

: AV control unit (color display - without
  BOSE audio system or navigation system)

C1 M18

G/40

: BCM (body control module)

C2

M116

W/12

: AV control unit (color display - without
  BOSE audio system or navigation system)

C1 M19

B/40

: BCM (body control module)

D2

M117

W/24

: AV control unit (color display - without
  BOSE audio system or navigation system)

C1 M20

W/12

: BCM (body control module)

E3

M118

W/16

: AV control unit (color display - without
  BOSE audio system or navigation system)

C1 M21

GR/40 : BCM (body control module)

C2

M119

W/32

: AV control unit (color display - without
  BOSE audio system or navigation system)

B3

M22

W/16

: Data link connector

D3

M120

G/4

: AV control unit (color display - without
  BOSE audio system or navigation system)

C1 M23

W/12

: Combination meter

D2

M121

GR/3

: AV control unit (color display - without
  BOSE audio system or navigation system)

B1

M24

W/40

: Combination meter

E2

M125

W/3

: To M33

B2

M25

W/8

: Meter mode switch

D2

M126

W/3

: Intake door motor

C3 M26

W/2

: Combination switch (spiral cable)

C2

M127

W/3

: Mode door motor

F1

M27

B/4

: Remote keyless entry receiver

C2

M128

W/3

: Air mix door motor driver side

C3 M28

W/16

: Combination switch

E2

M129

W/3

: Air mix door motor passenger side

C3 M29

Y/6

: Combination switch (spiral cable)

D1

M130

BR/2

: Center speaker

C3 M30

GR/8

: Combination switch (spiral cable)

C3

M132

W/20

: Audio unit (monochrome display - with
  BOSE audio system)

E2

M31

W/6

: Blower motor

D3

M133

W/20

: Audio unit (monochrome display - without
  BOSE audio system)

E1

M33

W/3

: To M125

D2

M135

W/12

: Audio unit (monochrome display - with
  BOSE audio system)

C2 M34

W/2

: In-vehicle sensor

D2

M141

W/24

: Display unit (with color display without
  navigation system)

E5

M35

Y/28

: Air bag diagnosis sensor unit (for
  Mexico)

E1

M142

W/24

: Display unit (with color display and
  navigation system)

E2

M36

W/3

: Front passenger air bag off indicator

B1

M143

BR/2

: Tweeter LH (without BOSE audio system)

D3 M37

W/40

: A/C auto amp.

F1

M144

BR/2

: Tweeter RH (without BOSE audio system)

C2 M38

BR/8

: Push-button ignition switch

D3

M147

W/12

: Audio unit (monochrome display - without
  BOSE audio system)

C2 M39

GR/6

: ADP steering switch

D1

M151

G/4

: Display unit (with color display and
  navigation system)
