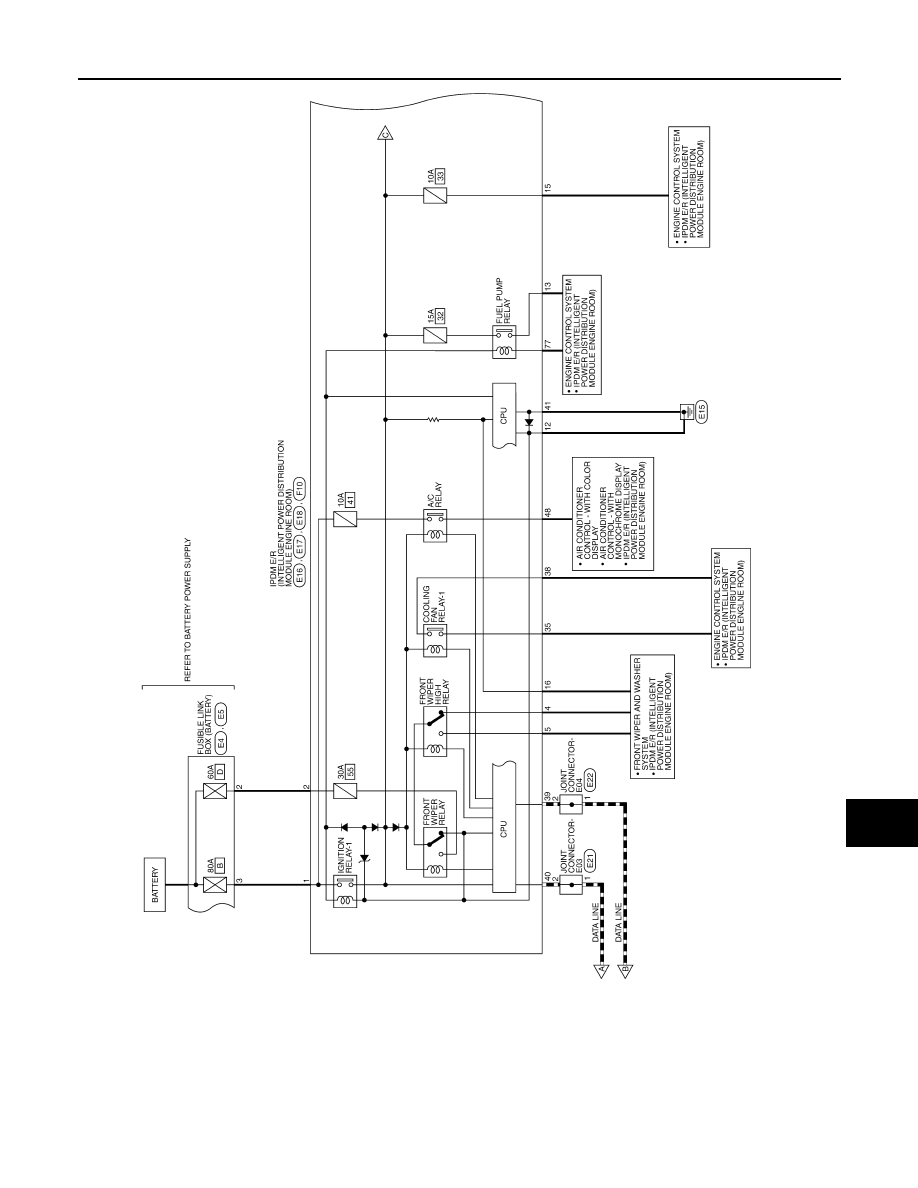

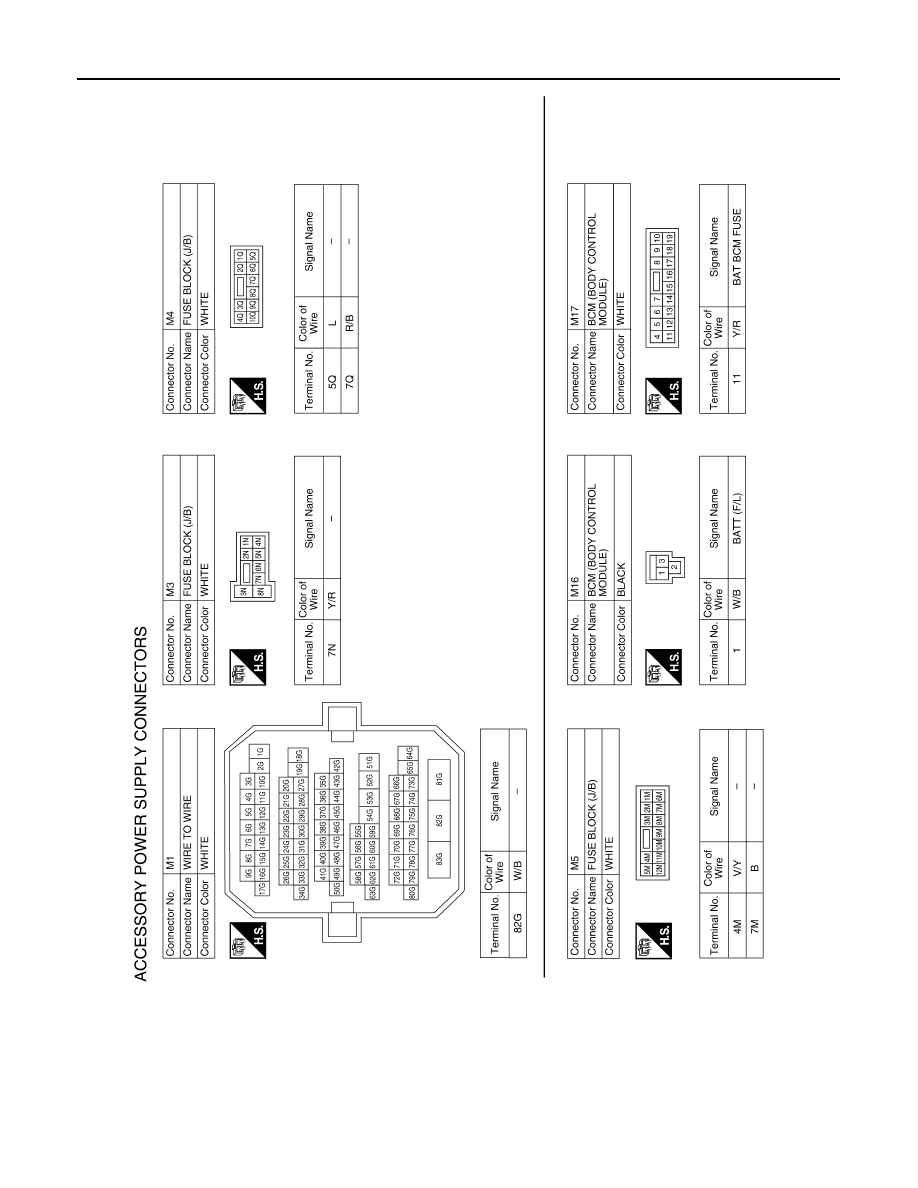

POWER SUPPLY ROUTING CIRCUIT

ABMIA0860GB

PG

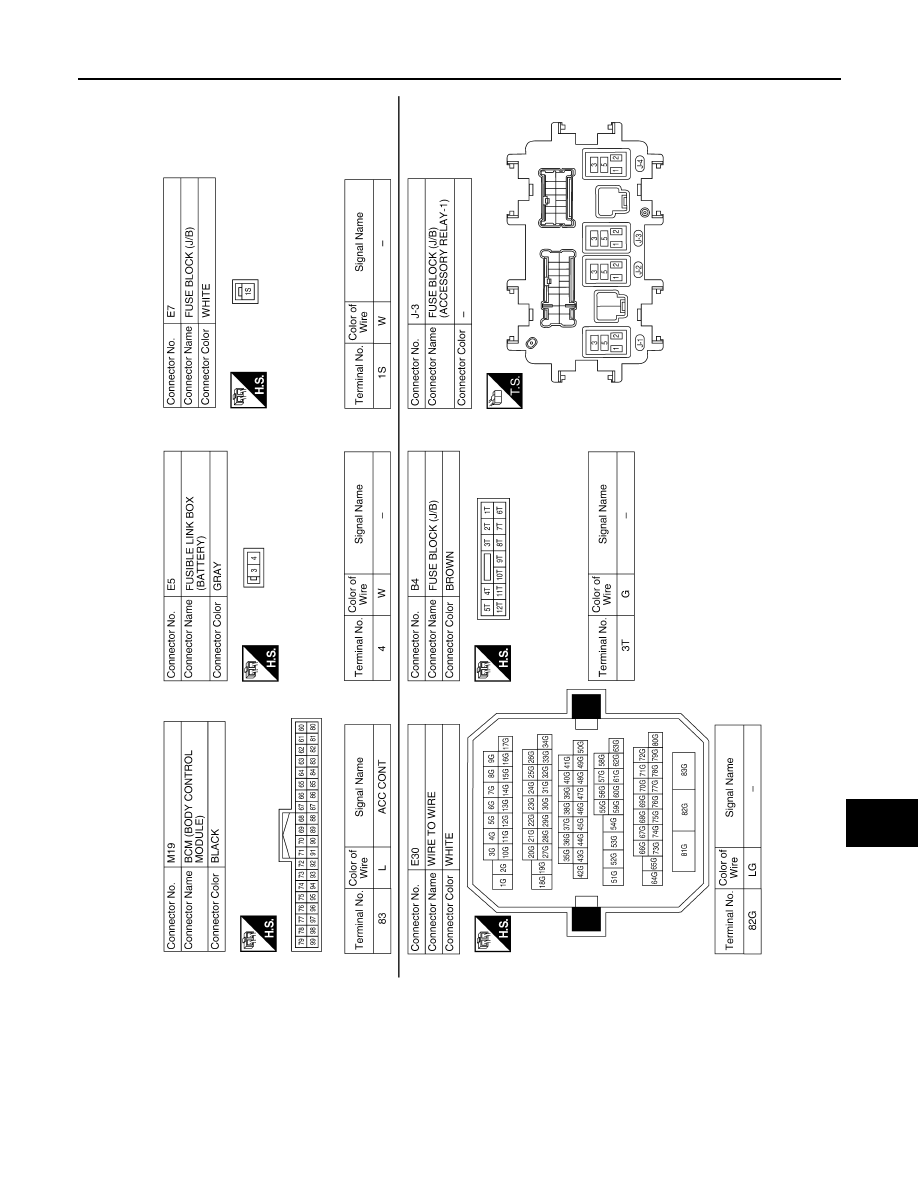

POWER SUPPLY ROUTING CIRCUIT

PG-15

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ABMIA5293GB

PG-16

< DTC/CIRCUIT DIAGNOSIS >

POWER SUPPLY ROUTING CIRCUIT

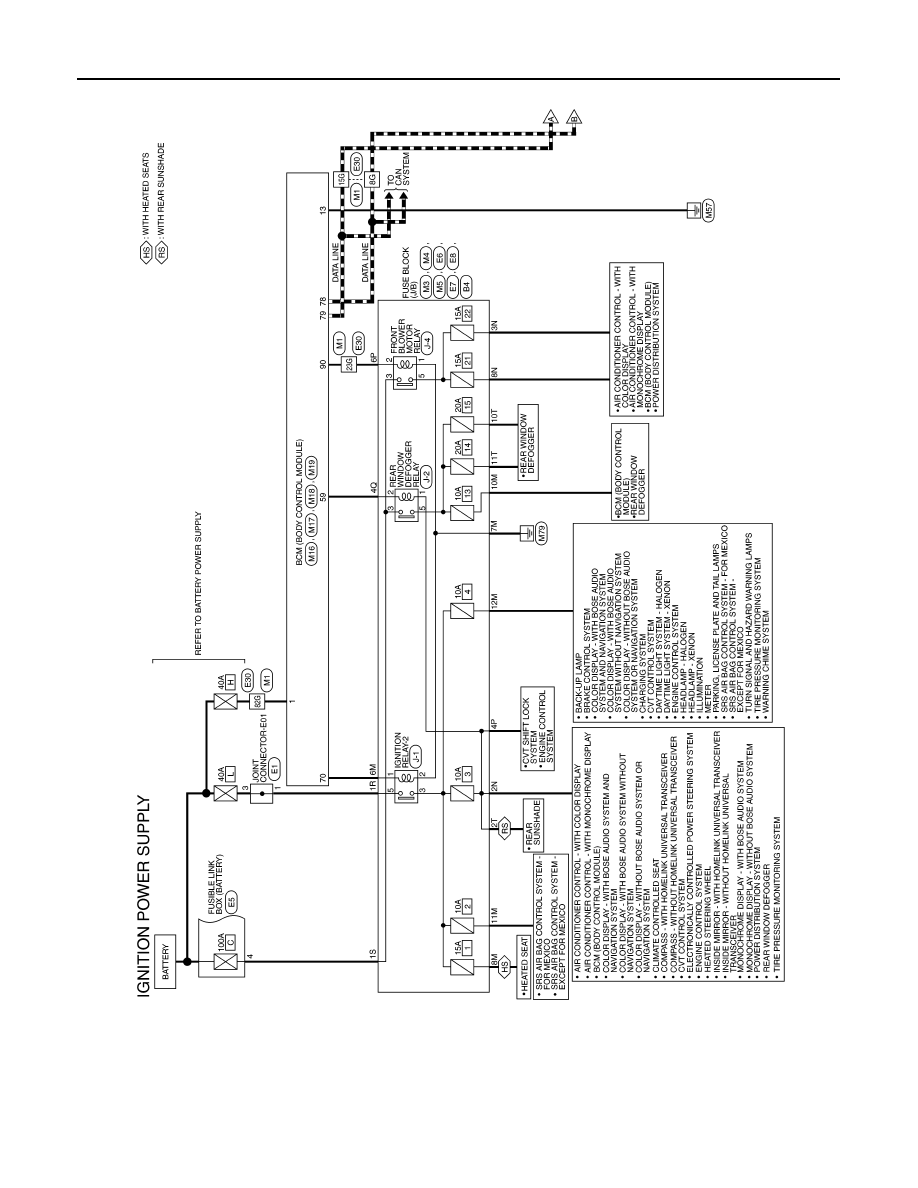

Wiring Diagram —Ignition Power Supply —

INFOID:0000000009465142

ABMWA2239GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-17

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ABMWA2240GB
