POWER SUPPLY ROUTING CIRCUIT

DTC/CIRCUIT DIAGNOSIS

POWER SUPPLY ROUTING CIRCUIT

Wiring Diagram —Battery Power Supply —

INFOID:0000000009465140

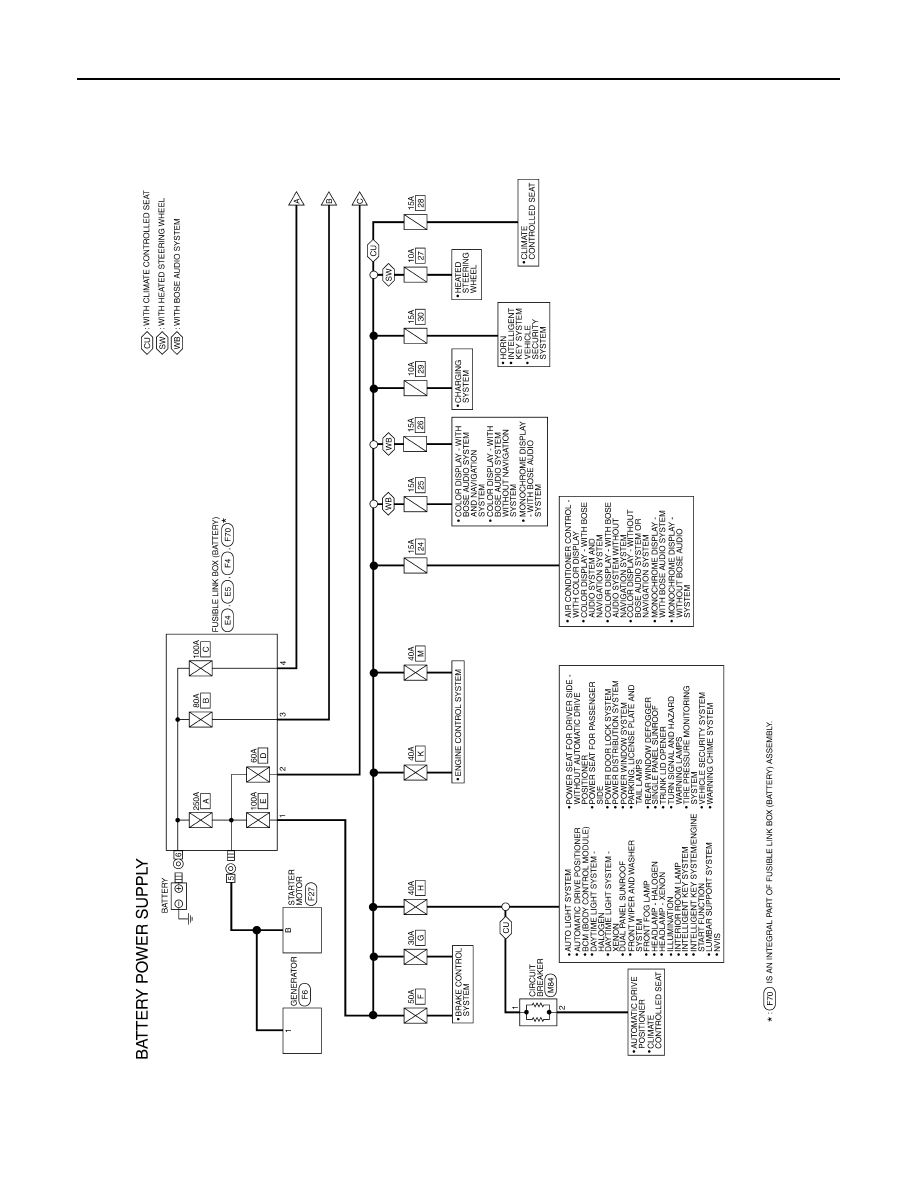

ABMWA2234GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-7

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

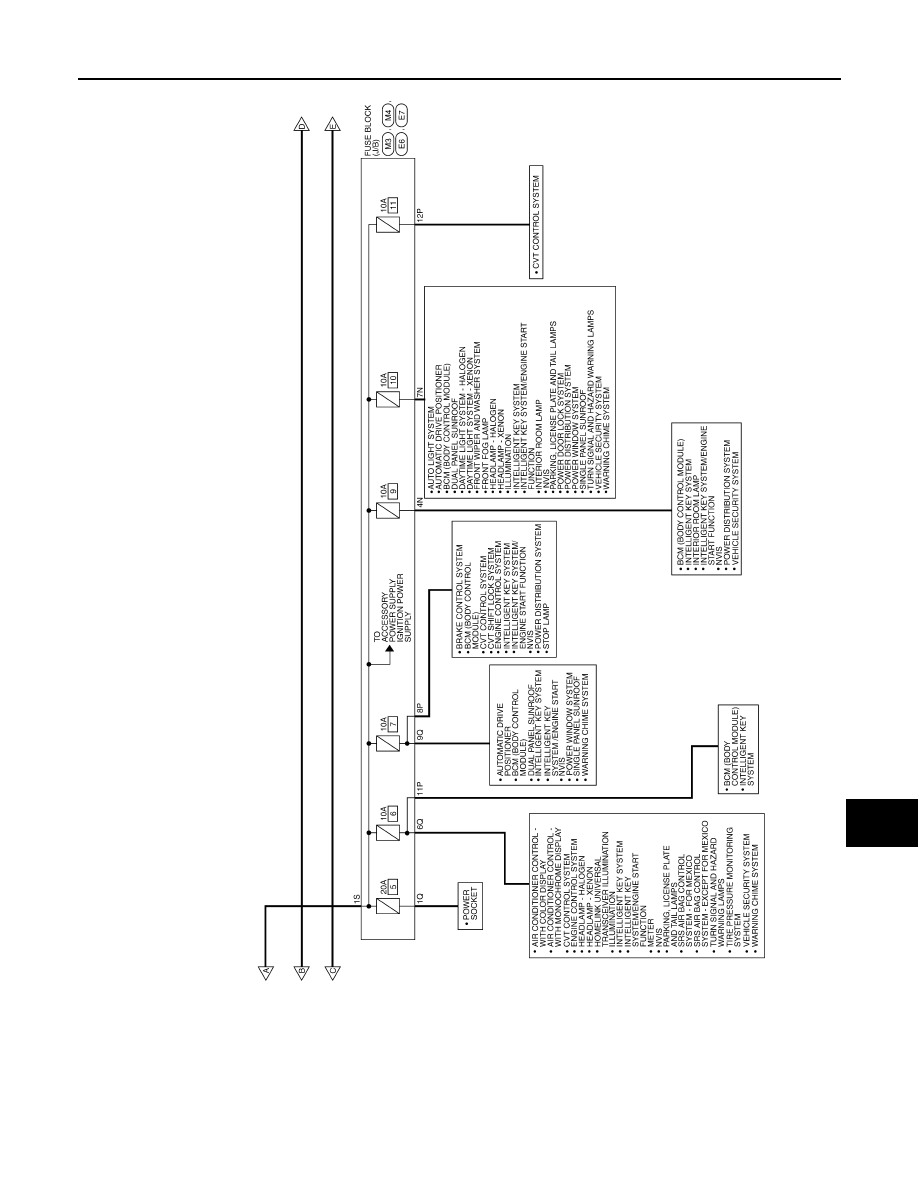

ABMWA2235GB

PG-8

< DTC/CIRCUIT DIAGNOSIS >

POWER SUPPLY ROUTING CIRCUIT

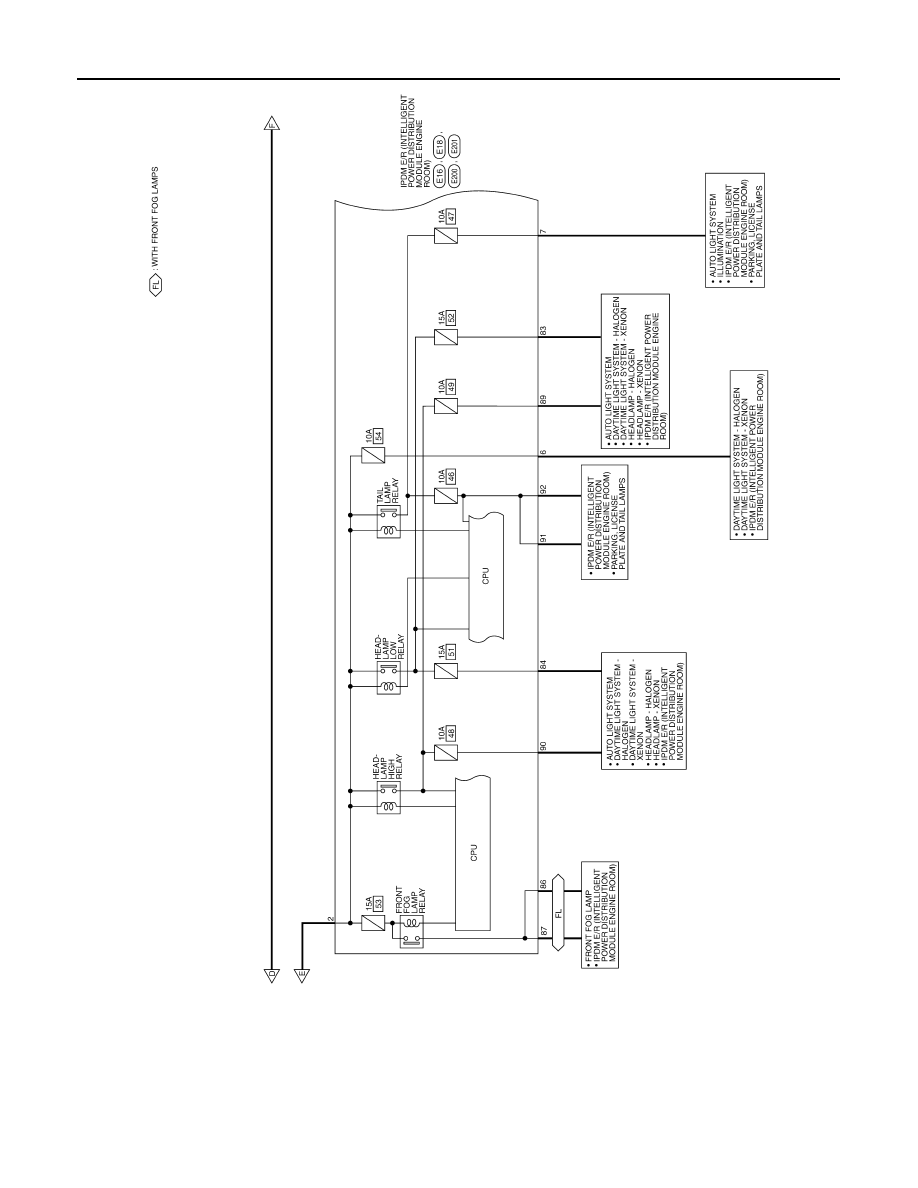

ABMWA2236GB

PG

POWER SUPPLY ROUTING CIRCUIT

PG-9

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

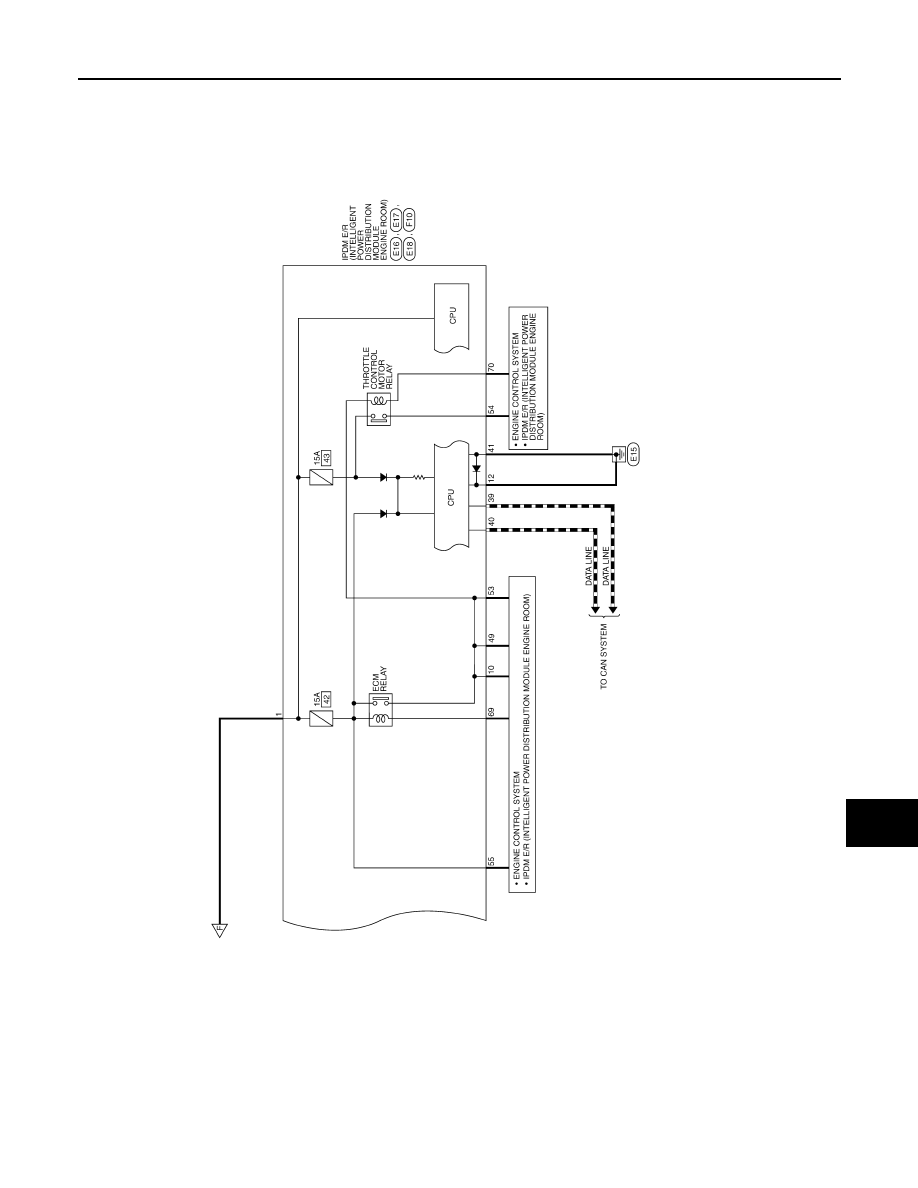

ABMWA2237GB
