NORMAL OPERATING CONDITION

COMPASS
COMPASS : Description

INFOID:0000000010049630

COMPASS

• The electronic compass is highly protected from changes in most magnetic fields. However, some large

changes in magnetic fields can affect it. Some examples are (but not limited to): high tension power lines,

large steel buildings, subways, steel bridges, automatic car washes, large piles of scrap metal, etc.

• During normal operation, the Compass Mirror will continuously update the compass calibration to adjust for

gradual changes in the vehicle's magnetic "remnant" field. If the vehicle is subjected to high magnetic influ-

ences, the compass may appear to indicate false headings, become locked, or appear that it is unable to be

calibrated. If this occurs, perform the calibration procedure.

• If at any time the compass continually displays the incorrect direction or the reading is erratic or locked, ver-

ify the correct zone variance.

SYMPTOM CHART

Symptom

Cause

Solution / Reference

The compass display reads "C".

• Compass is not calibrated.
• Incorrect zone variance setting.
• Large change in magnetic field (Steel

bridges, subways, concentrations of
metal, car washes, etc.)

• Compass was calibrated incorrectly or

in the presence of a strong magnetic
field.

Perform Calibration. Refer to

MWI-27,

"Description"

.

Compass shows the wrong direction.

Compass does not change direction ap-
pears "Locked".

Compass does not show all the directions,
one or more is missing.

The compass was calibrated but it "loses"
calibration.

On long trips the compass shows the
wrong direction.

Perform Zone Variation Setting if correct
reading is desired in that location. Refer to

MWI-27, "Description"

.

MWI-120

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009465119

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution for Work

INFOID:0000000009761070

• When removing or disassembling each component, be careful not to damage or deform it. If a component

may be subject to interference, be sure to protect it with a shop cloth.

• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component

with a shop cloth or vinyl tape to protect it.

• Protect the removed parts with a shop cloth and prevent them from being dropped.

• Replace a deformed or damaged clip.

• If a part is specified as a non-reusable part, always replace it with a new one.

• Be sure to tighten bolts and nuts securely to the specified torque.

• After installation is complete, be sure to check that each part works properly.

• Follow the steps below to clean components:

- Water soluble dirt:

• Dip a soft cloth into lukewarm water, wring the water out of the cloth and wipe the dirty area.

• Then rub with a soft, dry cloth.

- Oily dirt:

• Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%) and wipe the dirty

area.

• Then dip a cloth into fresh water, wring the water out of the cloth and wipe the detergent off.

• Then rub with a soft, dry cloth.

- Do not use organic solvent such as thinner, benzene, alcohol or gasoline.

- For genuine leather seats, use a genuine leather seat cleaner.

MWI

PREPARATION

MWI-121

< PREPARATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

PREPARATION

PREPARATION

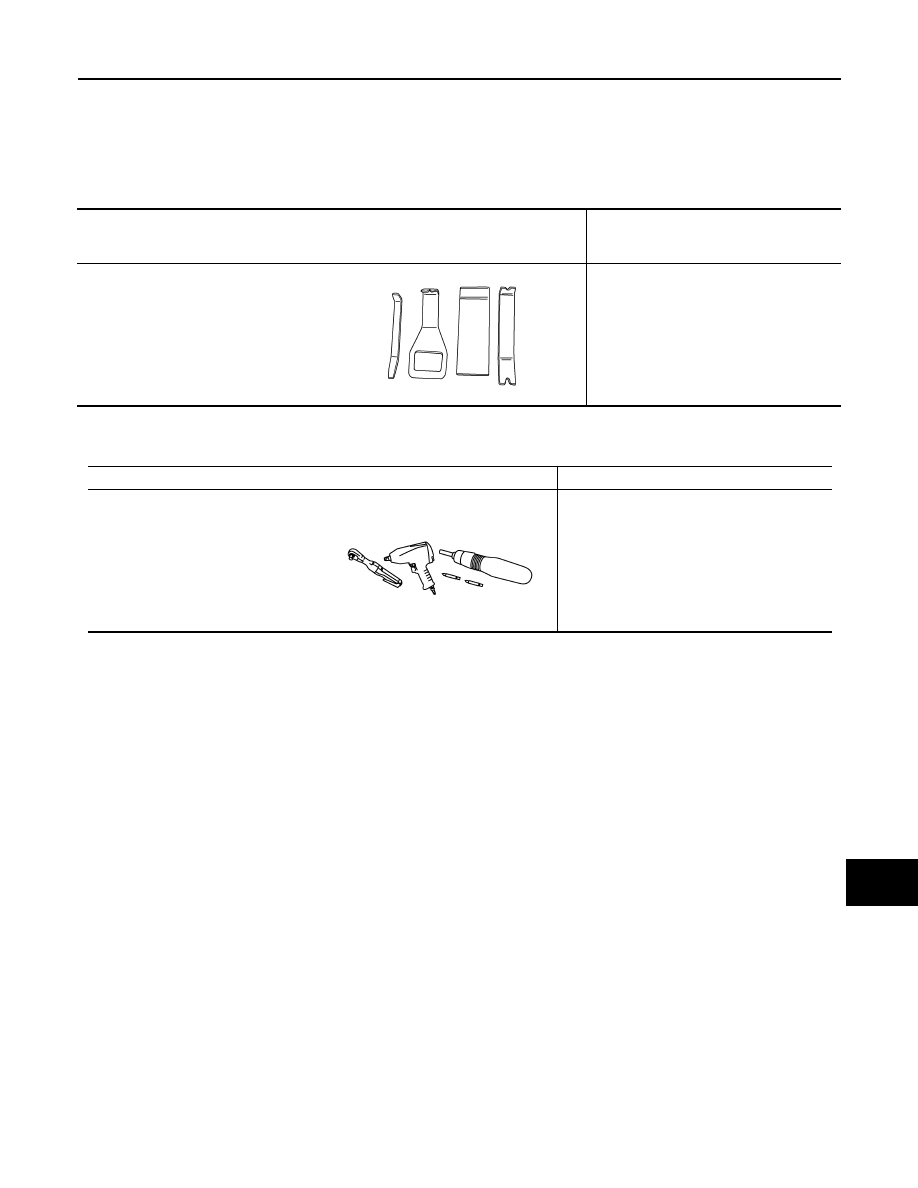

Special Service Tools

INFOID:0000000009761071

The actual shapes of the tools may differ from those illustrated here.

Commercial Service Tools

INFOID:0000000009465120

Tool number
(TechMate No.)
Tool name

Description

—

(J-46534)
Trim Tool Set

Removing trim components

AWJIA0483ZZ

Tool name

Description

Power tool

Loosening nuts, screws and bolts

PIIB1407E

MWI-122

< REMOVAL AND INSTALLATION >

COMBINATION METER

REMOVAL AND INSTALLATION

COMBINATION METER

Removal and Installation

INFOID:0000000009465121

REMOVAL

1. Disconnect the negative battery terminal. Refer to

PG-67, "Removal and Installation (Battery)"

.

2. Remove the cluster lid A. Refer to

IP-16, "Removal and Installation"

.

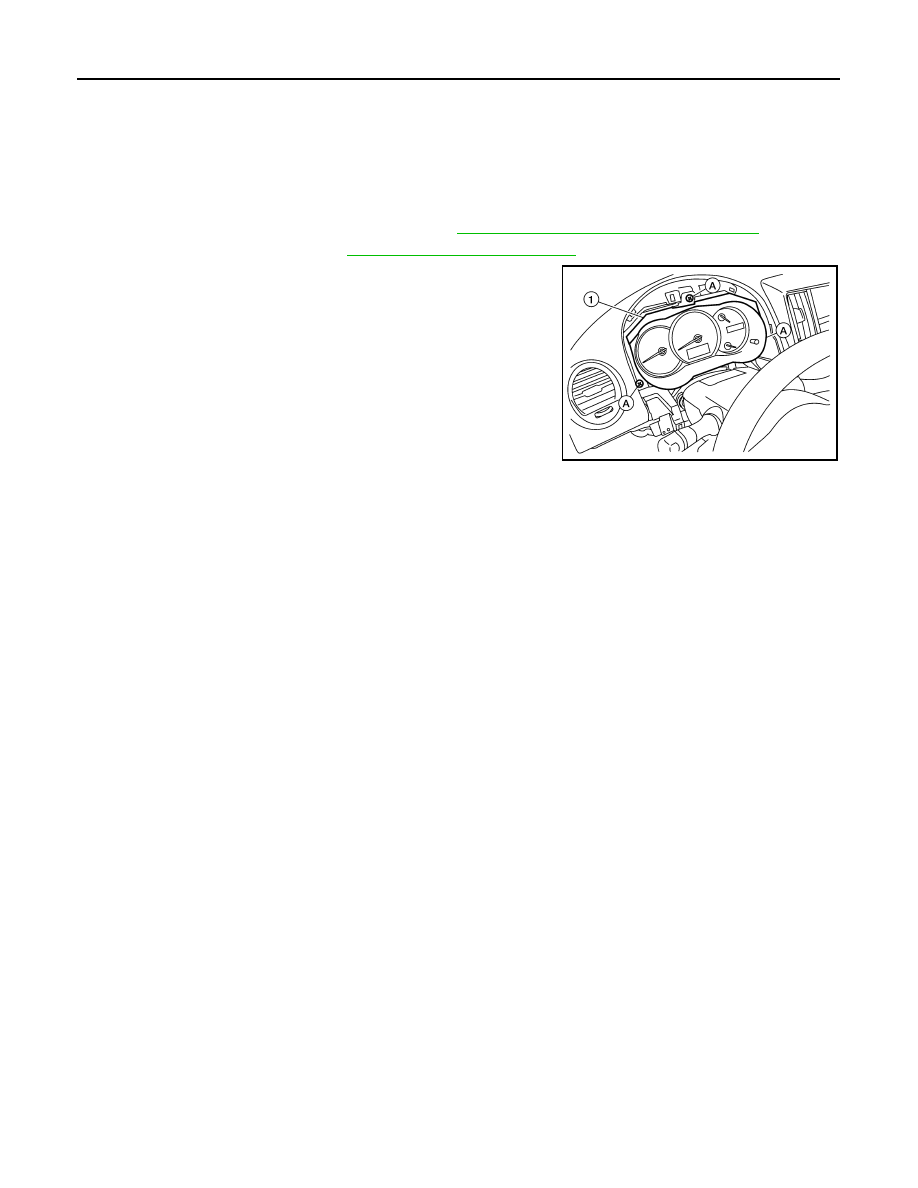

3. Remove the combination meter screws (A) using power tools.
4. Pull out the combination meter (1).
5. Disconnect the harness connectors from the combination meter

(1) and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALJIA0334ZZ
