DOOR MIRROR

MIR-21

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

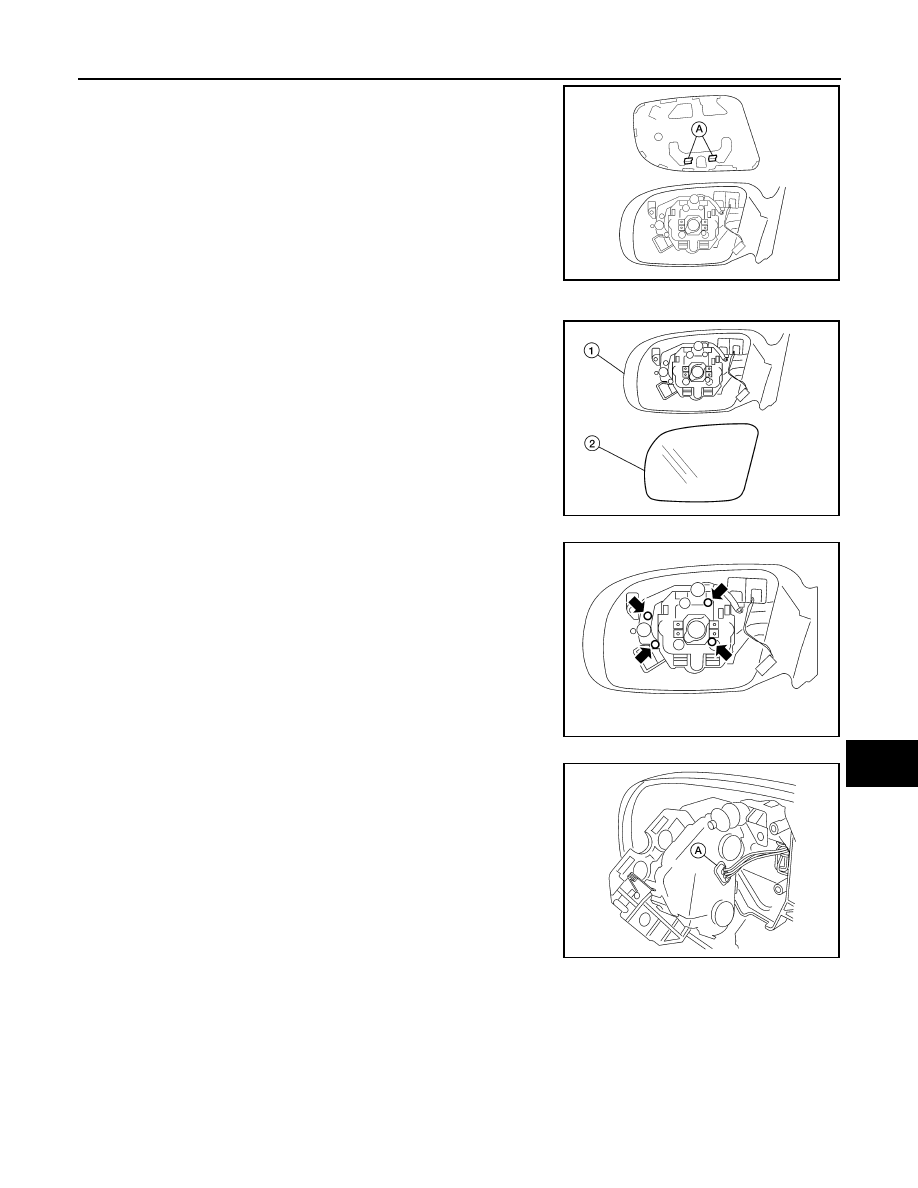

3. Lift to disengage the upper mirror hooks (A).

4. Disconnect the harness connector from the door mirror.
5. Remove the door mirror glass (2) from the door mirror housing

assembly (1).

6. Remove the actuator screws.

7. Disconnect the harness connector (A) from the door mirror and

remove actuator assembly.

ALLIA0881GB

ALLIA0878GB

ALLIA0879GB

ALLIA0880GB

MIR-22

< UNIT DISASSEMBLY AND ASSEMBLY >

DOOR MIRROR

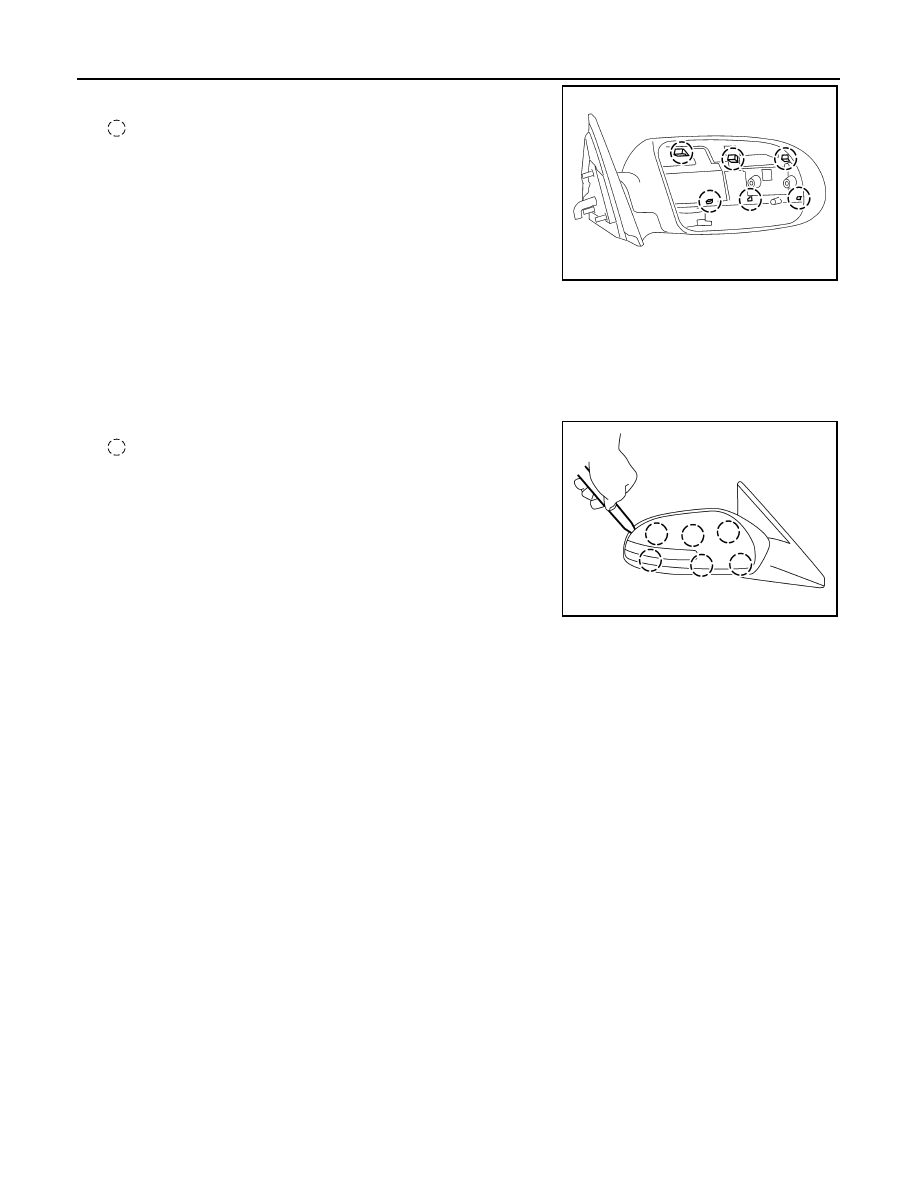

8. Disengage the pawls and remove the door mirror cover from the

mirror assembly.

: Pawl

Assembly

INFOID:0000000009465176

Assembly is in the reverse order of disassembly.

DOOR MIRROR COVER
DOOR MIRROR COVER : Disassembly

INFOID:0000000009465177

1. Using a suitable tool disengage the upper mirror cover pawls.

: Pawl

2. Using a suitable tool disengage the lower mirror cover pawls

and remove mirror cover.

CAUTION:

Be careful not to damage the door mirror or door mirror cover

with tool.

DOOR MIRROR COVER : Assembly

INFOID:0000000009465178

Assembly is in the reverse order of disassembly.

CAUTION:

After installation, check that pawls are securely engaged.

ALLIA0882GB

ALLIA0895ZZ

MWI

MWI-1

DRIVER INFORMATION & MULTIMEDIA

C

D

E

F

G

H

I

J

K

L

M

B

SECTION

MWI

A

O

P

CONTENTS

METER, WARNING LAMP & INDICATOR

BASIC INSPECTION  ....................................

4

DIAGNOSIS AND REPAIR WORKFLOW  ..........

4

Work Flow  .................................................................

4

SYSTEM DESCRIPTION  ..............................

6

METER SYSTEM .................................................

6

METER SYSTEM .........................................................

6

METER SYSTEM : System Diagram ........................

6

METER SYSTEM : System Description ....................

6

METER SYSTEM : Arrangement of Combination
Meter .........................................................................

7

METER SYSTEM : Component Parts Location  ........

8

METER SYSTEM : Component Description  .............

9

SPEEDOMETER ..........................................................

9

SPEEDOMETER : System Diagram  .........................

9

SPEEDOMETER : System Description .....................

9

SPEEDOMETER : Component Parts Location  .......

10

SPEEDOMETER : Component Description  ............

11

TACHOMETER ..........................................................

11

TACHOMETER : System Diagram .........................

11

TACHOMETER : System Description .....................

11

TACHOMETER : Component Parts Location  .........

12

TACHOMETER : Component Description  ..............

13

ENGINE COOLANT TEMPERATURE GAUGE  ........

13

ENGINE COOLANT TEMPERATURE GAUGE :
System Diagram ......................................................

13

ENGINE COOLANT TEMPERATURE GAUGE :
System Description  .................................................

13

ENGINE COOLANT TEMPERATURE GAUGE :
Component Parts Location ......................................

14

ENGINE COOLANT TEMPERATURE GAUGE :
Component Description ...........................................

15

FUEL GAUGE ............................................................

15

FUEL GAUGE : System Diagram  ...........................

15

FUEL GAUGE : System Description  .......................

15

FUEL GAUGE : Component Parts Location  ...........

16

FUEL GAUGE : Component Description .................

17

ODO/TRIP METER .....................................................

17

ODO/TRIP METER : System Diagram  ....................

17

ODO/TRIP METER : System Description ................

17

ODO/TRIP METER : Component Parts Location ....

18

ODO/TRIP METER : Component Description  .........

19

SHIFT POSITION INDICATOR  ..................................

19

SHIFT POSITION INDICATOR : System Diagram ....

19

SHIFT POSITION INDICATOR : System Descrip-
tion ...........................................................................

19

SHIFT POSITION INDICATOR : Component
Parts Location ..........................................................

20

SHIFT POSITION INDICATOR : Component De-
scription ...................................................................

21

WARNING LAMPS/INDICATOR LAMPS ..................

21

WARNING LAMPS/INDICATOR LAMPS : System
Diagram ...................................................................

21

WARNING LAMPS/INDICATOR LAMPS : System
Description ...............................................................

21

WARNING LAMPS/INDICATOR LAMPS : Com-
ponent Parts Location ..............................................

22

WARNING LAMPS/INDICATOR LAMPS : Com-
ponent Description ...................................................

23

INFORMATION DISPLAY ..........................................

23

INFORMATION DISPLAY : System Diagram ..........

23

INFORMATION DISPLAY : System Description  .....

23

INFORMATION DISPLAY : Component Parts Lo-
cation .......................................................................

25

INFORMATION DISPLAY : Component Descrip-
tion ...........................................................................

26

COMPASS .........................................................

27

Description ...............................................................

27

DIAGNOSIS SYSTEM (METER) .......................

29

Diagnosis Description ..............................................

29

CONSULT Function (METER/M&A) ........................

29

MWI-2

DTC/CIRCUIT DIAGNOSIS .........................

32

DTC U1000 CAN COMMUNICATION  ...............

32

DTC Logic ...............................................................

32

Diagnosis Procedure .............................................

32

U1010 CONTROL UNIT (CAN)  .........................

33

Description ..............................................................

33

DTC Logic ...............................................................

33

Diagnosis Procedure  ..............................................

33

DTC B2205 VEHICLE SPEED CIRCUIT  ...........

34

Description ..............................................................

34

DTC Logic ...............................................................

34

Diagnosis Procedure .............................................

34

B2267 ENGINE SPEED .....................................

35

Description ..............................................................

35

DTC Logic ...............................................................

35

Diagnosis Procedure  ..............................................

35

B2268 WATER TEMP ........................................

36

Description ..............................................................

36

DTC Logic ...............................................................

36

Diagnosis Procedure  ..............................................

36

POWER SUPPLY AND GROUND CIRCUIT  .....

37

COMBINATION METER  ...........................................

37

COMBINATION METER : Diagnosis Procedure  ....

37

BCM (BODY CONTROL MODULE)  .........................

37

BCM (BODY CONTROL MODULE) : Diagnosis
Procedure ...............................................................

38

IPDM E/R (INTELLIGENT POWER DISTRIBU-
TION MODULE ENGINE ROOM)  .............................

38

IPDM E/R (INTELLIGENT POWER DISTRIBU-
TION MODULE ENGINE ROOM) : Diagnosis Pro-
cedure .....................................................................

38

FUEL LEVEL SENSOR SIGNAL CIRCUIT  .......

40

Description ..............................................................

40

Component Function Check  ...................................

40

Diagnosis Procedure .............................................

40

Component Inspection ............................................

41

OIL PRESSURE SWITCH SIGNAL CIRCUIT ...

42

Description ..............................................................

42

Component Function Check  ...................................

42

Diagnosis Procedure  ..............................................

42

Component Inspection ............................................

42

PARKING BRAKE SWITCH SIGNAL CIR-
CUIT ...................................................................

44

Description ..............................................................

44

Component Function Check  ...................................

44

Diagnosis Procedure  ..............................................

44

Component Inspection ............................................

44

WASHER LEVEL SWITCH SIGNAL CIRCUIT ...

45

Description ..............................................................

45

Component Function Check  ...................................

45

Diagnosis Procedure ...............................................

45

Component Inspection  ............................................

46

ECU DIAGNOSIS INFORMATION .............

47

COMBINATION METER ....................................

47

Reference Value  .....................................................

47

Fail Safe ..................................................................

50

DTC Index ...............................................................

51

BCM (BODY CONTROL MODULE) ..................

52

Reference Value  .....................................................

52

Terminal Layout  ......................................................

57

Physical Values .......................................................

57

Fail Safe .................................................................

73

DTC Inspection Priority Chart ...............................

74

DTC Index ..............................................................

75

IPDM E/R (INTELLIGENT POWER DISTRI-
BUTION MODULE ENGINE ROOM) .................

78

Reference Value  .....................................................

78

Fail Safe .................................................................

84

DTC Index ..............................................................

86

WIRING DIAGRAM  ....................................

87

METER ...............................................................

87

Wiring Diagram  .......................................................

87

COMPASS ........................................................

106

Wiring Diagram - WITH HOMELINK UNIVERSAL
TRANSCEIVER ....................................................

106

Wiring Diagram - WITHOUT HOMELINK UNI-
VERSAL TRANSCEIVER  .....................................

108

SYMPTOM DIAGNOSIS  ...........................

110

THE FUEL GAUGE POINTER DOES NOT
MOVE ................................................................

110

Description ............................................................

110

Diagnosis Procedure .............................................

110

THE FUEL GAUGE POINTER DOES NOT
MOVE TO "F" WHEN REFUELING  .................

111

Description ............................................................

111

Diagnosis Procedure .............................................

111

THE OIL PRESSURE WARNING LAMP
DOES NOT TURN ON ......................................

112

Description ............................................................

112

Diagnosis Procedure .............................................

112

THE OIL PRESSURE WARNING LAMP
DOES NOT TURN OFF ....................................

113

Description ............................................................

113

Diagnosis Procedure .............................................

113

THE PARKING BRAKE RELEASE WARNING
CONTINUES DISPLAYING, OR DOES NOT
DISPLAY ...........................................................

114
