Nissan Maxima. Manual - part 845





PREPARATION

MIR-17

< PREPARATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

PREPARATION

PREPARATION

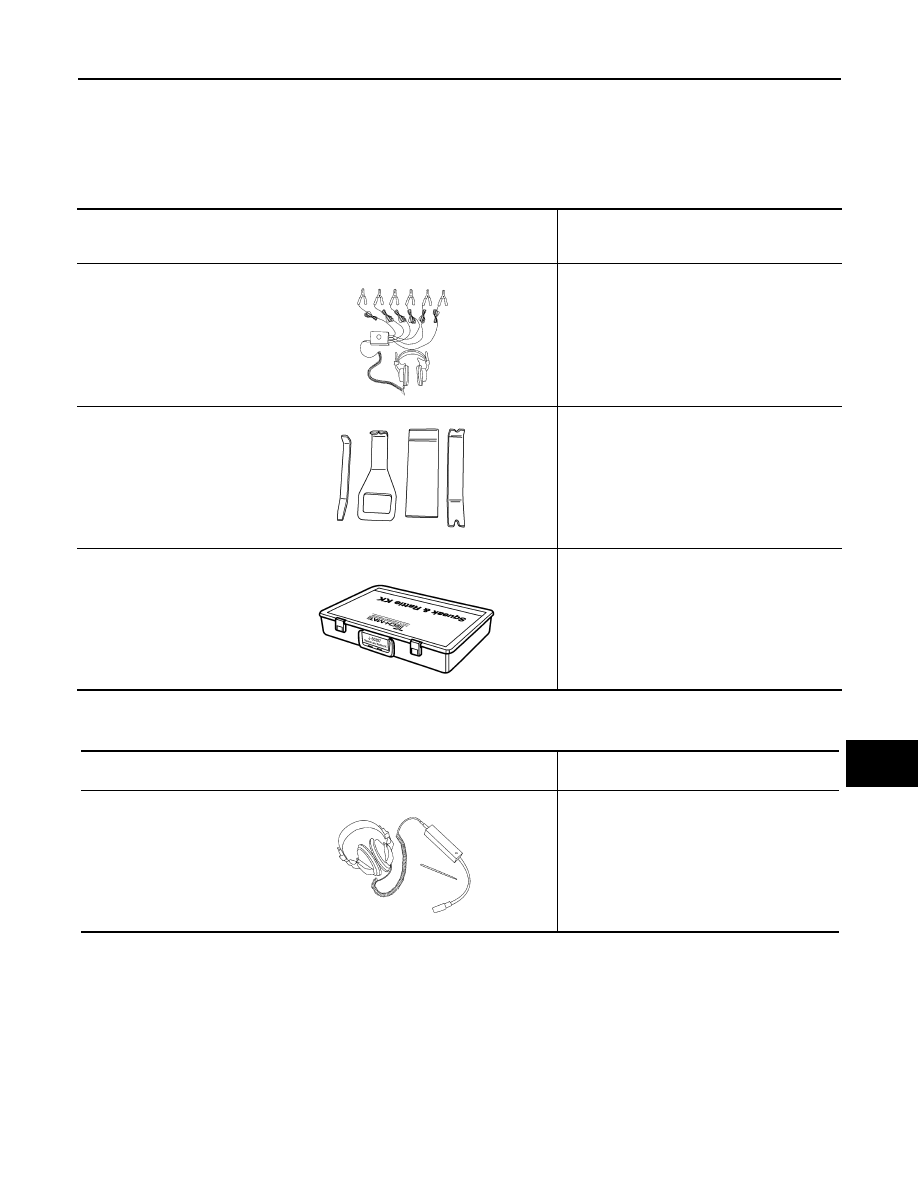

Special Service Tools

INFOID:0000000009895323

The actual shapes of the tools may differ from those illustrated here.

Commercial Service Tools

INFOID:0000000009895324

Tool number
(TechMate No.)
Tool name

Description

(J-39570)
Chassis Ear

Locating the noise

(J-46534)
Trim Tool Set

Removing trim components

(J-50397)
NISSAN Squeak and Rattle
Kit

Repairing the cause of noise

SIIA0993E

AWJIA0483ZZ

ALJIA1232ZZ

(TechMate No.)
Tool name

Description

(J-39565)
Engine Ear

Locating the noise

SIIA0995E

MIR-18

< REMOVAL AND INSTALLATION >

INSIDE MIRROR

REMOVAL AND INSTALLATION

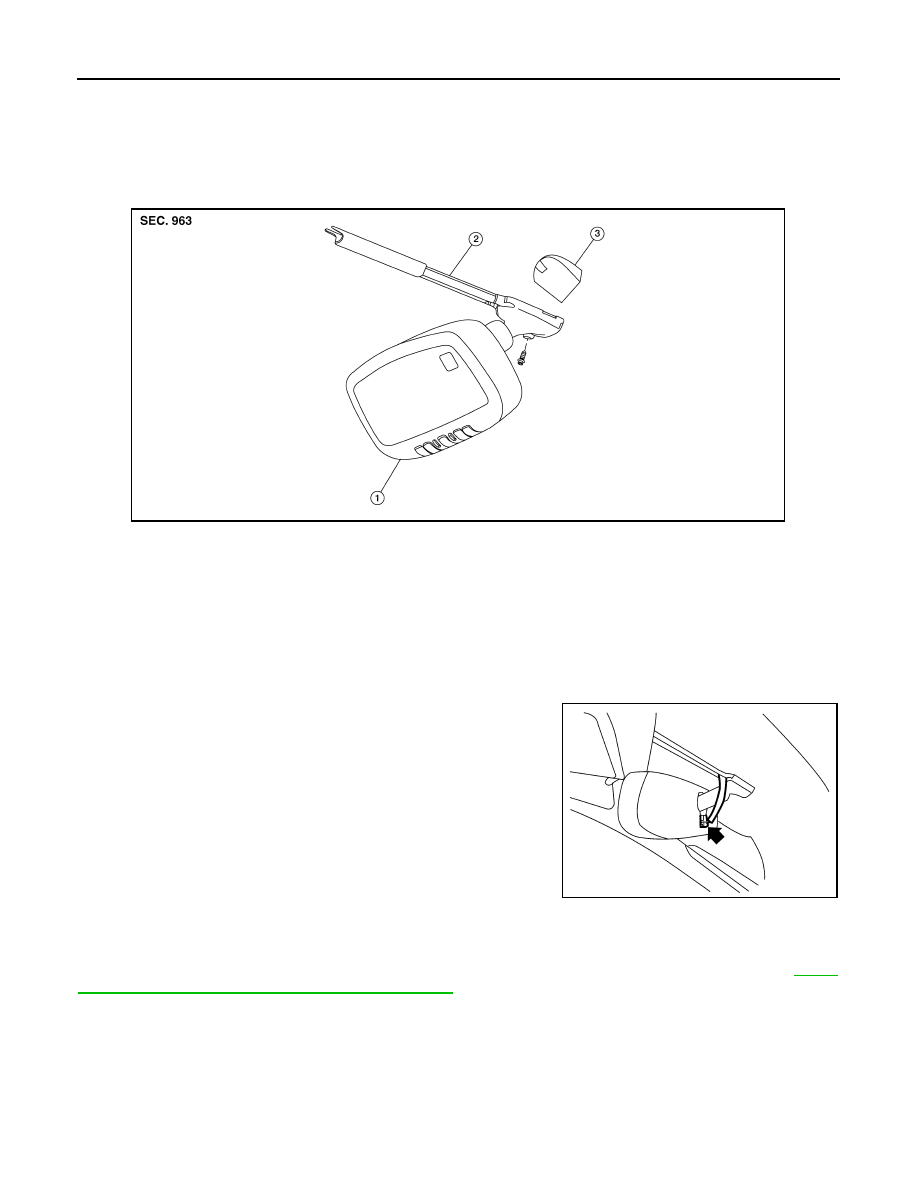

INSIDE MIRROR

Exploded View

INFOID:0000000009465170

Removal and Installation

INFOID:0000000009465171

REMOVAL

1. Remove inside mirror finisher.
2. Remove screw of mirror base.
3. Slide the mirror upward to remove.
4. Disconnect the harness connector from the inside mirror.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Apply Genuine Mirror Adhesive or equivalent to bonding surface of mounting bracket. Refer to

GI-21,

"Recommended Chemical Products and Sealants"

.

1.

Inside mirror

2.

Inside mirror finisher

3.

Mirror base

AWLIA1811ZZ

ALKIA0069GB

DOOR MIRROR

MIR-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

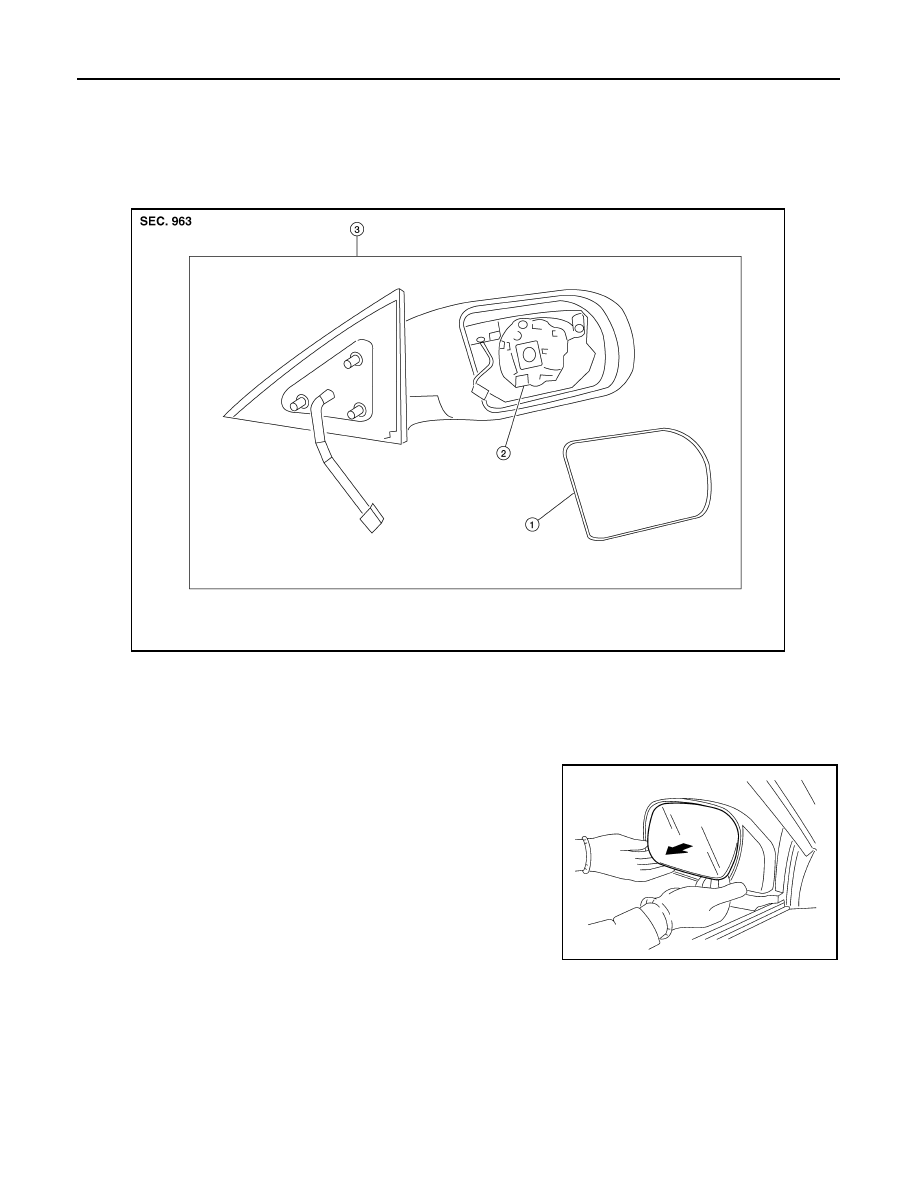

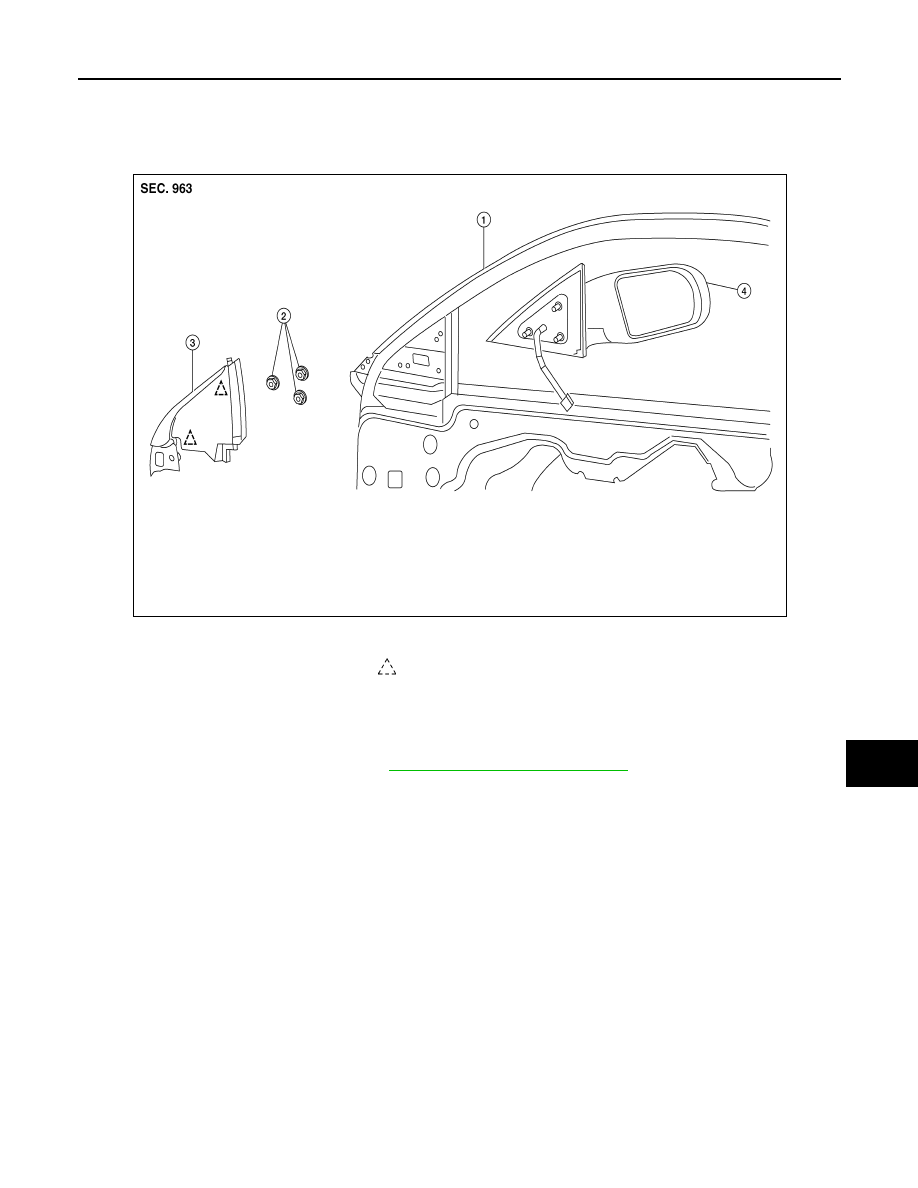

DOOR MIRROR

Exploded View

INFOID:0000000009465172

Removal and Installation

INFOID:0000000009465173

REMOVAL

1. Remove the front door finisher. Refer to

INT-18, "Removal and Installation"

.

2. Remove the door mirror cover.
3. Disconnect the harness connector from the door mirror.
4. Remove the door mirror nuts and the door mirror assembly.

INSTALLATION

Installation is in the reverse order of removal.

1.

Door panel

2.

Nuts

3.

Door mirror cover

4.

Door mirror assembly

Clip C101

AWLIA1812ZZ

MIR-20

< UNIT DISASSEMBLY AND ASSEMBLY >

DOOR MIRROR

UNIT DISASSEMBLY AND ASSEMBLY

DOOR MIRROR

Exploded View

INFOID:0000000009465174

Disassembly

INFOID:0000000009465175

1. Turn the door mirror glass surface upward.
2. Pull from the bottom to disengage lower clips.

1.

Door mirror glass

2.

Actuator assembly

3.

Door mirror assembly

AWLIA1813ZZ

ALLIA0877GB
