ENGINE MAINTENANCE (VQ35DE)

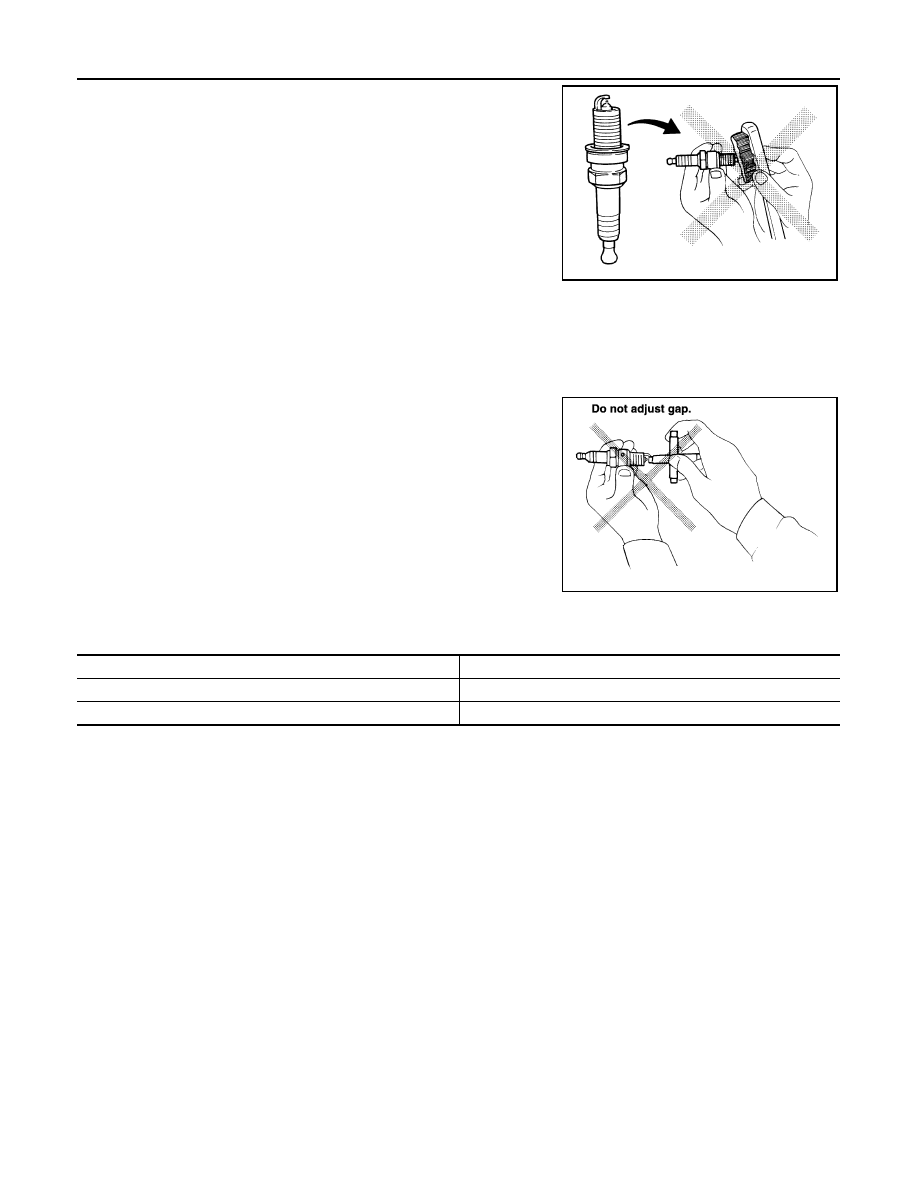

• Do not use a wire brush for cleaning the spark plugs. Replace as

necessary.

• If plug is covered with carbon, a spark plug cleaner may be used.

• Checking and adjusting spark plug gap is not required between

change intervals. Do not adjust the gap; replace the spark plug as

necessary if out of specification.

INSTALLATION

Installation is in the reverse order of removal.

*: Always check with the Parts Department for the latest parts information.

EVAP VAPOR LINES
EVAP VAPOR LINES : Inspection

INFOID:0000000009471121

1. Visually inspect EVAP vapor lines for improper attachment and for cracks, damage, loose connections,

chafing and deterioration.

2. Inspect fuel tank filler cap vacuum relief valve for clogging, sticking, etc.

SMA773C

Cleaner air pressure : less than 588 kPa (6 kg/cm

2

, 85 psi)

Cleaning time

: less than 20 seconds

SMA806CA

Make

DENSO

Standard type*

FXE22HR11

Gap (nominal)

1.1 mm (0.043 in)

CHASSIS AND BODY MAINTENANCE

MA-27

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

CHASSIS AND BODY MAINTENANCE

IN-CABIN MICROFILTER
IN-CABIN MICROFILTER : Removal and Installation

INFOID:0000000009471122

REMOVAL

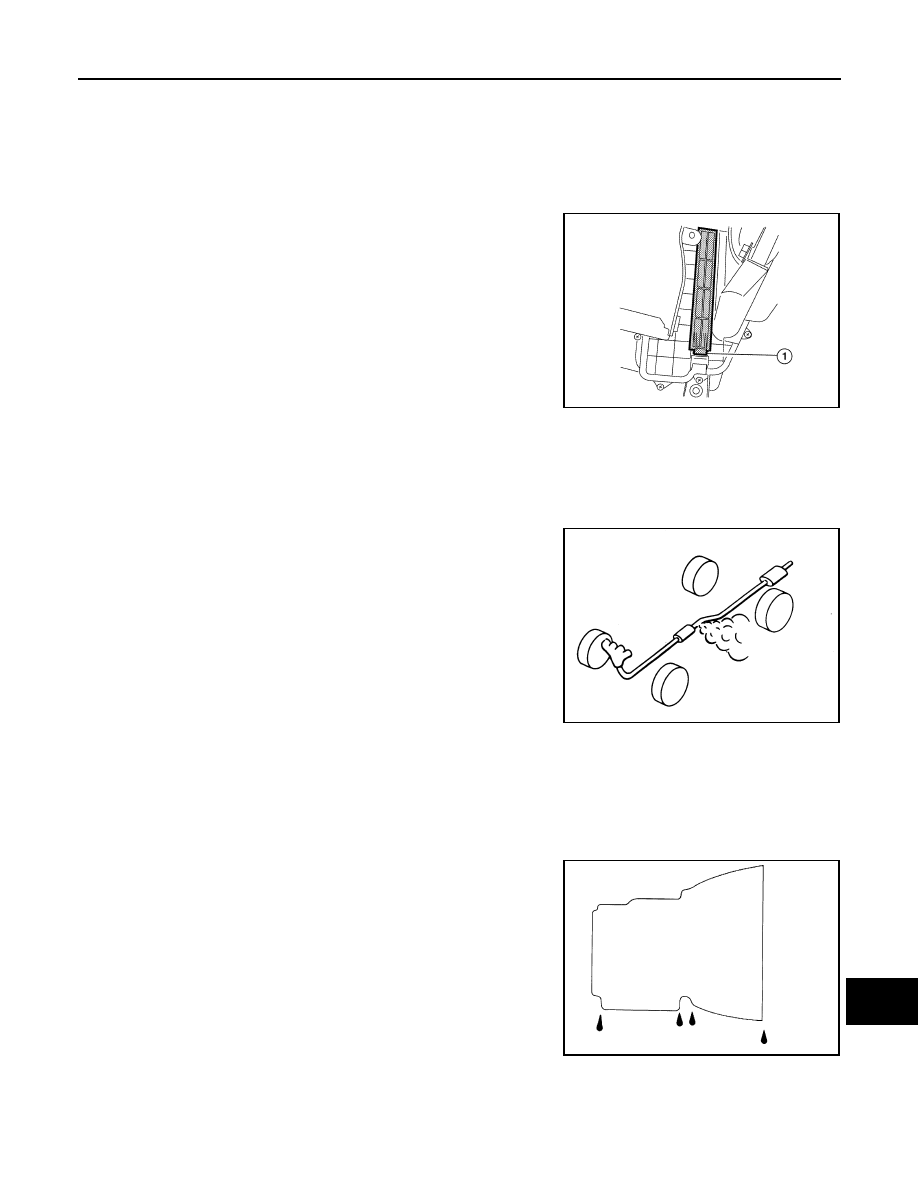

1. Disengage the filter cover tab (1) by pushing up and pull out to

remove the filter cover.

2. Remove the in-cabin microfilter from the blower unit.

INSTALLATION

Installation is in the reverse order of removal.

EXHAUST SYSTEM
EXHAUST SYSTEM : Inspection

INFOID:0000000009471123

Check exhaust pipes, muffler and mounting for improper attachment,

leaks, cracks, damage, chafing or deterioration.

• If anything is found, repair or replace damaged parts.

CVT FLUID
CVT FLUID : Inspection

INFOID:0000000009471124

CHECKING CVT FLUID

The fluid level should be checked with the fluid warmed up to 50

° to 80°C (122° to 176°F). The fluid level

check procedure is as follows:
1. Check for fluid leakage.
2. With the engine warmed up, drive the vehicle in an urban area.

When ambient temperature is 20

°C (68°F), it takes about 10

minutes for the CVT fluid to warm up to 50

° to 80°C (122° to

176

°F).

3. Park the vehicle on a level surface.
4. Apply parking brake firmly.
5. With engine at idle, while depressing brake pedal, move shift

selector throughout the entire shift range.

ALIIA0016ZZ

SMA211A

SMA146B

MA-28

< PERIODIC MAINTENANCE >

CHASSIS AND BODY MAINTENANCE

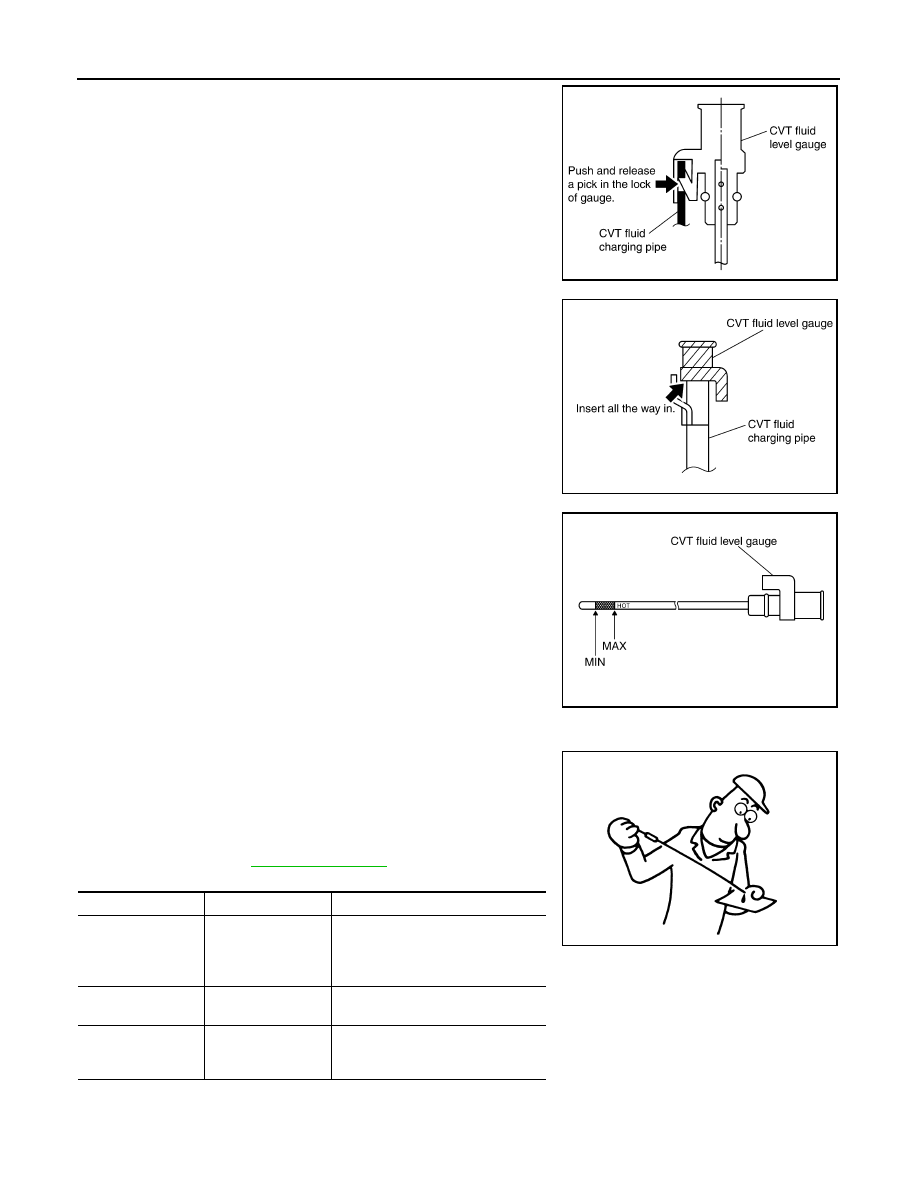

6. Pull out the CVT fluid level gauge from the CVT fluid charging

pipe after pressing the tab on the CVT fluid level gauge to

release the lock.

7. Wipe fluid off the CVT fluid level gauge. Insert the CVT fluid

level gauge rotating 180

° from the originally installed position,

then securely push the CVT fluid level gauge until it meets the

top end of the CVT fluid charging pipe.

CAUTION:

When wiping away the CVT fluid level gauge, always use

lint-free paper, not a cloth rag.

8. Place the shift selector in “P” or “N” position and check that the

fluid level is within the specified range.

CAUTION:

When reinstalling CVT fluid level gauge, insert it into the

CVT fluid charging pipe and rotate it to the original installa-

tion position until securely locked.

CVT FLUID CONDITION

Check CVT fluid condition.

• If CVT fluid is very dark or smells burned, check operation of CVT.

Flush cooling system after repair of CVT.

• If CVT fluid contains frictional material (clutches, brakes, etc.),

inspect and clean the CVT fluid cooler mounted in the radiator and

flush cooler line using cleaning solvent and compressed air after

repair of CVT. Refer to

TM-157, "Cleaning"

.

CVT FLUID : Changing

INFOID:0000000009471125

CAUTION:

SCIA1933E

SCIA1931E

SCIA1932E

Fluid status

Conceivable cause

Required operation

Varnished (viscous
varnish state)

CVT fluid becomes
degraded due to
high temperatures.

Replace the CVT fluid and check the
CVT main unit and the vehicle for
malfunctions (wire harnesses, cool-
er pipes, etc.)

Milky white or
cloudy

Water in the fluid

Replace the CVT fluid and check for
places where water is getting in.

Large amount of
metal powder mixed
in

Unusual wear of
sliding parts within
CVT

Replace the CVT fluid and check for
improper operation of the CVT.

ATA0022D

CHASSIS AND BODY MAINTENANCE

MA-29

< PERIODIC MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

Replace a O-ring with new ones at the final stage of the operation when installing.
1. Remove drain plug from oil pan.
2. Remove O-ring from drain plug and discard the O-ring.
3. Install a new O-ring on drain plug.

CAUTION:

Do not reuse O-ring.

4. Install drain plug in oil pan. Refer to

TM-177, "Exploded View"

.

5. Fill CVT fluid from CVT fluid charging pipe to the specified level.

CAUTION:

• Use only Genuine NISSAN CVT Fluid NS-2. Do not mix with other fluid.

• Using CVT fluid other than Genuine NISSAN CVT Fluid NS-2 will deteriorate in driveability and

CVT durability, and may damage the CVT, which is not covered by the warranty.

• When filling CVT fluid, take care not to scatter heat generating parts such as exhaust.

• Sufficiently shake the container of CVT fluid before using.

• Delete CVT fluid deterioration date with CONSULT after changing CVT fluid. Refer to

TM-38,

"CONSULT Function"

.

6. With the engine warmed up, drive the vehicle in an urban area.

NOTE:

When ambient temperature is 20

°C (68°F), it takes about 10 minutes for the CVT fluid to warm up to 50°

to 80

°C (122° to 176°F).

7. Check CVT fluid level and condition.
8. Repeat steps 1 to 5 if CVT fluid has been contaminated.

WHEELS
WHEELS : Inspection

INFOID:0000000009471126

ALUMINUM WHEEL

1. Check tires for wear and improper inflation.
2. Check wheels for deformation, cracks and other damage. If deformed, remove wheel and check wheel

runout.

a. Remove tire from aluminum wheel and then mount the wheel on a tire balancer machine. Remove the

transmitter, refer to

WT-59, "Removal and Installation"

.

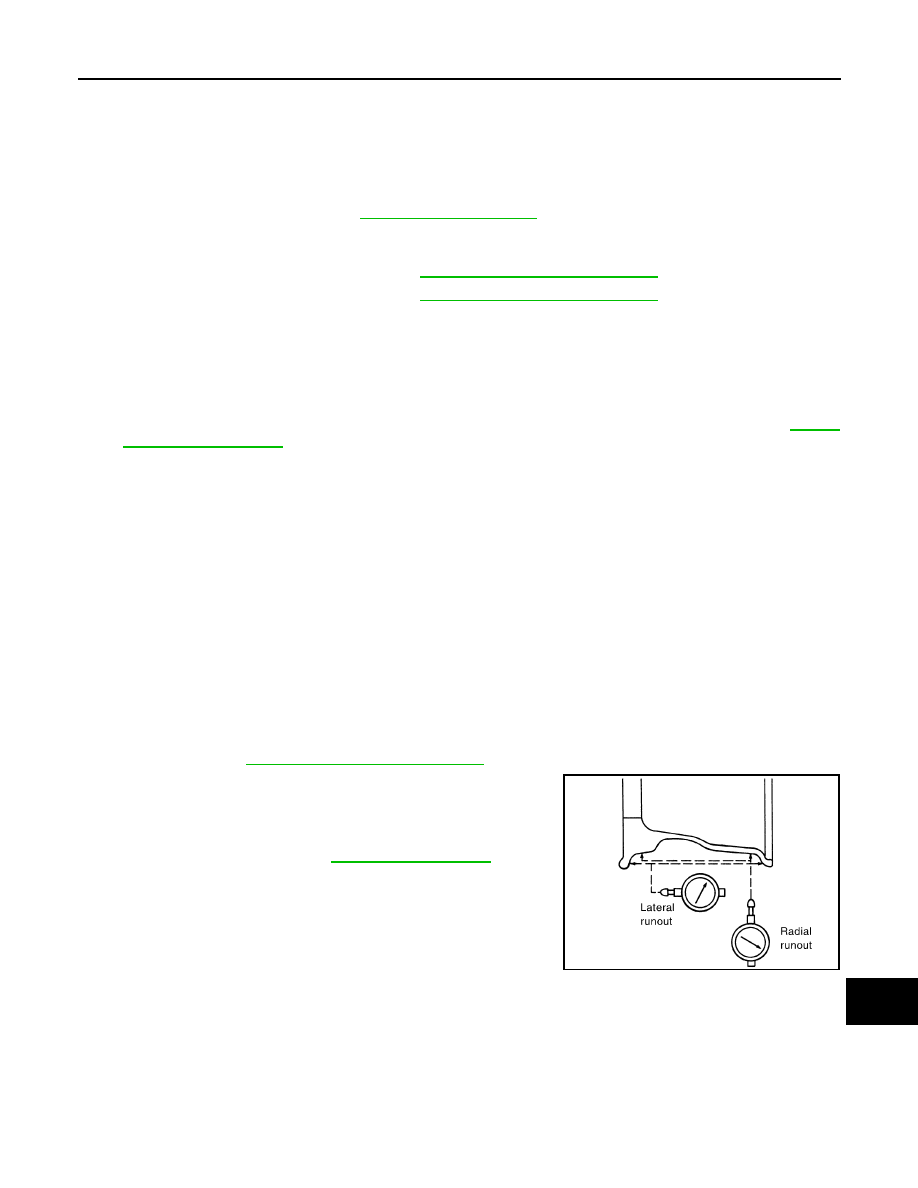

b. Set dial indicator as shown and rotate the wheel to check for

runout.

• Replace wheel if runout exceeds specification.

WHEELS : Adjustment

INFOID:0000000009471127

BALANCING WHEELS (ADHESIVE WEIGHT TYPE)

Preparation Before Adjustment

Remove inner and outer balance weights from the road wheel using releasing agent, remove double-faced

adhesive tape from the road wheel.

CAUTION:

• Be careful not to scratch the road wheel during removal.

CVT fluid

: Refer to

TM-194, "General Specification"

.

Fluid capacity

: Refer to

TM-194, "General Specification"

.

Wheel runout

Refer to

WT-65, "Road Wheel"

.
