5. Check the oil level and add engine oil as necessary. Refer to

LU-8, "Inspection"

.

6. After warming up the engine, check for engine oil leaks.
7. Install front fender protector side cover (RH). Refer to

EXT-15, "Exploded View"

.

LU-12

< REMOVAL AND INSTALLATION >

OIL PUMP

REMOVAL AND INSTALLATION

OIL PUMP

Removal and Installation

INFOID:0000000009469250

REMOVAL

1. Remove the engine from the vehicle. Refer to

EM-103, "Removal and Installation"

.

2. Remove the upper oil pan. Refer to

EM-37, "Removal and Installation (Upper Oil Pan)"

.

3. Remove the timing chain. Refer to

EM-64, "Removal and Installation"

.

4. Remove oil pump assembly.

INSTALLATION

Installation is in the reverse order of removal.

Disassembly and Assembly

INFOID:0000000009469251

CAUTION:

Before assembly, apply new engine oil to the parts as shown.

DISASSEMBLY

1. Remove the oil pump cover.
2. Remove inner rotor and outer rotor from oil pump housing.

CAUTION:

The outer rotor has directional vanes in relation to the rotation of the oil pump shaft. Note the

outer rotor vane direction for assembly.

3. Remove oil strainer from oil pump housing.
4. After removing regulator plug, remove spring and regulator valve.

INSPECTION AFTER DISASSEMBLY

Clearance of Oil Pump Parts

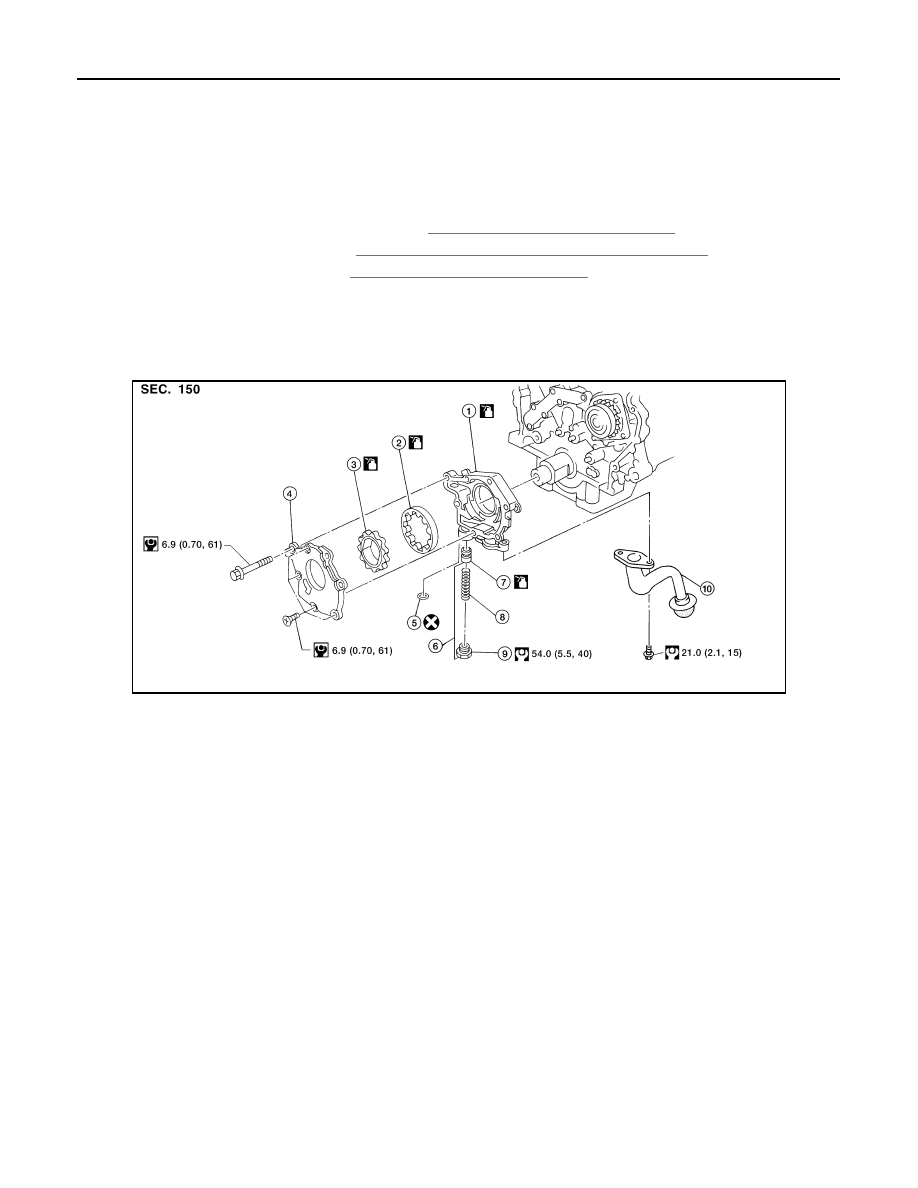

AWBIA0715ZZ

1.

Oil pump housing

2.

Outer rotor

3.

Inner rotor

4.

Oil pump cover

5.

O-ring

6.

Regulator valve set

7.

Regulator valve

8.

Spring

9.

Regulator plug

10. Oil strainer

OIL PUMP

LU-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

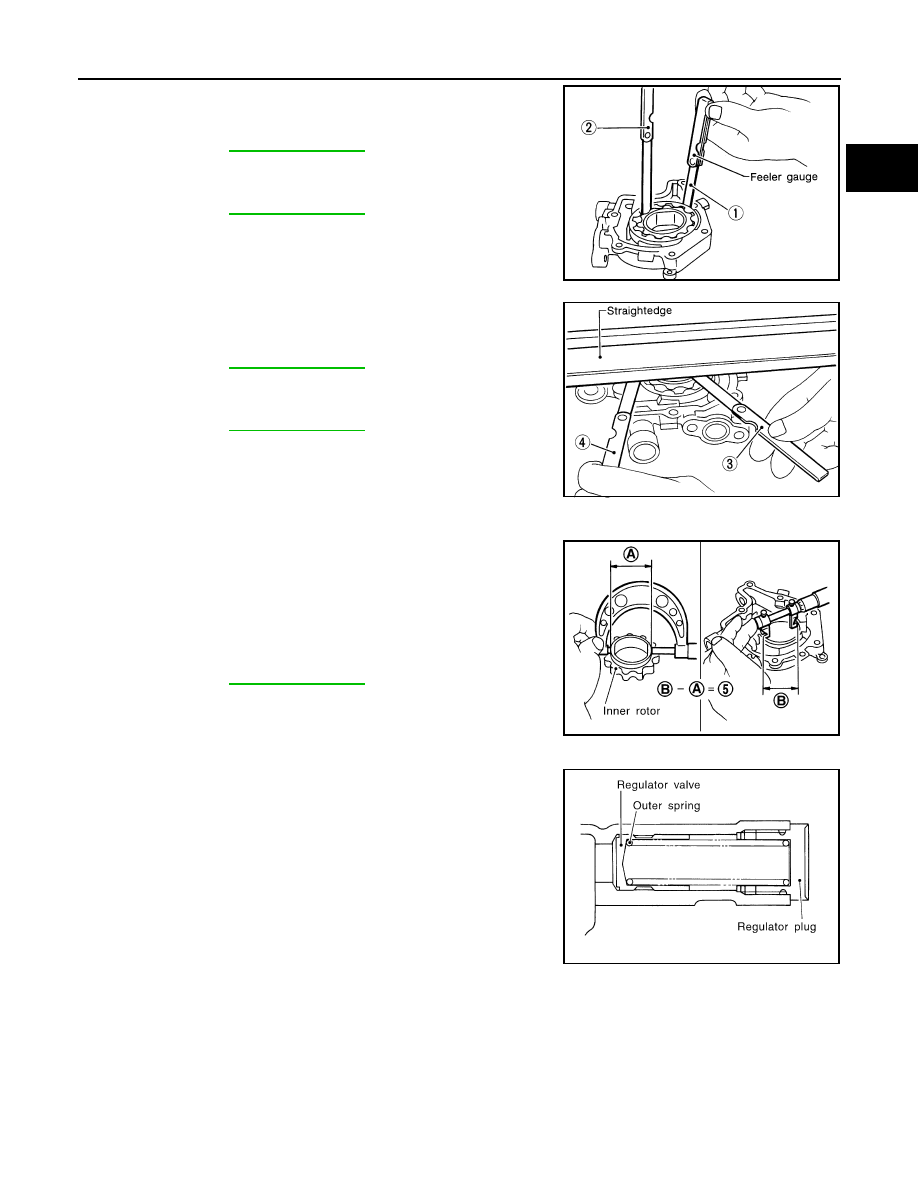

• Measure clearance with feeler gauge.

• Clearance between outer rotor and oil pump body (position 1).

• Tip clearance between inner rotor and outer rotor (position 2).

• Measure clearance with feeler gauge and straightedge.

• Side clearance between inner rotor and oil pump body (position 3).

• Side clearance between outer rotor and oil pump body (position 4).

• Calculate the clearance between inner rotor and oil pump body as follows:
1. Measure the outer diameter of protruded portion of inner rotor

(position A).

2. Measure the inner diameter of oil pump body with inside

micrometer (position B).

(clearance 5) = (inner diameter of oil pump body B) – (outer

diameter of inner rotor A)

3. If out of specifications, replace oil pump assembly.

Regulator Valve

1. Visually inspect components for wear and damage.
2. Check oil pressure regulator valve sliding surface and valve

spring.

3. Coat regulator valve with engine oil. Check that it falls smoothly

into the valve hole by its own weight.

If damaged, replace oil pump assembly.

Regulator Valve Clearance

Standard

:

LU-17, "Oil Pump"

Standard

:

LU-17, "Oil Pump"

SLC932A

Standard

:

LU-17, "Oil Pump"

Standard

:

LU-17, "Oil Pump"

SLC933A

Standard

:

LU-17, "Oil Pump"

SLC934AB

SLC251B

LU-14

< REMOVAL AND INSTALLATION >

OIL PUMP

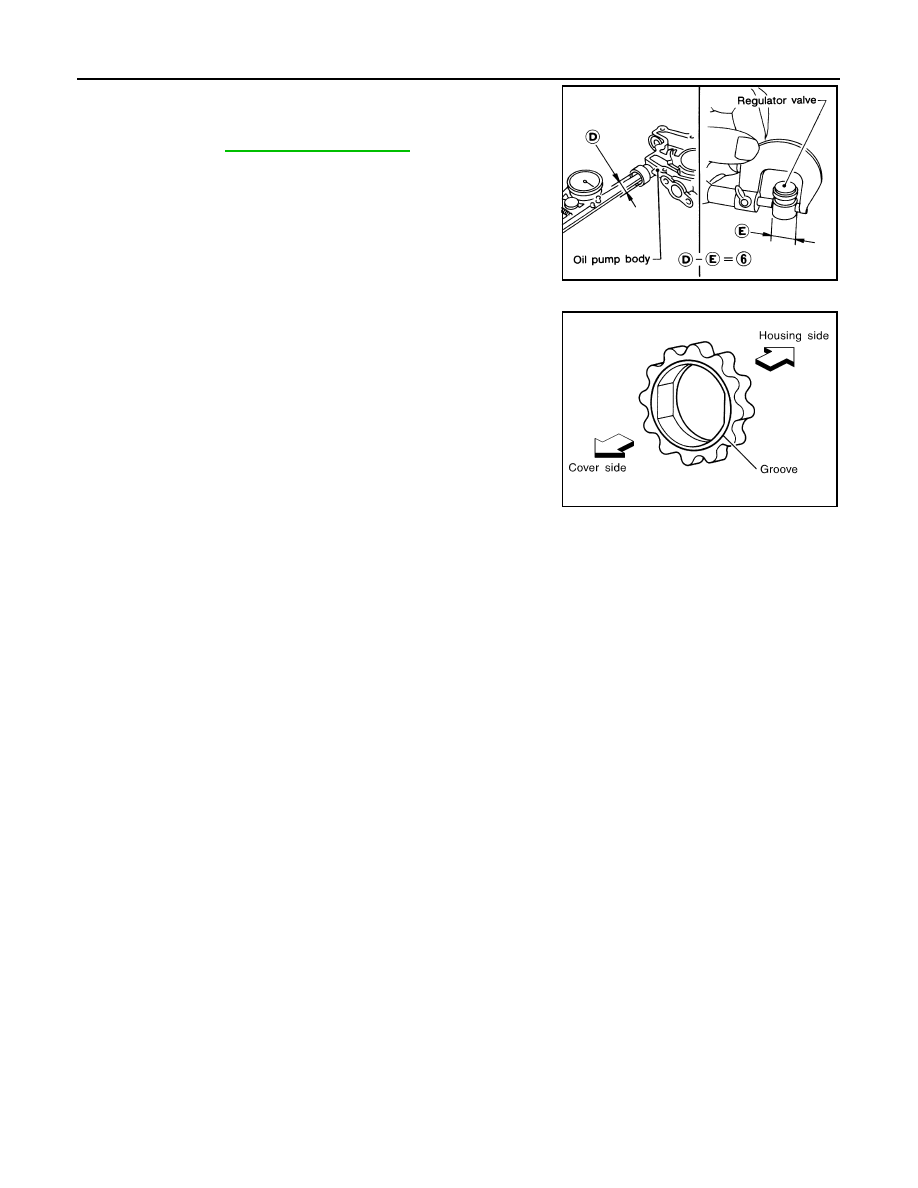

(Clearance 6) = D (Valve hole diameter) – E (Outer diameter of

valve)

If it exceeds the standard, replace the oil pump assembly.

CAUTION:

• Coat regulator valve with engine oil.

• Check that it falls smoothly into the valve hole by its own

weight.

Assembly

Assembly is in the reverse order of disassembly.

• Assemble the outer rotor in the correct vane orientation to rotation

as noted during disassembly and the inner rotor with the groove on

the oil pump cover side.

CAUTION:

• Do not reuse O-ring.

• Before assembly apply new engine oil to the parts as speci-

fied.

Standard

:

LU-17, "Regulator Valve"

SLC935AA

SLC324B
