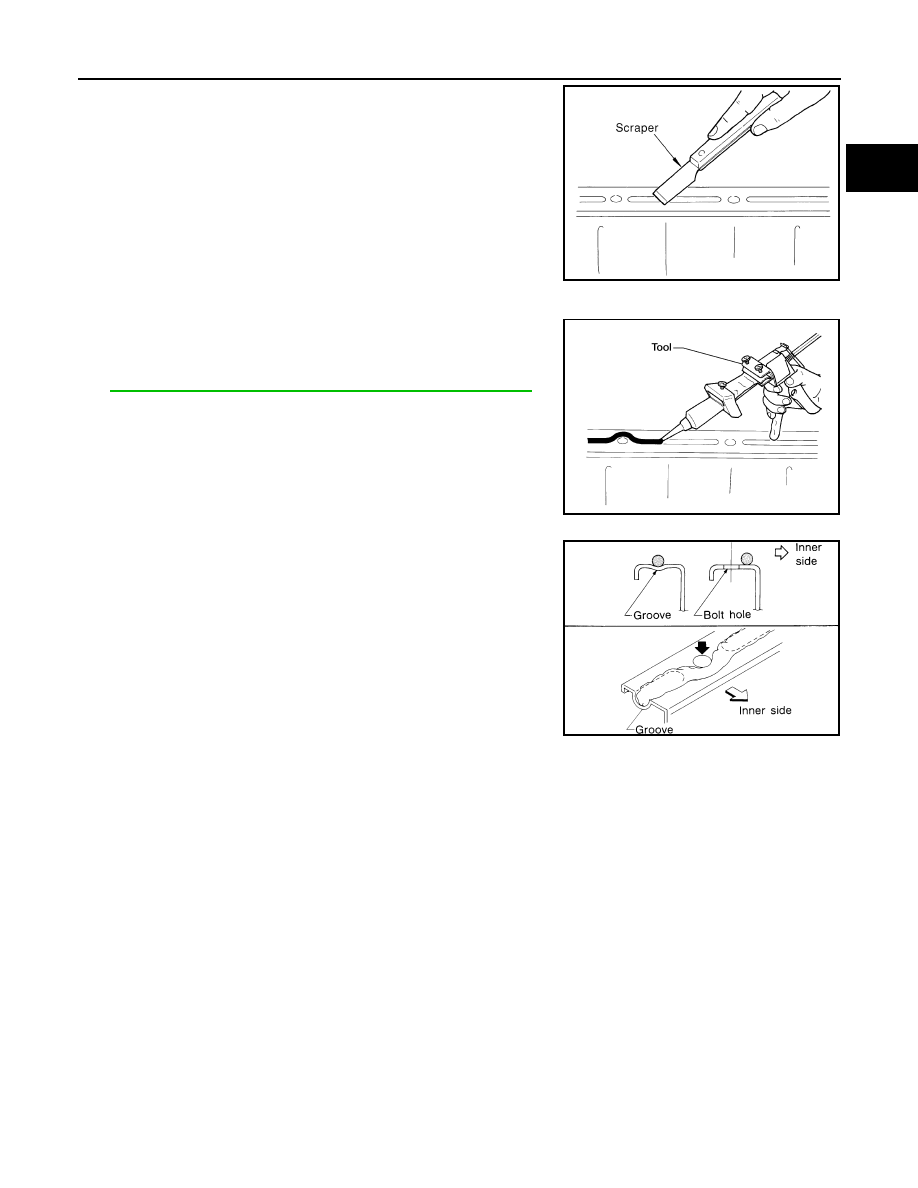

1. Remove old liquid gasket adhering to the liquid gasket applica-

tion surface and the mating surface, using scraper.

• Remove liquid gasket completely from the groove of the liquid

gasket application surface, bolts, and bolt holes.

2. Thoroughly clean the mating surfaces and remove adhering

moisture, grease and foreign materials.

3. Attach liquid gasket tube to Tool.

Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-21, "Recommended Chemical Products and Sealants"

.

4. Apply liquid gasket without breaks to the specified location with

the specified dimensions.

• If there is a groove for the liquid gasket application, apply liq-

uid gasket to the groove.

• As for the bolt holes, normally apply liquid gasket inside the

holes. Occasionally, it should be applied outside the holes.

Make sure to read the text of service manual.

• Within five minutes of liquid gasket application, install the mat-

ing component.

• If liquid gasket protrudes, wipe it off immediately.

• Do not retighten nuts or bolts after the installation.

• After 30 minutes or more have passed from the installation, fill

engine oil and engine coolant.

CAUTION:

Carefully follow all of the warnings, cautions, notes, and proce-

dures contained in this manual.

PBIC0003E

Tool number

: WS39930000 ( — )

WBIA0567E

SEM159F

LU-4

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

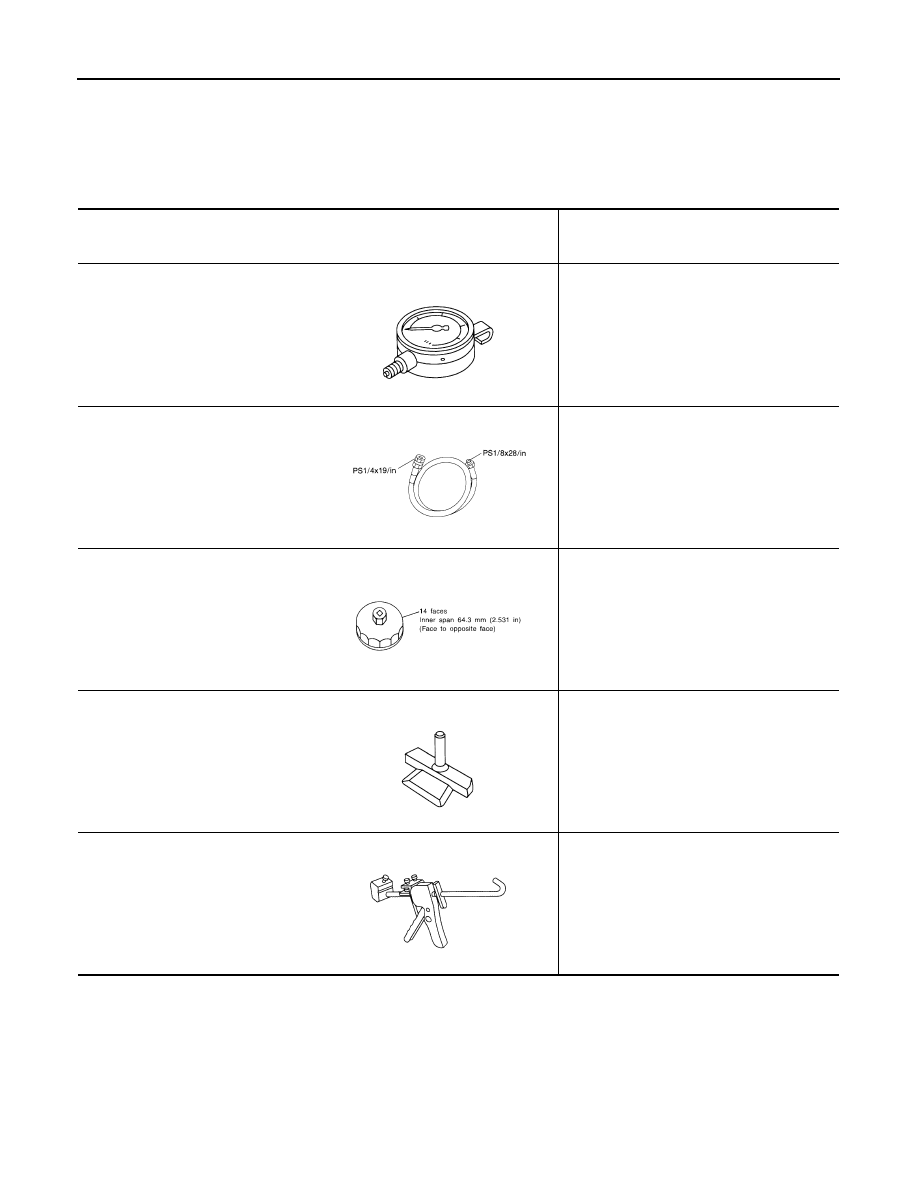

Special Service Tool

INFOID:0000000009469243

The actual shapes of the tools may differ from those illustrated here.

Commercial Service Tool

INFOID:0000000009469244

Tool number
(TechMateNo.)
Tool name

Description

ST25051001
(J-25695-1)
Oil pressure gauge

Measuring oil pressure
Maximum measuring range: 2,452 kPa (25
kg-cm

2

, 356 psi)

ST25052000
(J-25695-2)
Hose

Adapting oil pressure gauge to upper oil pan

KV10115801
(J-38956)
Oil filter wrench

Removing and installing oil filter

KV10111100
(J-37228)
Seal cutter

Removing steel oil pan and rear timing chain
case

WS39930000
( — )
Tube presser

Pressing the tube of liquid gasket

NT050

S-NT559

S-NT772

S-NT046

NT052

PREPARATION

LU-5

< PREPARATION >

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

Tool name

Description

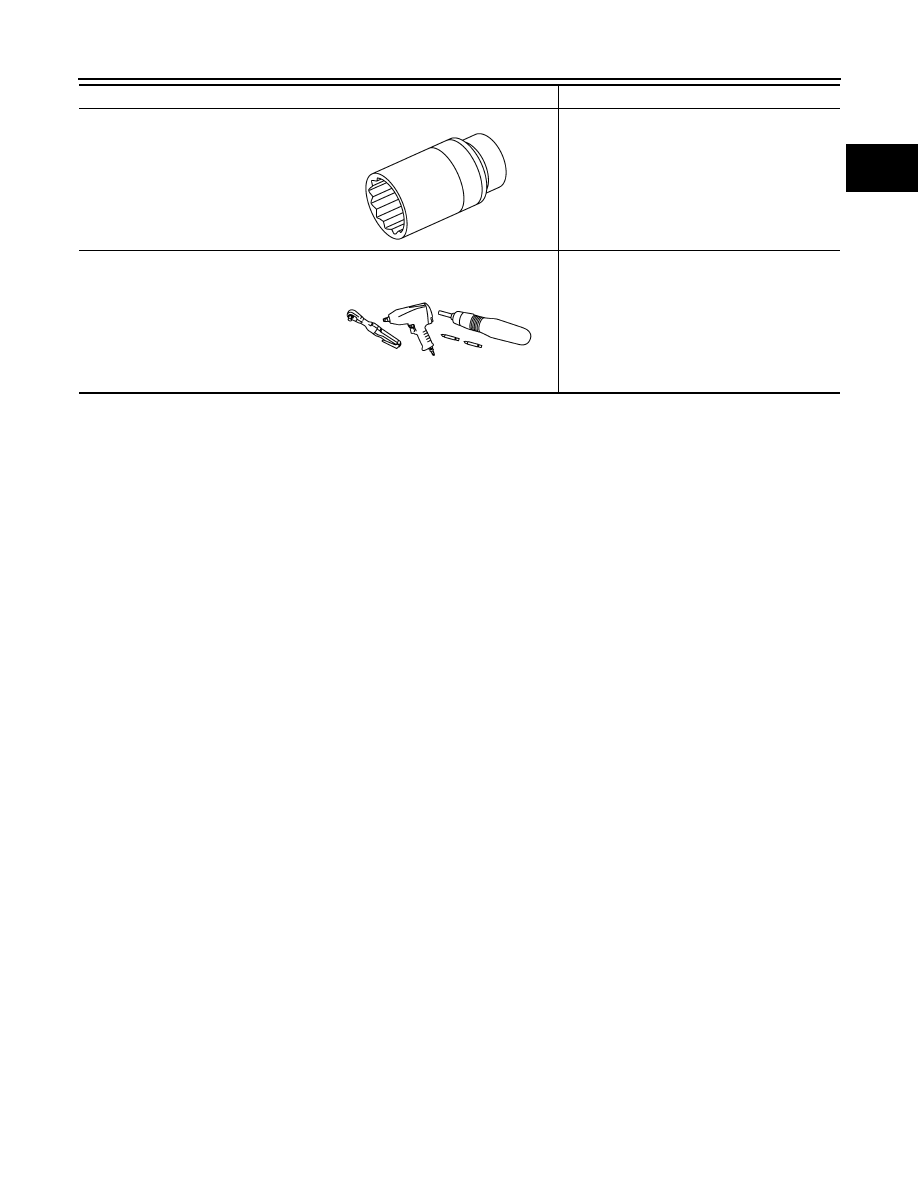

Deep socket

Removing and installing oil pressure switch
Deep socket 26 mm, 3/8 drive

Power tools

Loosening nuts, screws and bolts

NT818

PIIB1407E

LU-6

< SYSTEM DESCRIPTION >

LUBRICATION SYSTEM

SYSTEM DESCRIPTION

LUBRICATION SYSTEM

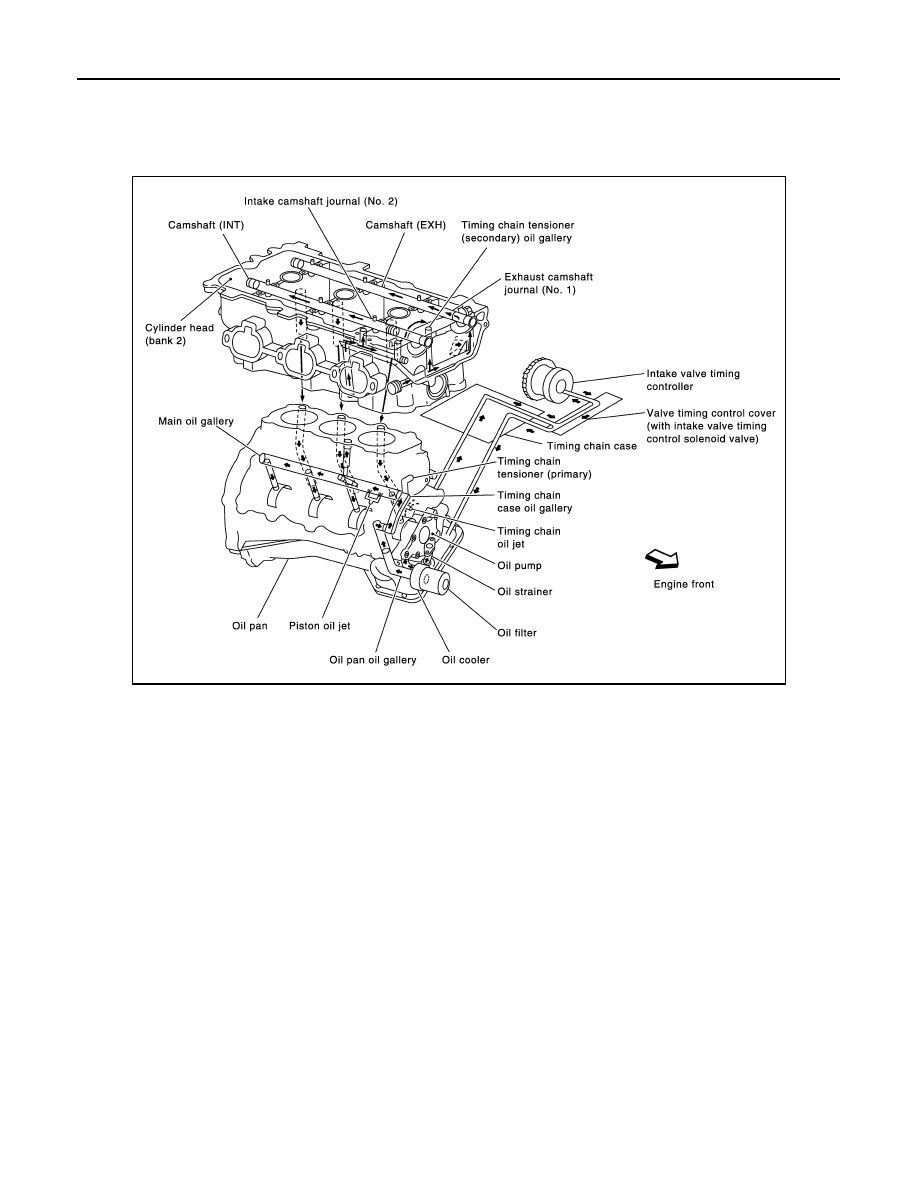

Lubrication Circuit

INFOID:0000000009469245

JPBIA1773GB
