SUNSHADE

DTC/CIRCUIT DIAGNOSIS

SUNSHADE

Component Parts Location

INFOID:0000000009465870

Reference Value

INFOID:0000000009465871

1.

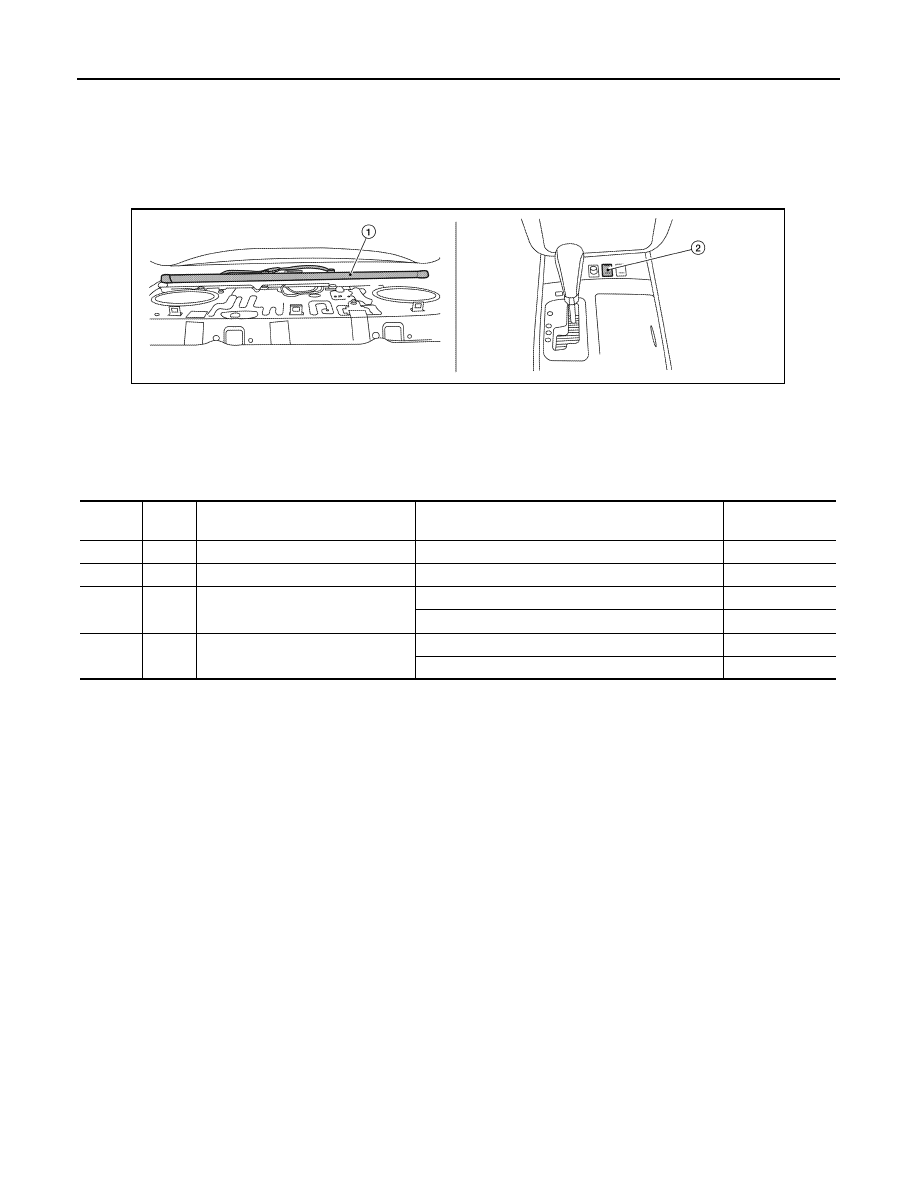

Rear sunshade unit B22
(View with the rear parcel shelf finisher removed)

2.

Rear sunshade switch M308

AWJIA0388ZZ

Terminal

Wire

color

Item

Condition

Voltage (V)

1

V

Ignition switch (ON or START)

Ignition switch is ON or START position

Battery voltage

2

B

Ground

—

0

5

P

Rear sunshade DOWN signal

Rear sunshade switch in DOWN position

0

Rear sunshade switch released

Battery voltage

6

R

Rear sunshade UP signal

Rear sunshade switch in UP position

0

Rear sunshade switch released

Battery voltage

REAR SUNSHADE

INT-3

< WIRING DIAGRAM >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

WIRING DIAGRAM

REAR SUNSHADE

Wiring Diagram

INFOID:0000000009465872

ABJWA0205GB

INT-4

< WIRING DIAGRAM >

REAR SUNSHADE

ABJIA0175GB

REAR SUNSHADE

INT-5

< WIRING DIAGRAM >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

ABJIA0651GB
