INTERIOR ROOM LAMP

REMOVAL AND INSTALLATION

INTERIOR ROOM LAMP

Removal and Installation

INFOID:0000000009465448

FRONT ROOM/MAP LAMP ASSEMBLY

Removal

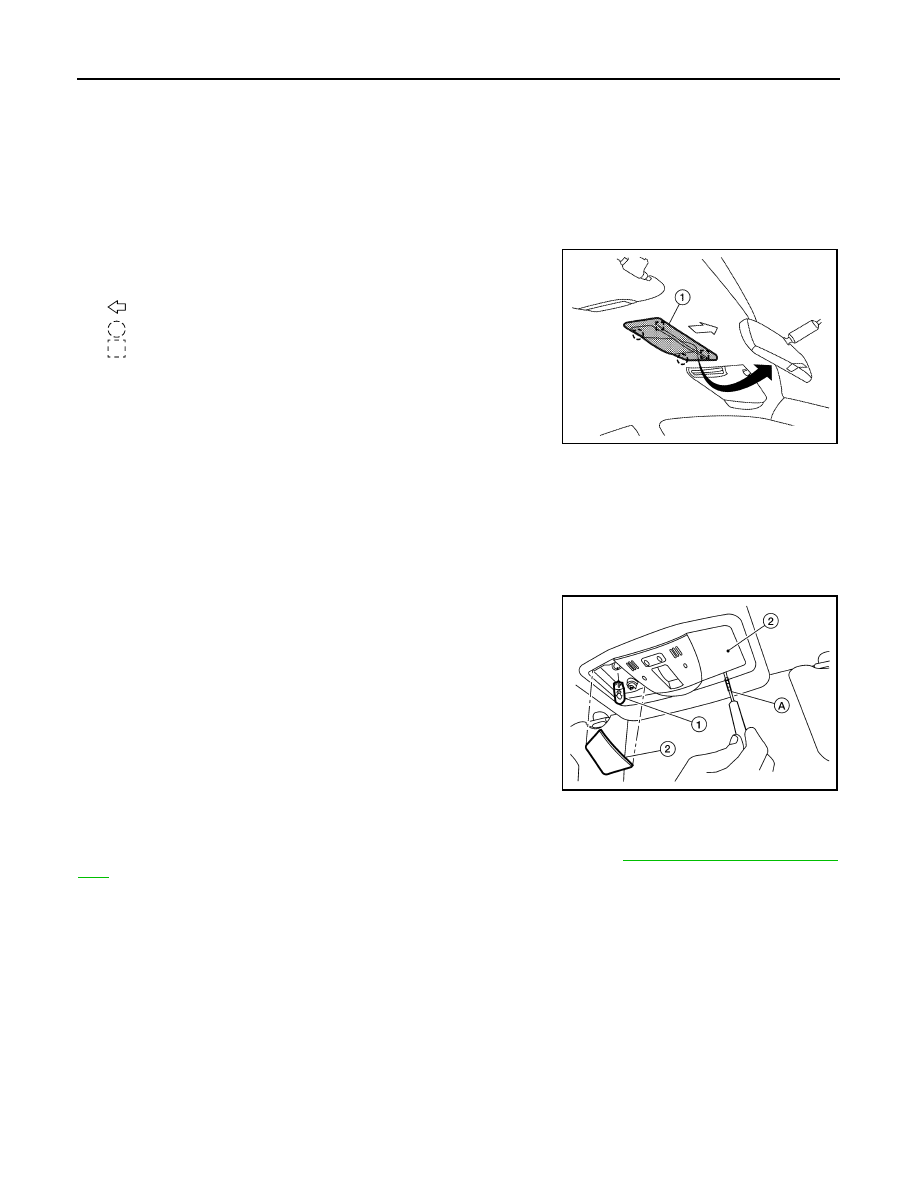

1. Release the metal clips and drop front edge of front room/map

lamp assembly (1) away from headlining. Slide front room/map

lamp assembly forward in vehicle to clear pawls at rear.

: Front

: Pawl
: Metal clip

2. Disconnect the connectors, then remove the front room/map

lamp assembly.

Installation

Installation is in the reverse order of removal.

Bulb or Lens Replacement

WARNING:

Do not touch bulb while it is lit or right after being turned OFF. Burning may result.Caution: -Do not

touch glass surface of the bulb with bare hands or allow oil or grease to get on it to prevent damage to

bulb.
1. Using a suitable tool (A), remove the front room/map lamp lens

(2).

2. Pull bulb (1) straight out to remove.
3. Install the new bulb to front room/map lamp.
4. Install the front room/map lamp lens (2).

VANITY MIRROR LAMP

Removal

The vanity mirror lamp is replaced as part of the sun visor assembly. Refer to

INT-33, "Removal and Installa-

tion"

.

Installation

Installation is in the reverse order of removal.

Bulb or Lens Replacement

WARNING:

Do not touch bulb while it is lit or right after being turned OFF. Burning may result.Caution: -Do not

attempt to separate the vanity mirror lamp from the sun visor or damage to the components may

occur.  -Do not touch glass surface of the bulb with bare hands or allow oil or grease to get on it to pre-

vent damage to bulb.

AWLIA1659ZZ

AWLIA2201ZZ

INTERIOR ROOM LAMP

INL-85

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

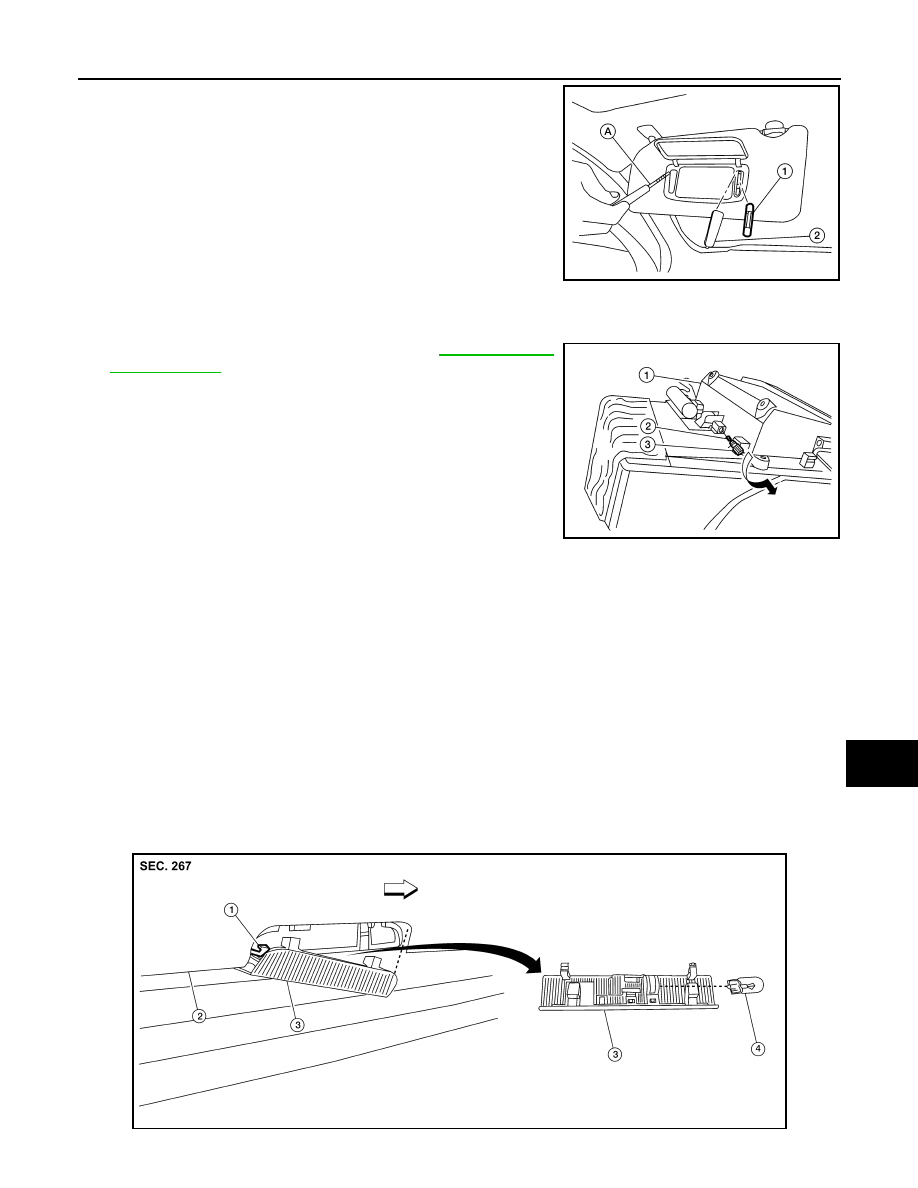

1. Using a suitable tool (A), remove the vanity mirror lamp lens (2).
2. Pull bulb (1) straight out to remove.
3. Install the new bulb to vanity mirror lamp.
4. Install the vanity mirror lamp lens (2).

GLOVE BOX LAMP

Removal

1. Remove the glove box assembly (1). Refer to

IP-20, "Removal

and Installation"

.

2. Rotate glove box lamp socket (3) and bulb (2) counterclockwise

and then pull out to remove.

Installation

Installation is in the reverse order of removal.

Bulb Replacement

WARNING:

Do not touch bulb while it is lit or right after being turned OFF. Burning may result.Caution:  -Do not

touch glass surface of the bulb with bare hands or allow oil or grease to get on it to prevent damage to

bulb.
1. Remove the glove box lamp. Refer to GLOVE BOX LAMP.
2. Pull bulb straight out to remove.
3. Install the new bulb to glove box lamp.
4. Install the glove box lamp lens (2).

STEP LAMP

Removal

AWLIA2202ZZ

ALLIA0012ZZ

ALLIA0013ZZ

INL-86

< REMOVAL AND INSTALLATION >

INTERIOR ROOM LAMP

1. Insert a suitable tool between door finisher and step lamp lens/socket to release the pawls.
2. Disconnect the step lamp connector, then remove step lamp.

Installation

Installation is in the reverse order of removal.

Bulb Replacement

WARNING:

Do not touch bulb while it is lit or right after being turned OFF. Burning may result.Caution:  -Do not

touch glass surface of the bulb with bare hands or allow oil or grease to get on it to prevent damage to

bulb.
1. Remove the step lamp lens/socket.
2. Pull the bulb straight out to remove.
3. Install the new bulb to step lamp.
4. Install the step lamp lens (2).

FOOT LAMP

Removal - LH

1. Using a suitable tool, release the foot lamp pawls and remove the foot lamp from the instrument lower

panel LH.

2. Disconnect the harness connector and remove the foot lamp.

Installation - LH

Installation is in the reverse order of removal.

Removal - RH

1. Rotate foot lamp socket counterclockwise to release from the substrate.
2. Disconnect the harness connector and remove the foot lamp.

Installation - RH

Installation is in the reverse order of removal.

Bulb Replacement

WARNING:

Do not touch bulb while it is lit or right after being turned OFF. Burning may result.Caution:  -Do not

touch glass surface of the bulb with bare hands or allow oil or grease to get on it to prevent damage to

bulb.
1. Remove the foot lamp. Refer to FOOT LAMP.
2. Pull bulb straight out to remove.
3. Install the new bulb to foot lamp.
4. Install the foot lamp lens (2).

PERSONAL LAMP

Removal

The personal lamp is replaced as part of the headlining assembly. Refer to

INT-33, "Removal and Installation"

.

Installation

Installation is in the reverse order of removal.

Bulb or Lens Replacement

WARNING:

Do not touch bulb while it is lit or right after being turned OFF. Burning may result.Caution:  -Do not

touch glass surface of the bulb with bare hands or allow oil or grease to get on it to prevent damage to

bulb.

1.

Step lamp connector

2.

Door finisher

3.

Step lamp lens/socket

4.

Step lamp bulb

Front
