Nissan Maxima. Manual - part 758





HAC-208

< REMOVAL AND INSTALLATION >

[WITH MONOCHROME DISPLAY]

REFRIGERANT PRESSURE SENSOR

REFRIGERANT PRESSURE SENSOR

Removal and Installation

INFOID:0000000009466452

REMOVAL

1. Discharge the refrigerant. Refer to

HA-28, "Recycle Refrigerant"

.

2. Remove the core support upper cover.
3. Disconnect the harness connector from the refrigerant pressure sensor.
4. Remove the refrigerant pressure sensor.

CAUTION:

Cap or wrap the opening of the refrigerant pressure sensor with suitable material such as vinyl

tape to avoid the entry of air.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse O-ring.

• Apply A/C oil to the O-ring of the refrigerant pressure sensor for installation.

• After charging refrigerant, check for leaks. Refer to

HA-26, "Leak Test"

.

DOOR MOTOR

HAC-209

< REMOVAL AND INSTALLATION >

[WITH MONOCHROME DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

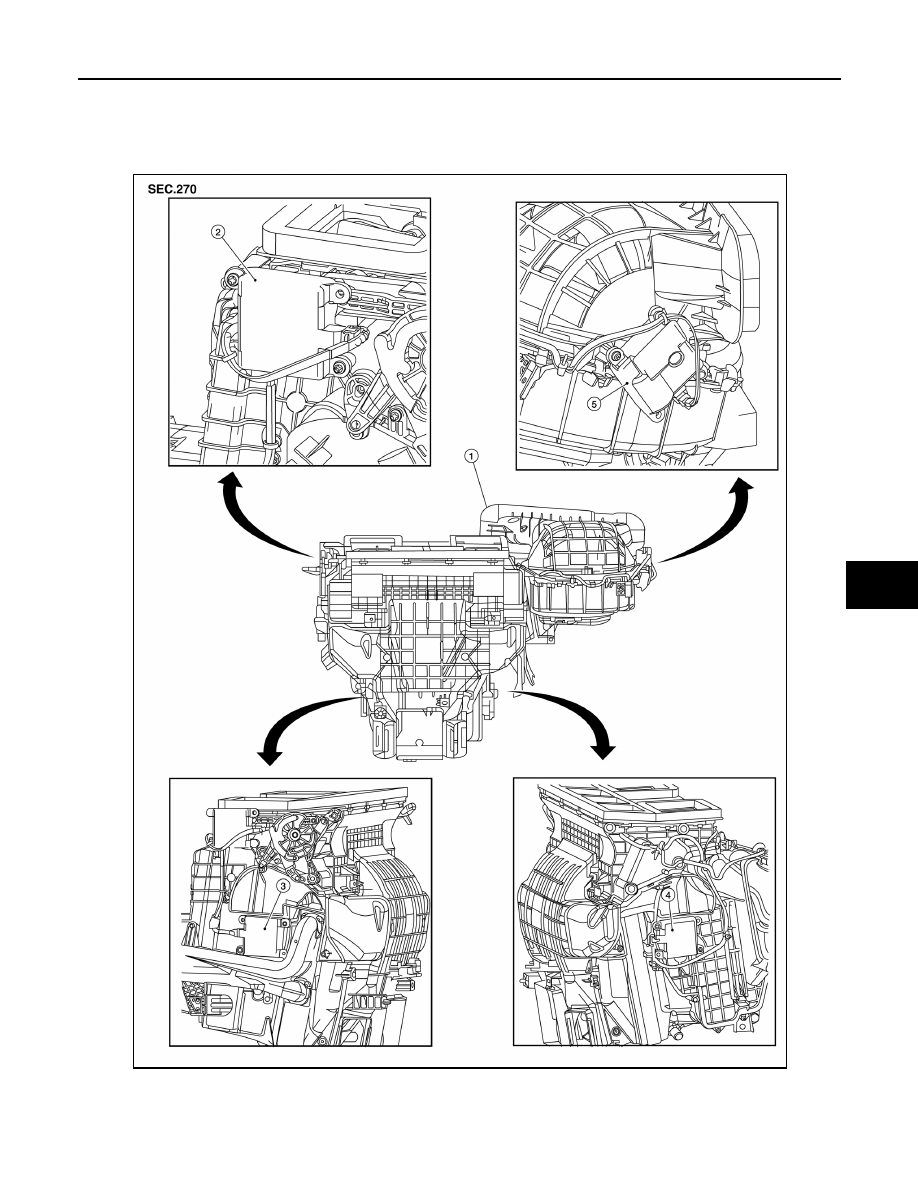

DOOR MOTOR

Exploded View

INFOID:0000000009466453

1.

Heating and cooling unit assembly

2.

Mode door motor

3.

Air mix door motor (driver side)

4.

Air mix door motor (passenger side) 5.

Intake door motor

ALIIA0644ZZ

HAC-210

< REMOVAL AND INSTALLATION >

[WITH MONOCHROME DISPLAY]

DOOR MOTOR

INTAKE DOOR MOTOR
INTAKE DOOR MOTOR : Removal and Installation

INFOID:0000000009466454

REMOVAL

1. Remove the glove box assembly. Refer to

IP-20, "Removal and Installation"

.

2. Remove the remote keyless entry receiver and bracket to reposition out of the way.
3. Disconnect the harness connector from the intake door motor.
4. Remove the intake door motor screws and the intake door motor from the blower unit.

INSTALLATION

Installation is in the reverse order of removal.

MODE DOOR MOTOR
MODE DOOR MOTOR : Removal and Installation

INFOID:0000000009466455

REMOVAL

1. Remove the combination meter. Refer to

MWI-122, "Removal and Installation"

.

2. Remove the BCM. Refer to

BCS-79, "Removal and Installation"

.

3. Disconnect the harness connector from the mode door motor.
4. Remove the mode door motor screws and the mode door motor.

INSTALLATION

Installation is in the reverse order of removal.

AIR MIX DOOR MOTOR
AIR MIX DOOR MOTOR : Removal and Installation - Air Mix Door Motor (Driver Side)

INFOID:0000000009466456

REMOVAL

1. Remove the instrument lower panel LH. Refer to

IP-19, "Removal and Installation"

.

2. Remove the upper floor connecting duct (LH). Refer to

HA-47, "Exploded View"

.

3. Remove the tire pressure receiver.
4. Disconnect the harness connector from the air mix door motor.
5. Remove the air mix door motor screws and the air mix door motor (driver side).

INSTALLATION

Installation is in the reverse order of removal.

AIR MIX DOOR MOTOR : Removal and Installation - Air Mix Door Motor (Passenger
Side)

INFOID:0000000009466457

REMOVAL

1. Remove the glove box assembly. Refer to

IP-20, "Removal and Installation"

.

2. Remove the upper floor connecting duct (RH). Refer to

HA-47, "Exploded View"

.

3. Disconnect the harness connector from the air mix door motor.
4. Remove the air mix door motor screws and the air mix door motor (passenger side).

INSTALLATION

Installation is in the reverse order of removal.
