Nissan Maxima. Manual - part 756

HAC-200

< PRECAUTION >

[WITH MONOCHROME DISPLAY]

PRECAUTIONS

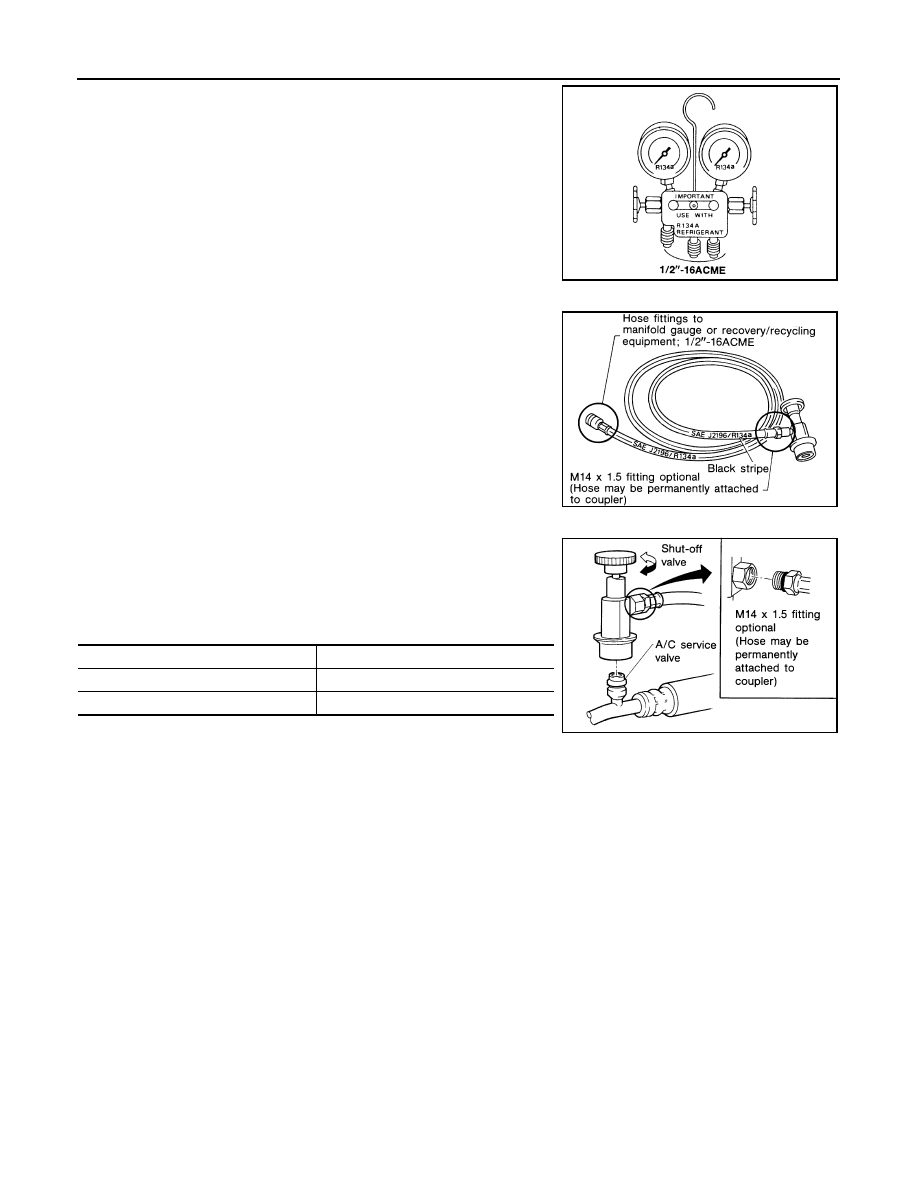

Be certain that the gauge face indicates R-134a or 134a. Make sure

the gauge set has 1/2

″-16 ACME threaded connections for service

hoses. Confirm the set has been used only with refrigerant HFC-

134a (R-134a) along with specified lubricant.

SERVICE HOSES

Be certain that the service hoses display the markings described

(colored hose with black stripe). All hoses must include positive shut-

off devices (either manual or automatic) near the end of the hoses

opposite the manifold gauge.

SERVICE COUPLERS

Do not attempt to connect HFC-134a (R-134a) service couplers to a

CFC-12 (R-12) A/C system. The HFC-134a (R-134a) couplers will

not properly connect to the CFC-12 (R-12) system. However, if an

improper connection is attempted, discharging and contamination

may occur.

SHA533D

RHA272D

Shut-off valve rotation

A/C service valve

Clockwise

Open

Counterclockwise

Close

RHA273D

PREPARATION

HAC-201

< PREPARATION >

[WITH MONOCHROME DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

PREPARATION

PREPARATION

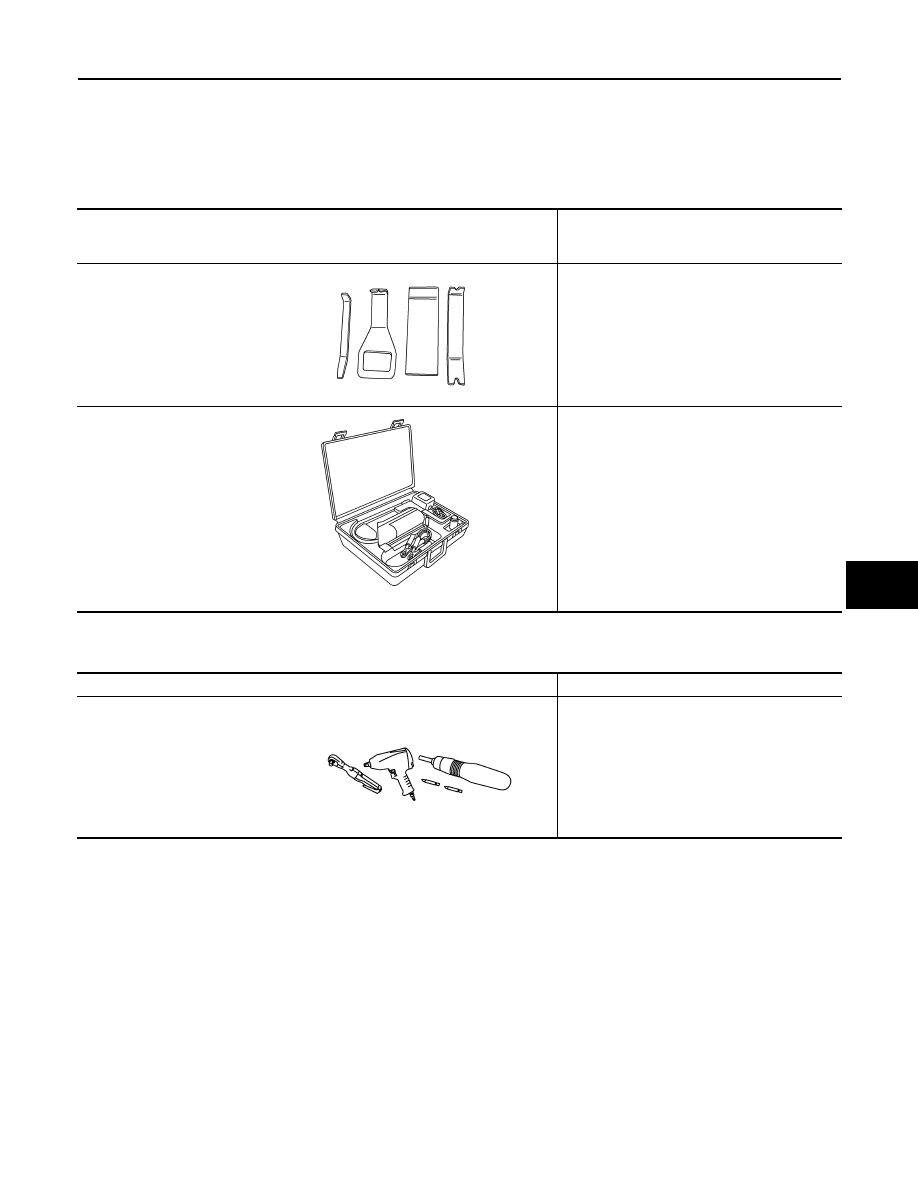

Special Service Tool

INFOID:0000000009466444

The actual shapes of the tools may differ from those illustrated here.

Commercial Service Tool

INFOID:0000000009466445

Sealant and/or Lubricant

INFOID:0000000009466446

Tool number
(TechMate No.)
Tool name

Description

—

(J-46534)
Trim Tool Set

Removing trim components

—

(J-41995)
Electronic refrigerant leak
detector

Power supply:
• DC 12V (battery terminal)

AWJIA0483ZZ

AHA281A

Tool name

Description

Power tool

Loosening nuts, screws and bolts

PIIB1407E

HAC-202

< PREPARATION >

[WITH MONOCHROME DISPLAY]

PREPARATION

Tool number
(TechMate No.)
Tool name

Description

—

( — )

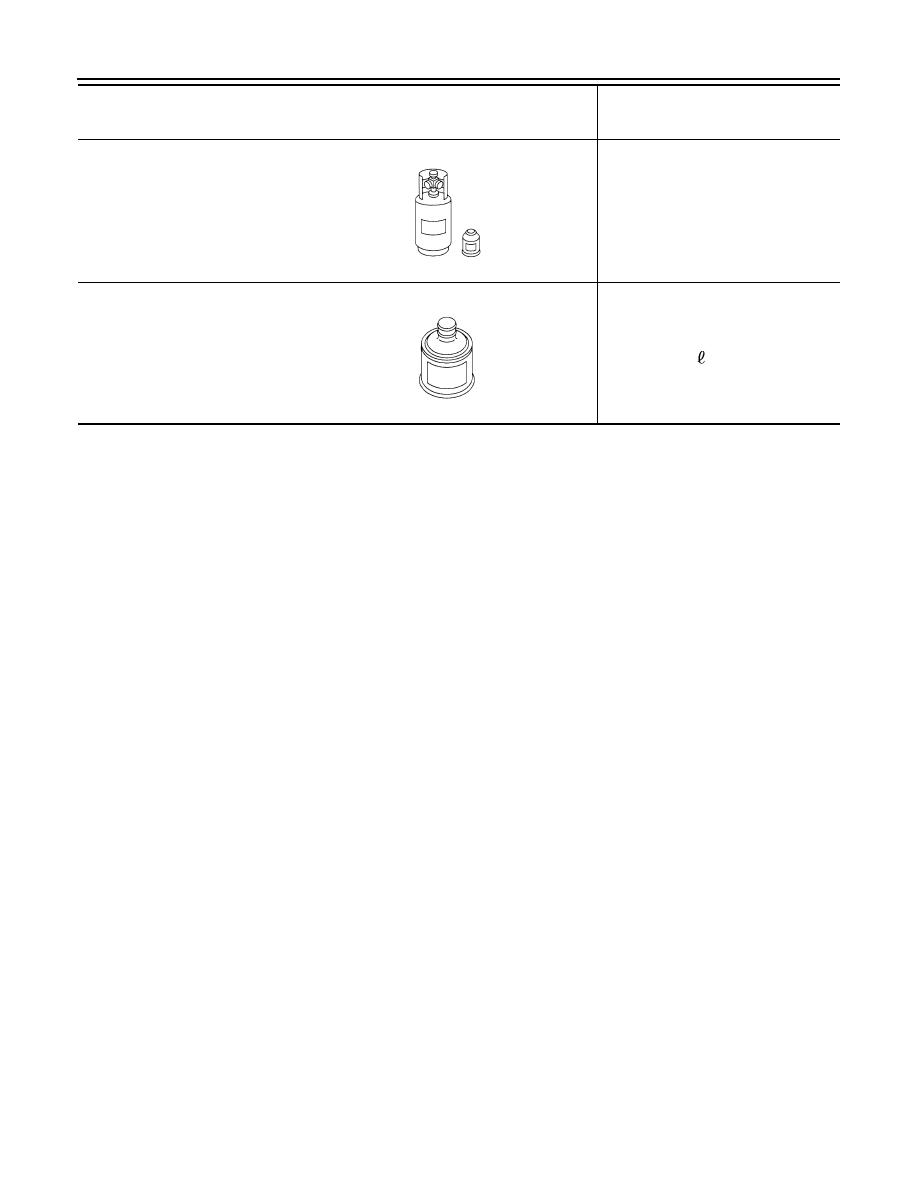

HFC-134a (R-134a) Refrigerant

Container color: Light blue
Container marking: HFC-134a (R-
134a)
Fitting size: Thread size
• large container 1/2”-16 ACME

—

( — )
NISSAN A/C System Oil Type S

Type: Poly alkylene glycol oil (PAG),
type S (DH-PS)
Application: HFC-134a (R-134a)
swash plate compressors
Capacity: 40 m  (1.4 US fl oz, 1.4 Imp
fl oz)

S-NT196

JMIIA1759ZZ

CONTROL UNIT

HAC-203

< REMOVAL AND INSTALLATION >

[WITH MONOCHROME DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

REMOVAL AND INSTALLATION

CONTROL UNIT

Removal and Installation

INFOID:0000000009466447

A/C SWITCH ASSEMBLY

Removal

1. Remove cluster lid D. Refer to

IP-10, "Exploded View"

.

2. Remove the A/C switch assembly from cluster lid D.

Installation

Installation is in the reverse order of removal.

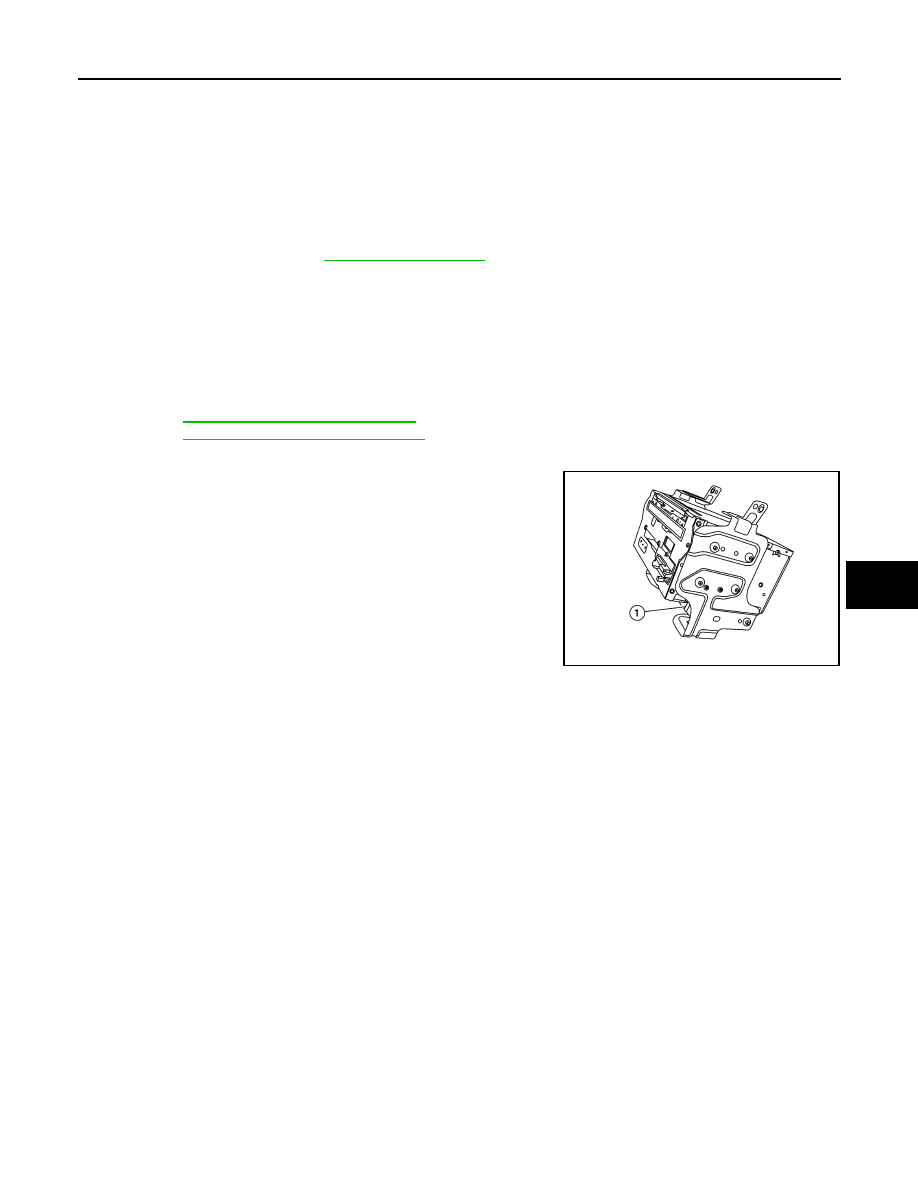

A/C AUTO AMP.

Removal

1. Remove the audio unit.

• Refer to

AV-73, "Removal and Installation"

 (BASE AUDIO).

• Refer to

AV-161, "Removal and Installation"

 (BOSE W/MONOCHROME DISPLAY).

2. Remove the two A/C auto amp. bracket screws.
3. Remove the A/C auto amp. (1) from the bracket.

Installation

Installation is in the reverse order of removal.

AWIIA1608ZZ
