HAC-172

< ECU DIAGNOSIS INFORMATION >

[WITH MONOCHROME DISPLAY]

A/C AUTO AMP.

*: Perform self-diagnosis under direct sunlight. When performing indoors, aim a light (more than 60 W) at sunload sensor, otherwise self-
diagnosisreports an error even though the sunload sensor is functioning normally.

AIR CONDITIONER CONTROL

HAC-173

< WIRING DIAGRAM >

[WITH MONOCHROME DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

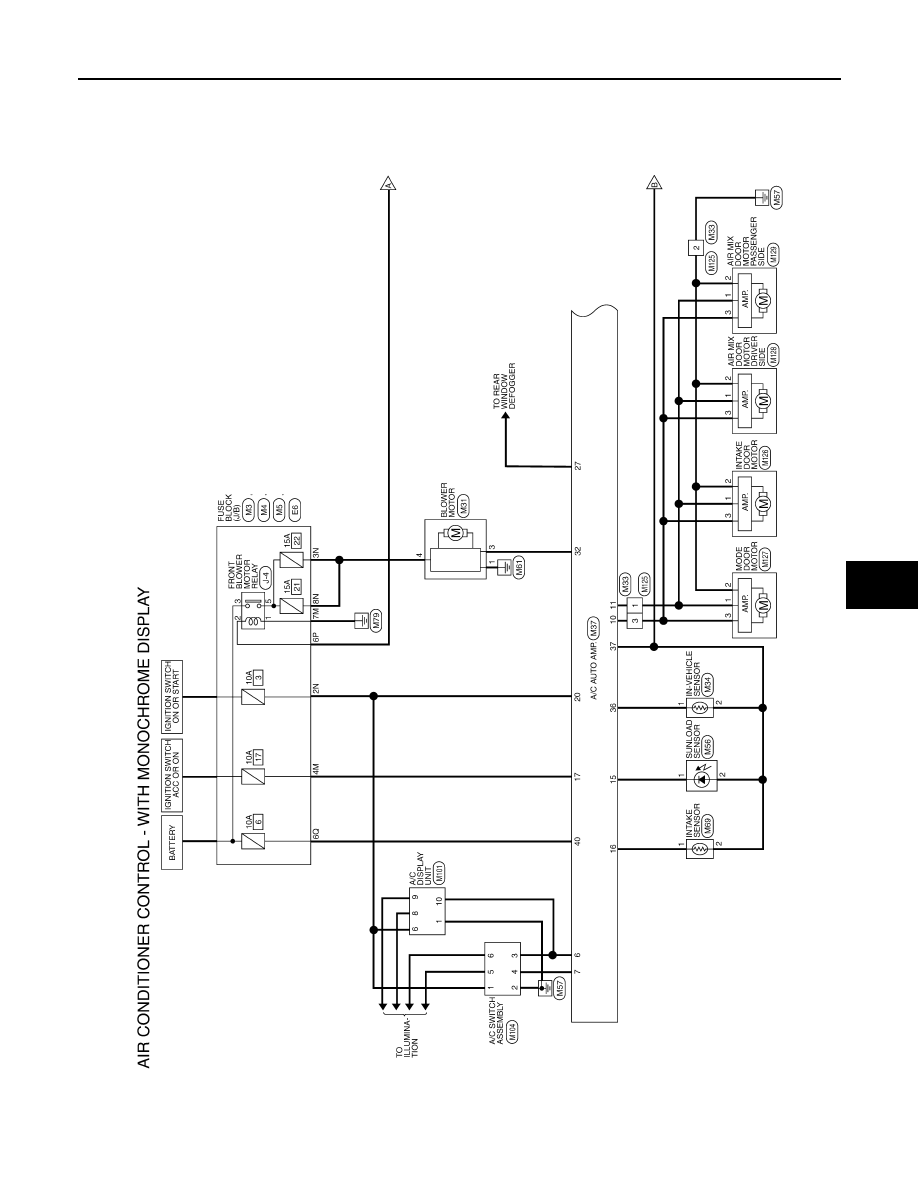

WIRING DIAGRAM

AIR CONDITIONER CONTROL

Wiring Diagram - With Monochrome Display

INFOID:0000000010051177

ABIWA0351GB

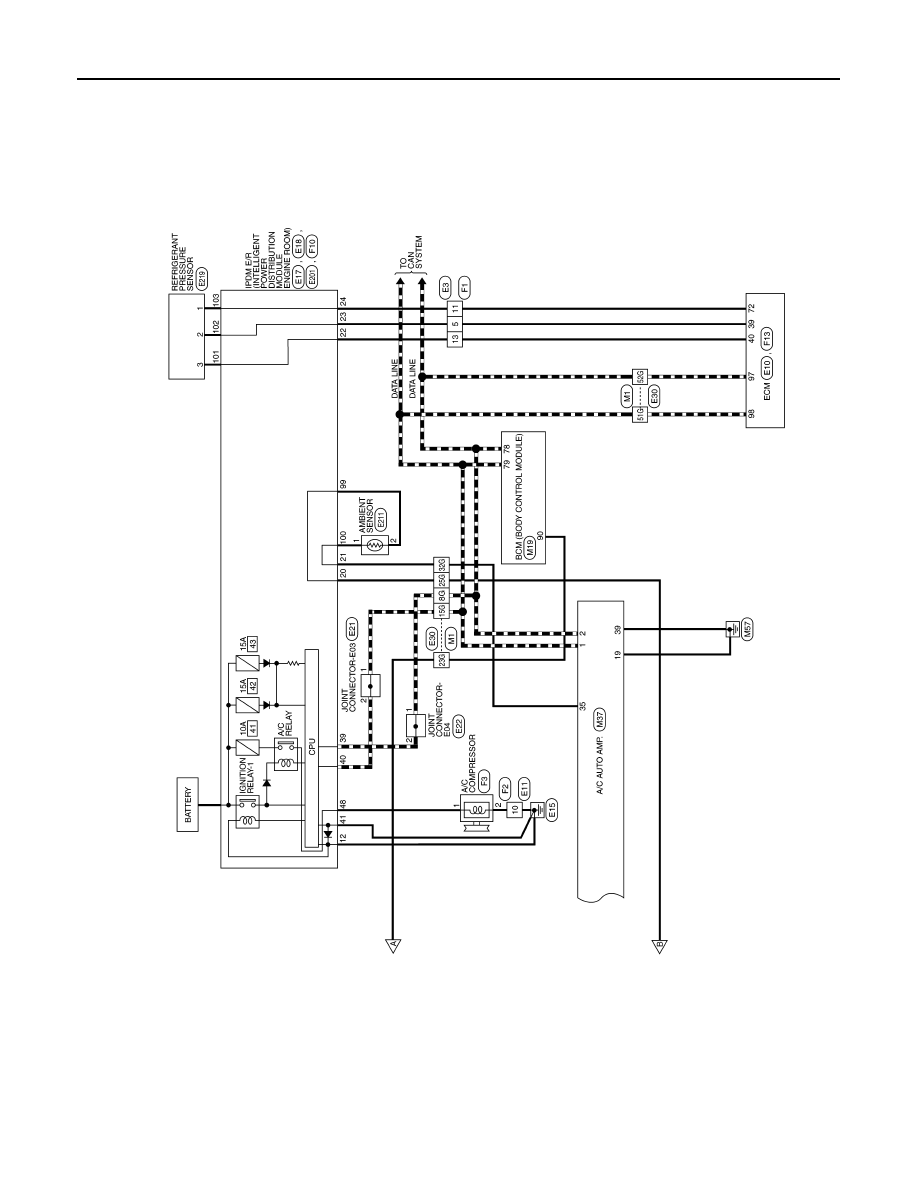

HAC-174

< WIRING DIAGRAM >

[WITH MONOCHROME DISPLAY]

AIR CONDITIONER CONTROL

ABIWA0343GB

AIR CONDITIONER CONTROL

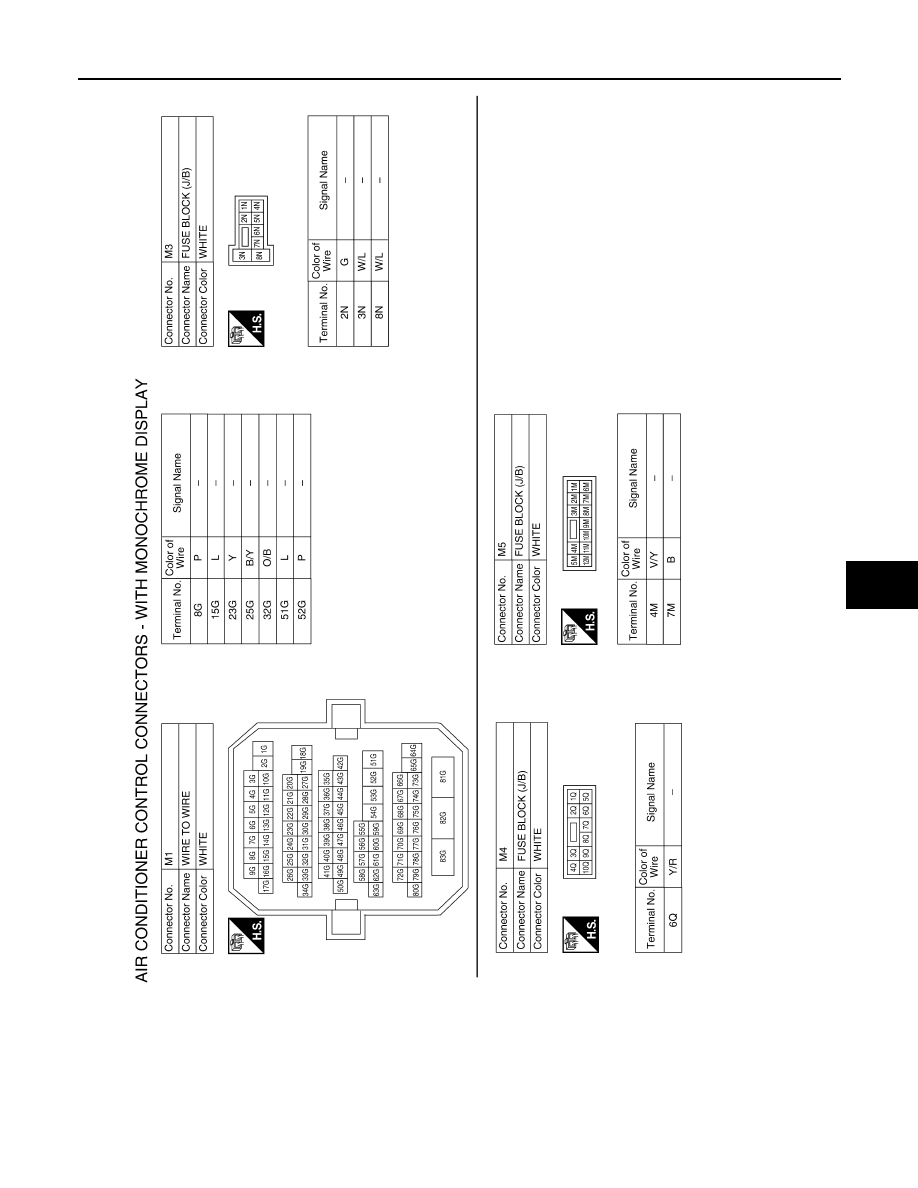

HAC-175

< WIRING DIAGRAM >

[WITH MONOCHROME DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

ABIIA0362GB
