MODE DOOR CONTROL SYSTEM

MODE DOOR CONTROL SYSTEM

System Diagram

INFOID:0000000010050952

System Description

INFOID:0000000010050953

The mode door is automatically controlled by the temperature setting, ambient temperature, in-vehicle temper-

ature, intake temperature and amount of sunload.

SYSTEM OPERATION

• The A/C auto amp. receives data from each of the sensors.

• The A/C auto amp. sends the air mix door, the mode door and the intake door opening angle data to the air

mix door motor LCU(s), the mode door motor LCU and the intake door motor LCU.

• The air mix door motor(s), the mode door motor and the intake door motor read their respective signals

according to the address signal. Opening angle indication signals received from the A/C auto amp. and each

of the motor position sensors, are compared by the LCUs in each door motor with the existing decision and

opening angles.

• Next, HOT/COLD, DEF/VENT or FRE/REC operation is selected. The newly selected data is returned to the

A/C auto amp.

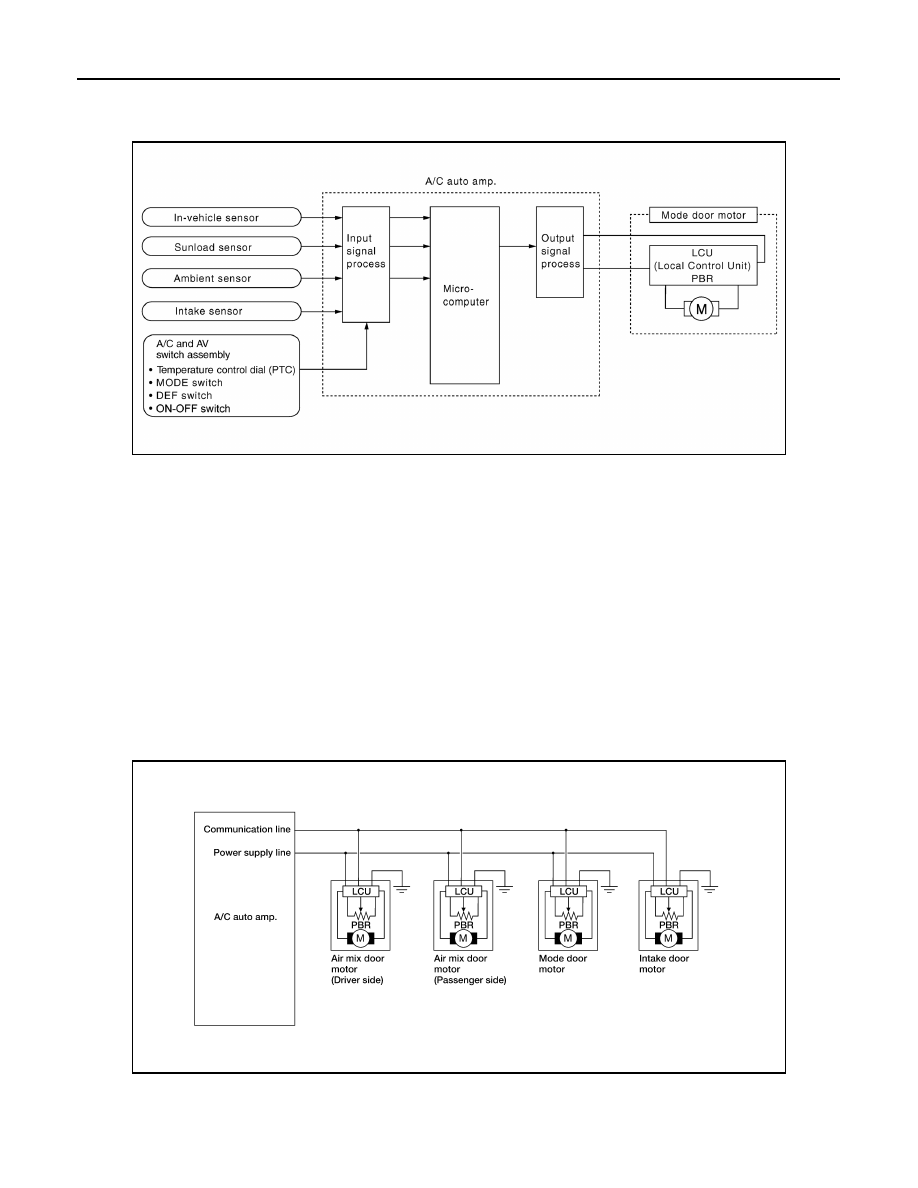

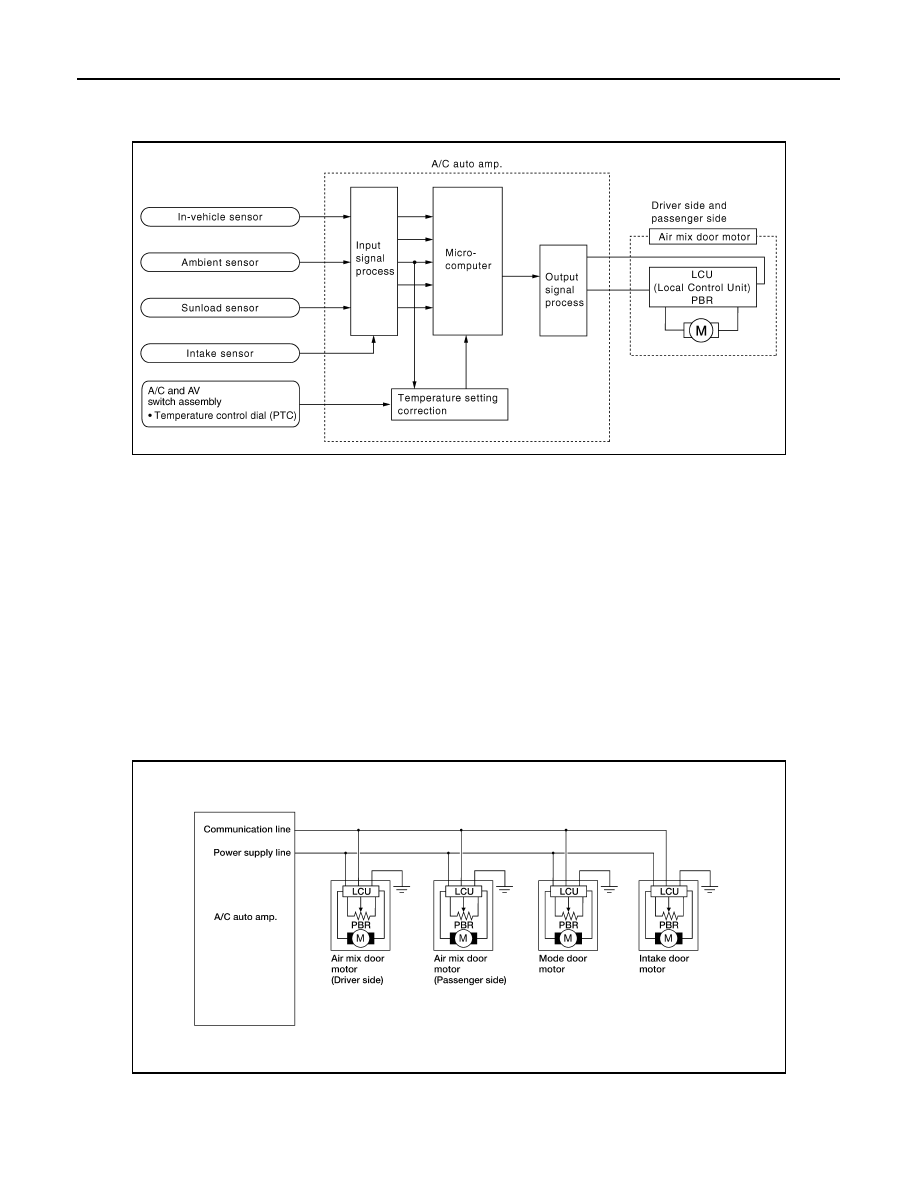

Door Motor Circuit

Mode Door Control Specification

AWIIA1377GB

AWIIA1066GB

MODE DOOR CONTROL SYSTEM

HAC-17

< SYSTEM DESCRIPTION >

[WITH COLOR DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

Mode position can be selected manually by pressing the MODE

switch or the DEF switch on the A/C and AV switch assembly. Press-

ing the AUTO switch allows automatic control by the A/C auto amp.

During the automatic control of a mode position, a mode door posi-

tion (VENT, B/L, FOOT, or D/F) is selected based on a target air mix

door opening angle and sunload sensor, calculated by the A/C auto

amp. In addition, the D/F is selected to prevent windshield fogging

only when ambient temperature is extremely low.

AWIIA1183GB

HAC-18

< SYSTEM DESCRIPTION >

[WITH COLOR DISPLAY]

AIR MIX DOOR CONTROL SYSTEM

AIR MIX DOOR CONTROL SYSTEM

System Diagram

INFOID:0000000010050954

System Description

INFOID:0000000010050955

The air mix doors are automatically controlled so that in-vehicle temperature is maintained at a predetermined

value by the temperature setting, ambient temperature, intake temperature and amount of sunload.

SYSTEM OPERATION

• The A/C auto amp. receives data from each of the sensors.

• The A/C auto amp. sends air mix door, the mode door and the intake door opening angle data to the air mix

door motor LCU(s), the mode door motor LCU and the intake door motor LCU.

• The air mix door motor(s), the mode door motor and the intake door motor read their respective signals

according to the address signal. Opening angle indication signals received from the A/C auto amp. and each

of the motor position sensors are compared by the LCUs in each door motor with the existing decision and

opening angles.

• Next, HOT/COLD, DEF/VENT or FRE/REC operation is selected. The newly selected data is returned to the

A/C auto amp.

Door Motor Circuit

Air Mix Door Control Specification

AWIIA1101GB

AWIIA1066GB

AIR MIX DOOR CONTROL SYSTEM

HAC-19

< SYSTEM DESCRIPTION >

[WITH COLOR DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

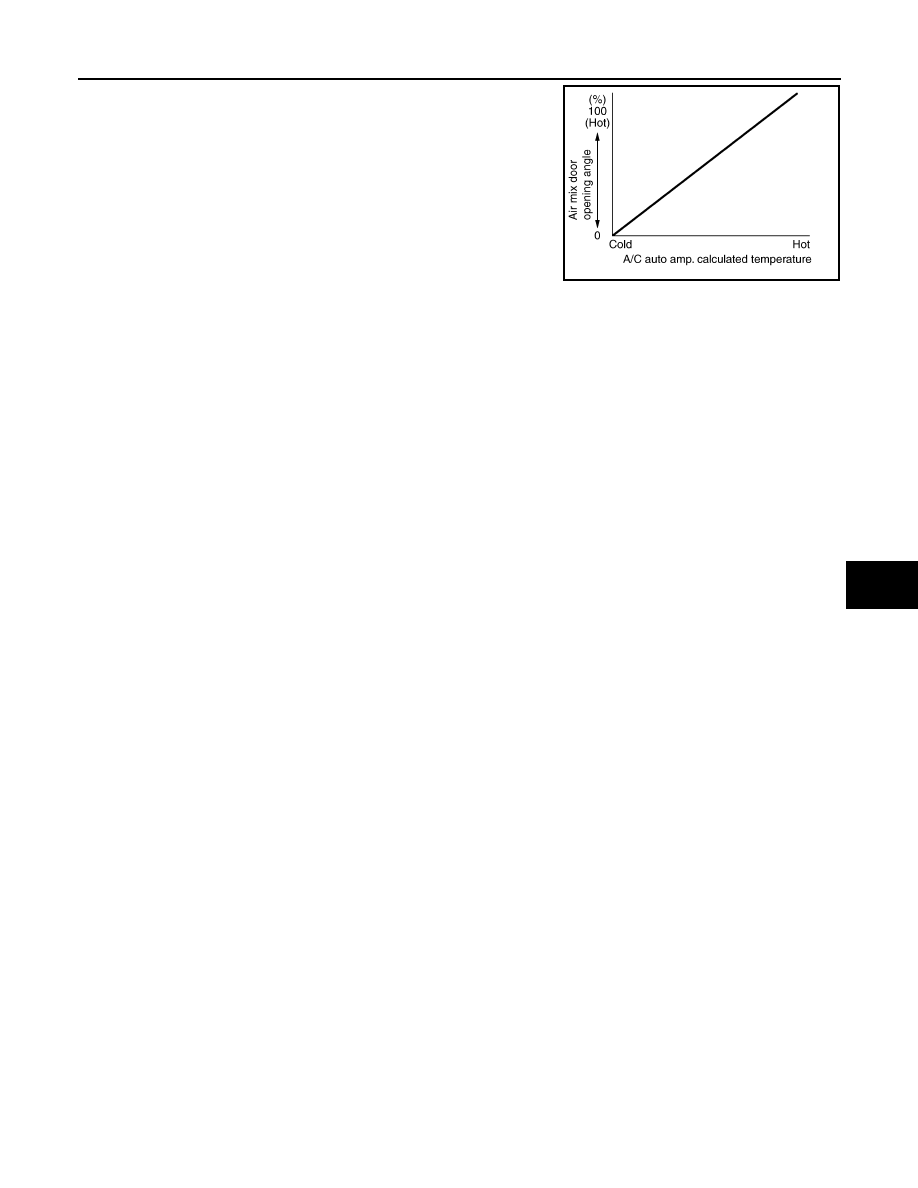

When ignition switch is ON, the A/C auto amp. continuously and
