HA-10

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000009729478

The actual shapes of the tools may differ from those illustrated here.

HFC-134a (R-134a) Service Tool and Equipment

INFOID:0000000009729479

Do not mix HFC-134a (R-134a) refrigerant and/or its specified oil with CFC-12 (R-12) refrigerant and/or its oil.

Separate and non-interchangeable service equipment must be used for handling each type of refrigerant/oil.

Refrigerant container fittings, service hose fittings and service equipment fittings (equipment which handles

refrigerant and/or oil) are different between CFC-12 (R-12) and HFC-134a (R-134a). This is to avoid mixed

use of the refrigerants/oil.

Adapters that convert one size fitting to another must not be used refrigerant/oil contamination will occur and

compressor failure will result.

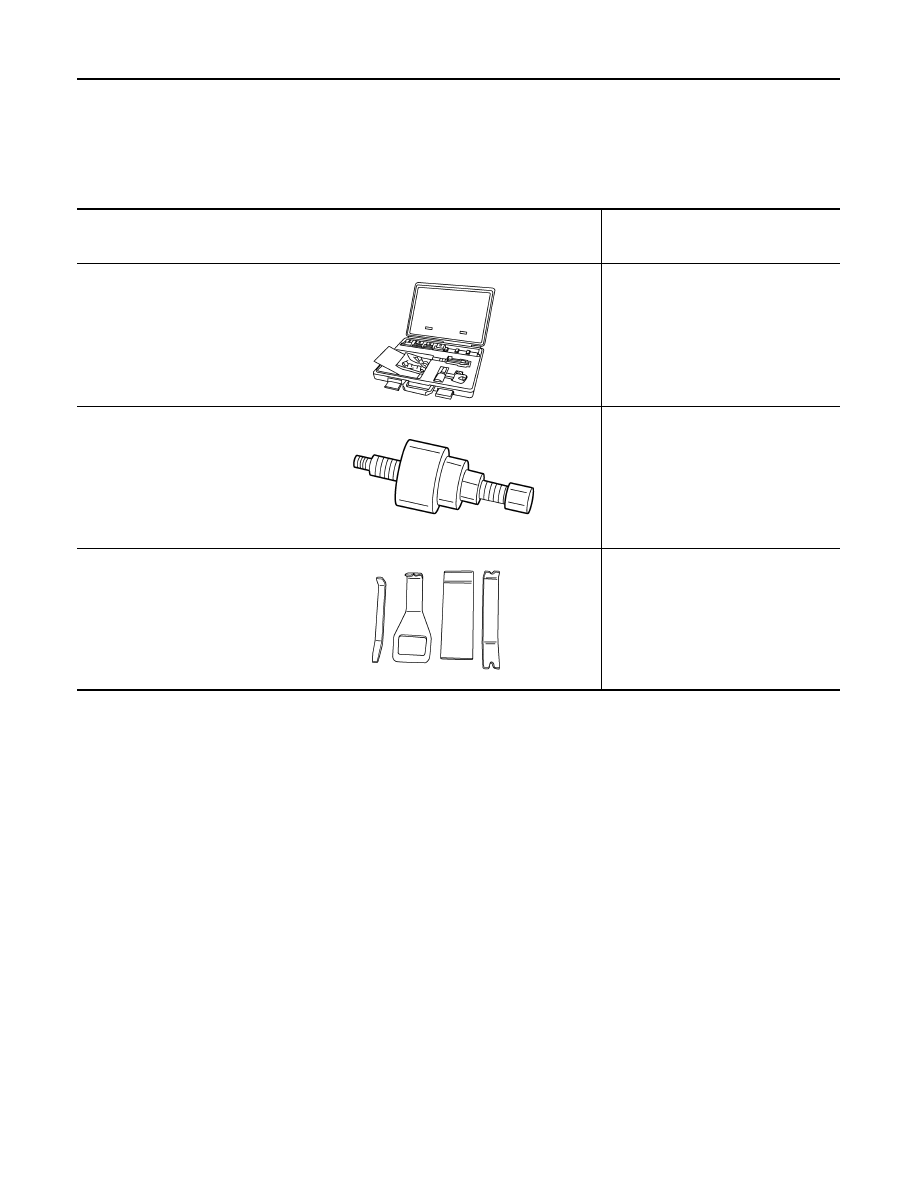

Tool number
(TechMate No.)
Tool name

Description

—

(J-41425-NIS)
Aluminum tube repair kit

Repairing leaks in A/C tubes

—

(J-38873-A)
Drive plate installer

Installing pulley

—

(J-46534)
Trim Tool Set

Removing trim components

ALIIA0390ZZ

WJIA0367E

AWJIA0483ZZ

PREPARATION

HA-11

< PREPARATION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

Tool number
(TechMate No.)
Tool name

Description

—

( — )

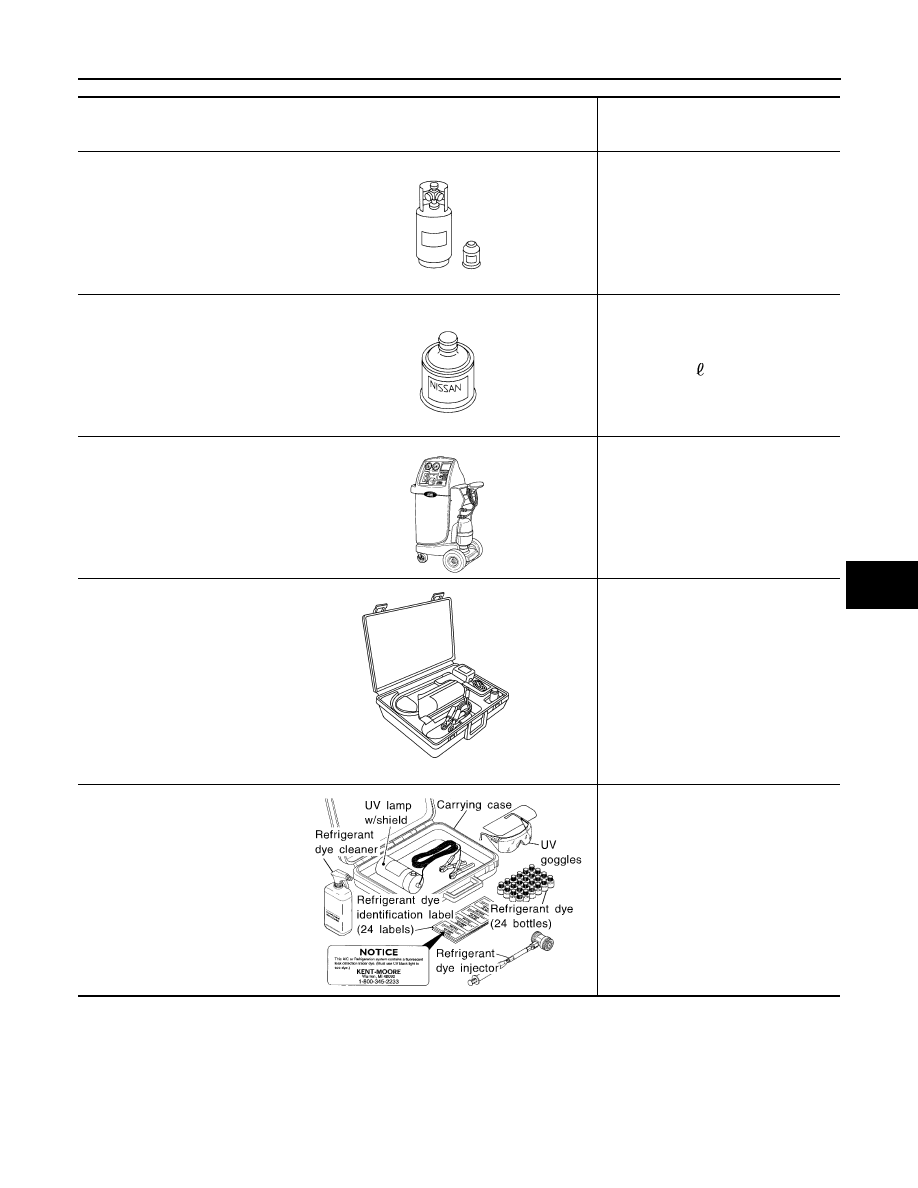

HFC-134a (R-134a) Refrigerant

Container color: Light blue
Container marking: HFC-134a (R-
134a)
Fitting size: Thread size
• large container 1/2”-16 ACME

—

( — )
NISSAN A/C System Oil Type R

Type: Poly alkylene glycol oil (PAG),
type R
Application: HFC-134a (R-134a) vane
rotary compressors (NISSAN only)
Lubricity: 40 m  (1.4 US fl oz, 1.4 Imp
fl oz)

—

(J-48710)
NISSAN ACR2009 RRR Unit

Refrigerant recovery, recycling and re-
charging

—

(J-41995)
Electronic refrigerant leak detector

Power supply:
• DC 12V (battery terminal)

—

(J-43926)
Refrigerant dye leak detection kit
Kit includes:
(J-42220)
UV lamp and UV safety goggles
(J-41459)
Refrigerant dye injector
(J-41447)
Fluorescent leak detection dye
(box of 24, 1/4 ounce bottles)
(J-43872)
Refrigerant dye cleaner

Power supply:
• DC 12V (battery terminal)

S-NT196

S-NT197

WJIA0293E

AHA281A

ZHA200H

HA-12

< PREPARATION >

PREPARATION

Commercial Service Tool

INFOID:0000000009729480

—

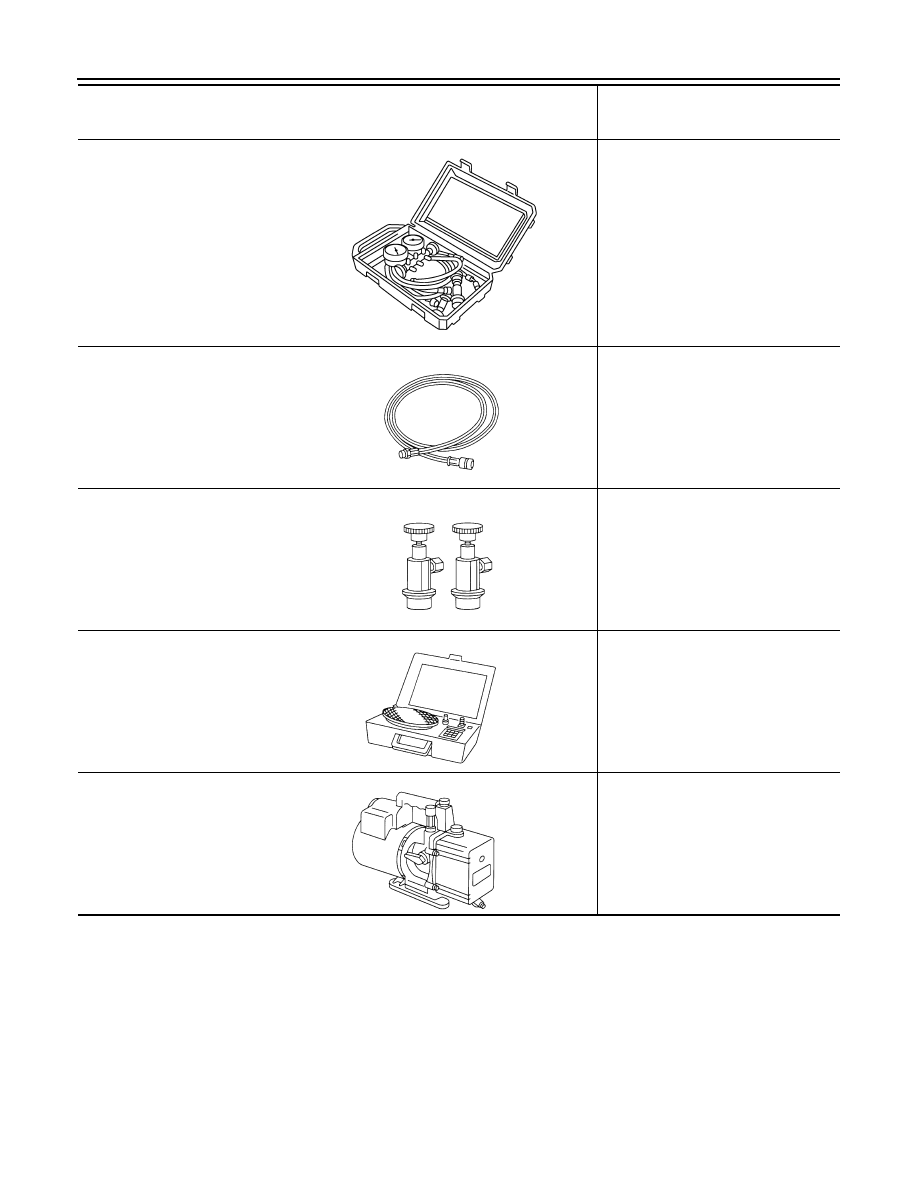

(J-39183-C)
Manifold gauge set (with hoses
and couplers)

Identification:
• The gauge face indicates R-134a.

Fitting size-Thread size

• 1/2”-16 ACME

Service hoses:
• High side hose

(J-39500-72B)

• Low side hose

(J-39500-72R)

• Utility hose

(J-39500-72Y)

Hose color:
• Low side hose: Blue with black stripe
• High side hose: Red with black stripe
• Utility hose: Yellow with black stripe

or green with black stripe
Hose fitting to gauge:

• 1/2”-16 ACME

Service couplers
• High side coupler

(J-39500-20A)

• Low side coupler

(J-39500-24A)

Hose fitting to service hose:
• M14 x 1.5 fitting is optional or perma-

nently attached.

—

(J-39699)
Refrigerant weight scale

For measuring of refrigerant
Fitting size-Thread size
• 1/2”-16 ACME

—

(J-39649)
Vacuum pump
(Including the isolator valve)

Capacity:
• Air displacement: 4 CFM
• Micron rating: 20 microns
• Oil capacity: 482 g (17 oz)

Fitting size-Thread size

• 1/2”-16 ACME

Tool number
(TechMate No.)
Tool name

Description

RJIA0196E

S-NT201

S-NT202

S-NT200

S-NT203

PREPARATION

HA-13

< PREPARATION >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

(TechMate No.)
Tool name

Description

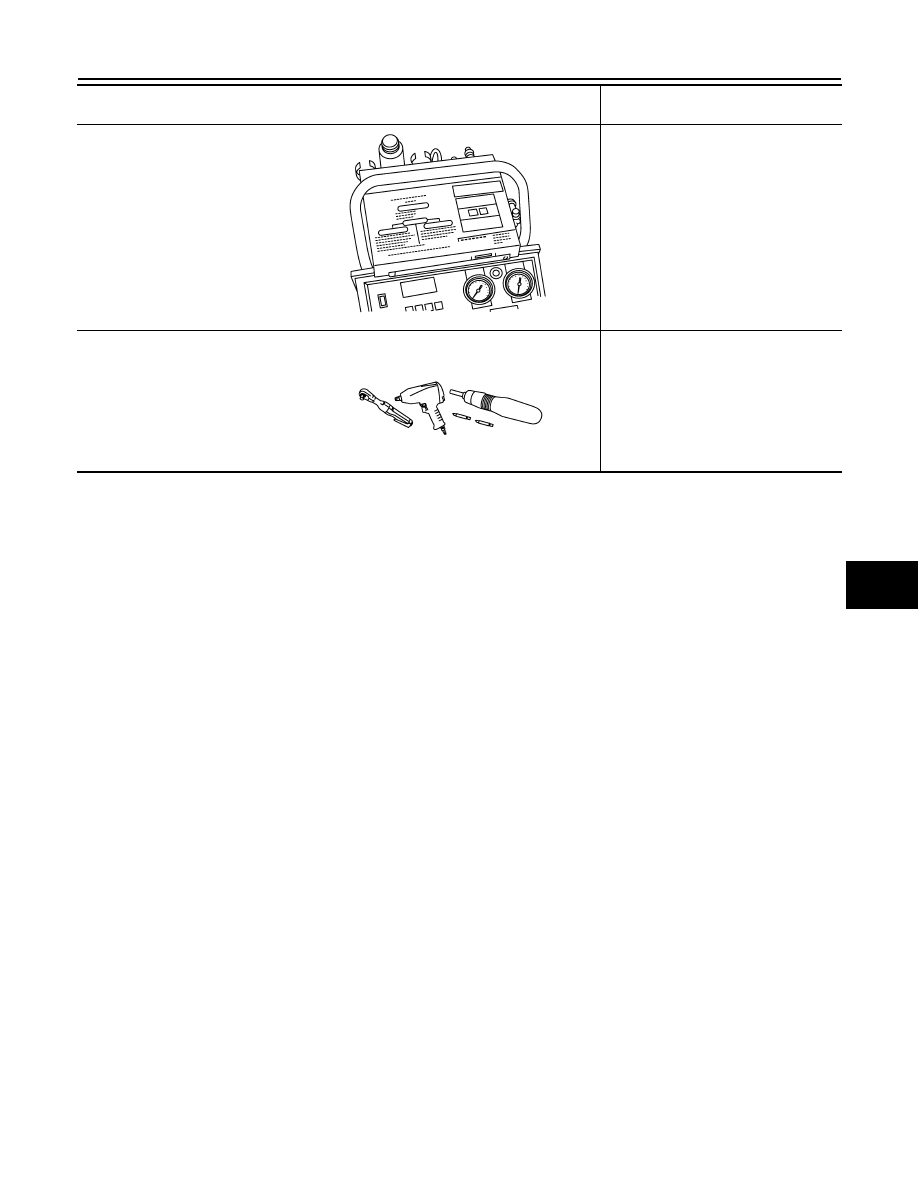

(J-41810-NI)
Refrigerant identifier equipment (R-
134a)

For checking refrigerant purity and
system contamination

( — )
Power tool

Loosening nuts, screws and bolts

RJIA0197E

PIIB1407E
