ROOF SIDE MOLDING

EXT-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

ROOF SIDE MOLDING

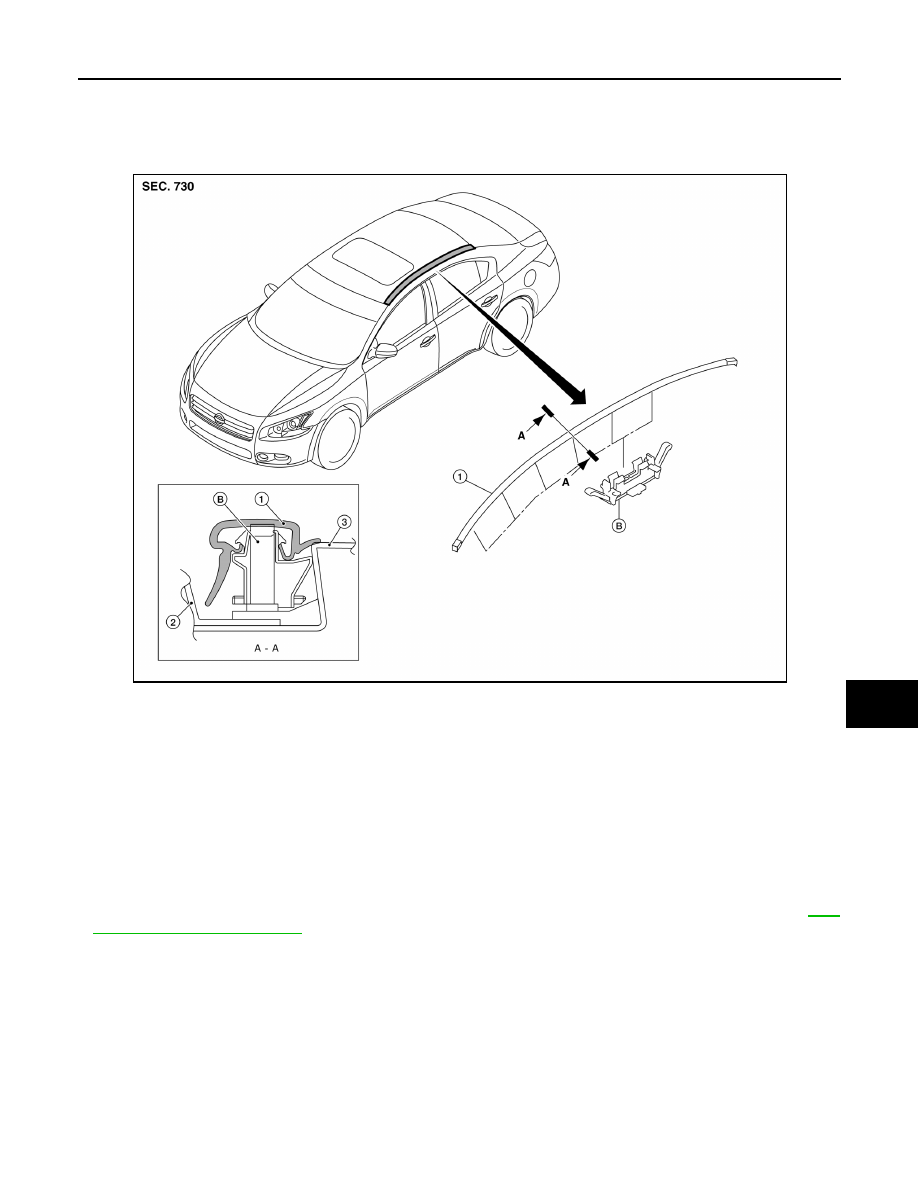

Exploded View

INFOID:0000000009465820

Removal and Installation

INFOID:0000000009465821

REMOVAL

1. Using suitable tool, lift and twist the roof side molding up from the rear edge, working forward.
2. Disengage each roof side molding clip, then remove the roof side molding.

INSTALLATION

Installation is in the reverse order of removal.

• Begin with aligning rear end of the roof molding with top edge of rear window glass molding. Refer to

GW-

14, "Removal and Installation"

.

Clip Replacement

INFOID:0000000009465822

REMOVAL

1. Remove roof side molding.
2. Heat adhesive tape interface using a suitable tool (heat gun), then peel roof side molding clips (body side)

using long-nose pliers.

CAUTION:

Be careful not to damage the body.

INSTALLATION

1.

Roof side molding

2.

Roof panel

3.

Body side panel

B.

Roof side molding clip

ALKIA2270ZZ

EXT-30

< REMOVAL AND INSTALLATION >

ROOF SIDE MOLDING

1. Clean tape removed surface with a shop cloth soaked in white gasoline or IPA.
2. Use two-part epoxy adhesive.

3. Apply adhesive evenly to clip tape surface.

4. Position applied parts to the proper location, and then sufficiently press-fit until the adhesive protrudes to

tape side.

5. Tape clips after press fit, and temporarily hold it for specified time based on the following.

6. Install roof side molding rear edge first, working toward front after temporarily holding.

CAUTION:

• Securely insert molding rear end cap onto roof rear end cutout (installation standard).

• When installing roof side molding, check that molding fastener is securely inserted and then press

in.

• Do not wash the vehicle within 24 hours after repair.

Adhesive

: 3M-weld DP–100 or equivalent

Thickness

: Approximately 0.5 mm (0.020 in)

Press-fit limit : 19.6 N

× 2 seconds

 5 to 10

°C (41 to 50°F)

: 1 hour or more

11 to 23

°C (52 to 73°F)

: 30 minutes or more

24

°C or more (75°F or more)

: 15 minutes or more

LICENSE LAMP FINISHER

EXT-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

LICENSE LAMP FINISHER

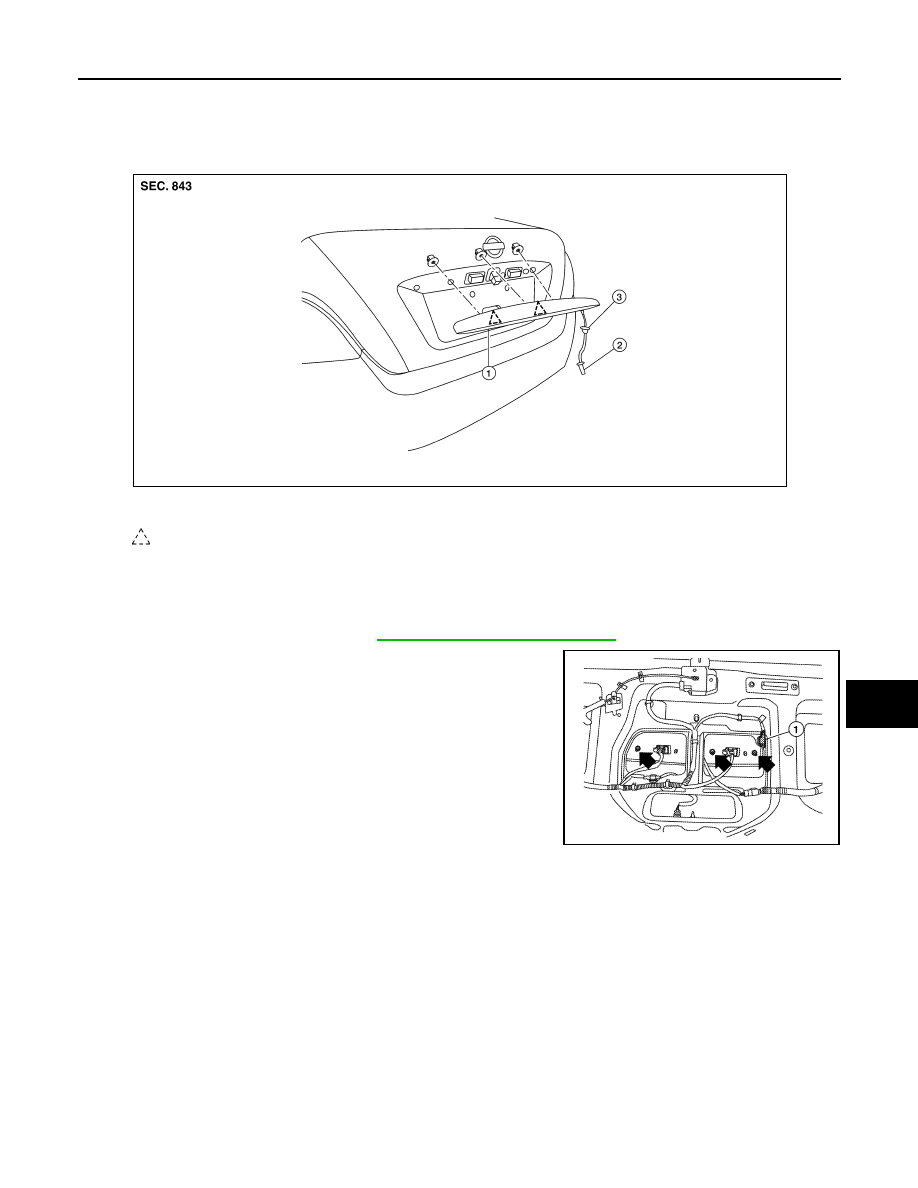

Exploded View

INFOID:0000000009465823

Removal and Installation

INFOID:0000000009465824

REMOVAL

1. Remove the trunk lid finisher. Refer to

INT-36, "Removal and Installation"

.

2. Disconnect the harness connector (1) from the trunk request

switch.

3. Remove the license lamp finisher nuts.
4. Release the clips, then loosen trunk request switch harness

grommet from trunk.

5. Remove license lamp finisher by pulling out and rearward away

from trunk.

INSTALLATION

Installation is in the reverse order of removal.

1.

License lamp finisher

2.

Trunk request switch connector

3.

Grommet

Clip

ALKIA1590ZZ

ALKIA1591ZZ

EXT-32

< REMOVAL AND INSTALLATION >

REAR SPOILER

REAR SPOILER

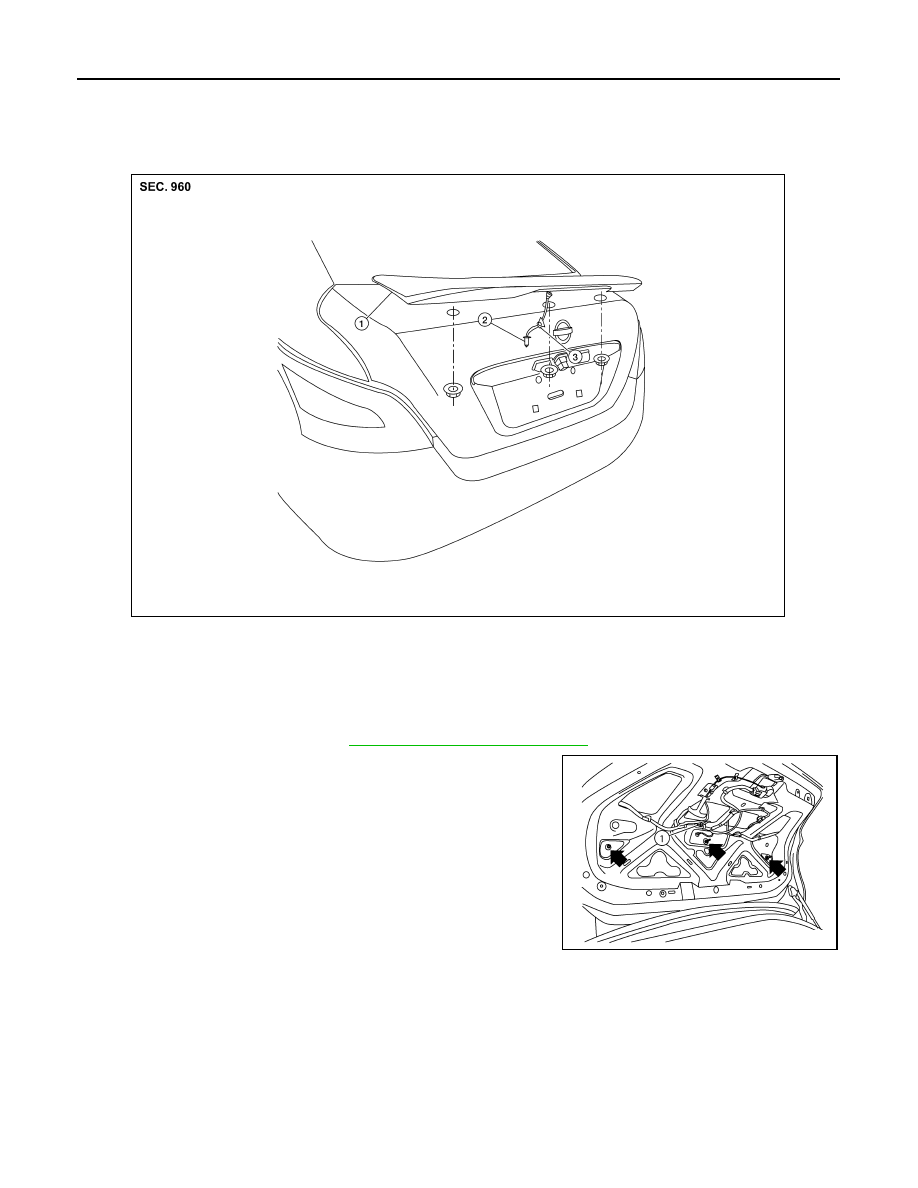

Exploded View

INFOID:0000000009465825

Removal and Installation

INFOID:0000000009465826

Removal

1. Remove trunk lid finisher. Refer to

INT-36, "Removal and Installation"

.

2. Disconnect the harness connector (1) from the high-mounted

stop lamp.

3. Remove the rear spoiler assembly nuts.

1.

Rear spoiler assembly

2.

High-mounted stop lamp harness connector 3.

Harness grommet

AWKIA1562ZZ

ALKIA1593ZZ
