EXL-218

< DTC/CIRCUIT DIAGNOSIS >

[HALOGEN TYPE]

OPTICAL SENSOR

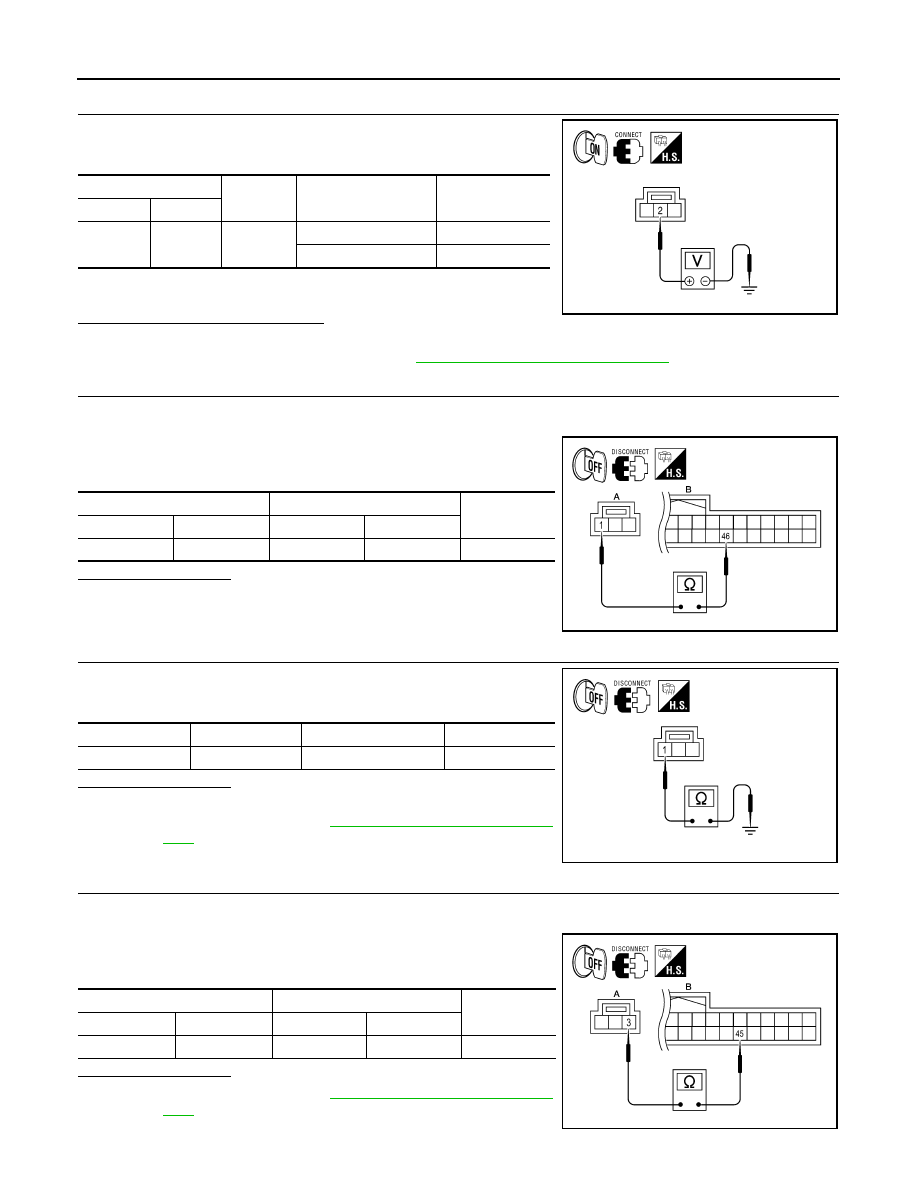

3.

CHECK OPTICAL SENSOR SIGNAL OUTPUT

 With the auto light system operating, check voltage between the

optical sensor harness connector and ground.

*: Illuminate the optical sensor. The value may be less than the standard if brightness
is weak.

Is the voltage reading as specified?

YES

>> GO TO 7.

NO

>> Replace the optical sensor. Refer to

EXL-322, "Removal and Installation"

.

4.

CHECK OPTICAL SENSOR POWER SUPPLY FOR OPEN CIRCUIT

1. Turn the ignition switch OFF.

2. Disconnect the optical sensor connector and BCM connector M18.

3. Check continuity between the optical sensor harness connector

(A) and the BCM harness connector (B).

Does continuity exist?

YES

>> GO TO 5.

NO

>> Repair the harnesses or connectors.

5.

CHECK OPTICAL SENSOR POWER SUPPLY FOR SHORT CIRCUIT

Check the continuity between the optical sensor harness connector

and the ground.

Does continuity exist?

YES

>> Repair the harnesses or connectors.

NO

>> Replace BCM. Refer to

BCS-79, "Removal and Installa-

tion"

.

6.

CHECK OPTICAL SENSOR GROUND FOR OPEN CIRCUIT

1. Turn the ignition switch OFF.

2. Disconnect the optical sensor connector and BCM connector M18.

3. Check continuity between the optical sensor harness connector

(A) and the BCM harness connector (B).

Does continuity exist?

YES

>> Replace BCM. Refer to

BCS-79, "Removal and Installa-

tion"

.

NO

>> Repair the harnesses or connectors.

(+)

(

−)

Condition

Voltage

Connector

Terminal

M66

2

Ground

When illuminating

3.1V or more *

When shutting off light

0.6V or less

ALLIA0132ZZ

A

B

Continuity

Connector

Terminal

Connector

Terminal

M66

1

M18

46

Yes

ALLIA0133ZZ

Connector

Terminal

—

Continuity

M66

1

Ground

No

ALLIA0134ZZ

A

B

Continuity

Connector

Terminal

Connector

Terminal

M66

3

M18

45

Yes

ALLIA0135ZZ

OPTICAL SENSOR

EXL-219

< DTC/CIRCUIT DIAGNOSIS >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

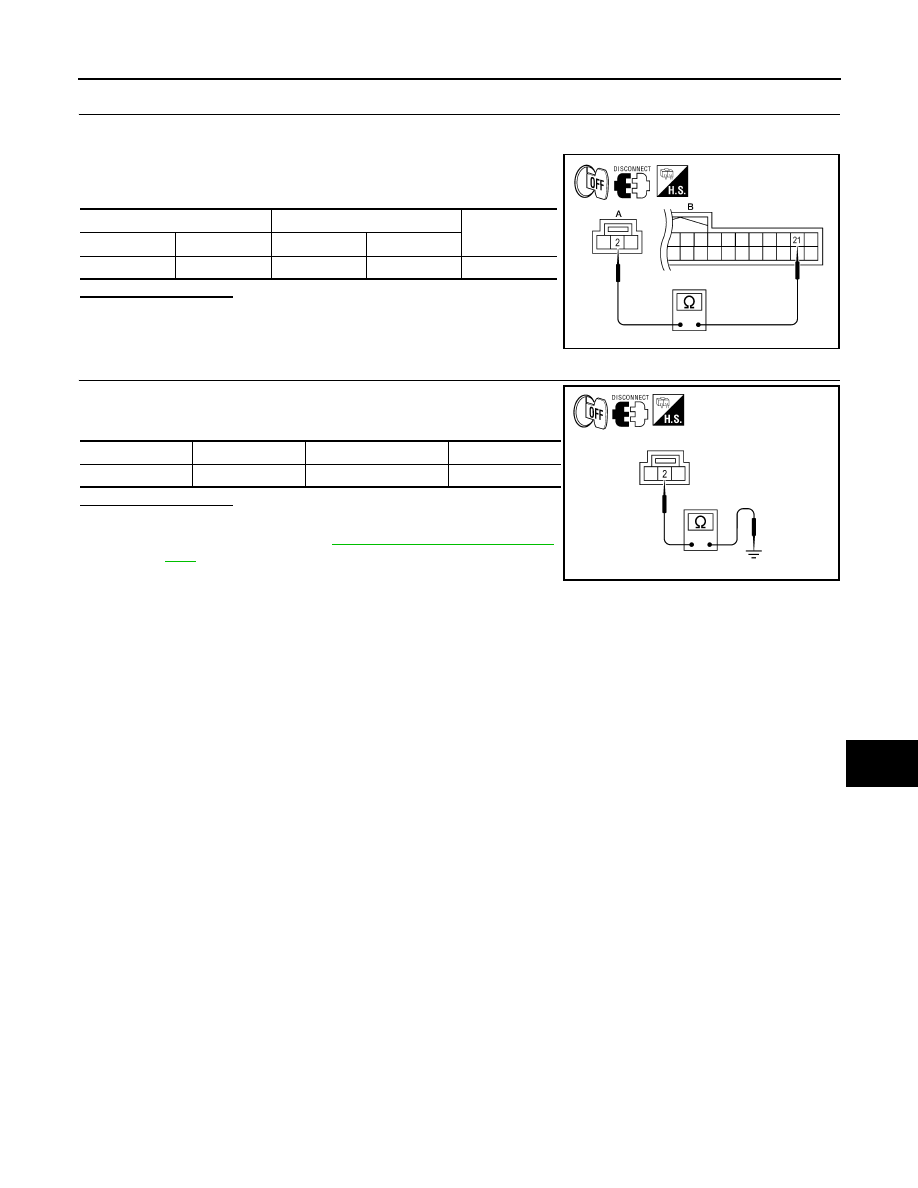

7.

CHECK OPTICAL SENSOR SIGNAL FOR OPEN CIRCUIT

1. Turn the ignition switch OFF.

2. Disconnect the optical sensor connector and BCM connector M18.

3. Check continuity between the optical sensor harness connector

(A) and the BCM harness connector (B).

Does continuity exist?

YES

>> GO TO 8.

NO

>> Repair the harnesses or connectors.

8.

CHECK OPTICAL SENSOR SIGNAL FOR SHORT CIRCUIT

Check the continuity between the optical sensor harness connector

and ground.

Does continuity exist?

YES

>> Repair the harnesses or connectors.

NO

>> Replace BCM. Refer to

BCS-79, "Removal and Installa-

tion"

.

A

B

Continuity

Connector

Terminal

Connector

Terminal

M66

2

M18

21

Yes

ALLIA0136ZZ

Connector

Terminal

—

Continuity

M66

2

Ground

No

ALLIA0137ZZ

EXL-220

< DTC/CIRCUIT DIAGNOSIS >

[HALOGEN TYPE]

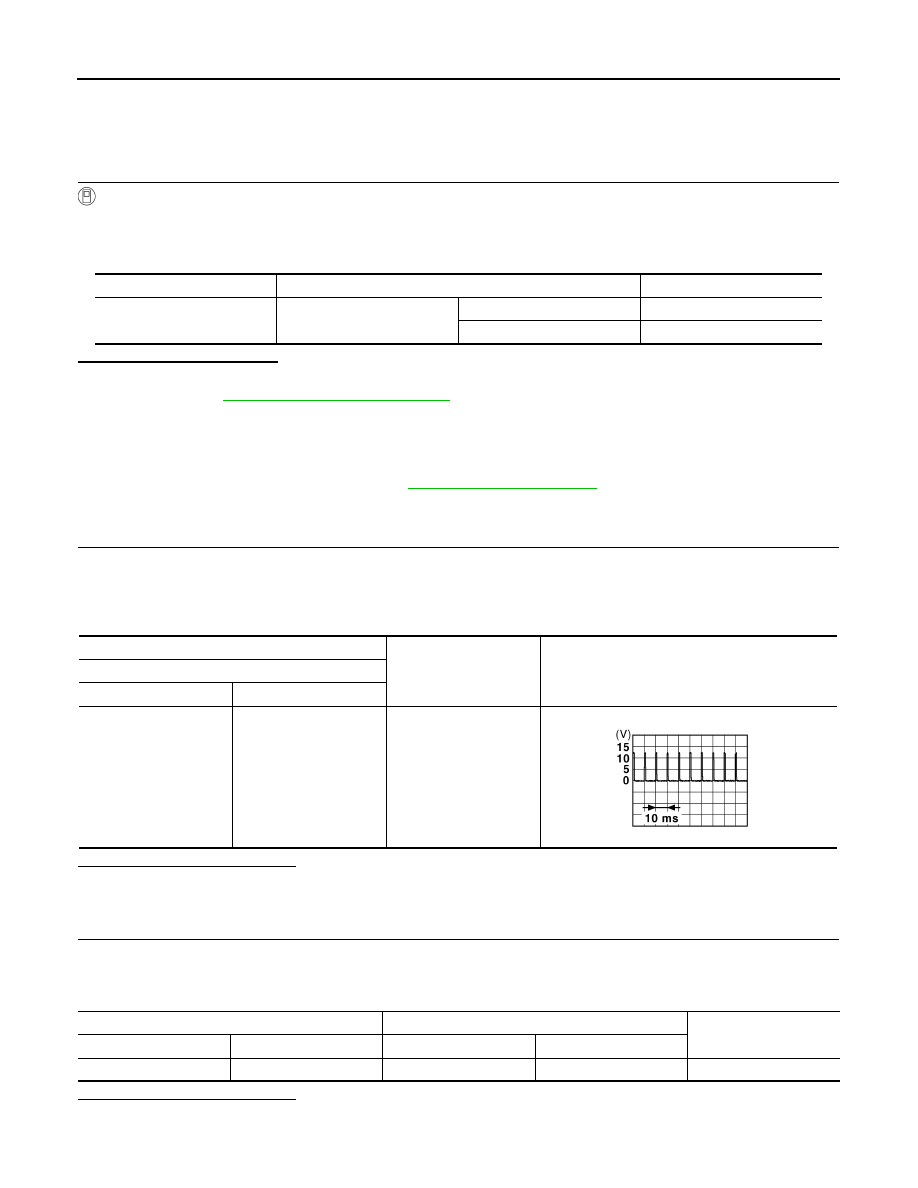

HAZARD SWITCH

HAZARD SWITCH

Component Function Check

INFOID:0000000010051076

1.

CHECK HAZARD SWITCH SIGNAL BY CONSULT

CONSULT DATA MONITOR

1. Turn ignition switch ON.

2. Select “HAZARD SW” of BCM (FLASHER) DATA MONITOR item.

3. With operating the hazard switch, check the monitor status.

Is the measurement normal?

YES

>> Hazard switch circuit is normal.

NO

>> Refer to

EXL-220, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000010051077

Regarding Wiring Diagram information, refer to

EXL-280, "Wiring Diagram"

.

1.

CHECK HAZARD SWITCH SIGNAL INPUT

1. Turn ignition switch OFF.

2. Disconnect hazard switch connector.

3. Turn ignition switch ON.

4. Check voltage between hazard switch harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 2.

2.

CHECK HAZARD SWITCH SIGNAL OPEN CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect BCM connector M19.

3. Check continuity between hazard harness connector and BCM harness connector.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

Monitor item

Condition

Monitor status

HAZARD SW

Hazard switch

ON

On

OFF

Off

(+)

(

−)

Voltage

(Approx.)

Hazard switch

Connector

Terminal

M54

2

Ground

JPMIA0012GB

Hazard switch

BCM

Continuity

Connector

Terminal

Connector

Terminal

M54

2

M19

98

Yes

HAZARD SWITCH

EXL-221

< DTC/CIRCUIT DIAGNOSIS >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

3.

CHECK HAZARD SWITCH SIGNAL SHORT CIRCUIT

Check continuity between hazard switch harness connector and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-79, "Removal and Installation"

.

NO

>> Repair or replace harness.

4.

CHECK HAZARD SWITCH GROUND OPEN CIRCUIT

Check continuity between hazard switch harness connector and ground.

Is the inspection result normal?

YES

>> Replace hazard switch. Refer to

EXL-325, "Removal and Installation"

.

NO

>> Repair or replace harness.

Hazard switch

Ground

Continuity

Connector

Terminal

M54

2

No

Hazard switch

Ground

Continuity

Connector

Terminal

M54

1

Yes
