Nissan Maxima. Manual - part 540





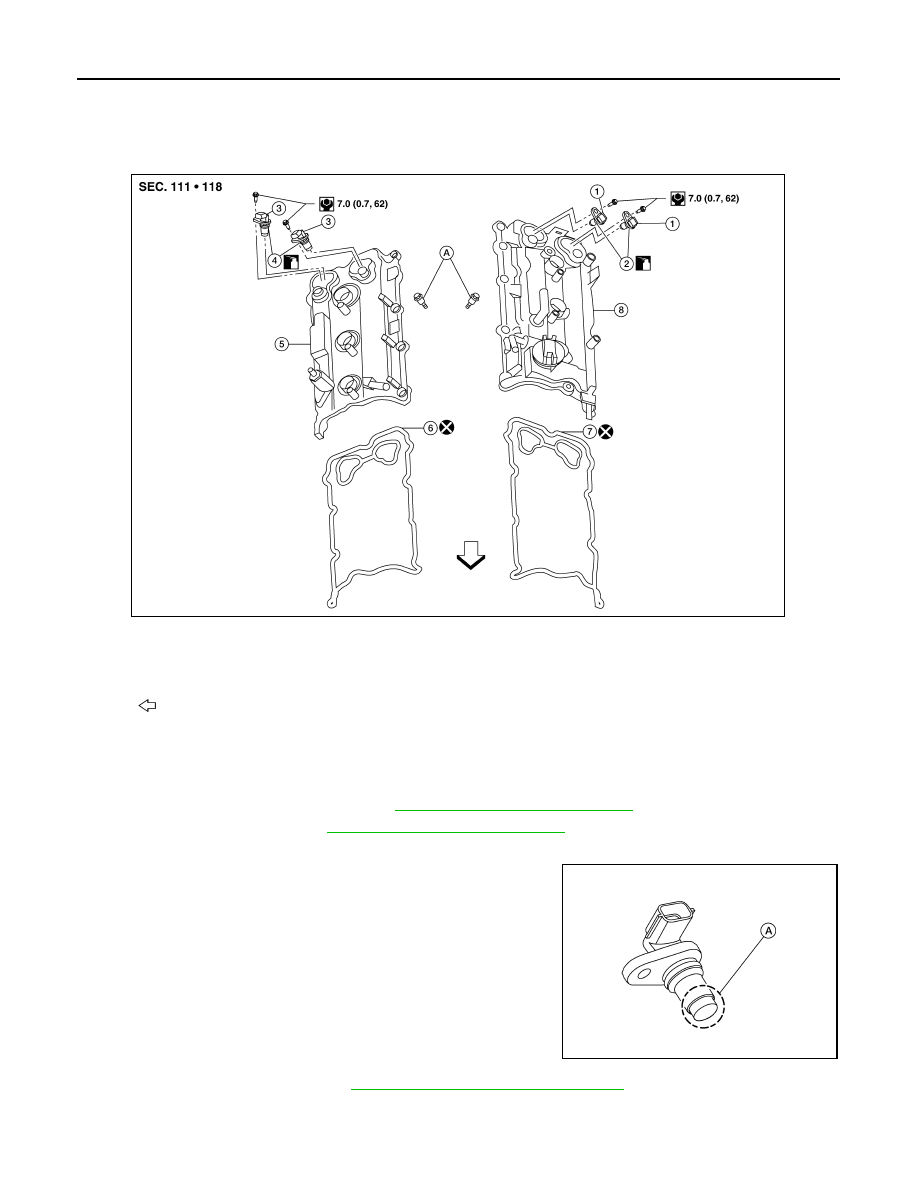

EM-48

< REMOVAL AND INSTALLATION >

ROCKER COVER

ROCKER COVER

Exploded View

INFOID:0000000009466027

Removal and Installation (LH)

INFOID:0000000009466028

REMOVAL

1. Remove the engine room cover. Refer to

EM-23, "Removal and Installation"

.

2. Remove front air duct. Refer to

EM-24, "Removal and Installation"

.

3. Remove blow by hose from rocker cover.
4. Remove camshaft position sensors.

CAUTION:

• Handle carefully to avoid dropping and shocks.

• Do not disassemble.

• Do not allow metal powder to adhere to magnetic part at

sensor tip (A).

• Do not place sensors in a location where they are

exposed to magnetism.

5. Remove the ignition coils. Refer to

EM-42, "Removal and Installation (LH)"

.

CAUTION:

Do not shock ignition coils.

1.

Camshaft position sensors (LH)

2.

O-rings

3.

Camshaft position sensors (RH)

4.

O-rings

5.

Rocker cover (RH)

6.

Rocker cover gasket (RH)

7.

Rocker cover gasket (LH)

8.

Rocker cover (LH)

A. Refer to INSTALLATION

Front

AWBIA0856GB

ALBIA0258ZZ

ROCKER COVER

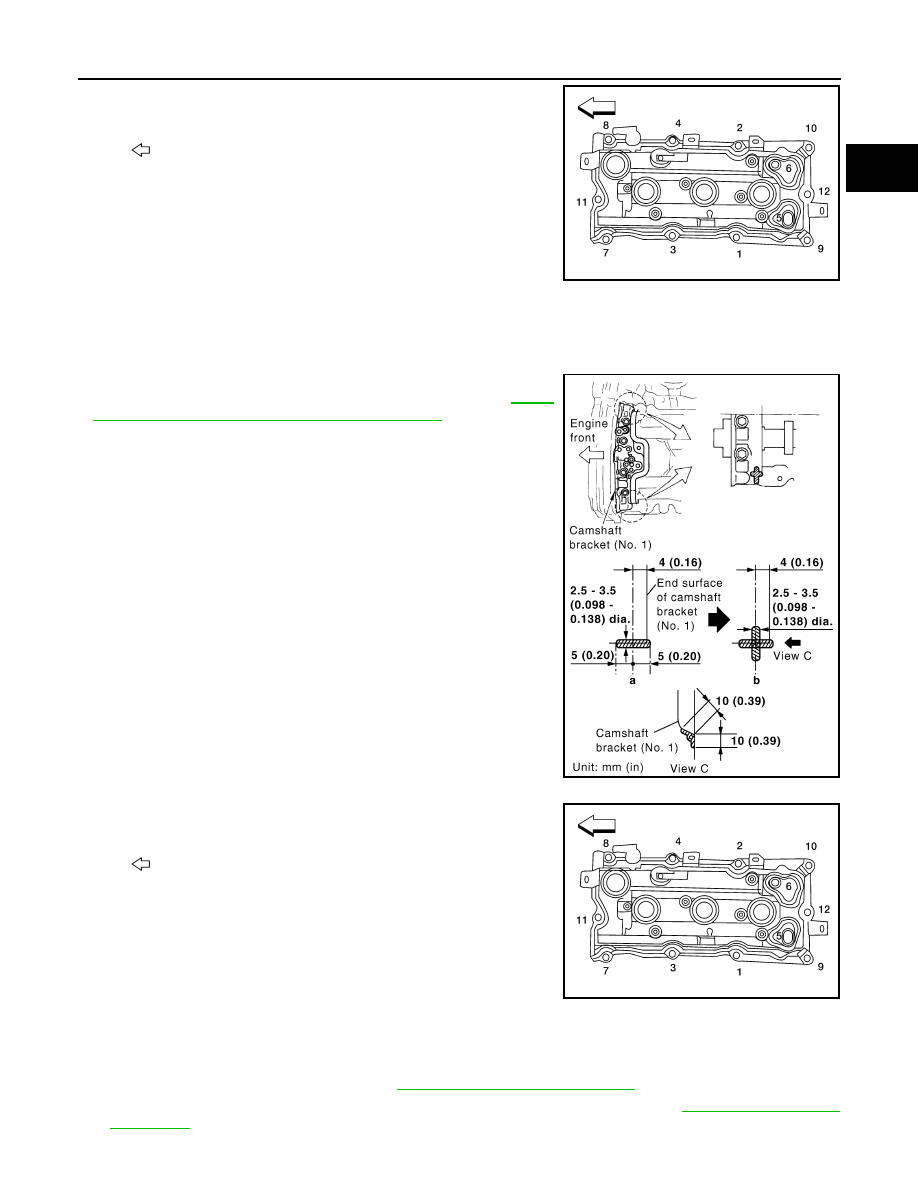

EM-49

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

6. Remove (LH) rocker cover bolts from cylinder head in the

reverse order as shown.

7. Remove the rocker cover and gasket.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not reuse rocker cover gasket.

• Apply sealant to the areas on the front corners using Tool.

• Use Genuine Silicone RTV Sealant or equivalent. Refer to

GI-21,

"Recommended Chemical Products and Sealants"

.

CAUTION:

• Installation should be done within 5 minutes after applying

liquid gasket.

• Do not fill the engine with oil for at least 30 minutes after the

components are installed to allow the sealant to cure.

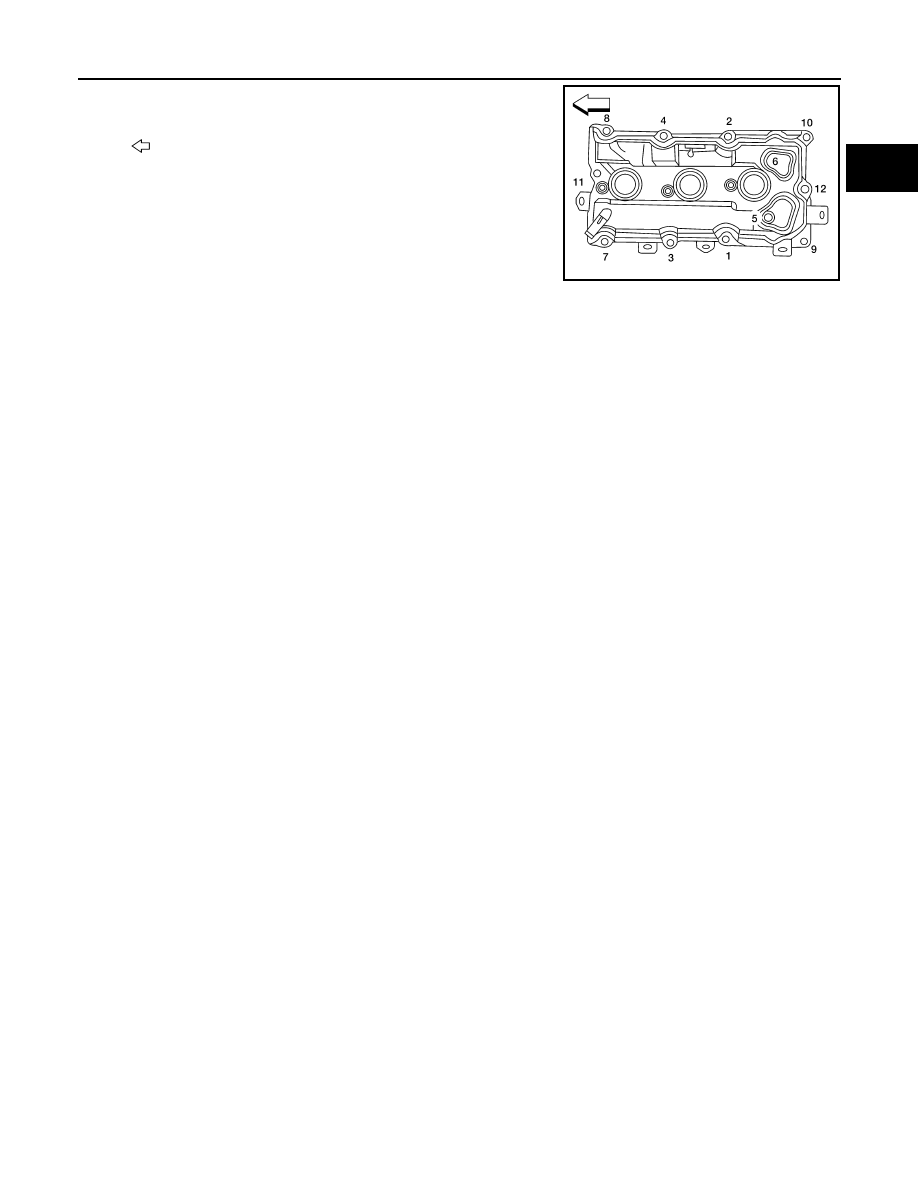

• Tighten the rocker cover bolts in two steps in the order

shown.

Removal and Installation (RH)

INFOID:0000000009466029

REMOVAL

1. Remove the engine room cover. Refer to

EM-23, "Removal and Installation"

.

2. Remove the front air duct and air duct hose and resonator assembly. Refer to

EM-24, "Removal and

Installation"

.

: Engine front

AWBIA0703ZZ

Tool number

: WS39930000 ( — )

PBIC2474E

: Engine front

Rocker cover bolts
Step 1

: 1.96 N·m (0.20 kg-m, 17 in-lb)

Step 2

: 8.33 N·m (0.85 kg-m, 74 in-lb)

AWBIA0703ZZ

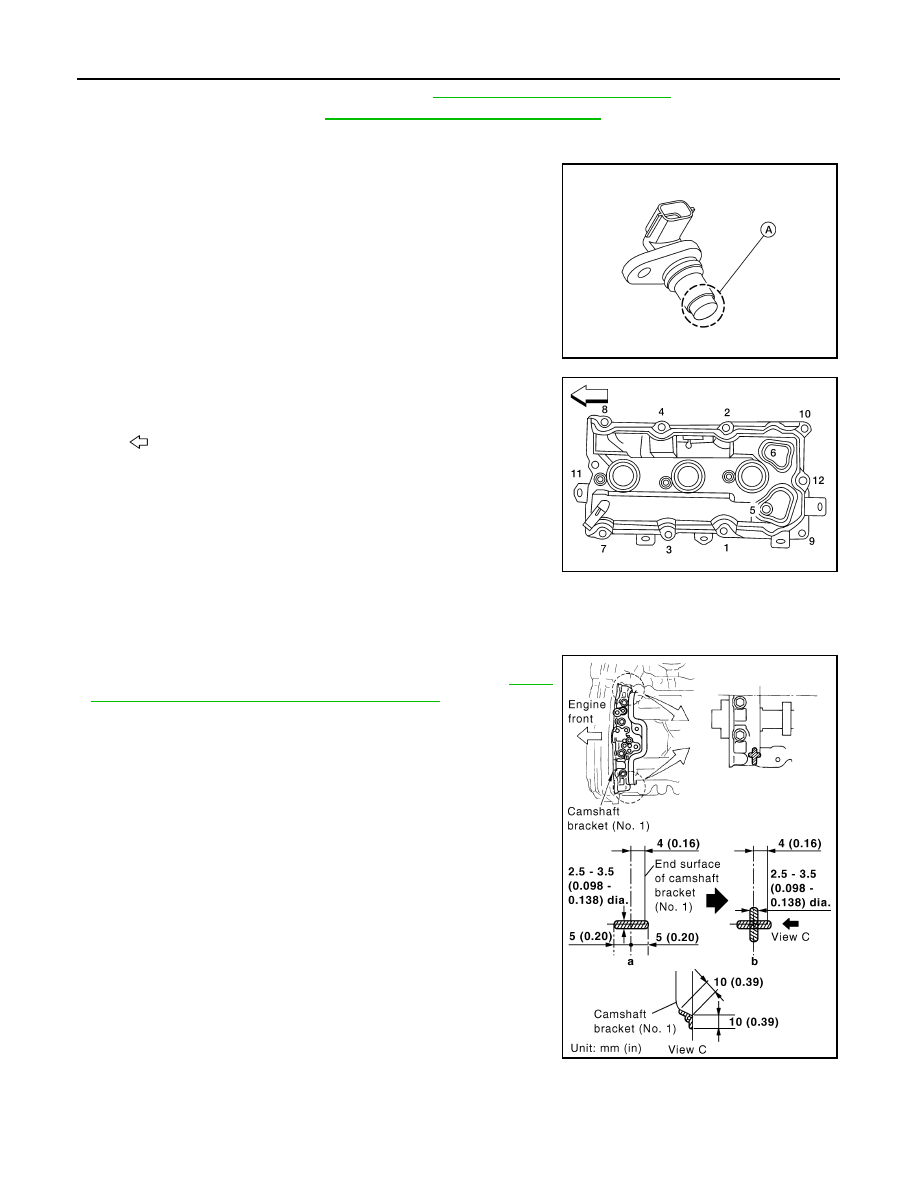

EM-50

< REMOVAL AND INSTALLATION >

ROCKER COVER

3. Remove the intake manifold collector. Refer to

EM-28, "Removal and Installation"

.

4. Remove ignition coils. Refer to

EM-42, "Removal and Installation (RH)"

.

CAUTION:

Do not shock ignition coils.

5. Remove camshaft position sensors.

CAUTION:

• Handle carefully to avoid dropping and shocks.

• Do not disassemble.

• Do not allow metal powder to adhere to magnetic part at

sensor tip (A).

• Do not place sensors in a location where they are

exposed to magnetism.

6. Remove RH rocker cover bolts from cylinder head in the reverse

order as shown.

7. Remove the rocker cover and gasket.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not reuse gaskets.

• Apply sealant to the areas on the front corners using Tool.

• Use Genuine Silicone RTV Sealant or equivalent. Refer to

GI-21,

"Recommended Chemical Products and Sealants"

.

CAUTION:

• Installation should be done within 5 minutes after applying

liquid gasket.

• Do not fill the engine with oil for at least 30 minutes after the

components are installed to allow the sealant to cure.

ALBIA0258ZZ

: Engine front

AWBIA0705ZZ

Tool number

: WS39930000 ( — )

PBIC2474E

ROCKER COVER

EM-51

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

• Tighten the rocker cover bolts in two steps in the order

shown.

: Engine front

Rocker cover bolts
Step 1

: 1.96 N·m (0.20 kg-m, 17 in-lb)

Step 2

: 8.33 N·m (0.85 kg-m, 74 in-lb)

AWBIA0705ZZ
