Nissan Maxima. Manual - part 513





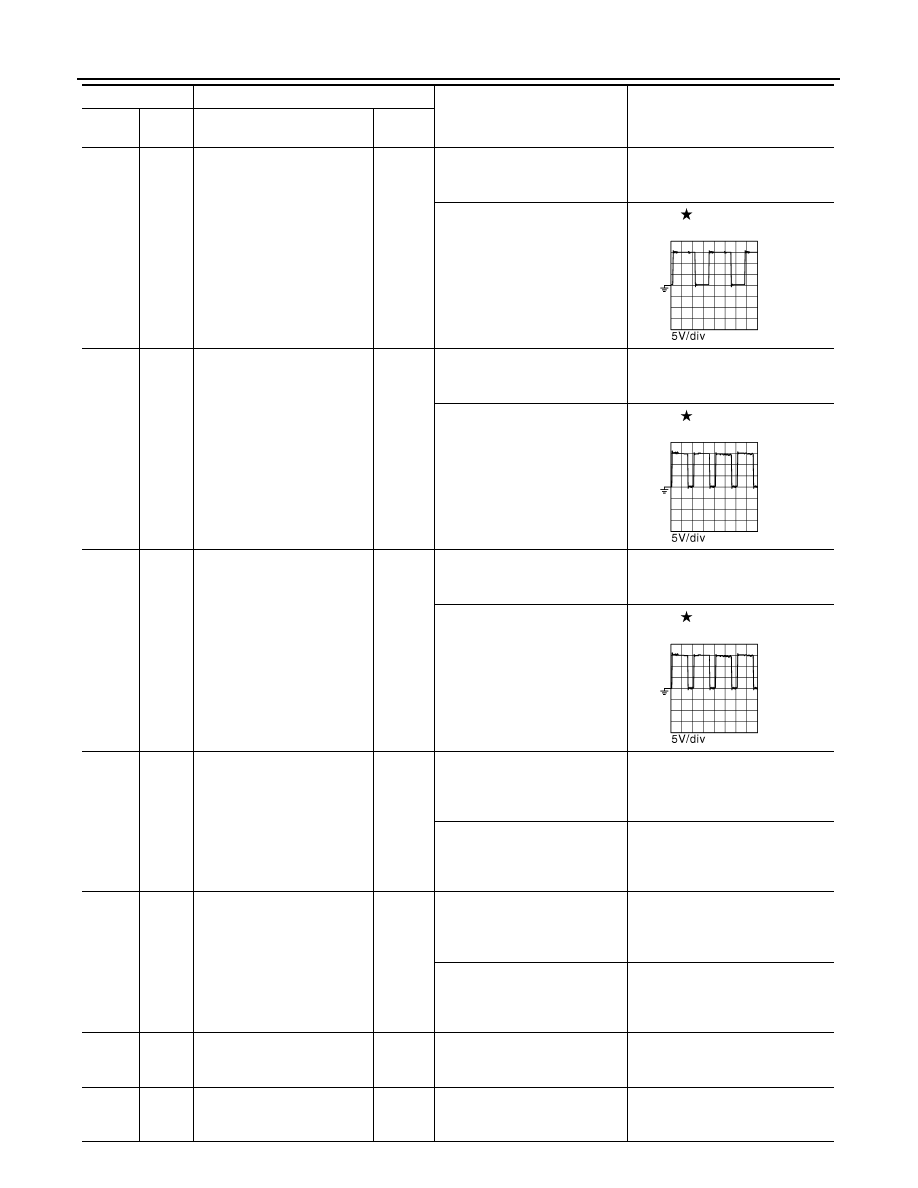

EC-536

< ECU DIAGNOSIS INFORMATION >

[VQ35DE]

ECM

78

(R/L)

112

(B)

Intake valve timing control so-
lenoid valve (Bank 1)

Output

[Engine is running]
• Warm-up condition
• Idle speed

BATTERY VOLTAGE
(11 - 14 V)

[Engine is running]
• Warm-up condition
• Engine speed: 2,000 rpm

7 - 12 V

79

(P/L)

112

(B)

Exhaust valve timing control
magnet retarder (Bank 1)

Output

[Engine is running]
• Warm-up condition
• Idle speed

BATTERY VOLTAGE
(11 - 14 V)

[Engine is running]
• Warm-up condition
• Around 2,500 rpm while the

engine speed is rising

7 - 12 V

80

(SB)

112

(B)

Exhaust valve timing control
magnet retarder (Bank 2)

Output

[Engine is running]
• Warm-up condition
• Idle speed

BATTERY VOLTAGE
(11 - 14 V)

[Engine is running]
• Warm-up condition
• Around 2,500 rpm while the

engine speed is rising

7 - 12 V

81

(W)

84

(B)

Accelerator pedal position
sensor 1

Input

[Ignition switch: ON]
• Engine stopped
• Accelerator pedal: Fully re-

leased

0.5 - 1.0 V

[Ignition switch: ON]
• Engine stopped
• Accelerator pedal: Fully de-

pressed

4.2 - 4.8 V

82

(O)

100

(G)

Accelerator pedal position
sensor 2

Input

[Ignition switch: ON]
• Engine stopped
• Accelerator pedal: Fully re-

leased

0.25 - 0.5 V

[Ignition switch: ON]
• Engine stopped
• Accelerator pedal: Fully de-

pressed

2.0 - 2.5 V

83

(GR)

84

(B)

Sensor power supply
(Accelerator pedal position
sensor 1)

[Ignition switch: ON]

5 V

84

(B)

Sensor ground
(Accelerator pedal position
sensor 1)

Terminal No.

Description

Condition

Value

(Approx.)

+

-–

Signal name

Input/

Output

JMBIA0038GB

JMBIA0034GB

JMBIA0034GB

ECM

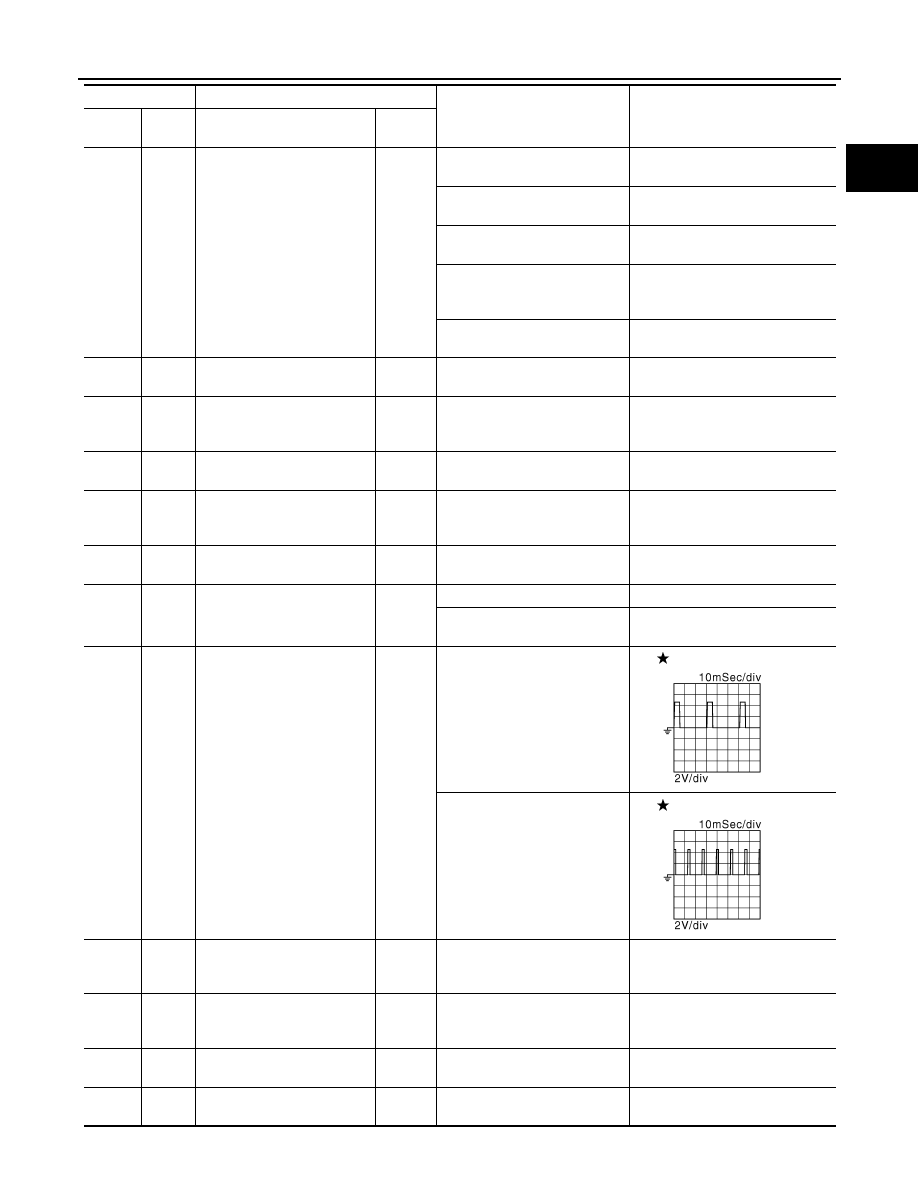

EC-537

< ECU DIAGNOSIS INFORMATION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

85

(Y)

92

(BR)

ASCD steering switch

Input

[Ignition switch: ON]
• ASCD steering switch: OFF

4 V

[Ignition switch: ON]
• MAIN switch: Pressed

0 V

[Ignition switch: ON]
• CANCEL switch: Pressed

1 V

[Ignition switch: ON]
• RESUME/ACCELERATE

switch: Pressed

3 V

[Ignition switch: ON]
• SET/COAST switch: Pressed

2 V

86

(SB)

96

(GR)

EVAP control system pres-
sure sensor

Input

[Ignition switch: ON]

1.8 - 4.8 V

87

(BR)

100

(G)

Sensor power supply
(Accelerator pedal position
sensor 2)

[Ignition switch: ON]

5 V

88

(O)

Data link connector

Input/

Output

91

(V)

96

(GR)

Sensor power supply
(EVAP control system pres-
sure sensor)

[Ignition switch: ON]

5 V

92

(BR)

Sensor ground
(ASCD steering switch)

93

(Y)

112

(B)

Ignition switch

Input

[Ignition switch: OFF]

0 V

[Ignition switch: ON]

BATTERY VOLTAGE
(11 - 14 V)

94

(GR)

112

(B)

Engine speed output signal

Output

[Engine is running]
• Warm-up condition
• Idle speed

NOTE:
The pulse cycle changes de-
pending on rpm at idle

1 V

[Engine is running]
• Engine speed: 2,000 rpm

1 V

95

(Y)

104

(P)

Fuel tank temperature sensor

Input

[Engine is running]

0 - 4.8 V
Output voltage varies with fuel tank
temperature.

96

(GR)

Sensor ground
(EVAP control system pres-
sure sensor)

97

(P)

CAN communication line

Input/

Output

98

(L)

CAN communication line

Input/

Output

Terminal No.

Description

Condition

Value

(Approx.)

+

-–

Signal  name

Input/

Output

JMBIA0076GB

JMBIA0077GB

EC-538

< ECU DIAGNOSIS INFORMATION >

[VQ35DE]

ECM

: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)

*1: This may vary depending on internal resistance of the tester.
*2: Before measuring the terminal voltage, confirm that the battery is fully charged. Refer to

PG-2, "How to Handle Battery"

.

Fail safe

INFOID:0000000010095242

NON DTC RELATED ITEM

DTC RELATED ITEM

100

(G)

Sensor ground
(Accelerator pedal position
sensor 2)

102

(R)

112

(B)

PNP signal

Input

[Ignition switch: ON]
• Selector lever: P or N

BATTERY VOLTAGE
(11 - 14 V)

[Ignition switch: ON]
• Selector lever: Except above

0 V

104

(P)

Sensor ground
(Fuel tank temperature sen-
sor)

105

(V)

112

(B)

Power supply for ECM

Input

[Ignition switch: ON]

BATTERY VOLTAGE
(11 - 14 V)

106

(SB)

112

(B)

Stop lamp switch

Input

[Ignition switch: OFF]
• Brake pedal: Fully released

0 V

[Ignition switch: OFF]
• Brake pedal: Slightly de-

pressed

BATTERY VOLTAGE
(11 - 14 V)

107

(B)

108

(B)

ECM ground

109
(W)

112

(B)

EVAP canister vent control
valve

Output

[Ignition switch: ON]

BATTERY VOLTAGE
(11 - 14 V)

110

(G)

112

(B)

ASCD brake switch

Input

[Ignition switch: ON]
• Brake pedal: Slightly de-

pressed

0 V

[Ignition switch: ON]
• Brake pedal: Fully released

BATTERY VOLTAGE
(11 - 14 V)

111

(B)

112

(B)

ECM ground

Terminal No.

Description

Condition

Value

(Approx.)

+

-–

Signal name

Input/

Output

Engine operating condi-

tion in fail-safe mode

Detected items

Remarks

Reference

page

Engine speed will not
rise more than 2,500 rpm
due to the fuel cut

Malfunction indicator
lamp circuit

When there is an open circuit on MIL circuit, the ECM cannot warn the
driver by illuminating MIL when there is malfunction on engine control
system.
Therefore, when electrical controlled throttle and part of ECM related
diagnoses are continuously detected as NG for 5 trips, ECM warns the
driver that engine control system malfunctions and MIL circuit is open
by means of operating the fail-safe function.
The fail-safe function also operates when above diagnoses except MIL
circuit are detected and demands the driver to repair the malfunction.

EC-507

ECM

EC-539

< ECU DIAGNOSIS INFORMATION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

DTC No.

Detected items

Engine operating condition in fail-safe mode

P0011

P0021

Intake valve timing control

The signal is not energized to the intake valve timing control solenoid valve and the valve
control does not function.

P0014
P0024

Exhaust valve timing con-
trol

The signal is not energized to the exhaust valve timing control solenoid valve and the
magnet retarder control does not function.

P0101
P0102
P0103

Mass air flow sensor circuit Engine speed will not rise more than 2,400 rpm due to the fuel cut.

P0117
P0118

Engine coolant tempera-
ture sensor circuit

Engine coolant temperature will be determined by ECM based on the following condition.
CONSULT displays the engine coolant temperature decided by ECM.

Condition

Engine coolant temperature decided

(CONSULT display)

Just as ignition switch is turned ON
or START

40

°C (104°F)

Approx 4 minutes or more after en-
gine starting

80

°C (176°F)

Except as shown above

40 - 80

°C (104 - 176°F)

(Depends on the time)

When the fail-safe system for engine coolant temperature sensor is activated, the cooling
fan operates while engine is running.

P0122
P0123
P0222
P0223
P2135

Throttle position sensor

The ECM controls the electric throttle control actuator in regulating the throttle opening in
order for the idle position to be within +10 degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal
condition.
Therefore, the acceleration will be poor.

P0196
P0197
P0198

Engine oil temperature
sensor

Intake valve timing control does not function.

P0500

Vehicle speed sensor

The cooling fan operates (Highest) while engine is running.

P0605

ECM

(When ECM calculation function is malfunctioning:)
ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.
ECM deactivates ASCD operation.

P0643

Sensor power supply

ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.

P1805

Brake switch

ECM controls the electric throttle control actuator by regulating the throttle opening to a
small range.
Therefore, acceleration will be poor.

Vehicle condition

Driving condition

When engine is idling

Normal

When accelerating

Poor acceleration

P2100
P2103

Throttle control motor relay ECM stops the electric throttle control actuator control, throttle valve is maintained at a

fixed opening (approx. 5 degrees) by the return spring.

P2101

Electric throttle control
function

ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.

P2118

Throttle control motor

ECM stops the electric throttle control actuator control, throttle valve is maintained at a
fixed opening (approx. 5 degrees) by the return spring.
