P2100, P2103 THROTTLE CONTROL MOTOR RELAY

P2100, P2103 THROTTLE CONTROL MOTOR RELAY

Description

INFOID:0000000010095157

Power supply for the throttle control motor is provided to the ECM via the throttle control motor relay. The throt-

tle control motor relay is controlled ON/OFF by the ECM. When the ignition switch is turned ON, the ECM

sends an ON signal to throttle control motor relay and battery voltage is provided to the ECM. When the igni-

tion switch is turned OFF, the ECM sends an OFF signal to throttle control motor relay and battery voltage is

not provided to the ECM.

DTC Logic

INFOID:0000000010095158

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following before conduct-

ing the next test.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:

Before performing the following procedure, confirm that battery voltage is more than 8 V.
Witch DTC is detected?

P2100 >> GO TO 2.

P2103 >> GO TO 3.

2.

PERFORM DTC CONFIRMATION PROCEDURE FOR DTC P2100

1. Turn ignition switch ON and wait at least 2 seconds.

2. Start engine and let it idle for 5 seconds.

3. Check DTC.
Is DTC detected?

YES

>> Go to

EC-456, "Diagnosis Procedure"

.

NO

>> INSPECTION END

3.

PERFORM DTC CONFIRMATION PROCEDURE FOR DTC P2103

1. Turn ignition switch ON and wait at least 1 second.

2. Check DTC.
Is DTC detected?

YES

>> Go to

EC-456, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000010095159

Regarding Wiring Diagram information, refer to

EC-554, "Wiring Diagram"

.

1.

CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P2100

Throttle control motor
relay circuit open

ECM detects that the voltage of power source
for throttle control motor is excessively low.

• Harness or connectors

(Throttle control motor relay circuit is
open.)

• Throttle control motor relay

P2103

Throttle control motor
relay circuit short

ECM detects that the throttle control motor relay
is stuck ON.

• Harness or connectors

(Throttle control motor relay circuit is
shorted.)

• Throttle control motor relay

P2100, P2103 THROTTLE CONTROL MOTOR RELAY

EC-457

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

2. Disconnect ECM harness connector.

3. Disconnect IPDM E/R harness connector.

4. Check the continuity between IPDM E/R harness connector and ECM harness connector.

5. Also check harness for short to ground and short to power.
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair open circuit, short to ground or short to power in harness or connectors.

2.

CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT-II

1. Check the continuity between IPDM E/R harness connector and ECM harness connector.

2. Also check harness for short to ground and short to power.
Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair open circuit, short to ground or short to power in harness or connectors.

3.

CHECK FUSE

1. Disconnect 15 A fuse (No. 43) from IPDM E/R.

2. Check if 15 A fuse is blown.
Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace 15 A fuse.

4.

CHECK INTERMITTENT INCIDENT

Refer to

GI-41, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace IPDM E/R. Refer to

PCS-35, "Removal and Installation"

.

NO

>> Repair or replace harness or connectors.

IPDM E/R

ECM

Continuity

Connector

Terminal

Connector

Terminal

F10

70

F14

15

Existed

IPDM E/R

ECM

Continuity

Connector

Terminal

Connector

Terminal

F10

54

F14

2

Existed

EC-458

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

P2101 ELECTRIC THROTTLE CONTROL FUNCTION

P2101 ELECTRIC THROTTLE CONTROL FUNCTION

Description

INFOID:0000000010095160

Electric throttle control actuator consists of throttle control motor, throttle position sensor, etc.

The throttle control motor is operated by the ECM and it opens and closes the throttle valve.

The current opening angle of the throttle valve is detected by the throttle position sensor. The throttle position

sensor provides feedback to the ECM, when opens/closes the throttle valve in response to driving conditions

via the throttle control motor.

DTC Logic

INFOID:0000000010095161

DTC DETECTION LOGIC

NOTE:

If DTC P2101 is displayed with DTC P2100, first perform the trouble diagnosis for DTC P2100. Refer to

EC-456, "DTC Logic"

.

If DTC P2101 is displayed with DTC 2119, first perform the trouble diagnosis for DTC P2119. Refer to

EC-465, "DTC Logic"

.

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following before conduct-

ing the next test.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:

Before performing the following procedure, confirm that battery voltage is more than 11 V when

engine is running.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1. Turn ignition switch ON and wait at least 2 seconds.

2. Start engine and let it idle for 5 seconds.

3. Check DTC.
Is DTC detected?

YES

>> Go to

EC-458, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000010095162

Regarding Wiring Diagram information, refer to

EC-554, "Wiring Diagram"

.

1.

CHECK GROUND CONNECTION

1. Turn ignition switch OFF.

2. Check ground connection E9. Refer to Ground Inspection in

GI-44, "Circuit Inspection"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace ground connection.

2.

CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT-I

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P2101

Electric throttle control
performance

Electric throttle control function does not oper-
ate properly.

• Harness or connectors

(Throttle control motor circuit is open or
shorted.)

• Electric throttle control actuator

P2101 ELECTRIC THROTTLE CONTROL FUNCTION

EC-459

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

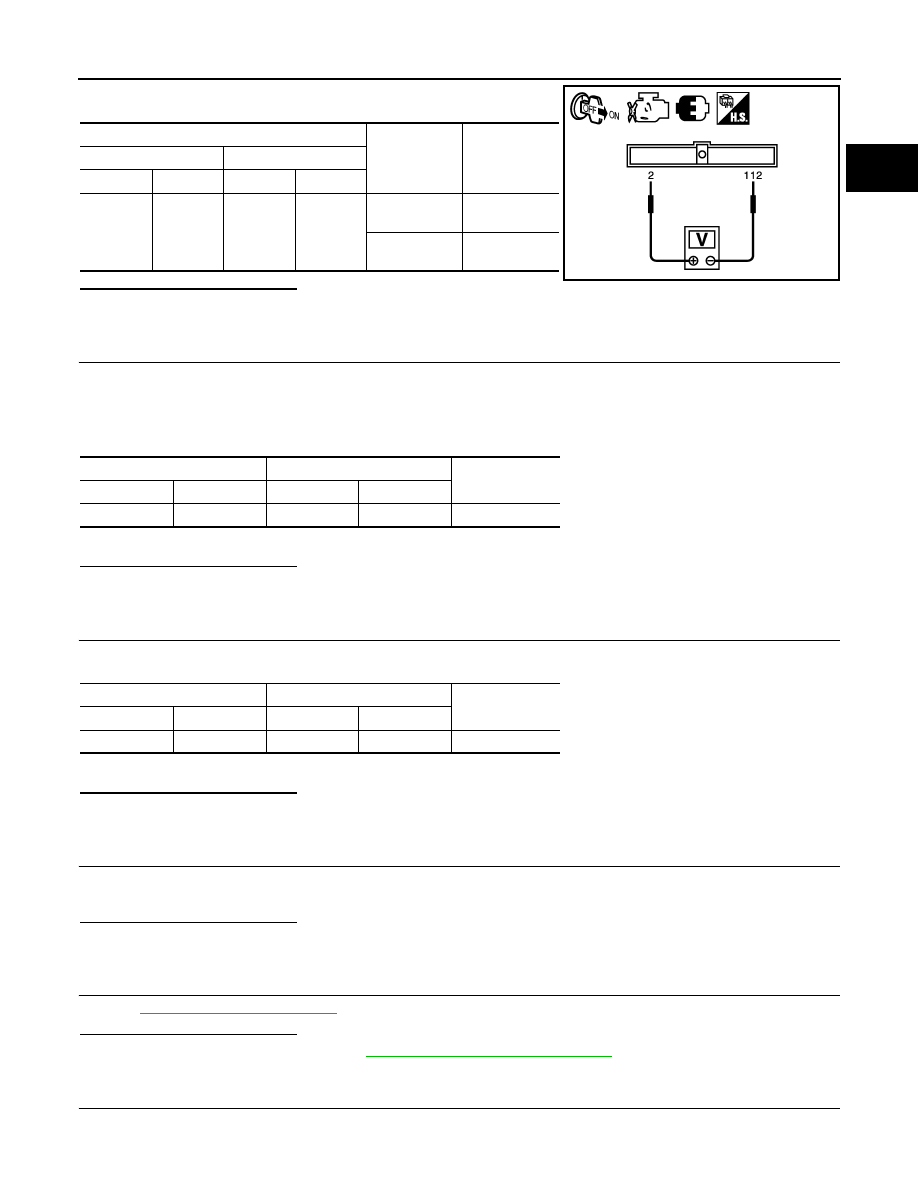

1. Check the voltage between ECM harness connectors.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> GO TO 3.

3.

CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT-II

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Disconnect IPDM E/R harness connector.

4. Check the continuity between IPDM E/R harness connector and ECM harness connector.

5. Also check harness for short to ground and short to power.
Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair open circuit, short to ground or short to power in harness or connectors.

4.

CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT-II

1. Check the continuity between IPDM E/R harness connector and ECM harness connector.

2. Also check harness for short to ground and short to power.
Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair open circuit, short to ground or short to power in harness or connectors.

5.

CHECK FUSE

1. Disconnect 15 A fuse (No. 43) from IPDM E/R.

2. Check if 15 A fuse is blown.
Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Replace 15 A fuse.

6.

CHECK INTERMITTENT INCIDENT

Refer to

GI-41, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace IPDM E/R. Refer to

PCS-35, "Removal and Installation"

.

NO

>> Repair or replace harness or connectors.

7.

CHECK THROTTLE CONTROL MOTOR OUTPUT SIGNAL CIRCUIT FOR OPEN OR SHORT

1. Turn ignition switch OFF.

2. Disconnect electric throttle control actuator harness connector.

ECM

Condition

Voltage

+

–

Connector

Terminal

Connector

Terminal

F14

2

E10

112

Ignition switch

OFF

Approx. 0 V

Ignition switch

ON

Battery voltage

JMBIA1883ZZ

IPDM E/R

ECM

Continuity

Connector

Terminal

Connector

Terminal

F10

70

F14

15

Existed

IPDM E/R

ECM

Continuity

Connector

Terminal

Connector

Terminal

F10

54

F14

2

Existed
