EC-116

< SYSTEM DESCRIPTION >

[VQ35DE]

INTAKE VALVE TIMING CONTROL

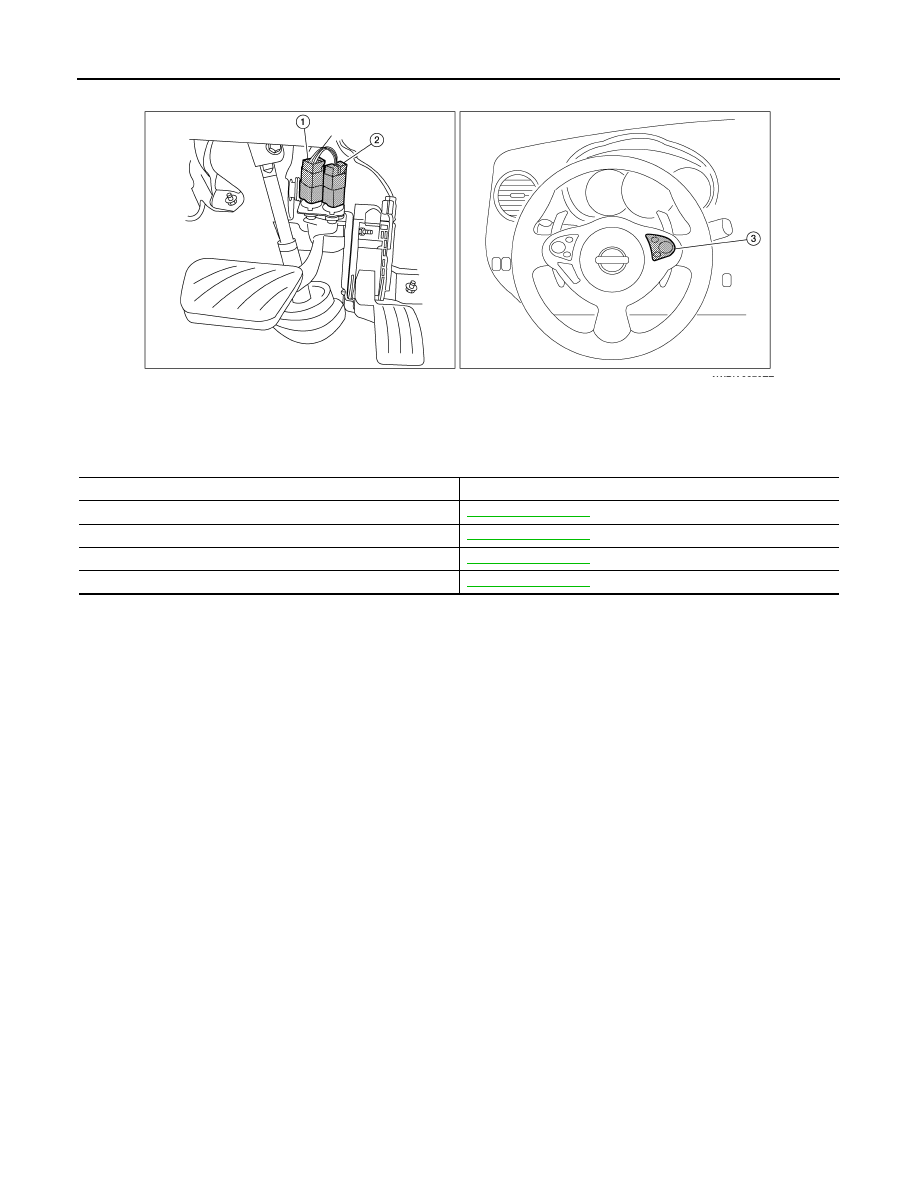

Component Description

INFOID:0000000010094837

1.

Stop lamp switch

2.

ASCD brake switch

3.

ASCD steering switch

AWBIA0670ZZ

Component

Reference

Camshaft position sensor (PHASE)

EC-300, "Description"

Crankshaft position sensor (POS)

EC-296, "Description"

Engine coolant temperature sensor

EC-201, "Description"

Intake valve timing control solenoid valve

EC-177, "Description"

VARIABLE INDUCTION AIR SYSTEM

EC-117

< SYSTEM DESCRIPTION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

VARIABLE INDUCTION AIR SYSTEM

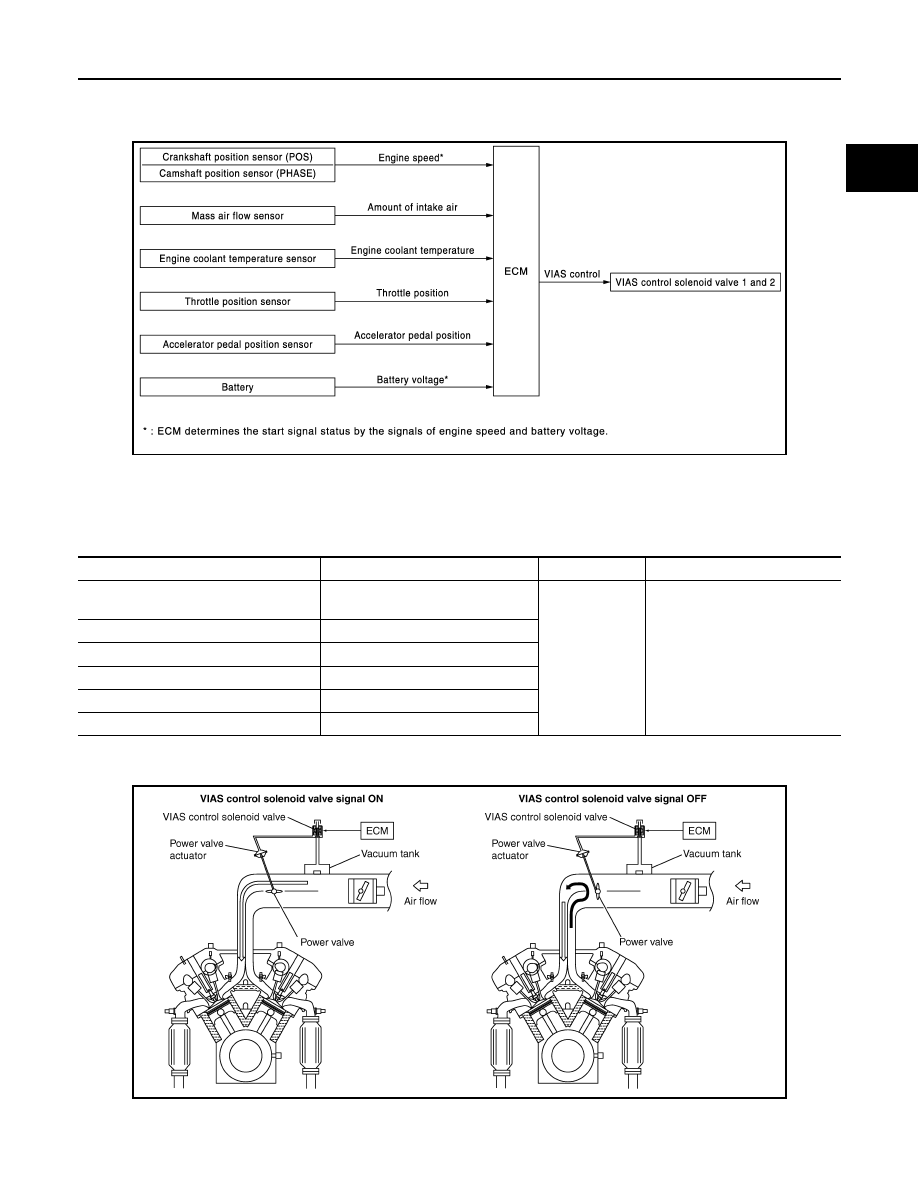

System Diagram

INFOID:0000000010094838

System Description

INFOID:0000000010094839

INPUT/OUTPUT SIGNAL CHART

*: ECM determines the start signal status by the signals of engine speed and battery voltage.

SYSTEM DESCRIPTION

JMBIA1831GB

Sensor

Input signal to ECM

ECM function

Actuator

Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)

Engine speed*

VIAS control

VIAS control solenoid valve 1
VIAS control solenoid valve 2

Mass air flow sensor

Amount of intake air

Engine coolant temperature sensor

Engine coolant temperature

Throttle position sensor

Throttle position

Accelerator pedal position sensor

Accelerator pedal position

Battery

Battery voltage*

JMBIA0181GB

EC-118

< SYSTEM DESCRIPTION >

[VQ35DE]

VARIABLE INDUCTION AIR SYSTEM

In the medium speed range, the power valves are closed. Under this condition, the pressure waves of the

exhaust stroke do not disturb the pressure waves of the intake stroke of each opposite bank. Therefore, charg-

ing efficiency is increased together with the effect of the long intake passage.

However, in the high speed range, the power valves are open. Under this condition, the pressure waves of

intake stroke are resonant with those of each opposite bank exhaust stroke. Therefore, charging efficiency is

also increased.

In addition, both valves 1 and 2 are opened or closed in other ranges mentioned above. Thus maximum

charging efficiency is obtained for the various driving conditions.

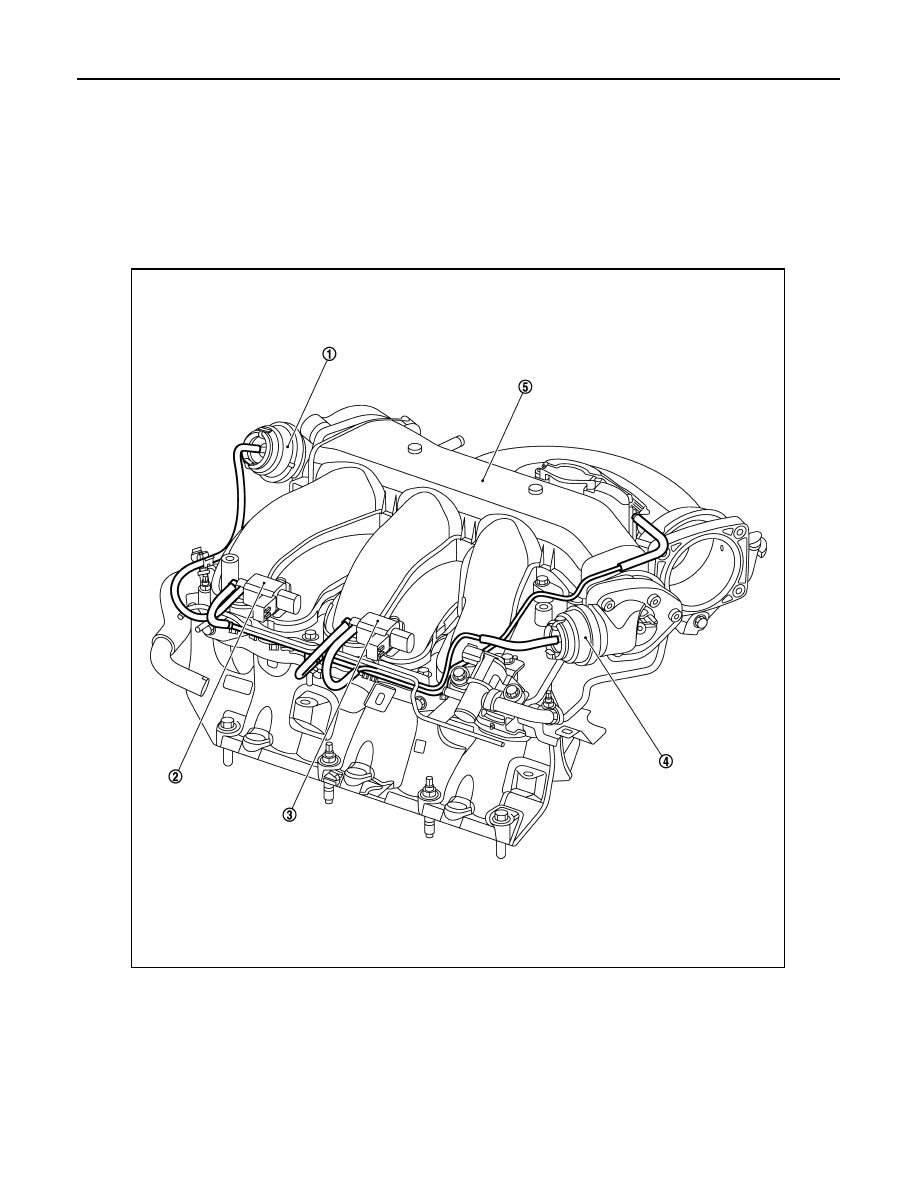

VACUUM HOSE DRAWING

1.

Power valve actuator 1

2.

VIAS control solenoid valve 1

3.

VIAS control solenoid valve 2

4.

Power valve actuator 2

5.

Intake manifold collector

JMBIA0172ZZ

VARIABLE INDUCTION AIR SYSTEM

EC-119

< SYSTEM DESCRIPTION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

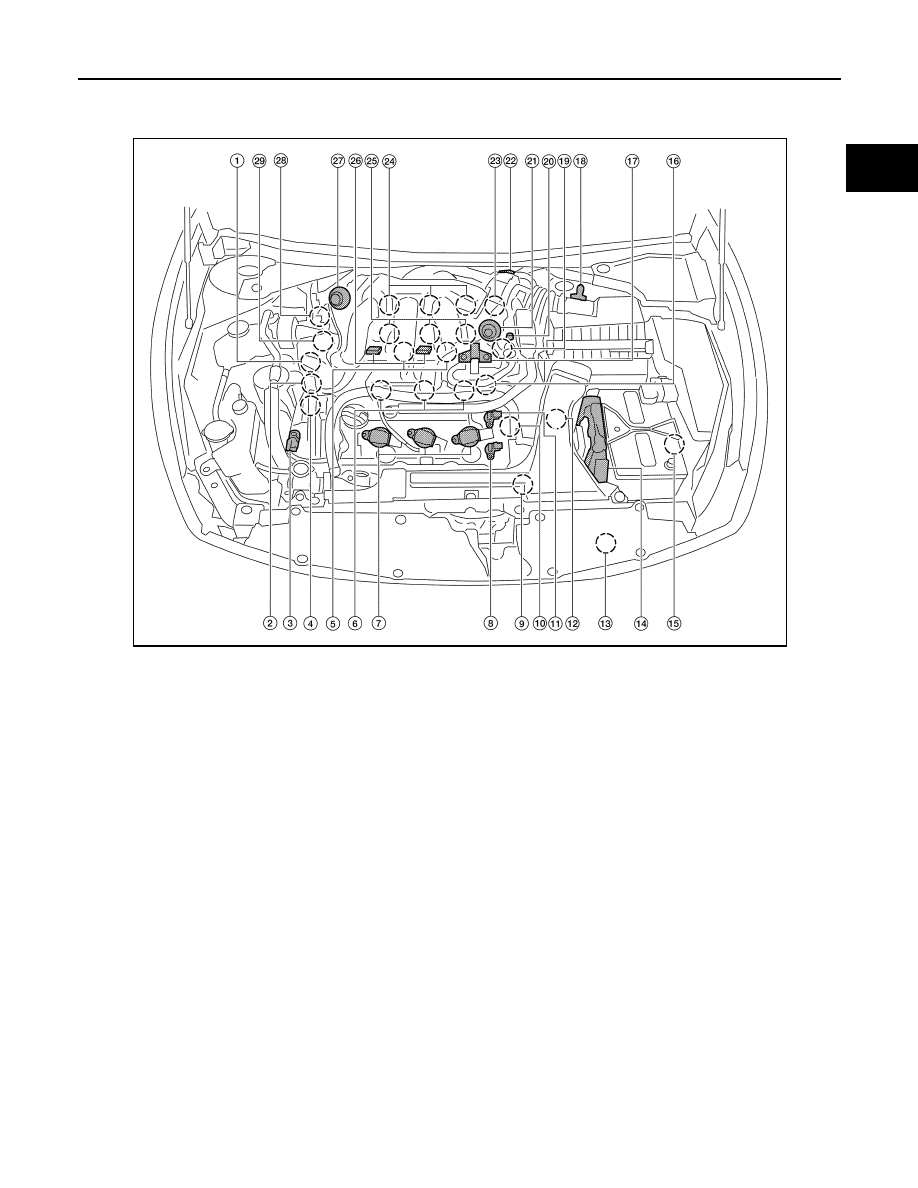

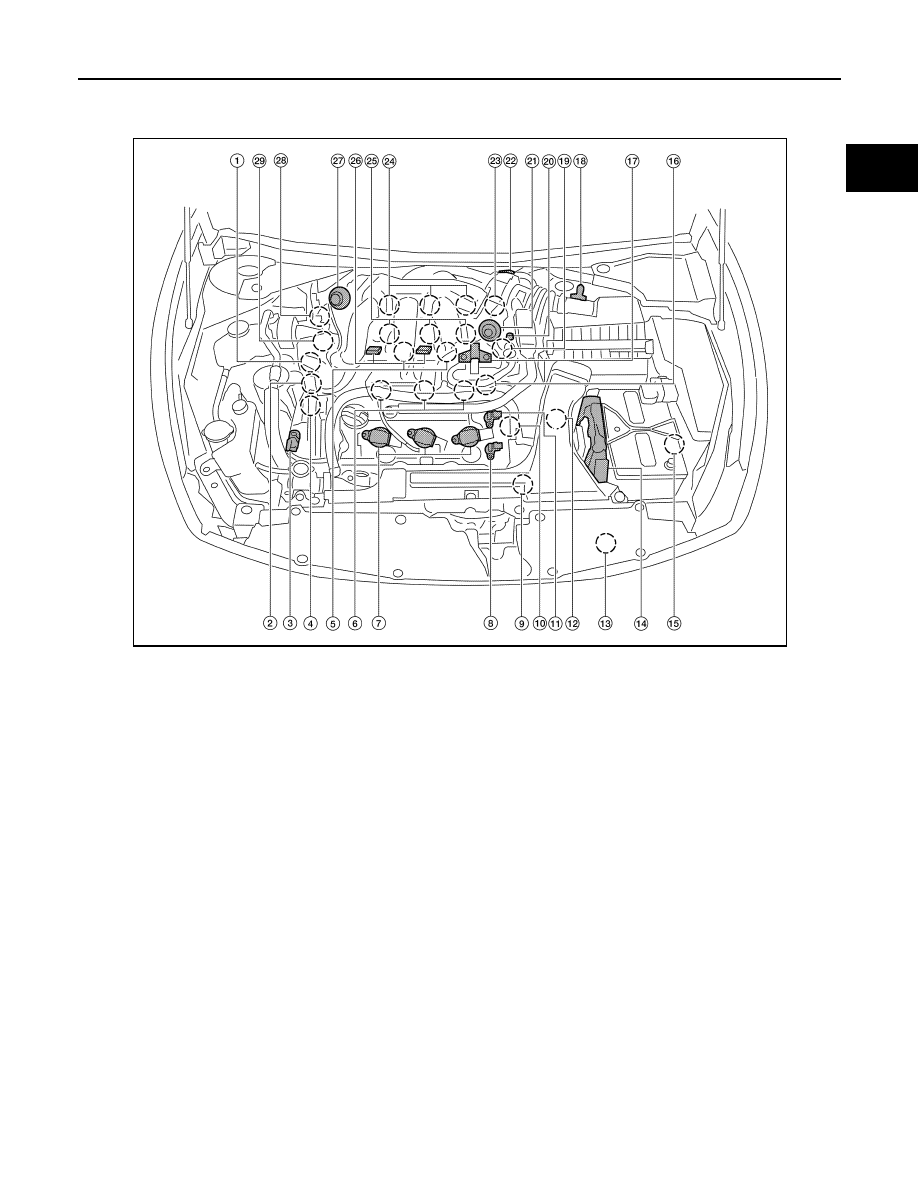

Component Parts Location

INFOID:0000000010094840

1.

Intake valve timing control solenoid
valve (bank 1)

2.

Electronic controlled engine mount
control solenoid valve

3.

Exhaust valve timing control magnet
retarder (bank 2)

4.

Intake valve timing control solenoid
valve (bank 2)

5.

Knock sensor (bank 1 and 2)

6.

Fuel injector (bank 2)

7.

Ignition coil (with power transistor) and
spark plug (bank 2)

8.

Exhaust valve timing control position
sensor (bank 2)

9.

Crankshaft position sensor (POS)

10. Engine coolant temperature sensor

11. Camshaft position sensor (PHASE)

(bank 2)

12. Transmission range switch

13. Refrigerant pressure sensor

14. ECM

15. Battery current sensor

16. Condenser-2

17. EVAP canister purge volume control

solenoid valve

18. Mass air flow sensor (with intake air

temperature sensor)

19. Camshaft position sensor (PHASE)

(bank 1)

20. EVAP service port

21. Power valve actuator 2

22. Electric throttle control actuator

23. Exhaust valve timing control position

sensor (bank 1)

24. Ignition coil (with power transistor) and

spark plug (bank 1)

25. Fuel injector (bank 1)

26. VIAS control solenoid valve 1 and 2

27. Power valve actuator 1

28. Exhaust valve timing control magnet

retarder (bank 1)

29. Power steering pressure sensor

ALBIA0603ZZ
