EC-72

< SYSTEM DESCRIPTION >

[VQ35DE]

AUTOMATIC SPEED CONTROL DEVICE (ASCD)

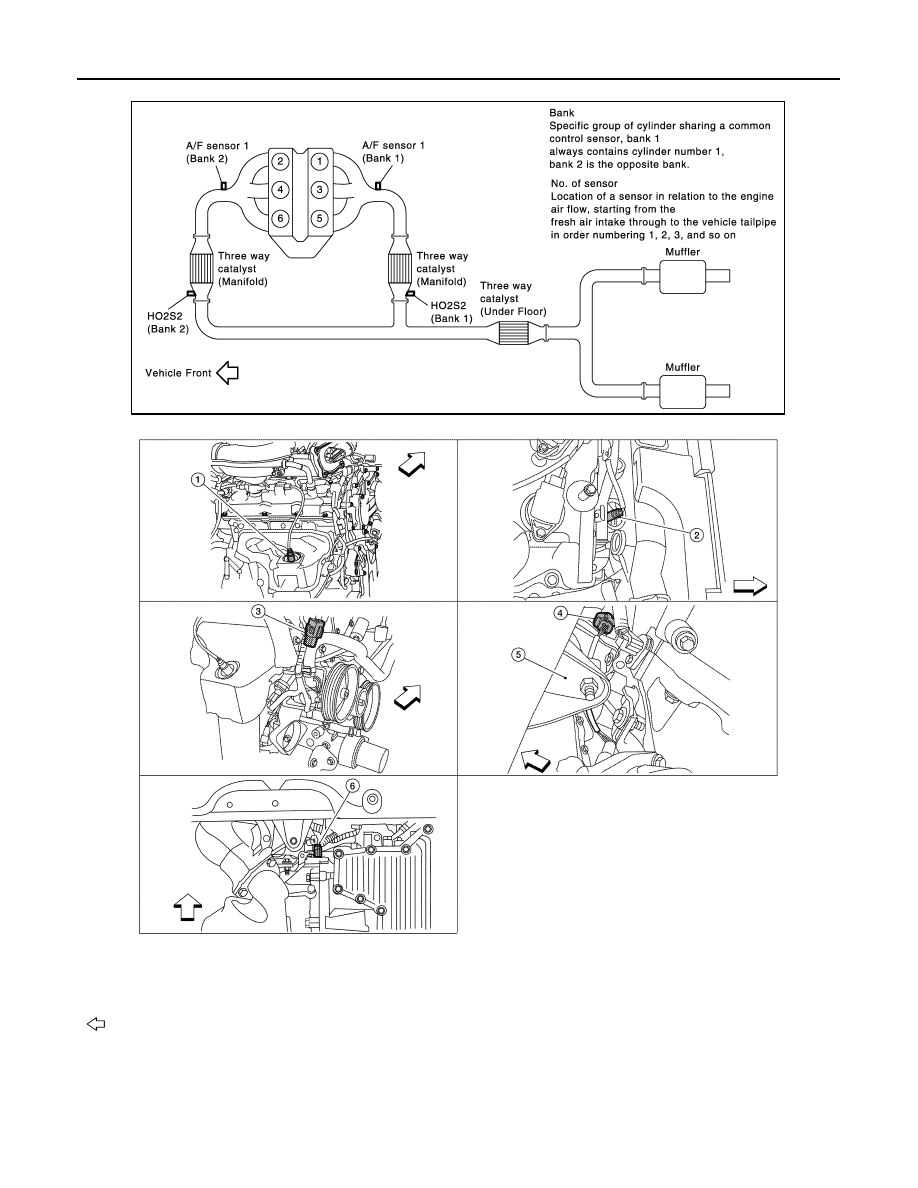

1.

A/F sensor 1 (bank 1) (view with en-
gine removed)

2.

A/F sensor 1 (bank 2)

3.

HO2S2 (bank 1) harness connector
(view with engine removed)

4.

HO2S2 (bank 2) harness connector

5.

Front engine mount

6.

Crankshaft position sensor (POS)

: Vehicle front

JMBIA1832GB

ALBIA0605ZZ

AUTOMATIC SPEED CONTROL DEVICE (ASCD)

EC-73

< SYSTEM DESCRIPTION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

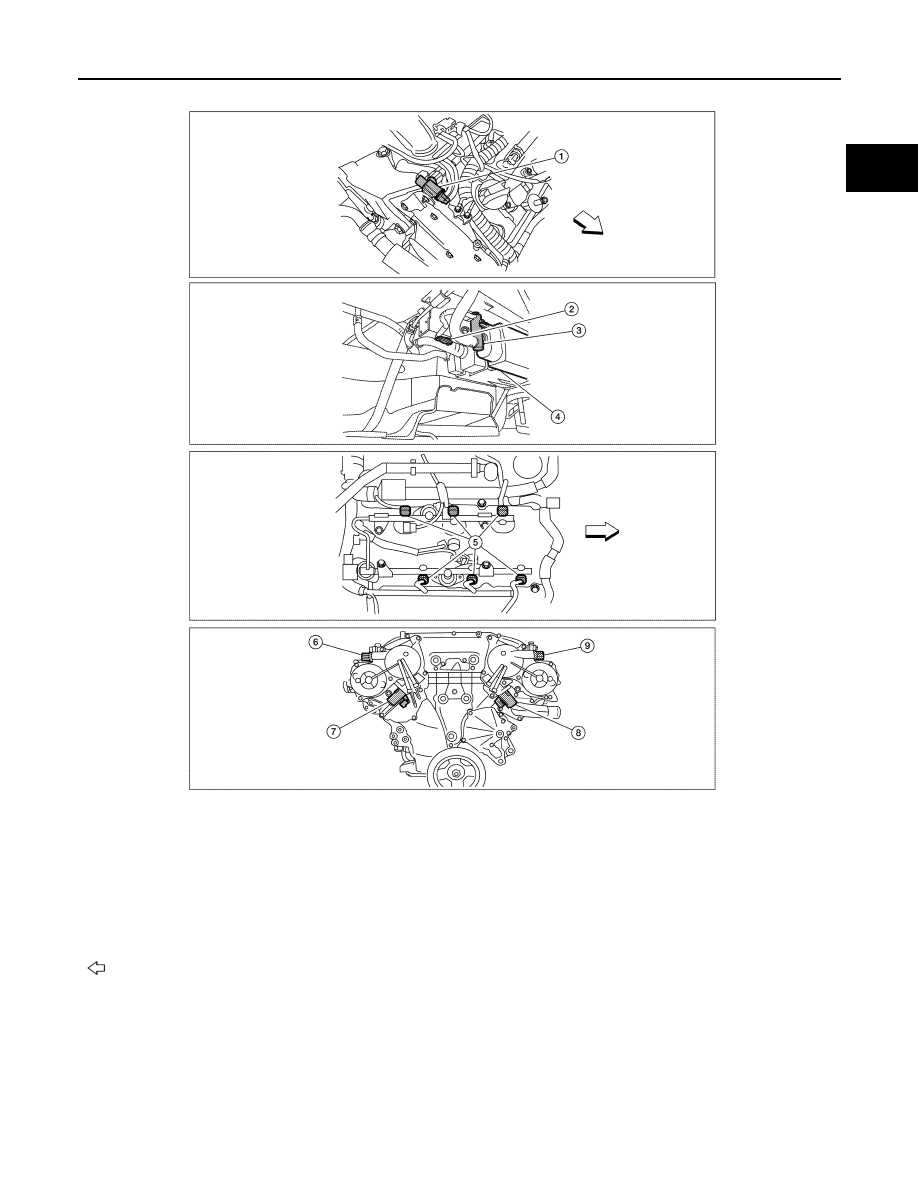

1.

Electronic controlled engine mount
control solenoid valve (view with en-
gine cover removed)

2.

EVAP control system pressure sensor
(view with rear suspension member re-
moved)

3.

EVAP canister vent control valve

4.

EVAP canister

5.

Fuel injector harness connector (view
with intake manifold collector removed)

6.

Exhaust valve timing control magnet
retarder (bank 1) (view with engine re-
moved)

7.

Intake valve timing control solenoid
valve (bank 1)

8.

Intake valve timing control solenoid
valve (bank 2)

9.

Exhaust valve timing control magnet
retarder (bank 2)

: Vehicle front

ALBIA0606ZZ

EC-74

< SYSTEM DESCRIPTION >

[VQ35DE]

AUTOMATIC SPEED CONTROL DEVICE (ASCD)

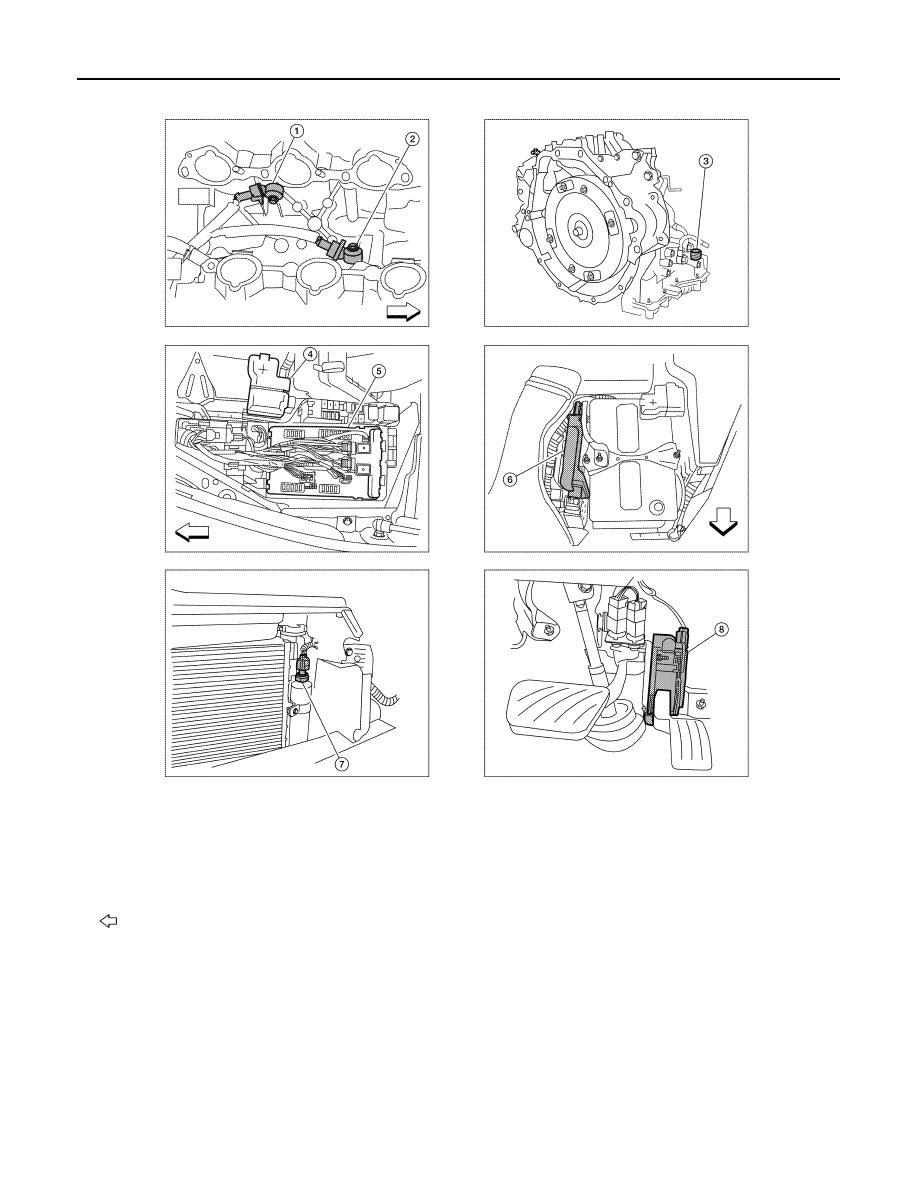

1.

Knock sensor (bank 2) (view with in-
take manifold removed)

2.

Knock sensor (bank 1)

3.

Transmission range switch
(view with CVT removed)

4.

Battery

5.

IPDM E/R

6.

ECM

7.

Refrigerant pressure sensor (view
with front grille removed)

8.

Accelerator pedal position sensor

: Vehicle front

ALBIA0607ZZ

AUTOMATIC SPEED CONTROL DEVICE (ASCD)

EC-75

< SYSTEM DESCRIPTION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

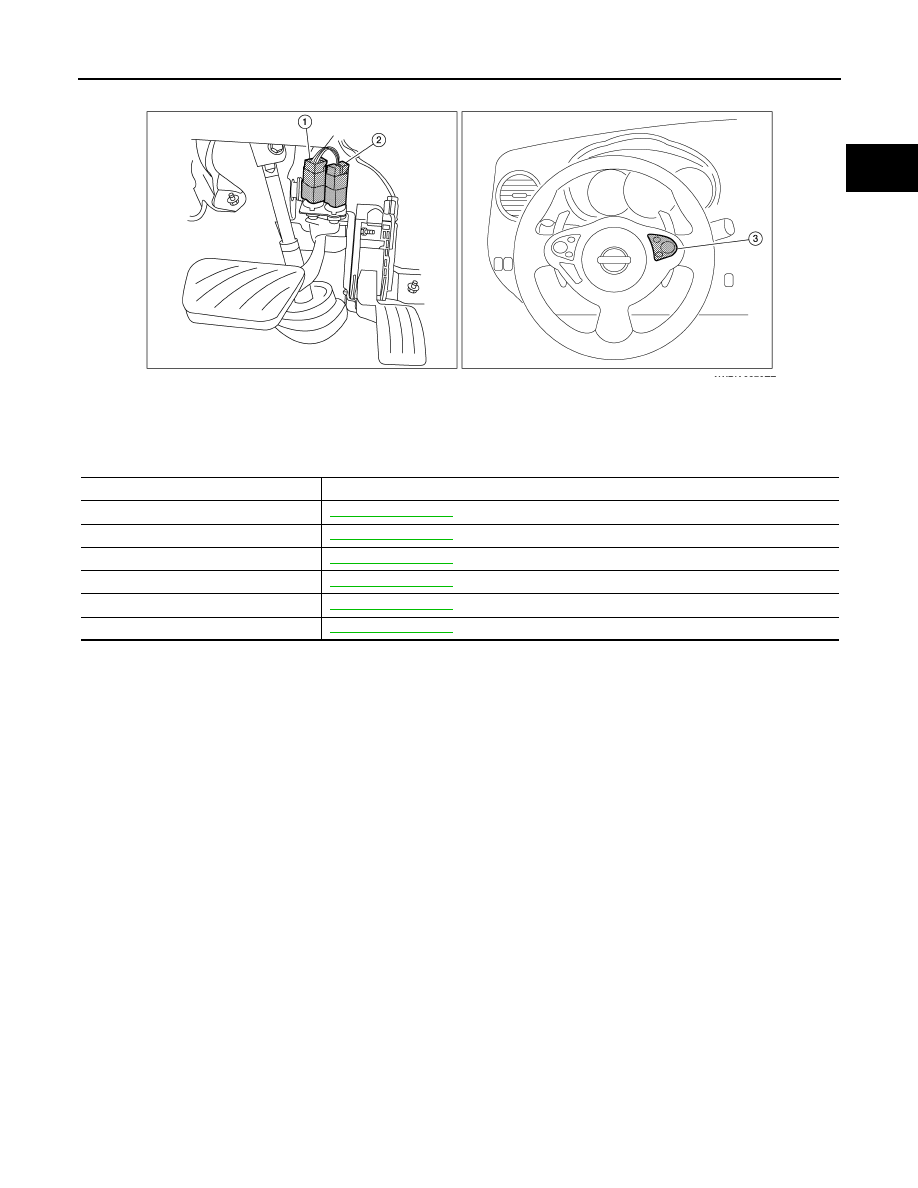

Component Description

INFOID:0000000010094816

1.

Stop lamp switch

2.

ASCD brake switch

3.

ASCD steering switch

AWBIA0670ZZ

Component

Reference

ASCD steering switch

EC-426, "Description"

ASCD brake switch

EC-429, "Description"

ASCD clutch switch

EC-429, "Description"

Stop lamp switch

EC-448, "Description"

Electric throttle control actuator

EC-465, "Description"

ASCD indicator

EC-485, "Description"
