AIR CONDITIONING CUT CONTROL

1.

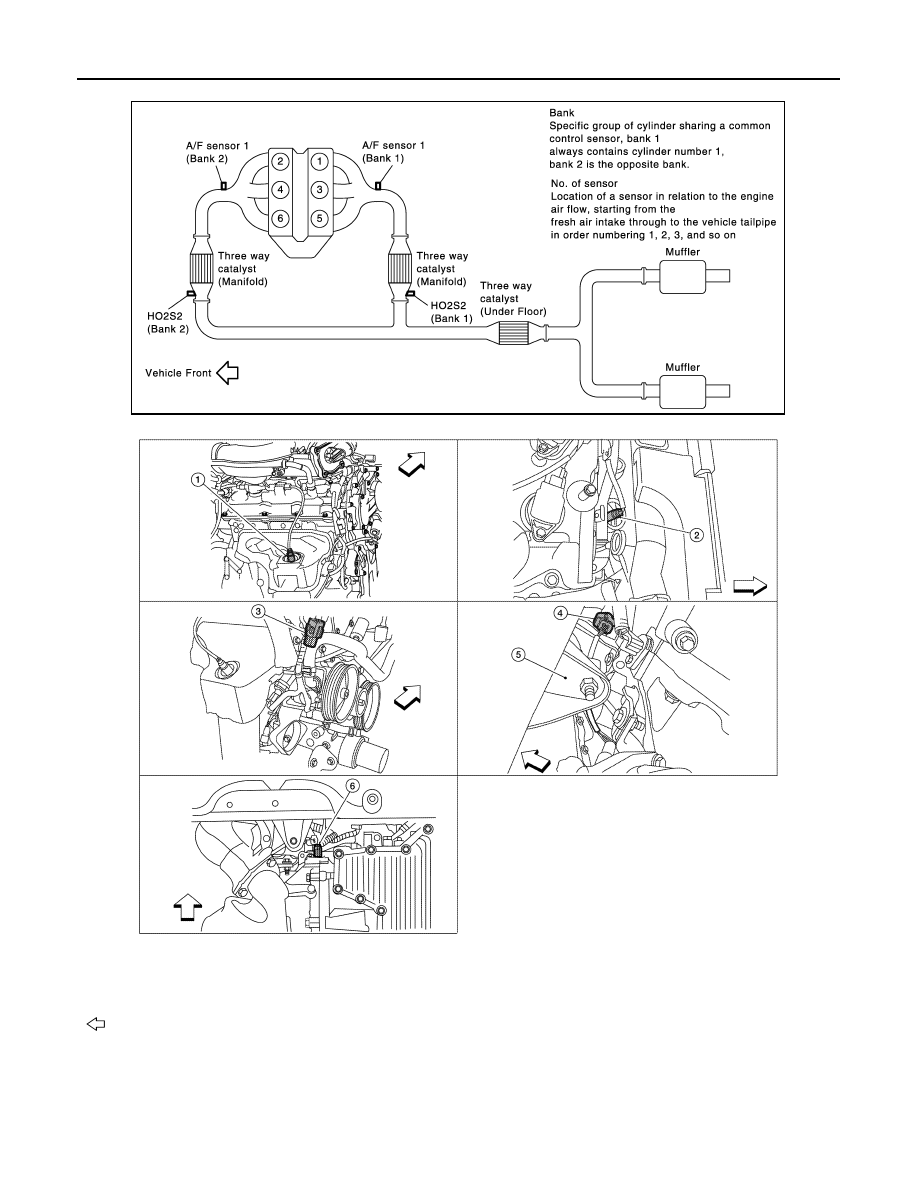

A/F sensor 1 (bank 1) (view with en-
gine removed)

2.

A/F sensor 1 (bank 2)

3.

HO2S2 (bank 1) harness connector
(view with engine removed)

4.

HO2S2 (bank 2) harness connector

5.

Front engine mount

6.

Crankshaft position sensor (POS)

: Vehicle front

JMBIA1832GB

ALBIA0605ZZ

AIR CONDITIONING CUT CONTROL

EC-65

< SYSTEM DESCRIPTION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

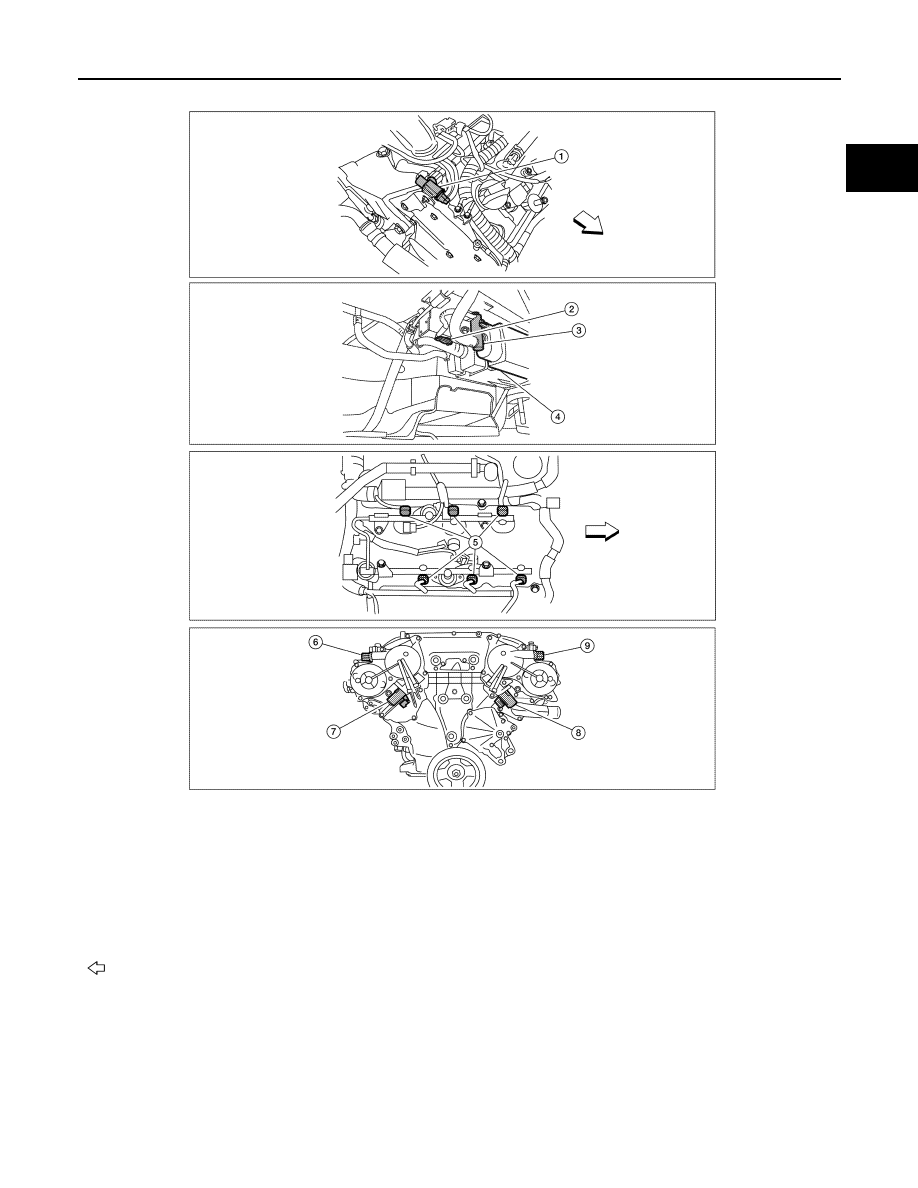

1.

Electronic controlled engine mount
control solenoid valve (view with en-
gine cover removed)

2.

EVAP control system pressure sensor
(view with rear suspension member re-
moved)

3.

EVAP canister vent control valve

4.

EVAP canister

5.

Fuel injector harness connector (view
with intake manifold collector removed)

6.

Exhaust valve timing control magnet
retarder (bank 1) (view with engine re-
moved)

7.

Intake valve timing control solenoid
valve (bank 1)

8.

Intake valve timing control solenoid
valve (bank 2)

9.

Exhaust valve timing control magnet
retarder (bank 2)

: Vehicle front

ALBIA0606ZZ

EC-66

< SYSTEM DESCRIPTION >

[VQ35DE]

AIR CONDITIONING CUT CONTROL

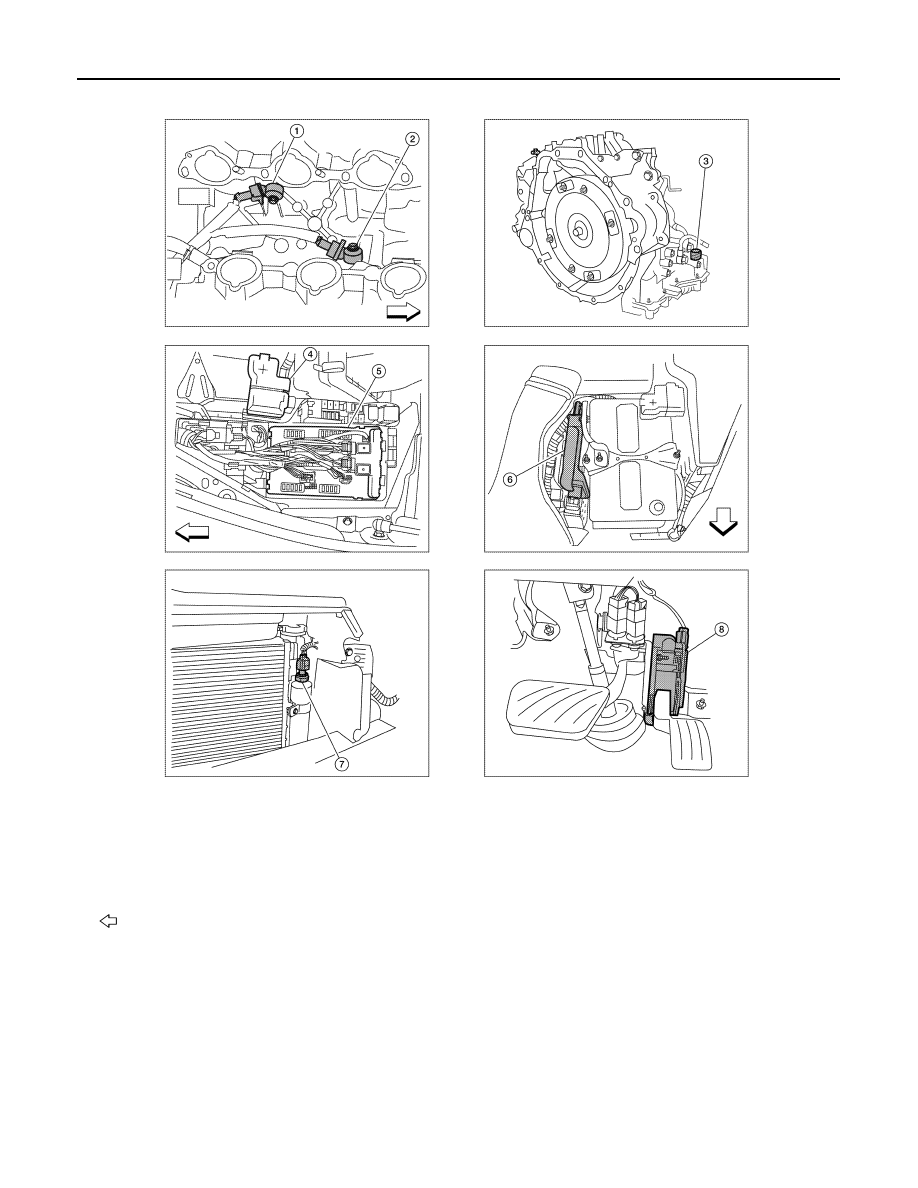

1.

Knock sensor (bank 2) (view with in-
take manifold removed)

2.

Knock sensor (bank 1)

3.

Transmission range switch
(view with CVT removed)

4.

Battery

5.

IPDM E/R

6.

ECM

7.

Refrigerant pressure sensor (view
with front grille removed)

8.

Accelerator pedal position sensor

: Vehicle front

ALBIA0607ZZ

AIR CONDITIONING CUT CONTROL

EC-67

< SYSTEM DESCRIPTION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Component Description

INFOID:0000000010094812

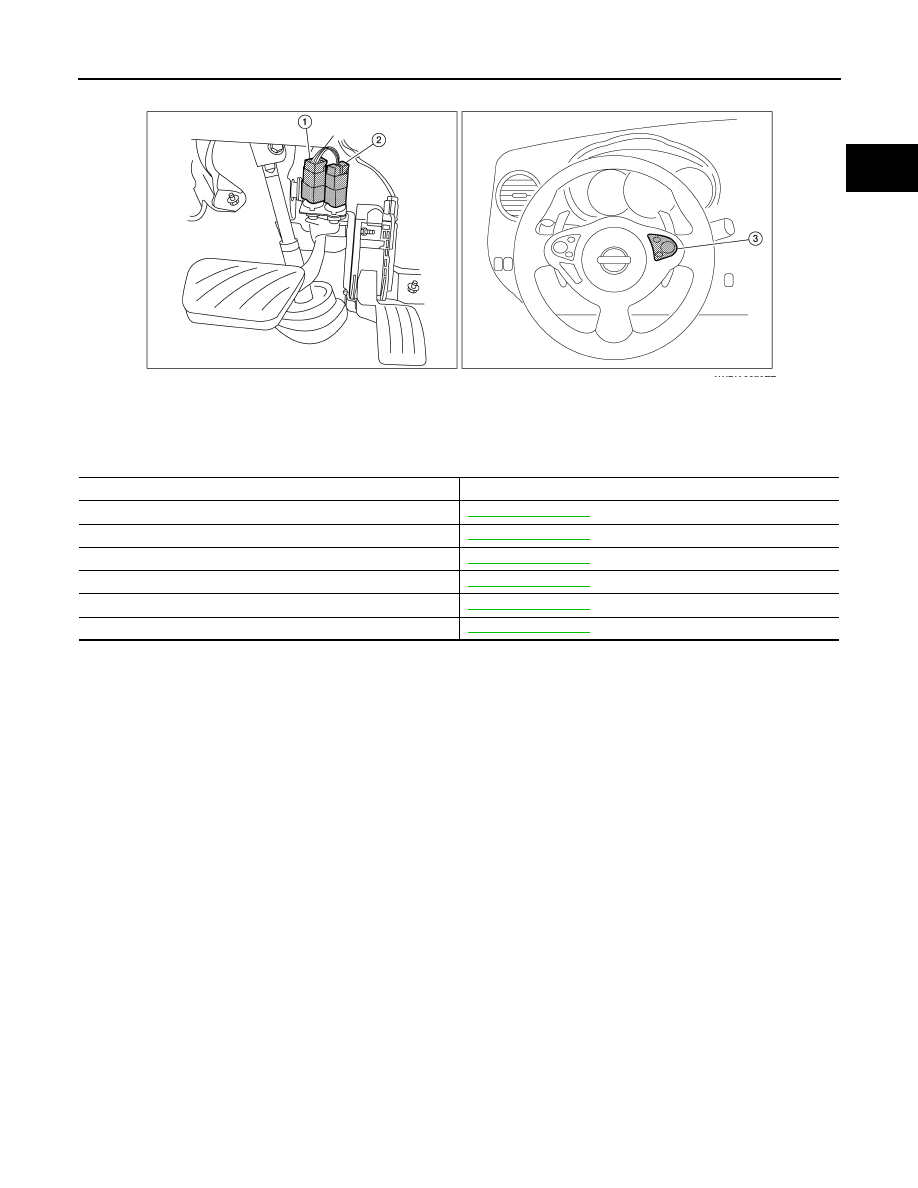

1.

Stop lamp switch

2.

ASCD brake switch

3.

ASCD steering switch

AWBIA0670ZZ

Component

Reference

Accelerator pedal position sensor

EC-467, "Description"

Camshaft position sensor (PHASE)

EC-300, "Description"

Crankshaft position sensor (POS)

EC-296, "Description"

Engine coolant temperature sensor

EC-201, "Description"

Power steering pressure sensor

EC-386, "Description"

Refrigerant pressure sensor

EC-515, "Description"
