Nissan Maxima. Manual - part 389

EC-40

< SYSTEM DESCRIPTION >

[VQ35DE]

ENGINE CONTROL SYSTEM

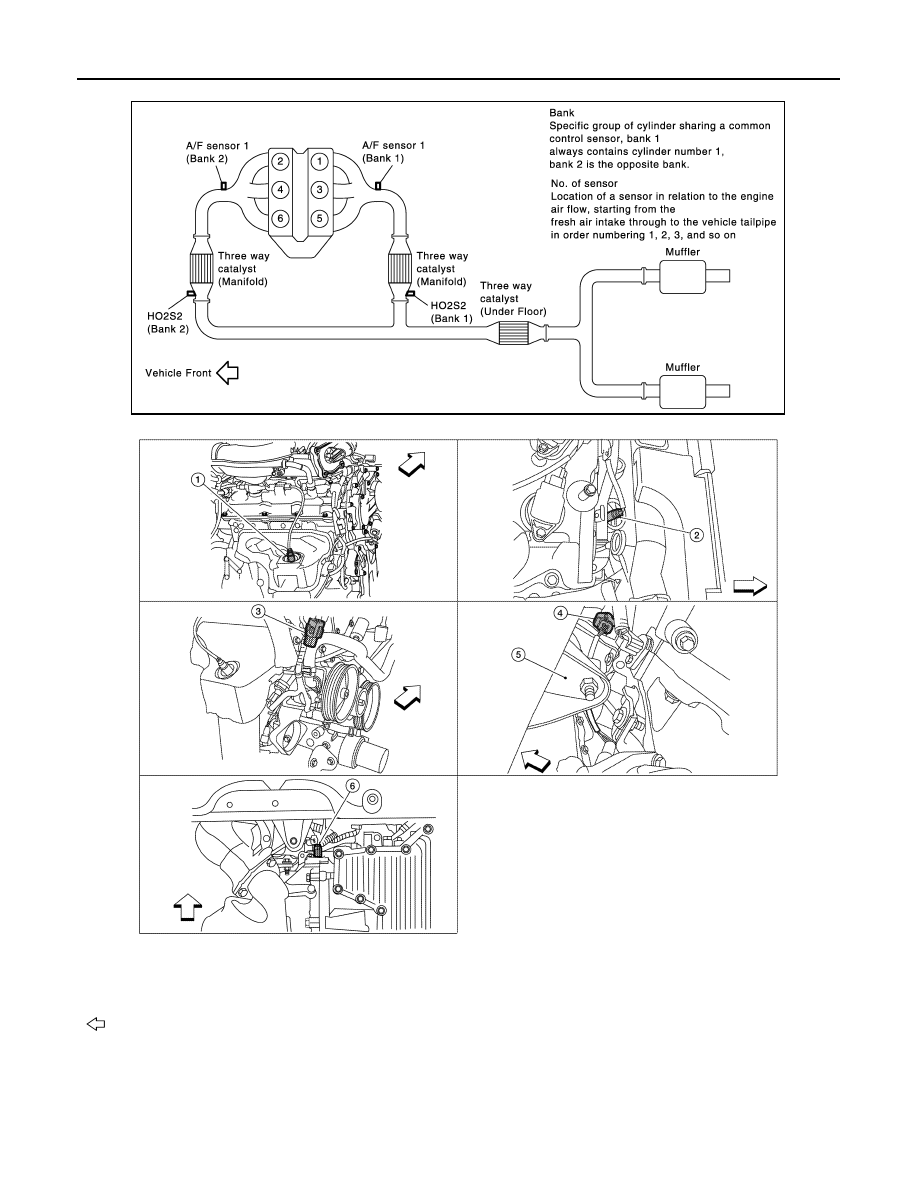

1.

A/F sensor 1 (bank 1) (view with en-
gine removed)

2.

A/F sensor 1 (bank 2)

3.

HO2S2 (bank 1) harness connector
(view with engine removed)

4.

HO2S2 (bank 2) harness connector

5.

Front engine mount

6.

Crankshaft position sensor (POS)

: Vehicle front

JMBIA1832GB

ALBIA0605ZZ

ENGINE CONTROL SYSTEM

EC-41

< SYSTEM DESCRIPTION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

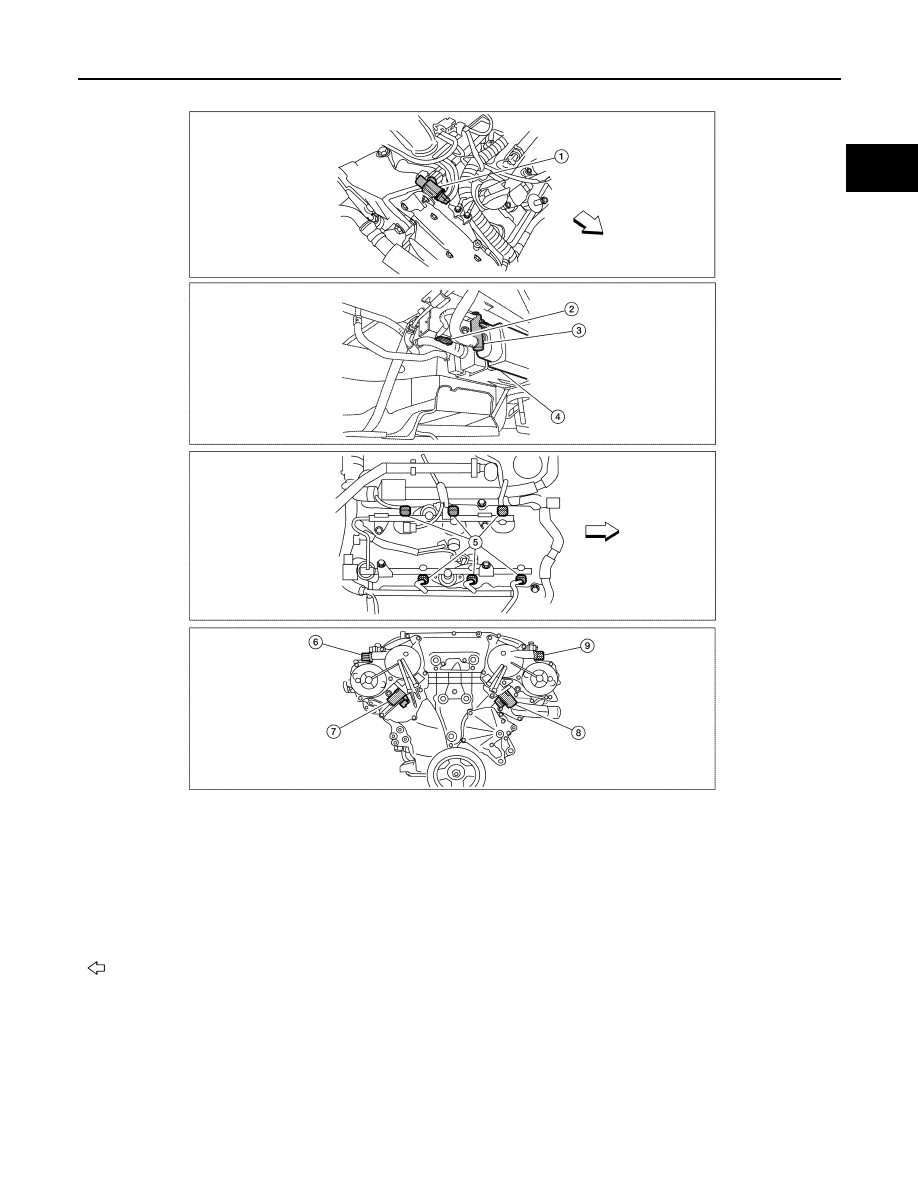

1.

Electronic controlled engine mount
control solenoid valve (view with en-
gine cover removed)

2.

EVAP control system pressure sensor
(view with rear suspension member re-
moved)

3.

EVAP canister vent control valve

4.

EVAP canister

5.

Fuel injector harness connector (view
with intake manifold collector removed)

6.

Exhaust valve timing control magnet
retarder (bank 1) (view with engine re-
moved)

7.

Intake valve timing control solenoid
valve (bank 1)

8.

Intake valve timing control solenoid
valve (bank 2)

9.

Exhaust valve timing control magnet
retarder (bank 2)

: Vehicle front

ALBIA0606ZZ

EC-42

< SYSTEM DESCRIPTION >

[VQ35DE]

ENGINE CONTROL SYSTEM

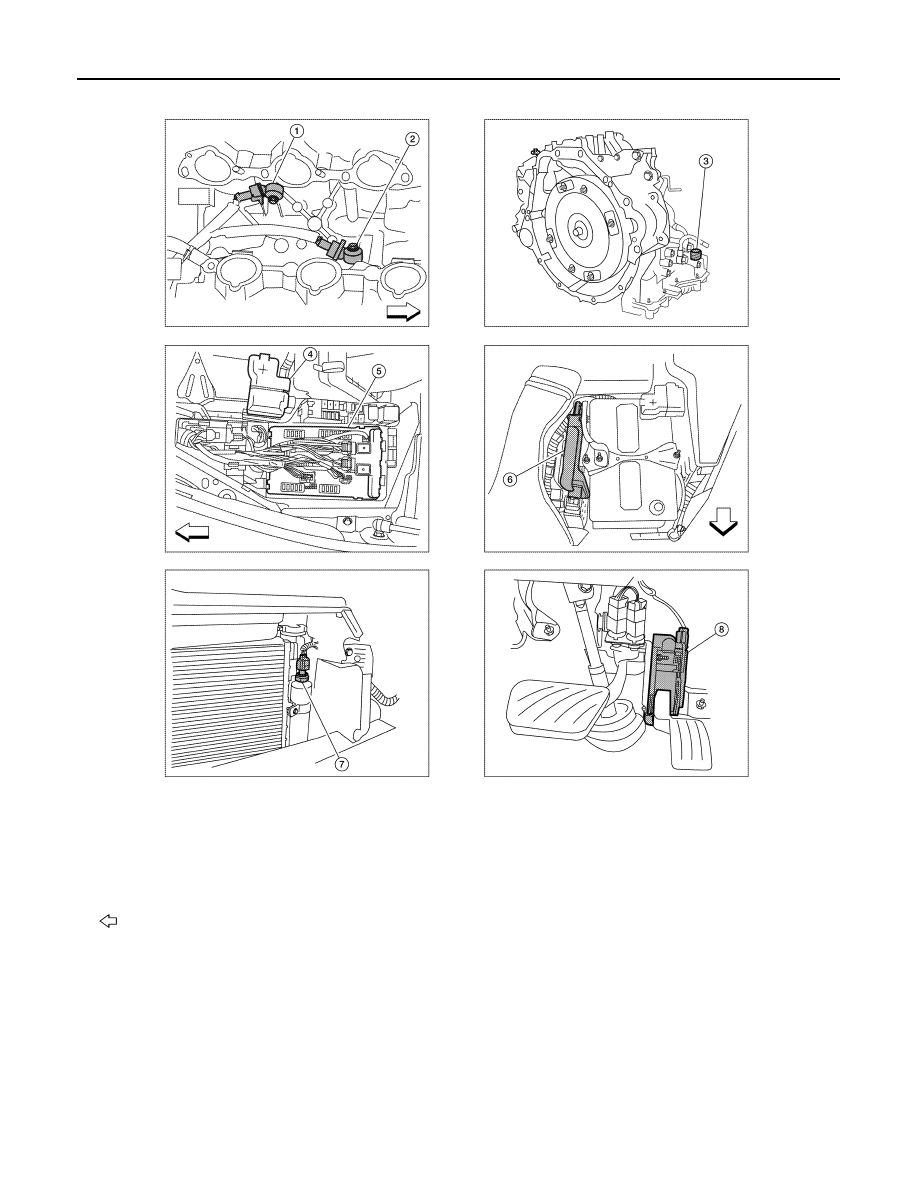

1.

Knock sensor (bank 2) (view with in-
take manifold removed)

2.

Knock sensor (bank 1)

3.

Transmission range switch
(view with CVT removed)

4.

Battery

5.

IPDM E/R

6.

ECM

7.

Refrigerant pressure sensor (view
with front grille removed)

8.

Accelerator pedal position sensor

: Vehicle front

ALBIA0607ZZ

ENGINE CONTROL SYSTEM

EC-43

< SYSTEM DESCRIPTION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

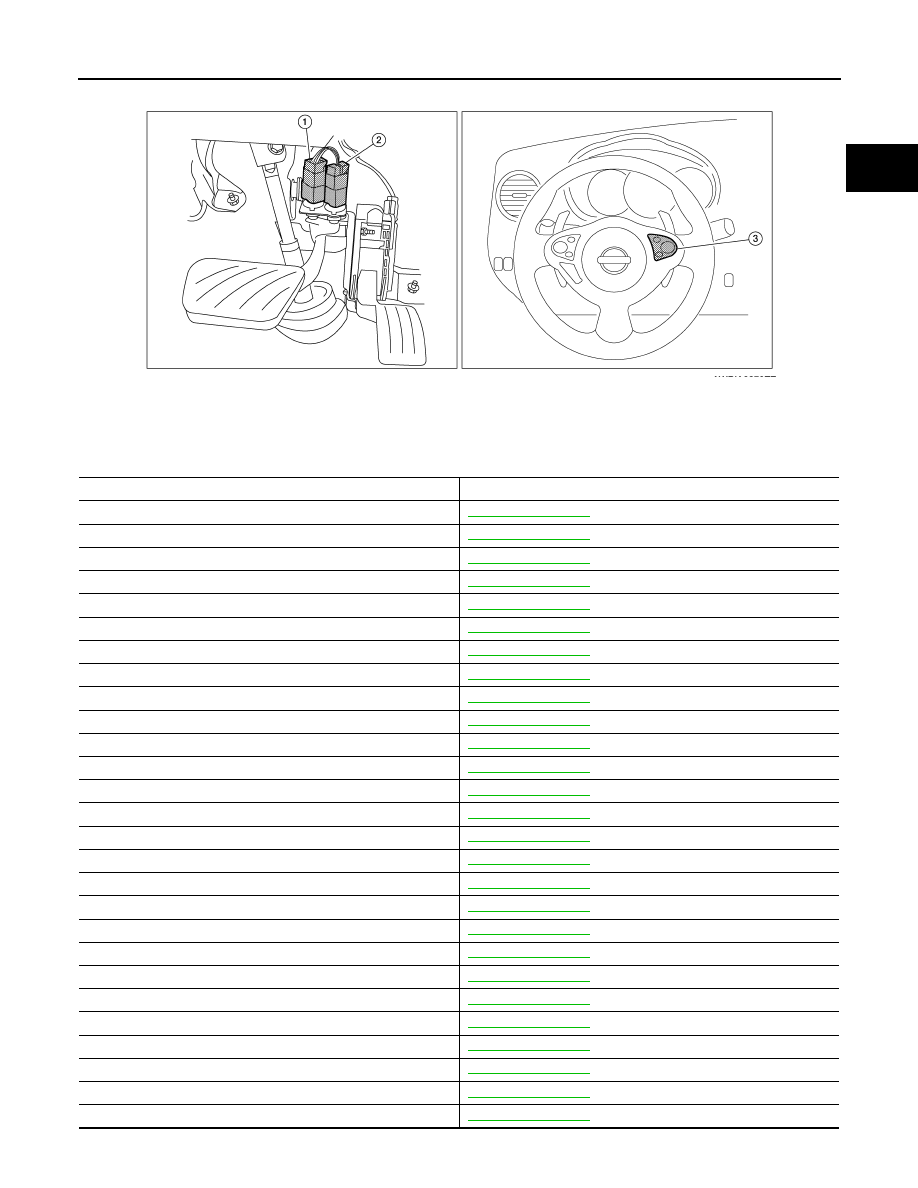

Component Description

INFOID:0000000010094800

1.

Stop lamp switch

2.

ASCD brake switch

3.

ASCD steering switch

AWBIA0670ZZ

Component

Reference

A/F sensor 1

EC-218, "Description"

A/F sensor 1 heater

EC-170, "Description"

Accelerator pedal position sensor

EC-467, "Description"

ASCD brake switch

EC-429, "Description"

ASCD steering switch

EC-426, "Description"

Battery current sensor

EC-414, "Description"

Camshaft position sensor (PHASE)

EC-300, "Description"

Crankshaft position sensor (POS)

EC-296, "Description"

Cooling fan motor

EC-486, "Description"

Electric throttle control actuator

EC-465, "Description"

Electronic controlled engine mount

EC-493, "Description"

Engine coolant temperature sensor

EC-201, "Description"

Engine oil temperature sensor

EC-277, "Description"

EVAP canister purge volume control solenoid valve

EC-323, "Description"

EVAP canister vent control valve

EC-333, "Description"

EVAP control system pressure sensor

EC-343, "Description"

Fuel injector

EC-496, "Description"

Fuel level sensor

EC-372, "Description"

Fuel pump

EC-499, "Description"

Fuel tank temperature sensor

EC-269, "Description"

Heated oxygen sensor 2

EC-230, "Description"

Heated oxygen sensor 2 heater

EC-173, "Description"

Ignition coil with power transistor

EC-502, "Description"

Intake air temperature sensor

EC-198, "Description"

Intake valve timing control solenoid valve

EC-177, "Description"

Knock sensor

EC-293, "Description"

Mass air flow sensor

EC-183, "Description"
