HOW TO ERASE PERMANENT DTC

5. Select “PERMANENT DTC STATUS” mode with CONSULT.

With GST

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

4. Turn ignition switch ON.

5. Select Service $0A with GST.
Is any permanent DTC detected?

YES

>> GO TO 1.

NO

>> END

ENGINE CONTROL SYSTEM

EC-37

< SYSTEM DESCRIPTION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

SYSTEM DESCRIPTION

ENGINE CONTROL SYSTEM

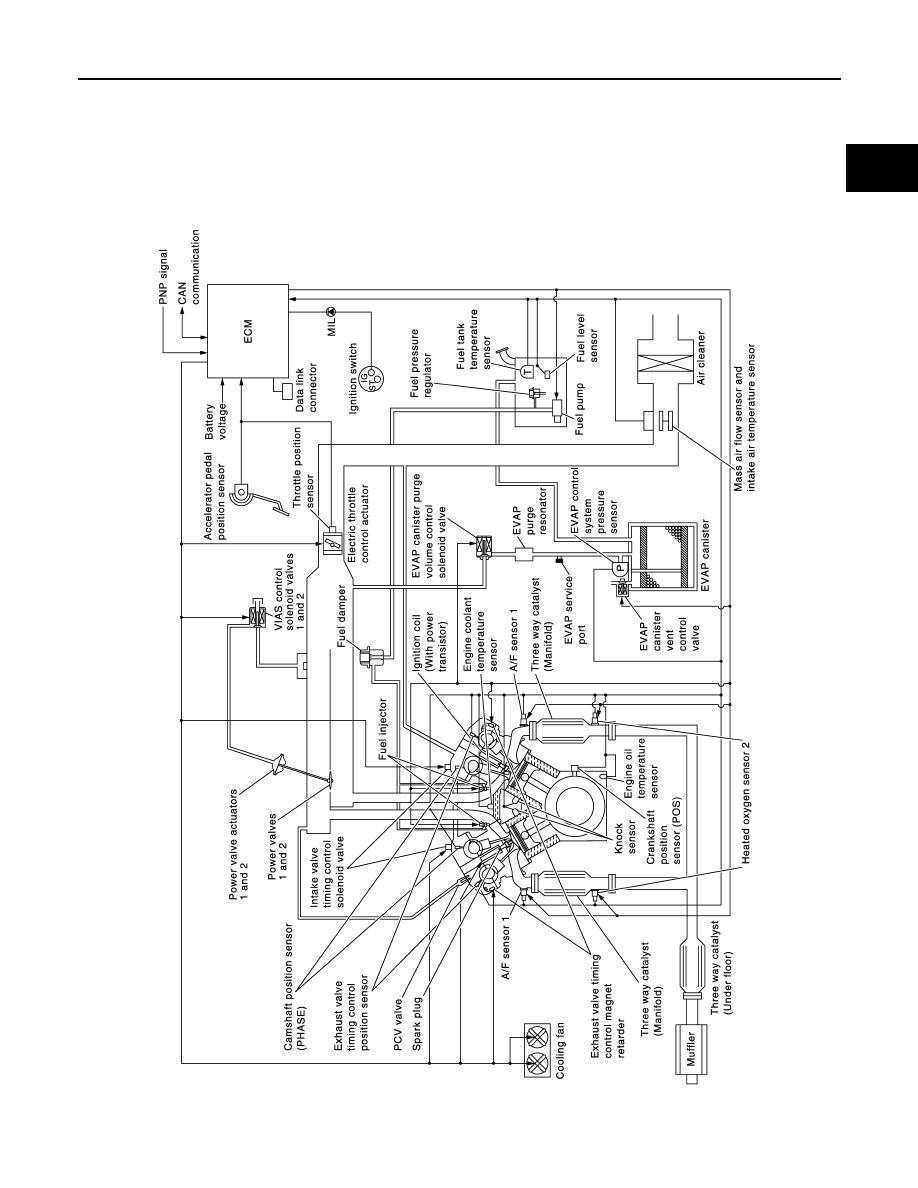

System Diagram

INFOID:0000000010094797

JMBIA1840GB

EC-38

< SYSTEM DESCRIPTION >

[VQ35DE]

ENGINE CONTROL SYSTEM

System Description

INFOID:0000000010094798

ECM performs various controls such as fuel injection control and ignition timing control.

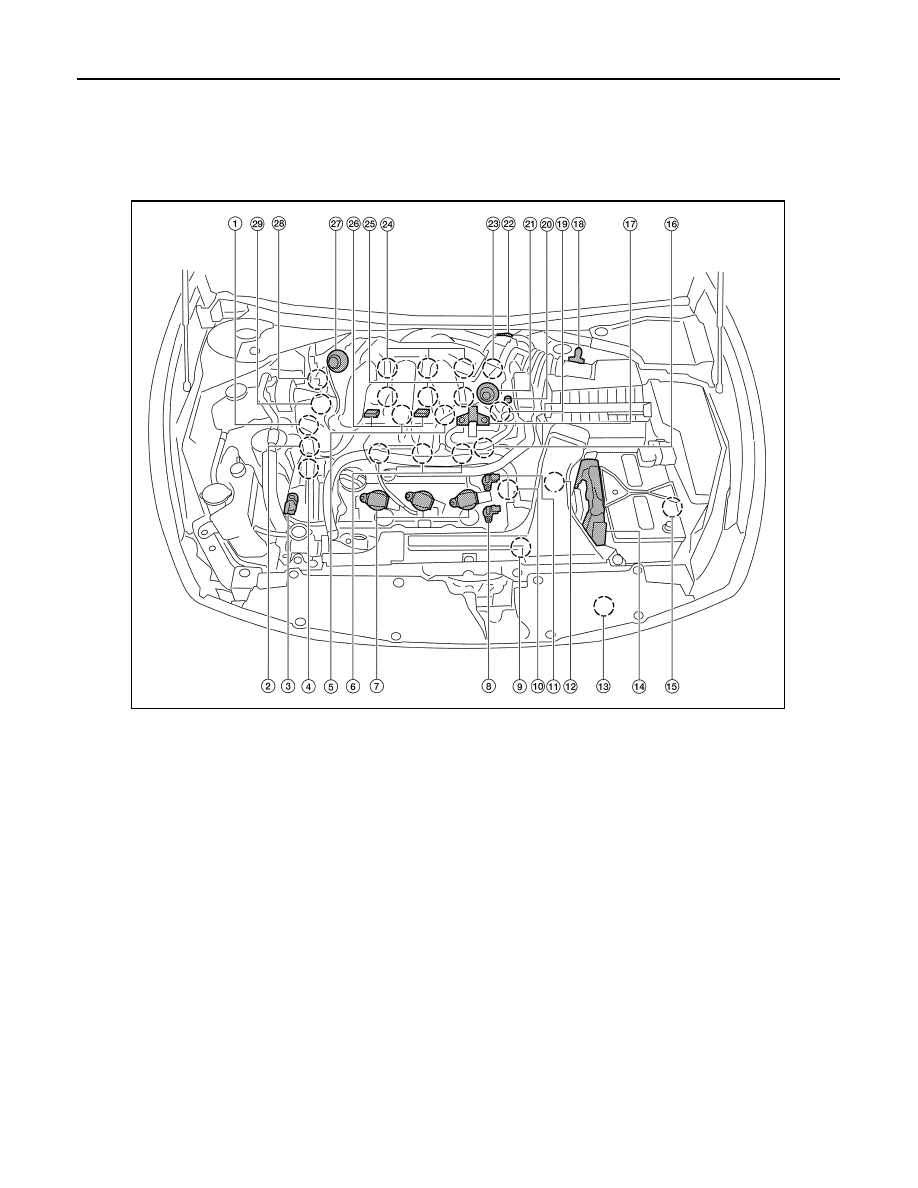

Component Parts Location

INFOID:0000000010094799

1.

Intake valve timing control solenoid
valve (bank 1)

2.

Electronic controlled engine mount
control solenoid valve

3.

Exhaust valve timing control magnet
retarder (bank 2)

4.

Intake valve timing control solenoid
valve (bank 2)

5.

Knock sensor (bank 1 and 2)

6.

Fuel injector (bank 2)

7.

Ignition coil (with power transistor) and
spark plug (bank 2)

8.

Exhaust valve timing control position
sensor (bank 2)

9.

Crankshaft position sensor (POS)

10. Engine coolant temperature sensor

11. Camshaft position sensor (PHASE)

(bank 2)

12. Transmission range switch

13. Refrigerant pressure sensor

14. ECM

15. Battery current sensor

16. Condenser-2

17. EVAP canister purge volume control

solenoid valve

18. Mass air flow sensor (with intake air

temperature sensor)

19. Camshaft position sensor (PHASE)

(bank 1)

20. EVAP service port

21. Power valve actuator 2

22. Electric throttle control actuator

23. Exhaust valve timing control position

sensor (bank 1)

24. Ignition coil (with power transistor) and

spark plug (bank 1)

25. Fuel injector (bank 1)

26. VIAS control solenoid valve 1 and 2

27. Power valve actuator 1

28. Exhaust valve timing control magnet

retarder (bank 1)

29. Power steering pressure sensor

ALBIA0603ZZ

ENGINE CONTROL SYSTEM

EC-39

< SYSTEM DESCRIPTION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

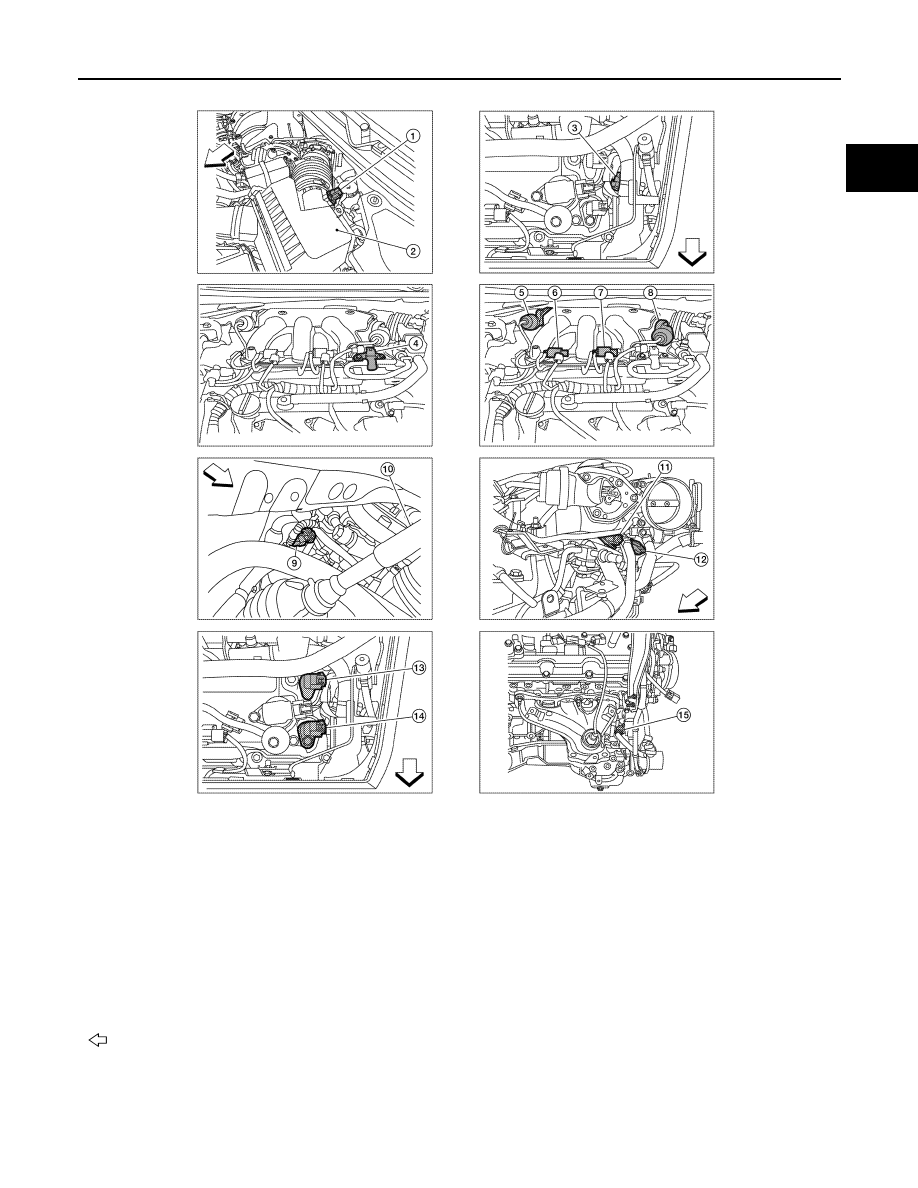

1.

Mas air flow sensor (with intake air
temperature sensor)

2.

Air cleaner case

3.

Engine coolant temperature sensor
(view with engine cover removed)

4.

EVAP canister purge volume control
solenoid valve (view with engine cover
removed)

5.

Power valve actuator 1 (view with en-
gine cover removed)

6.

VIAS control solenoid valve 1

7.

VIAS control solenoid valve 2

8.

Power valve actuator 2

9.

Power steering pressure sensor

10. Tie rod (RH)

11. Camshaft position sensor (PHASE)

(bank 1) (view with air cleaner case re-
moved)

12. Exhaust valve timing control position

sensor (bank 1)

13. Camshaft position sensor (PHASE)

(bank 2) (view with air cleaner case re-
moved)

14. Exhaust valve timing control position

sensor (bank 2)

15. Engine oil temperature sensor

: Vehicle front

ALBIA0604ZZ
