CHG-30

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Generator

INFOID:0000000009465989

*: Always check with the Parts Department for the latest parts information

Application

VQ35DE

Type*

A003TJ3691ZC

Mitsubishi

Nominal rating

12V-130A

Ground polarity

Negative

Minimum revolution under no-load

1,000 rpm

Hot output current (when 13.5 volts are applied)

More than 66A/1,500 rpm

More than 108A/2,500 rpm
More than 124A/5,000 rpm

Regulated output voltage

14.1 - 14.7V @ 20

°C (68°F)

Adjustment range of power generation voltage variable control

11.4 - 15.6 V

CO-1

ENGINE

C

D

E

F

G

H

I

J

K

L

M

SECTION

CO

A

CO

N

O

P

CONTENTS

ENGINE COOLING SYSTEM

VQ35DE

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

2

Precaution for Liquid Gasket .....................................

2

PREPARATION ............................................

4

PREPARATION ...................................................

4

Special Service Tool  .................................................

4

Commercial Service Tool  ..........................................

4

SYSTEM DESCRIPTION  ..............................

6

OVERHEATING CAUSE ANALYSIS ..................

6

Troubleshooting Chart ...............................................

6

COOLING SYSTEM ............................................

8

Cooling Circuit ...........................................................

8

Schematic .................................................................

9

PERIODIC MAINTENANCE .........................

10

ENGINE COOLANT  ...........................................

10

System Inspection ...................................................

10

Changing Engine Coolant  .......................................

11

REMOVAL AND INSTALLATION ...............

14

RADIATOR ........................................................

14

Exploded View .........................................................

14

Removal and Installation  .........................................

14

COOLING FAN ..................................................

16

Removal and Installation  .........................................

16

WATER PUMP  ..................................................

17

Exploded View .........................................................

17

Removal and Installation  .........................................

17

THERMOSTAT AND THERMOSTAT HOUS-
ING ....................................................................

22

Removal and Installation  .........................................

22

WATER OUTLET AND WATER PIPING  ..........

24

Removal and Installation  .........................................

24

UNIT DISASSEMBLY AND ASSEMBLY  ....

26

COOLING FAN ..................................................

26

Disassembly and Assembly of Cooling Fan  ............

26

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

27

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

27

Capacity ...................................................................

27

Thermostat ..............................................................

27

Radiator ...................................................................

27

CO-2

< PRECAUTION >

[VQ35DE]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009469257

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution for Liquid Gasket

INFOID:0000000009469258

REMOVAL OF LIQUID GASKET

• After removing nuts and bolts, separate the mating surface using Tool and remove old liquid gasket.

CAUTION:

Be careful not to damage the mating surfaces.

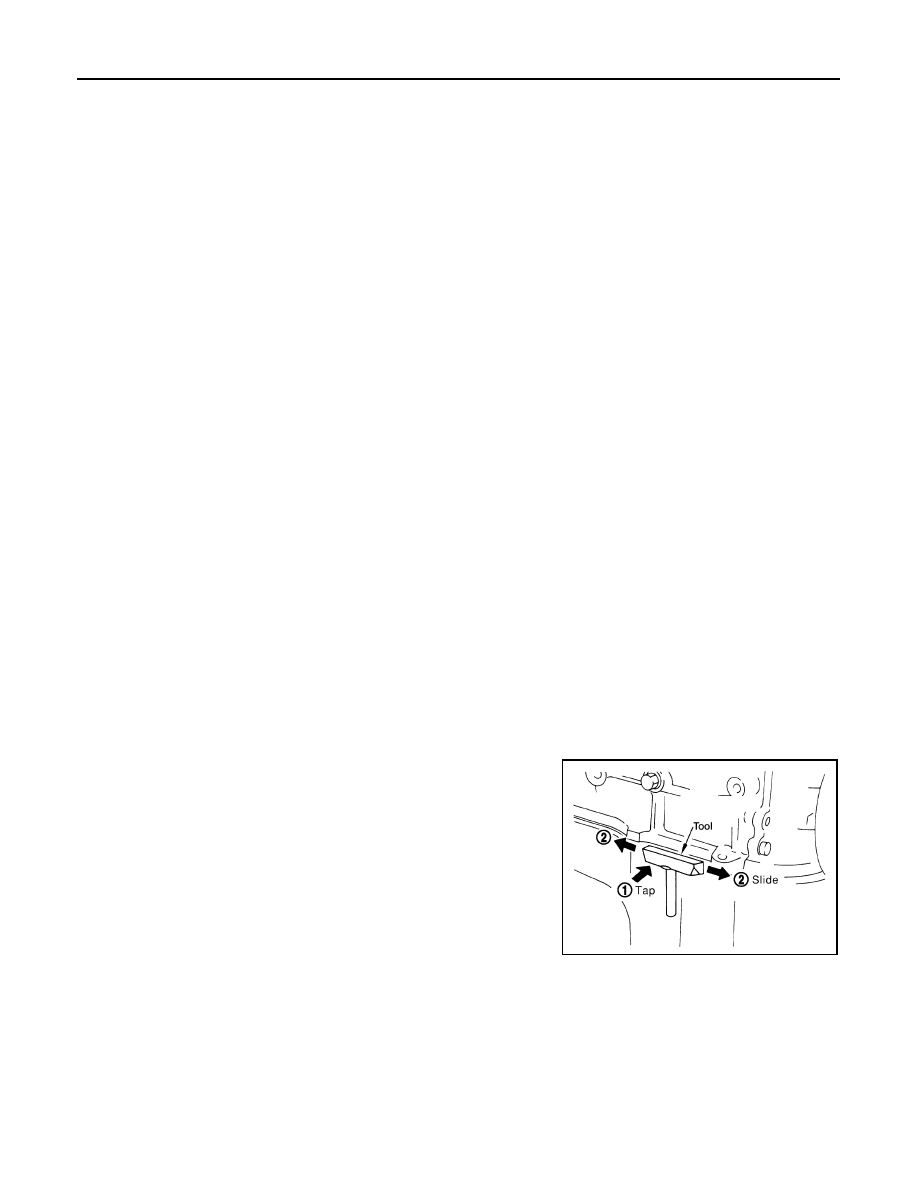

• Tap (1) Tool to insert it, and then slide it (2) by tapping on the side

as shown.

• In areas where Tool is difficult to use, use plastic hammer to lightly

tap the parts, to remove it.

CAUTION:

If for some unavoidable reason tool such as screwdriver is

used, be careful not to damage the mating surfaces.

LIQUID GASKET APPLICATION PROCEDURE

Tool number

: KV10111100 (J-37228)

WBIA0566E

PRECAUTIONS

CO-3

< PRECAUTION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

CO

N

P

O

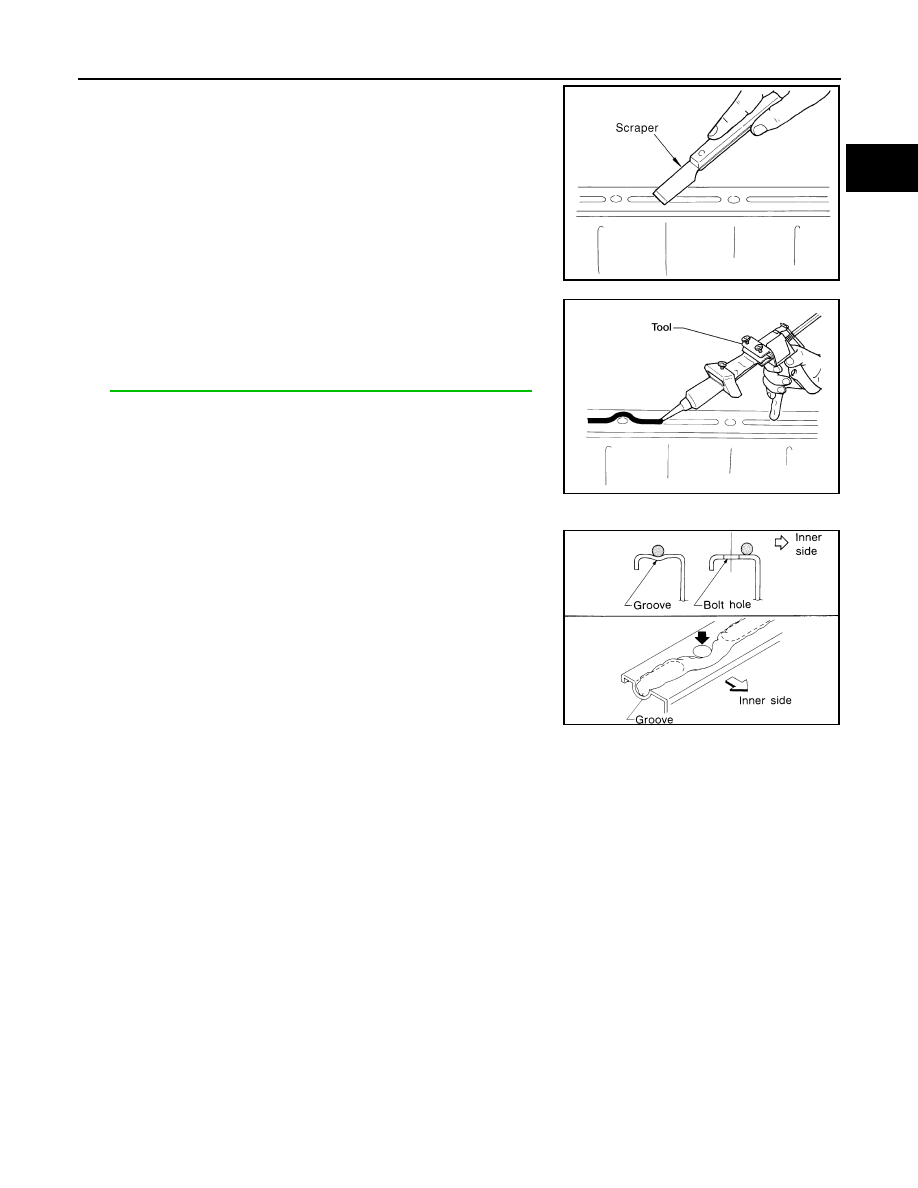

1. Remove old liquid gasket adhering to the liquid gasket applica-

tion surface and the mating surface using scraper.

• Remove liquid gasket completely from the groove of the liquid

gasket application surface, bolts, and bolt holes.

2. Thoroughly clean the mating surfaces and remove adhering

moisture, grease and foreign materials.

3. Attach liquid gasket tube to Tool.

Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-21, "Recommended Chemical Products and Sealants"

.

4. Apply liquid gasket without breaks to the specified location with the specified dimensions.

• If there is a groove for the liquid gasket application, apply liq-

uid gasket to the groove.

• As for the bolt holes, normally apply liquid gasket inside the

holes. Occasionally, it should be applied outside the holes.

Make sure to read the text of Service Manual.

• Within five minutes of liquid gasket application, install the mat-

ing component.

• If liquid gasket protrudes, wipe it off immediately.

• Do not retighten nuts or bolts after the installation.

• After 30 minutes or more have passed from the installation, fill

engine oil and engine coolant.

CAUTION:

If there are more specific instructions in the procedures contained in this manual concerning liquid

gasket application, observe them.

PBIC0003E

Tool number

: WS39930000 ( — )

WBIA0567E

SEM159F
